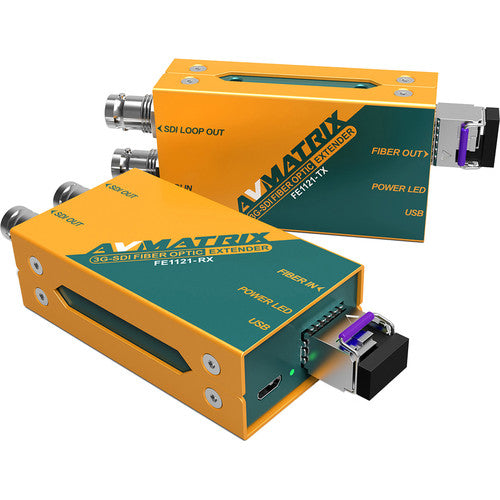

The 3G-SDI Fiber Optic Extender from AV Matrix extends HD/SD signals up to 3G-SDI using your fiber optic cable network. This transmitter and receiver set has a range of up to 12.5 miles and features dual 3G-SDI outputs on the receiver. Supporting all SDI video resolutions up to 1080p at a bandwidth of up to 3Gb/s, this compact set is compatible with single-mode LC simplex fiber cable. Features include SDI equalization, re-clocking, hot-pluggable SFP modules with LC connectors, and up to 16-channel embedded audio support. This set includes two USB cables, 5V power adapters, and mounting brackets.
Technical Specifications:
Inputs
1 x BNC (3G-SDI / HD-SDI / SD-SDI)
Embedded Audio Input
SDI: 16-Channel
Outputs
1 x LC
2 x BNC (3G-SDI / HD-SDI / SD-SDI)
Embedded Audio Output
Video Standard Compliance
SMPTE 259M/274M/292M/296M/297M/425M
ITU -R BT.601/BT.656
Reclocking
Yes
HDCP Support
No
EDID Support

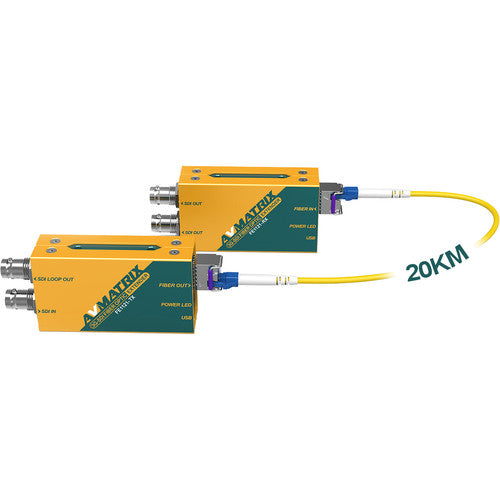

Max Transmission Distance
1080p:
12.4 Miles / 20 km (via Single-Mode Fiber)
Supported Cable Types
Single-Mode Fiber
Fiber Center Wavelength
1490 nm

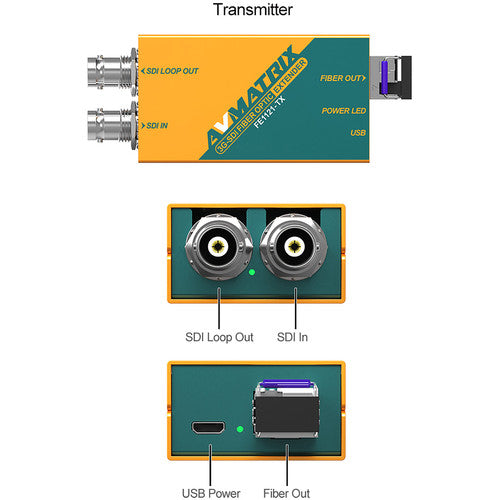

Transmitter Power Connector
1 x USB Micro-B (3.3 to 5 VDC) Input

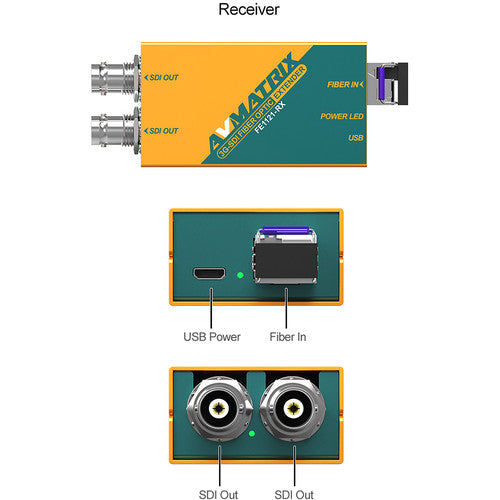

Receiver Power Connector
Transmitter Power Consumption
Device: (1.5 W)
Receiver Power Consumption
