AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display

AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display

Name: AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display
Brand: AVMATRIX
SKU: PVS0613U
Price: 108700 INR
Availability: InStock

Rs. 108,700.00

- +

AVMATRIX ⁄ AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display

Key Features:

Mix 6 x Input Formats up to 1080p60
2 x HDMI and 4 x SDI Auto-Detect Inputs
1080p60 and 1080i60 Scaled PGM Out
USB-C 3.0 Livestreaming Output
1 x HDMI and 2 x SDI PGM Outputs
1 x HDMI and 1 x SDI Multiview Outputs
1 x SDI AUX Output (PGM or PVW)
3.5mm Stereo Audio I/O
RCA (L/R) Analog I/O
GPIO Tally

The Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display from AVMATRIX supports a mix of different resolutions and frame rates up to 1080p60 over two HDMI and four SDI auto-detecting inputs. The switcher provides a flexible solution for sports, events, education, and various other live production applications. All the signals can be scaled to 1080p60 or 1080i60 on PGM output, and you can switch between the sources and apply audio mixing and transition effects.

Featuring a USB-C 3.0 output, the switcher can also be connected to your Windows/Mac/Linux computer as if it was a webcam. You'll be able to stream connected video and audio signals to UVC/UAC compatible platforms such as OBS Studio, Skype, YouTube Live, Facebook Live, Zoom, and Teams.

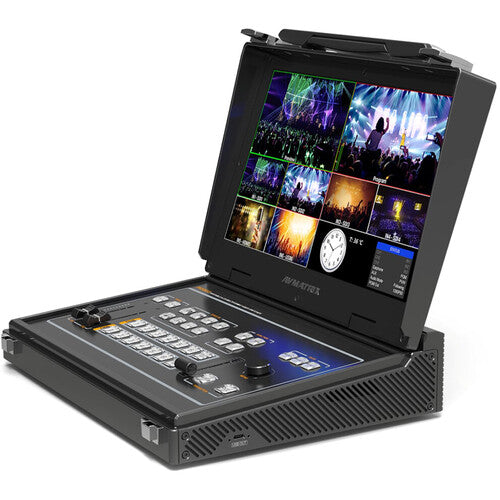

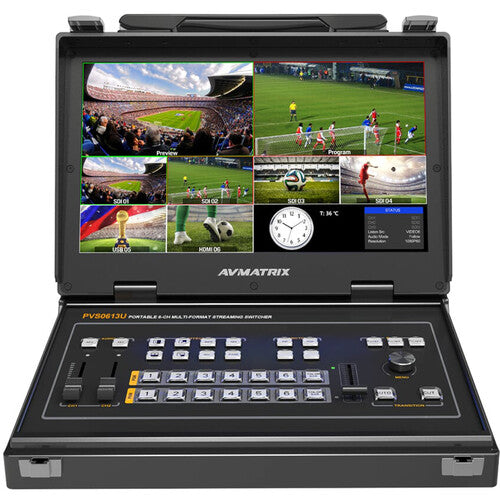

In an all-in-one portable design, the switcher is housed in a robust metal case and has a 13.3" Full HD IPS display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter. A clock and a menu list are also displayed in the bottom right corner.

Key Features

Multiview output fixed at 1080p60; PGM scaled output selectable via a knob
Two HDMI and four SDI inputs
One HDMI and two SDI PGM outputs
One HDMI and one SDI multiview outputs
SDI AUX output can be selected as PGM or PVW
UVC livestreaming via USB-C 3.0 connection
One 3.5mm stereo audio input; one RCA (L/R) input
One 3.5mm stereo audio output; one RCA (L/R) output
RJ45 LAN interface (for updates; synchronize local time)
GPIO tally
T-Bar/Auto/Cut transitions
Mix/Fade/Wipe transition effects
PiP mode with adjustable size and position
FTB (fade to black) emergency button

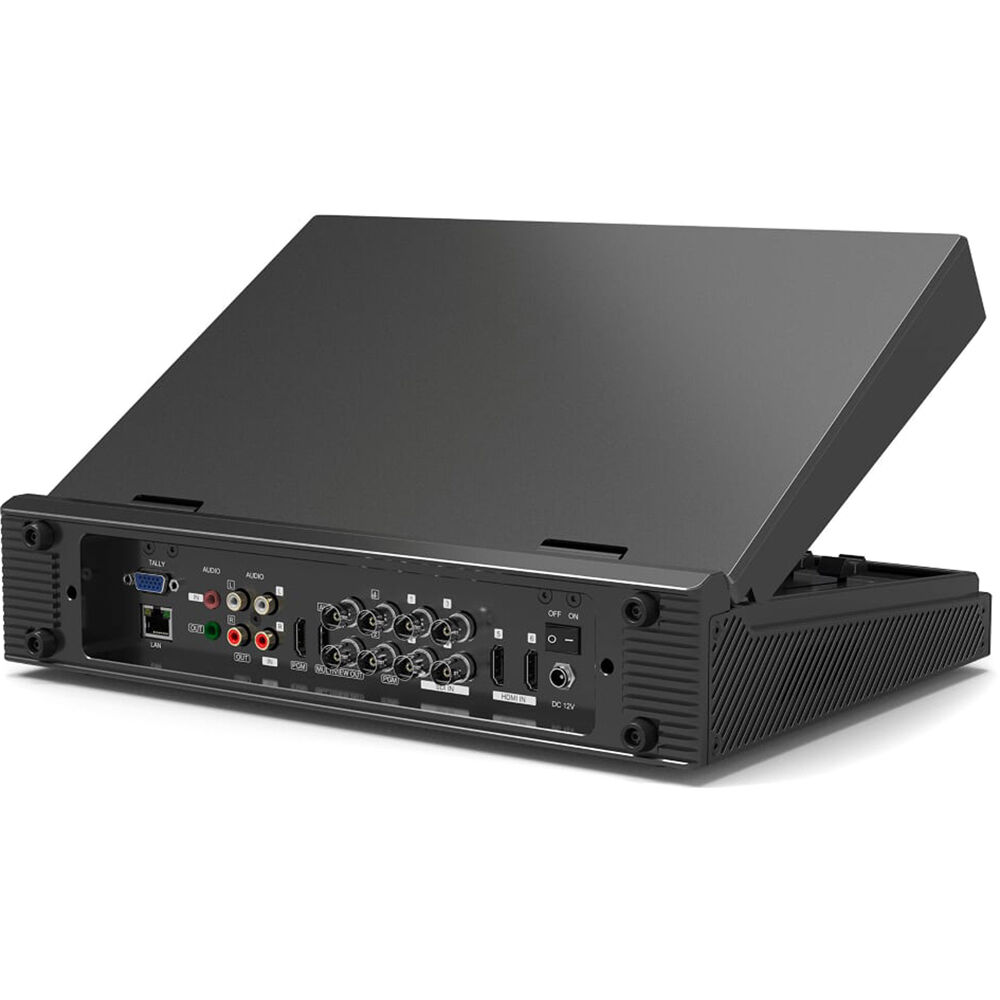

Technical Specifications:

Video Inputs	2 x HDMI 4 x BNC (3G-SDI)
Input Video Format	HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs	1 x 1/8" / 3.5 mm TRS Stereo 1 x 2RCA Analog
Video Outputs	1 x HDMI (Program) 2 x BNC (3G-SDI) (Program) 1 x USB-C
Output Video Format	HDMI / SDI 1080p at 24/25/30/50/60 fps 1080i 50/60 fps USB-C WUXGA (1920 x 1200) 1080p WUXGA+ (1680 x 1050) UXGA (1600 x 1200) WXGA+ (1440 x 900) FWXGA (1366 x 768) SXGA (1280 x 1024) 1280 x 960 WXGA (1280 x 800) 1280 x 720 (Non-Standard WXGA) XGA (1024 x 768) 1024 x 576 960 x 540 856 x 480 SVGA (800 x 600) 576i / 625 lines 720 x 480 VGA (640 x 480) 640 x 360
Audio Outputs	1 x 1/8" / 3.5 mm TS Stereo 1 x 2RCA Analog
Multiview Output	6-Way Multiview viaHDMI, SDI
Other I/O	1 x BNC Output 1 x DE-15/DB-15 Tally 1 x RJ45 LAN
Video Standard Compliance	SMPTE 259M/292M/424M
Display Size	13.3"
Screen Resolution	1920 x 1080
OS Compatibility	Windows 10 Windows 8 Windows 7 macOS 10.8 or Later Linux 2.6.38 or Later *As of March, 2021: Check with manufacturer for the most up-to-date compatibility
Wi-Fi	No
Bluetooth	No
Power I/O	1 x Barrel (12 VDC at 2 A) Input
Power Consumption	25 W
Operating Temperature	12 to 92°F / -20 to 60°C
Storage Temperature	-22 to 158°F / -30 to 70°C
Operating Humidity	20 to 70%
