Available M/E Layers

2 M/E

Effect Types

1 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key

Graphics Memory

32 Images

Downstream Keys

1 x Chroma, Luma, DVE

Generators

2 x Color

1 x Pattern

Audio Mixing

2-Channel Mixing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p

Color Processing

YUV

RGB

Number of Video Input Sources

4

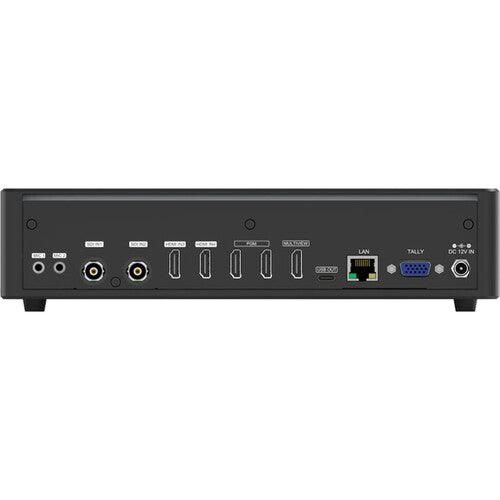

Video Inputs

2 x HDMI Female

2 x BNC (3G-SDI) Female

Input Video Format

HDMI

1080p 23.98/24/25/29.97/30/50/59.94/60 fps

1080i 50/59.94/60 fps

720p 24/25/29.97/30/50/59.94/60 fps

576p 50 fps

576i / 625 lines 50 fps

480p 59.94/60 fps

480i / 525 lines 59.94/60 fps

Audio Inputs

2 x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (per Input)

SDI: 2-Channel (per Input)

Video Output Channels

2

Video Outputs

2 x HDMI Female (Program)

1 x HDMI Female (Preview)

1 x USB-C (USB Video) Female

Output Video Format

HDMI

1080p at 23.98/24/25/30/50/60 fps

1080i 50/60 fps

USB-C

1080p at 60 fps

Embedded Audio Output

HDMI: 2-Channel (per Output)

USB-C: 2-Channel (per Output)

Multiview Output

4-Way Multiview viaHDMI

Monitor Output

1 x HDMI

Other I/O

1 x DE-15/DB-15 Tally Input

1 x RJ45 LAN Input/Output

1 x USB-A Firmware, Service Input

Video Standard Compliance

SMPTE 259M/292M/424M

Recording Media

1 x USB-A 2.0 (External Drives)

Display Size

10.1"

Screen Resolution

1920 x 1080

Wi-Fi

No

Bluetooth

No

Power I/O

1 x Barrel (7 to 24 VDC) Input

Power Consumption

12 VDC at 1.8 A (12 W)
