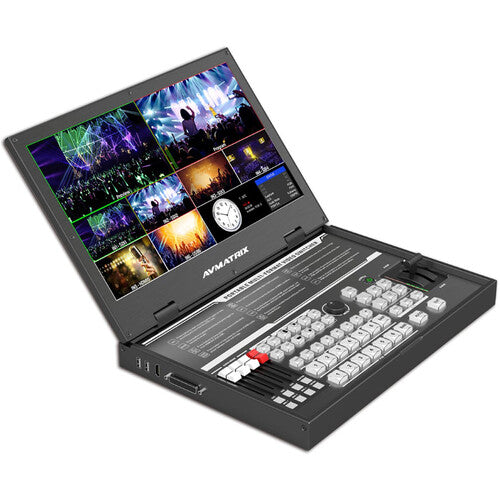

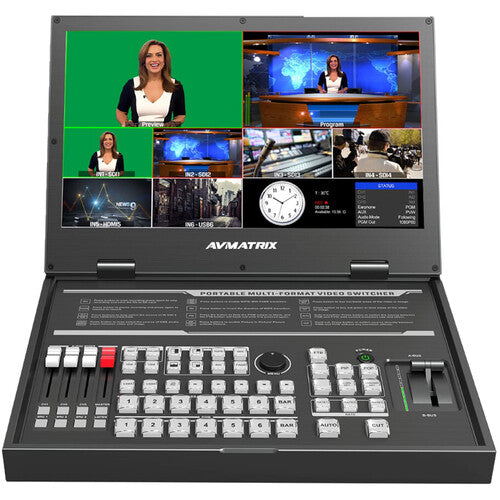

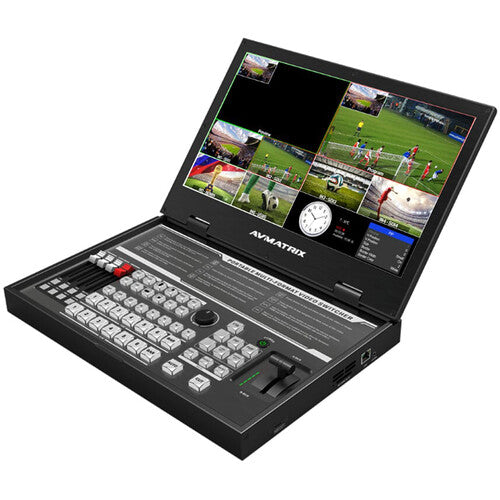

The PVS0615U Portable 6-Channel Switcher from AVMATRIX is similar to the predecessor PVS0615 model but additionally features a USB Type-C live streaming output (UVC/UAC). It supports up to six signals in different resolutions and frame rates. The first four channels must be SDI and the other two can be any mix from two HDMI, two DVI/VGA, and two USB Type-A inputs, with HDMI supporting up to UHD 4K60 resolution. All the connections are autodetecting. The portable switcher provides a flexible solution for sports, events, education, and other live production applications. It allows video switching, audio mixing, and up to 1080p60 H.264 PGM recording via an SD card slot.All the signals can be scaled to 1080p60 or 1080i60 on PGM output via SDI/HDMI. The switcher is housed in a robust metal case and has a 15.6" Full HD display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter.
Technical Specifications:

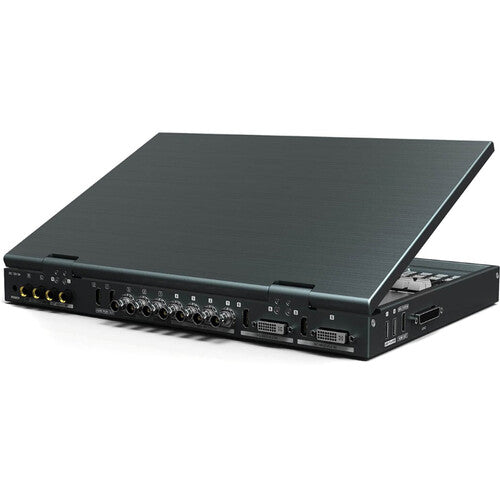

Video Inputs
2 x HDMI
4 x BNC (3G-SDI)
2 x DVI-I DL (DVI/VGA)
Input Video Format
HDMI (4:4:4/4:2:2 RGB, YUV)
UHD 4K at 30/50/60 fps
DCI 2K 30/50/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
SDI (4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
480i / 525 lines
576i / 625 lines
DVI / VGA
1080p
WUXGA+ (1680 x 1050)
UXGA (1600 x 1200)
HD+ (1600 x 900)
WXGA+ (1440 x 900)
FWXGA (1366 x 768)
1360 x 768
SXVGA (1280 x 1024)
SXGA- (1280 x 960)
WXGA (1280 x 800)
1280 x 768
720p
XGA+ (1152 x 864)
XGA (1024 x 768)
VGA (640 x 480)
Audio Inputs
1 x 2RCA Analog
Video Outputs
2 x HDMI (Program)
2 x BNC (3G-SDI) (Program)
1 x USB-C
Output Video Format
HDMI / SDI
1080p at 24/25/30/50/60 fps
1080i 50/60 fps
USB-C
WUXGA (1920 x 1200)
SXGA (1280 x 1024)
1280 x 960
1024 x 576
960 x 540
856 x 480
SVGA (800 x 600)
720 x 576
720 x 480
640 x 360
Audio Outputs
1 x 1/8" / 3.5 mm TS
Multiview Output
6-Way Multiview viaHDMI

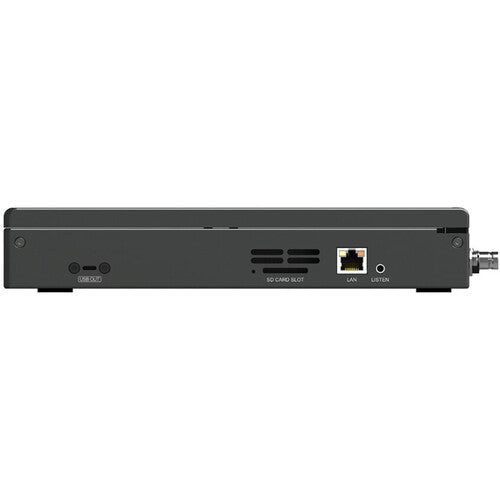

Other I/O
2 x USB-A Input
1 x BNC Output
1 x DB-25 Tally
1 x RJ45 Firmware, LAN, Sync
Video Standard Compliance
SMPTE 259M/292M/424M
Display Size
15.6"
Screen Resolution
1920 x 1080
OS Compatibility
Windows 10
Windows 8
Windows 7
macOS 10.8 or Later
Linux 2.6.38 or Later
*As of April, 2021: Check with manufacturer for the most up-to-date compatibility
Wi-Fi
No
Bluetooth
Power I/O
1 x Barrel (12 VDC at 2.8 A) Input
Power Consumption
33 W
Operating Temperature
12 to 92°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
Operating Humidity
20 to 70%
Storage Humidity
90%
