AVMATRIX UC1218 HDMI to USB 3.0 Video Capture

AVMATRIX UC1218 HDMI to USB 3.0 Video Capture

Name: AVMATRIX UC1218 HDMI to USB 3.0 Video Capture
Brand: AVMATRIX
SKU: UC1218
Price: 13699 INR
Availability: InStock

Rs. 13,699.00

- +

AVMATRIX ⁄ AVMATRIX UC1218 HDMI to USB 3.0 Video Capture

Key Features:

Supports up to 1920 x 1080p60 Resolution
Hardware Scaling and Deinterlacing
Performs Frame Rate Conversion
UVC Compatible
Supports YUV 4:2:2 Video Output
For Windows, Linus, and macOS
Works with Third-Party Capture Software
USB Powered

Record or stream an HDMI signal via USB 3.0 with the Lilliput UC1218 HDMI to USB 3.0 Video Capture. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1080p60. It automatically detects the incoming video format and transmits it via USB 3.0 at up to 350 MB/s. It supports UVC video capture as well as YUV video output.

As this is a USB bus-powered device, you can connect multiple units to the same computer (additional USB hardware may be required). The UC1218 is compatible with a variety of available third-party software apps for Windows, Linux, and macOS.

Compatible with Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Linux, QuickTime Broadcaster, QuickTime Player, Wirecast, Potplayer, and other UVC compatible software
Compatible SDK include DirectShow and DirectSound for Windows
No drivers needed for Windows, macOS, or Linux
Automatically determines input video format

Technical Specifications:

System Connection	USB-A 3.0 / 3.1/3.2 Gen 1

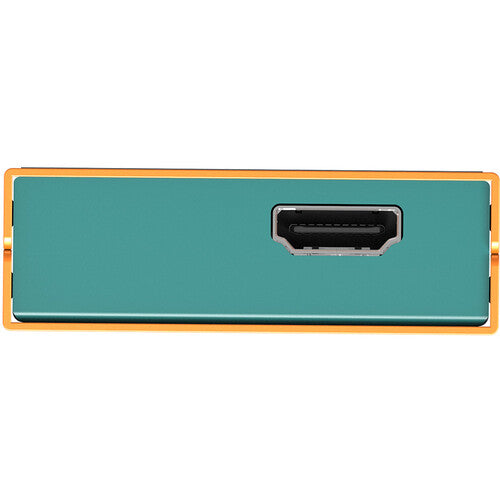

Video Inputs	1 x HDMI
Audio Inputs	No
Input Video Format	HDMI 1080p at 24/25/30/50/60 fps 1080i 50/60 fps 720p 50/60 fps 576p 576i / 625 lines 480p 480i / 525 lines
Output Video Format	USB-A WUXGA (1920 x 1200) at 25/29.97/30/50/59.94/60 fps 1080p 25/29.97/30/50/59.94/60 fps UXGA (1600 x 1200) 25/29.97/30/50/59.94/60 fps WXGA+ (1440 x 900) 25/29.97/30/50/59.94/60 fps WUXGA+ (1680 x 1050) 25/29.97/30/50/59.94/60 fps 1368 x 768 25/29.97/30/50/59.94/60 fps SXGA (1280 x 1024) 25/29.97/30/50/59.94/60 fps 1280 x 960 25/29.97/30/50/59.94/60 fps WXGA (1280 x 800) 25/29.97/30/50/59.94/60 fps 720p 25/29.97/30/50/59.94/60 fps XGA (1024 x 768) 25/29.97/30/50/59.94/60 fps 1024 x 576 25/29.97/30/50/59.94/60 fps SVGA (800 x 600) 25/29.97/30/50/59.94/60 fps 576i / 625 lines 25/29.97/30/50/59.94/60 fps 576p 25/29.97/30/50/59.94/60 fps 480p 25/29.97/30/50/59.94/60 fps 960 x 540 25/29.97/30/50/59.94/60 fps 856 x 480 29.97/30/50/59.94/60 fps VGA (640 x 480) 25/29.97/30/50/59.94/60 fps 640 x 360 25/29.97/30/50/59.94/60 fps
Embedded Audio	HDMI
OS Compatibility	Windows 7 Windows 8 Windows 10 Linux 2.6.38 or Later macOS 10.8 or Later *Check with manufacturer for the most up-to-date compatibility
Power Consumption	Device: 5 VDC (2.5 W)
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	32 to 140°F / 0 to 60°C
Operating Humidity	20 to 90%
Dimensions	3.9 x 2.2 x 0.6" / 98 x 56 x 16 mm
Weight	3.9 oz / 110 g
