Record or stream an HDMI or SDI signal via USB 3.0 with the Lilliput UC2018 SDI/HDMI to USB 3.0 Video Capture. With its 3G-SDI and HDMI v1.4a inputs, this capture device will accept resolutions up to 1920 x 1080p60. It automatically detects the incoming video format and transmits it via USB 3.0 at up to 350 MB/s. It supports UVC video capture as well as YUV video output.As this is a USB bus-powered device, you can connect multiple units to the same computer (additional USB hardware may be required). The UC1218 is compatible with a variety of available third-party software apps for Windows, Linux, and macOS.
Technical Specifications:
System Connection
USB-A 3.0 / 3.1/3.2 Gen 1

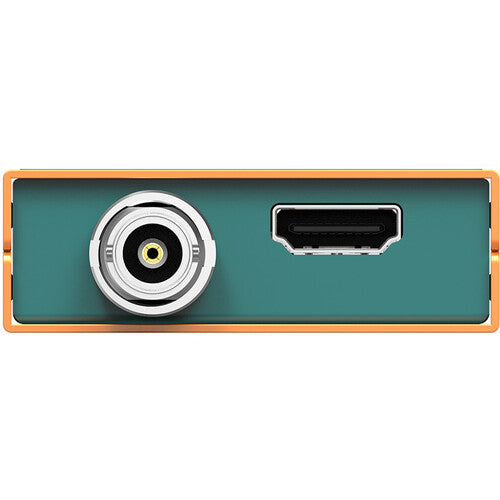

Video Inputs
1 x BNC (3G-SDI)
1 x HDMI (HDMI 1.4a)
Audio Inputs
No
Input Video Format
SDI
1080p at 25/29.97/30/50/59.94/60 fps
HDMI
1080p at 24/25/30/50/60 fps
1080i 50/60 fps
720p 50/60 fps
576p
576i / 625 lines
480p
480i / 525 lines
Output Video Format
USB-A
WUXGA+ (1680 x 1050) 25/29.97/30/50/59.94/60 fps
720p 25/29.97/30/50/59.94/60 fps
XGA (1024 x 768) 25/29.97/30/50/59.94/60 fps
960 x 540 25/29.97/30/50/59.94/60 fps
576p 25/29.97/30/50/59.94/60 fps
480p 25/29.97/30/50/59.94/60 fps
640 x 360 25/29.97/30/50/59.94/60 fps
Embedded Audio
HDMI/SDI/USB
OS Compatibility
Windows 7
Windows 8
Windows 10
Linux 2.6.38 or Later
macOS 10.8 or Later
*Check with manufacturer for the most up-to-date compatibility
Power Consumption
Device: 5 VDC (3 W)
Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
32 to 140°F / 0 to 60°C
Operating Humidity
20 to 90%
