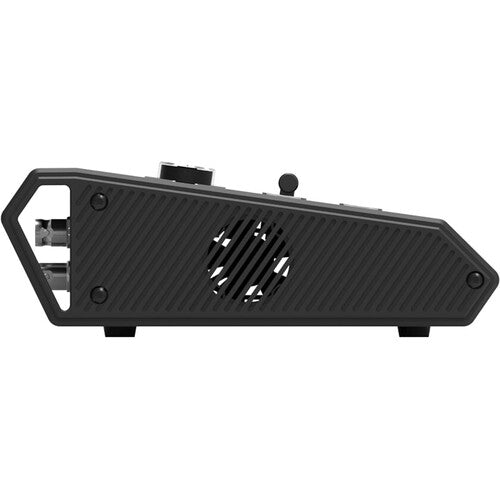

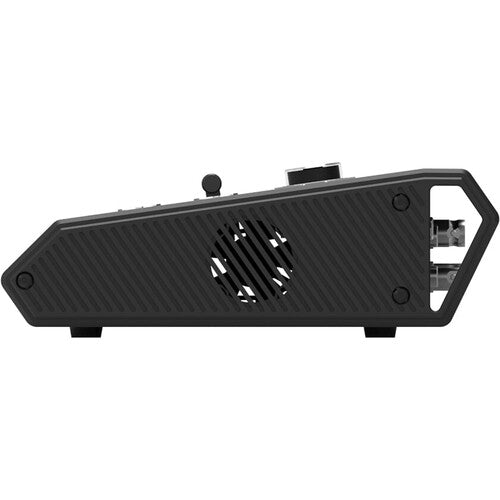

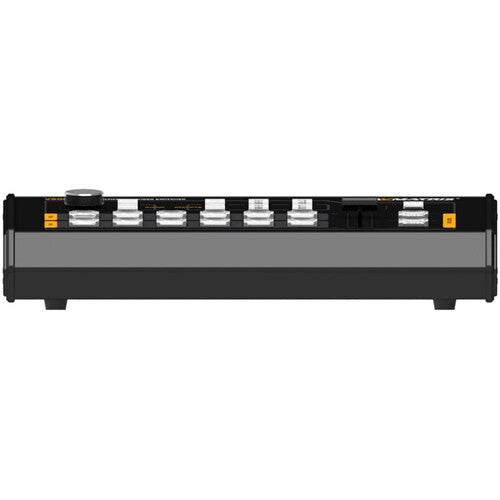

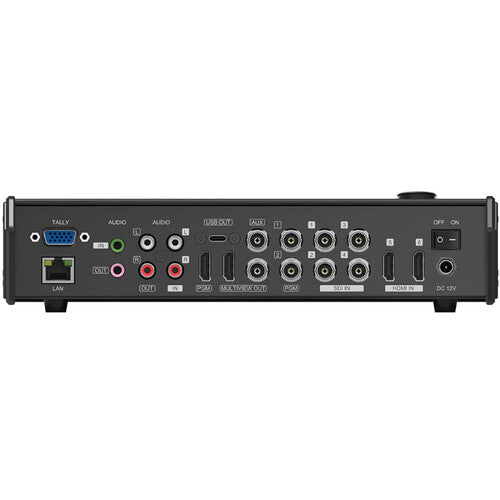

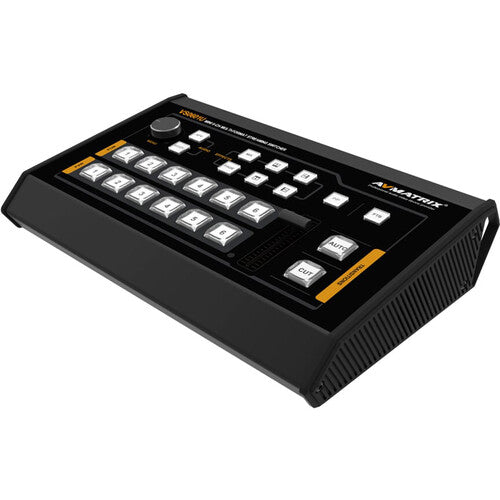

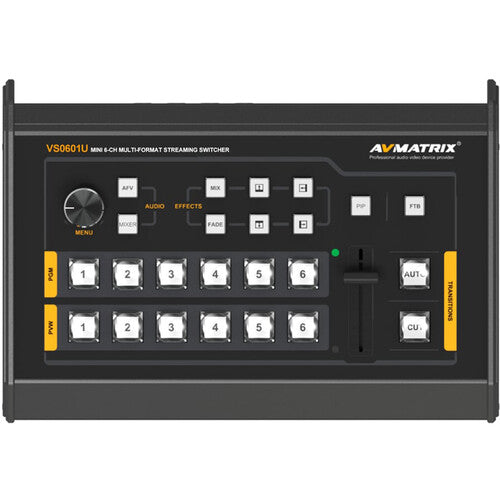

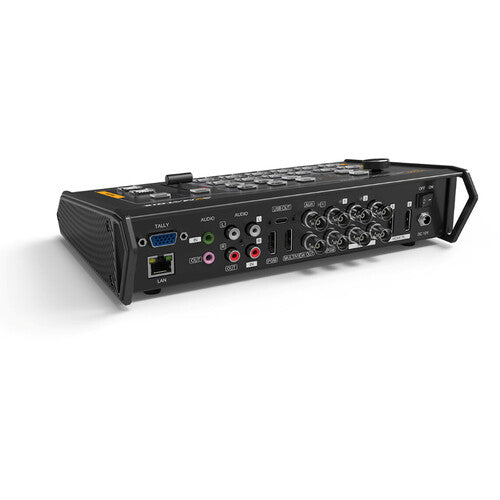

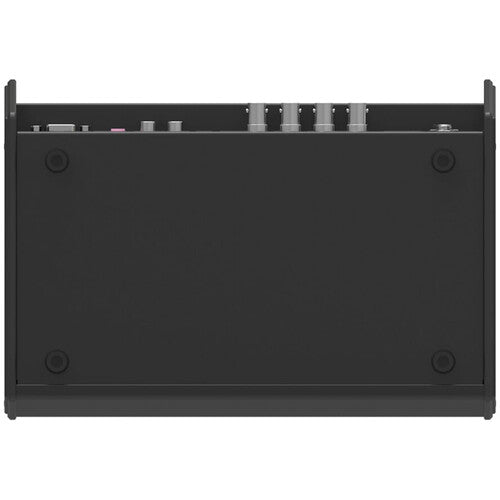

Switch up to six different HDMI and SDI video inputs while monitoring the program feed with the VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher from AVMATRIX. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some of the use cases where the VS0601U could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment. This model also features a USB Type-C output that allows you to stream uncompressed video with embedded audio to any platform, such as YouTube, Facebook Live, Zoom, and others via a Windows, Mac, or Linux computer. You can output multiview layouts via USB Type-C, HDMI, and SDI that show preview, program, and input sources, all on the same screen with configurable PiP functionality. The VS0601U features four 3G-SDI and two HDMI inputs that can be connected to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the analog stereo 2RCA and 3.5mm inputs and outputs along with the embedded audio. Its interface features source and destination buttons and a T-bar for transitions and cuts as well as mix, fade, and wipe effects. It features a tally interface and emergency fade-to-black (FTB) functionality. Key Features Six input channels with four SDI and two HDMI Two 3G/HD/SD-SDI and one HDMI PGM (Program) output, one SDI AUX output, and one each HDMI and SDI multiview output USB Type-C output allows you to stream uncompressed video with embedded audio to any platform, such as YouTube, Facebook Live, Zoom, and others via a Windows, Mac, or Linux computer T-bar, Auto/Cut transitions, and Mix/Fade/Wipe effects Adjustable PiP/PoP window size and position Audio mixer with 3.5mm and RCA audio input and output, along with USB Type-C, HDMI, and SDI embedded audio GPIO interface for live tally system Quick FTB (Fade-to-Black) for emergency Technical Specifications: Effect Types 1 x Transition Switching Type T-Bar Processing Resolution 1080p Number of Video Input Sources 6 Video Inputs 4 x BNC (3G-SDI) Female 2 x HDMI Female Input Video Format HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps Audio Inputs 1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x 2RCA Stereo Analog Female Input Audio Format Analog Embedded Audio Input HDMI SDI Video Output Channels 6 Video Outputs 2 x BNC (3G-SDI) Female (Program) 1 x HDMI Female (Program) 2 x BNC (3G-SDI) Female (Monitor) 1 x HDMI Female (Monitor) 1 x USB-C (USB Video) Female (Program) Output Video Format HDMI / SDI / USB-C 1080p at 24/25/30/50/60 fps 1080i 50/60 fps Audio Outputs 1 x 2RCA Stereo Analog Female 1 x 1/8" / 3.5 mm TRS Stereo Analog Female Output Audio Format Analog Embedded Audio Output HDMI: 2-Channel (per Output) SDI: 2-Channel (per Output) USB-C: 2-Channel Multiview Output 6-Way Multiview viaHDMI, SDI Other I/O 1 x DE-15/DB-15 Tally Input 1 x RJ45 LAN Input/Output Video Standard Compliance SMPTE 259M/292M/424M HDCP Support No OS Compatibility Windows 7 or Later macOS Linux *As of October, 2021: Check with manufacturer for the most up-to-date compatibility Processor Not Specified by Manufacturer Wi-Fi No Bluetooth No Power I/O 1 x Barrel (12 VDC at 1.2 A) Input Power Consumption Power Supply: 12 VDC at 2 A
