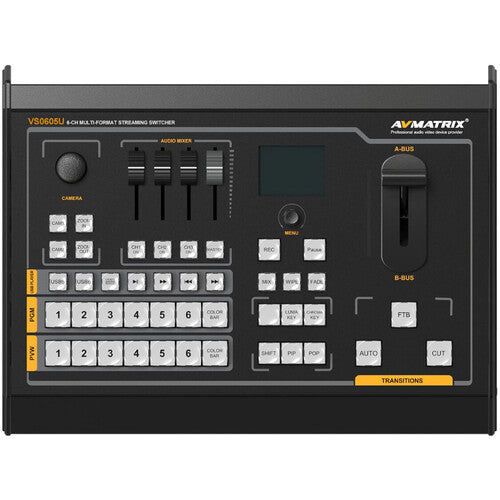

The 6-channel AVMATRIX VS0605U desktop switcher supports six sources over your choice of four 1080p60 SDI, two UHD 4K60 HDMI, two DVI-I, and two USB Type-A media player inputs. Everything is scaled to up to 1080p/i at 60 fps and output over three SDI/HDMI PGM, two SDI/HDMI multiview outputs, or an SDI AUX out. Six channels plus preview and program out can be monitored simultaneously in a 9-window split, with clock and settings info in the ninth window at the bottom right. Over a USB Type-C interface, UVC/UAC streaming can be set up plug-and-play with a 1080p60 uncompressed video/audio capture workflow.The built-in audio mixer can manage six channels of SDI/HDMI/USB embedded audio and two XLR/RCA audio inputs. Three stereo channels can be controlled individually via the faders and corresponding buttons. PGM out can be recorded to an optional SD card in up to 1080p60. Also, PTZ cameras can be controlled from the switcher's joystick over VISCA and Pelco-D/P protocols via the RS-422/485 DB-9 port. The multi-format switcher offers a highly comprehensive solution suitable for sports, education, virtual studios, concerts, and many other live event and broadcast applications.
Technical Specifications:
Video Inputs
4 x BNC (3G-SDI)
2 x HDMI (HDMI 2.0)
2 x DVI-I DL (DVI/VGA)
Input Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
720p 23.98/24/25/30/50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
HDMI
UHD 4K at 30/50/60 fps
DCI 2K 30/50/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
Audio Inputs
2 x XLR 3-Pin Analog
2 x RCA Analog
Video Outputs
2 x BNC (3G-SDI) (Program)
2 x HDMI (Program)
1 x USB-C (Program)
Output Video Format
HDMI / SDI / USB-C
1080p at 24/25/30/50/60 fps
Audio Outputs
1 x 1/8" / 3.5 mm TRS
Multiview Output
8-Way Multiview viaSDI
8-Way Multiview viaHDMI

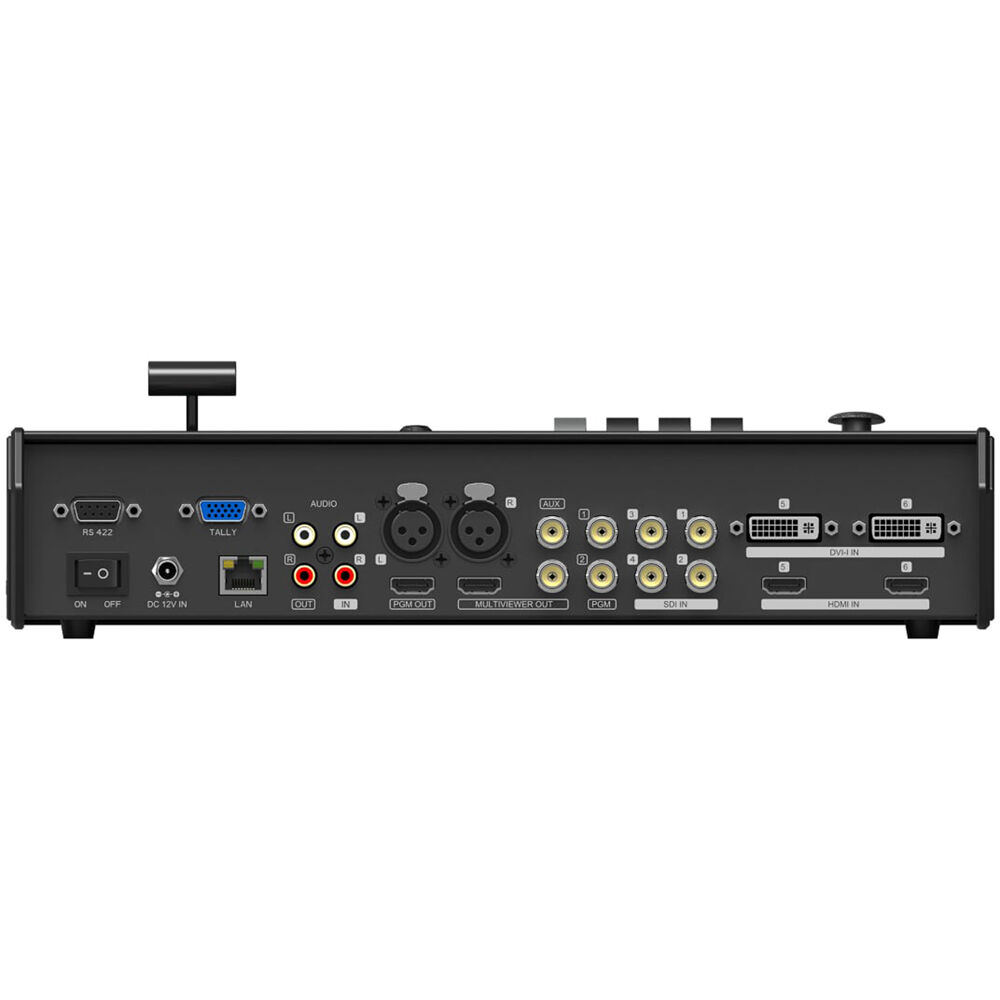

Other I/O
2 x USB-A Input
1 x RJ45 LAN Input
1 x DE-9/DB-9 RS-422
1 x DE-15/DB-15 Tally
Video Standard Compliance
SMPTE 259M/292M/424M
OS Compatibility
Windows 7
Windows 8
Windows 10
macOS
Linux
*As of March, 2021: Check with manufacturer for the most up-to-date compatibility
Wi-Fi
No
Bluetooth
Power I/O
1 x Barrel (12 VDC at 1.8 A) Input
Power Consumption
22 W
