Belden 2Core Shielded Audio Cable (8451 0101000)

Rs. 2,000.00

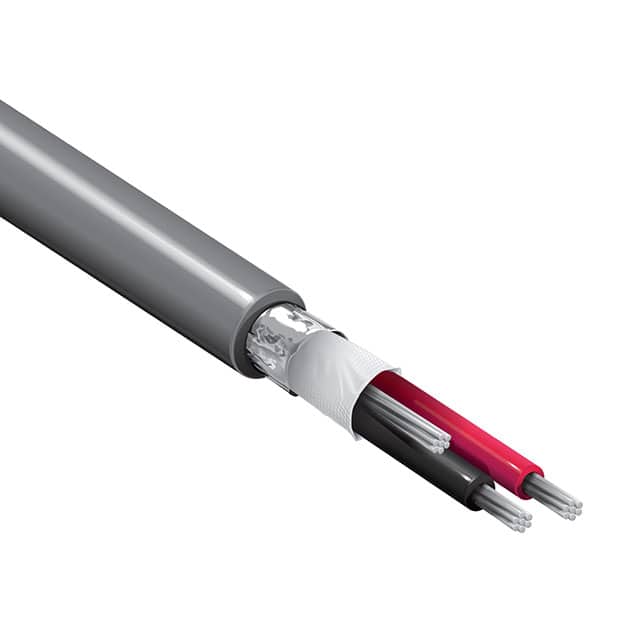

1 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.

Product Overview:

Suitable Applications

for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

CONDUCTOR Element

Pair(s)

Number of Element

1

AWG

22

Stranding

7x30

Material

7x30

INSULATION Element

Pair(s)

Material

PP - Polypropylene

Thickness

0.009 in (0.23 mm)

Color Code

Black & Red

OUTER SHIELD Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

22 AWG (7x30) TC

OUTER JACKET Material

PVC - Polyvinyl Chloride

Thickness

0.020 in (0.51 mm)

Nom. Diameter

0.138 in

Cable Diameter (Nominal)

0.138 in (3.51 mm)



ELECTRICALS


Element

Pair(s)

Nom. Conductor DCR

14.5 Ohm/1000ft (47.6 Ohm/km)

Nom. Capacitance Cond-to-Cond

34 pF/ft (110 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

67 pF/ft (220 pF/m)

Characteristic Impedence

45 Ohm

Nom. Velocity of Prop.

66%

Max. Current

2.9 Amps per Conductor at 25ºC

Nom. Outer Shield DCR

14.1 Ohm/1000ft

UL Voltage Rating

300 V RMS

Operating

-20°C To +75°C

Stationary Min.

1.4 in (36 mm)

Installation Min.

1.4 in (36 mm)

Max. Pull Tension

27 lbs (12 kg)

Bulk Cable Weight

13 lbs/1000ft (19 kg/km)
