Belden 2Core Shielded Audio Cable 1000Ft (8451 0081000)

Rs. 35,000.00

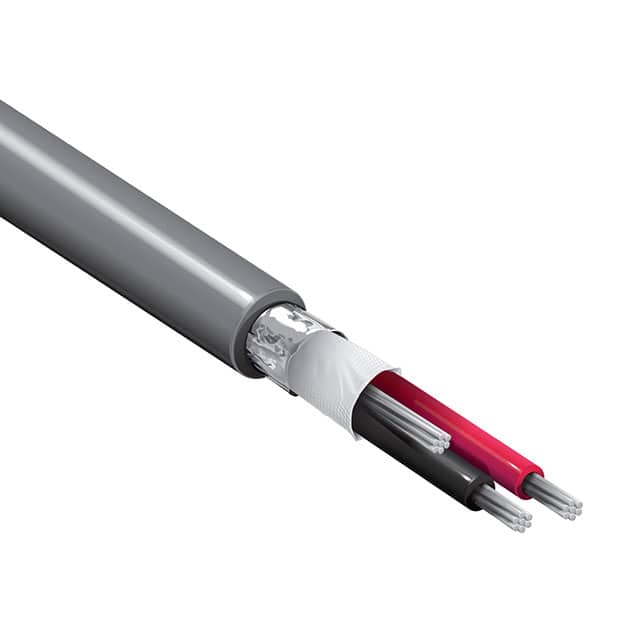

1 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.

Product Overview:

Suitable Applications

for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring



Construction Details:

CONDUCTOR

Element

Number of Element

AWG

Stranding

Material

Pair(s)

1

22

7x30

TC - Tinned Copper


INSULATION

Element

Material

Thickness

Color Code

Pair(s)

PP - Polypropylene

0.009 in (0.23 mm)

Black & Red


OUTER SHIELD MATERIAL

Shield Type

Material

Coverage

Drainwire Type

Tape

Bi-Laminate (Alum+Poly)

100%

22 AWG (7x30) TC


OUTER JACKET MATERIAL

Material

Thickness

Nom. Diameter

PVC - Polyvinyl Chloride

0.020 in (0.51 mm)

0.138 in

Cable Diameter (Nominal)

0.138 in (3.51 mm)


Electrical Characteristics

ELECTRICALS

Element

Nom. Conductor DCR

Nom. Capacitance Cond-to-Cond

Nom. Capacitance Cond-to-Other (Conds + Shield)

Characteristic Impedence

Nom. Velocity of Prop.

Max. Current

Pair(s)

14.5 Ohm/1000ft (47.6 Ohm/km)

34 pF/ft (110 pF/m)

67 pF/ft (220 pF/m)

45 Ohm

66%

2.9 Amps per Conductor at 25ºC

Nom. Outer Shield DCR

14.1 Ohm/1000ft


VOLTAGE

UL Voltage Rating

300 V RMS


Mechanical Characteristics:

TEMPERATURE

Operating

-20°C To +75°C

BEND RADIUS

Stationary Min.

Installation Min.

1.4 in (36 mm)

1.4 in (36 mm)

Max. Pull Tension

27 lbs (12 kg)

Bulk Cable Weight

13 lbs/1000ft (19 kg/km)


Standards and Compliance:

Environmental Suitability

Indoor - Riser, Indoor

Flammability / Fire Resistance

UL1666 Vertical Shaft, FT4, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMG

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)


Product Notes:

Notes

Unique paper separator facilitates jacket stripping.


History:

Update and Revision

Revision Number: 0.351 Revision Date: 07-02-2021
