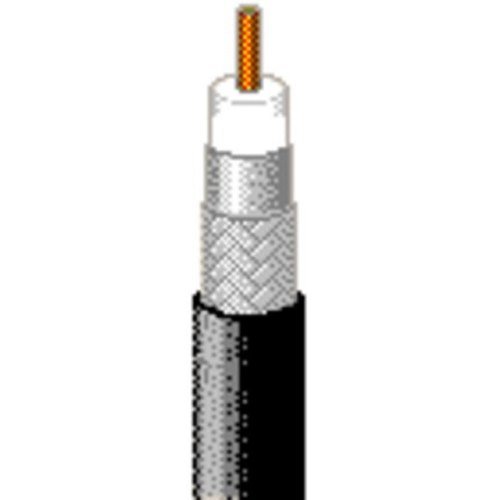

Belden Analog Coaxial TV Cable RG6 (YJ52818 010)
Series 6, 18 AWG 1.02mm solid bare copper covered steel conductor, gas-injected foam polyethylene insulation, Duobond® II tape+aluminum braid shield (60% coverage), PVC jacket (black)
Product Overview:
|
CONDUCTOR |
|
|
AWG |
18 |
|
Stranding |
Solid |
|
Material |
BCCS - Bare Copper Covered Steel |
|
Conductor Diameter |
1.02 mm |
|
|
|
|
INSULATION |
|
|
Material |
Gas-injected FPE - Foam Polyethylene |
|
Diameter |
4.57 mm |
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Layer 1 |
|
|
Outer Shield Type |
Tape |
|
Material |
Bonded Aluminum Foil – Polyester Tape – Aluminum Foil |
|
Coverage |
100% |
|
|
|
|
Layer 2 |
|
|
Outer Shield Type |
Braid |
|
Material |
AL - Aluminium |
|
Coverage |
60% |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.7 mm |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
8.5 Ohm/1000ft |
|
Nom. Outer Shield DCR |
1.7 Ohm/1000ft |
|
Nom. Capacitance Cond-to-Shield |
53.1 pF/m |
|
Nom. Impedence |
75 +/- 3 Ohms |
|
Nom. Velocity |
82% |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (RMS) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
60°C |
|
Operating |
-20°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
53.6mm |
|
Bulk Cable Weight |
38kg/km |
|
Max. Pull Tension |
680N |
