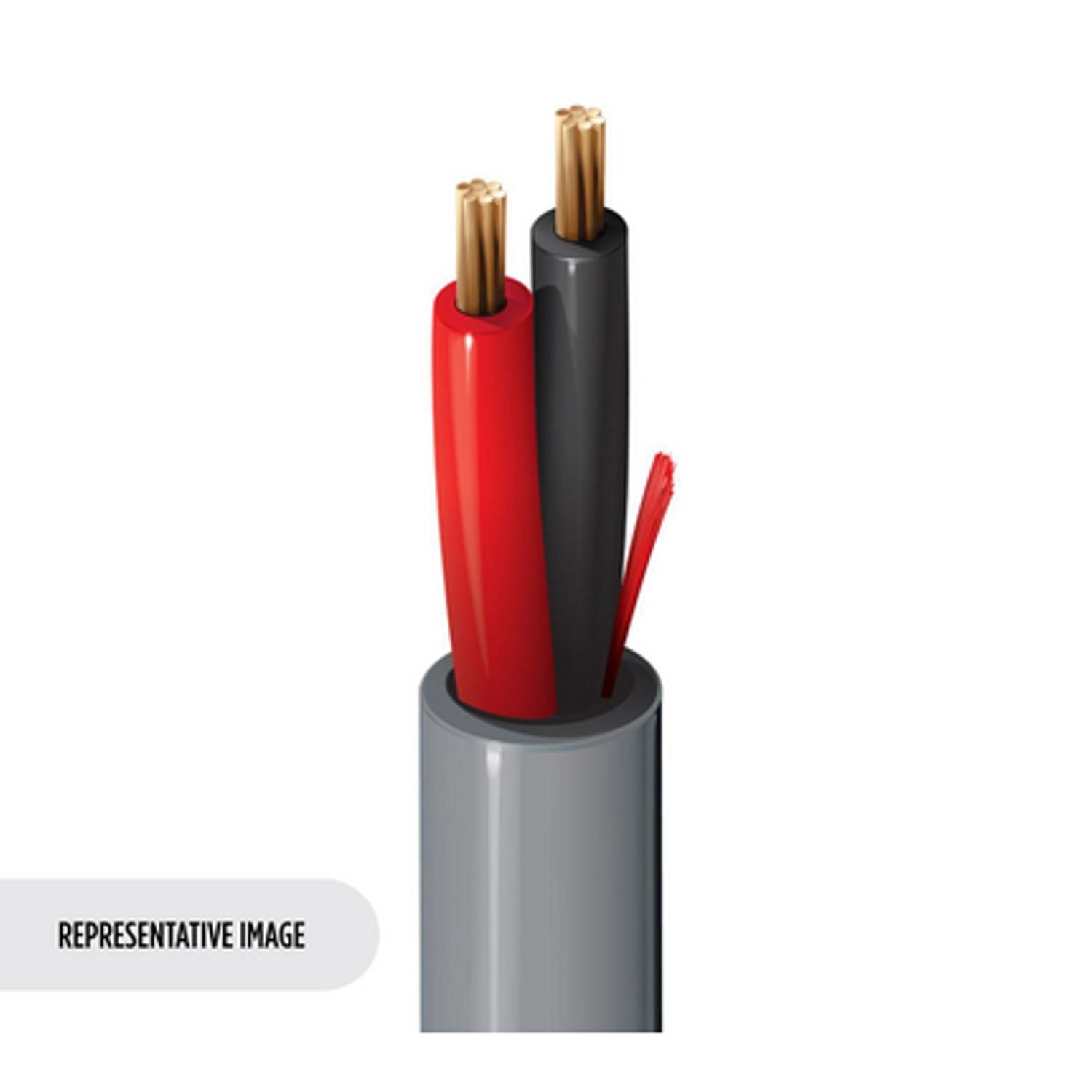

Belden Security & Sound 2 Conductor 18 AWG BC Unshielded Cable (5300UE)
Security & Commercial Audio Cable, Riser-CMR, 2-18 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord
Technical Specifications:
|
Suitable Applications |
Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits |
|
|
|
|
CONDUCTOR |
|
|
Element |
Conductor(s) |
|
Number of Element |
2 |
|
Size |
18 AWG |
|
Stranding |
7x26 |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Element |
Conductor(s) |
|
Material |
PP - Polypropylene |
|
Nom. Thickness |
0.009 in (0.23 mm) |
|
Color Code |
Black, Red |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.017 in (0.43 mm) |
|
Nom. Diameter |
0.158 in (4.01 mm) |
|
Ripcord |
Yes |
|
Overall Cable Diameter (Nominal) |
0.158 in (4.01 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Conductor(s) |
|
Nom. Conductor DCR |
6.5 Ohm/1000ft (21 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
21.5 pF/ft (70.5 pF/m) |
|
Max. Current |
5 Amps per conductor @ 25°C |
|
|
|
|
UL Voltage Rating |
300 V (CMR) |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
-20°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
1.6 in (41 mm) |
|
Installation Min. |
1.6 in (41 mm) |
|
Max. Pull Tension |
45 lbs (20 kg) |
|
Bulk Cable Weight |
15 lbs/1000ft (22 kg/km) |
