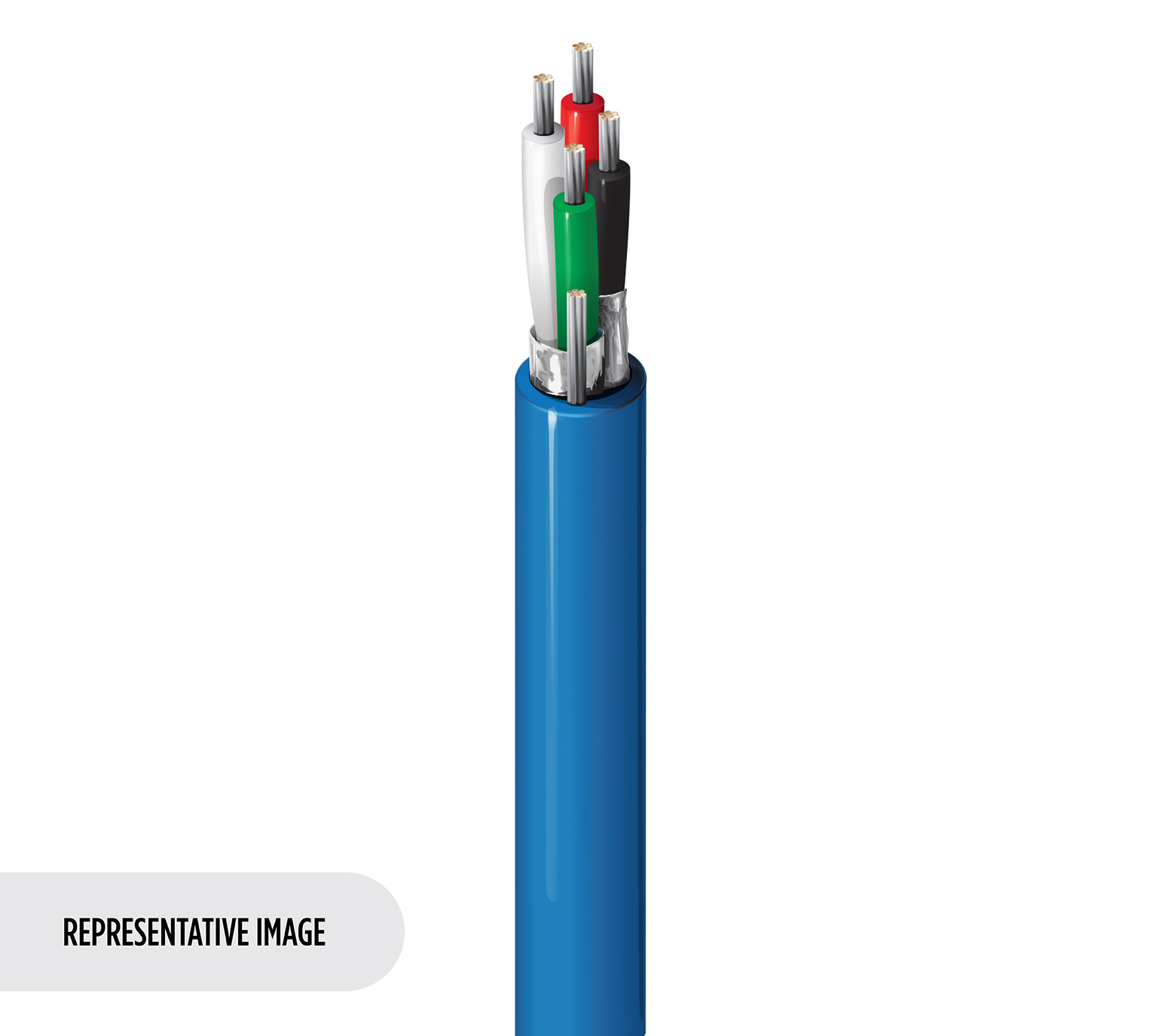

Belden Security & Sound, 2 Pr #22 Str TC, Ind. Foil Shielded, Flamarrest® Jkt, CMP (1325A)
Security, Speaker & Control, 2 Pair 22 AWG (7 x 30) Tinned Copper, Flamarrest® Insulation, Individually Foil Shielded, Flamarrest® jacket, CMP
Technical Specifications:
|
Suitable Applications |
Sound and Audio Systems, Intercom and PA Systems, Security Systems, Power-Limited Control Systems |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
2 |
|
Size |
22 AWG |
|
Stranding |
7x30 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.0095 in (0.24 mm) |
|
Nom. Insulation Diameter |
0.048 in (1.2 mm) |
|
Color Code |
Black & Red, White & Green |
|
|
|
|
INNER SHIELD |
|
|
Shield Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage |
100% |
|
Drainwire Type |
24 AWG (7x32) TC |
|
Notes |
each pair Individually taped - Foil out |
|
|
|
|
OUTER SHIELD |
|
|
Material |
No Shield |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.014 in (0.36 mm) |
|
Nom. Diameter |
0.158 in |
|
Overall Cable Diameter (Nominal) |
0.158 in |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
18.2 Ohm/1000ft |
|
Nom. Inner Shield DCR |
15 Ohm/1000ft (49 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
34 pF/ft (110 pF/m) |
|
Max. Current |
4.8 Amps per Conductor at 30ºC |
|
UL Voltage Rating |
300 V |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
-30°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
1.58 in (40.1 mm) |
|
Installation Min. |
1.58 in |
|
Max. Pull Tension |
31.2 lbs (14.2 kg) |
|
Bulk Cable Weight |
19 lbs/1000ft |
|
|
|
|
Standards and Compliance |
|
|
Environmental Suitability |
Indoor - Plenum, Indoor |
|
Flammability / Reaction to Fire |
NFPA 262 (UL 910), FT6, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
8723 |
