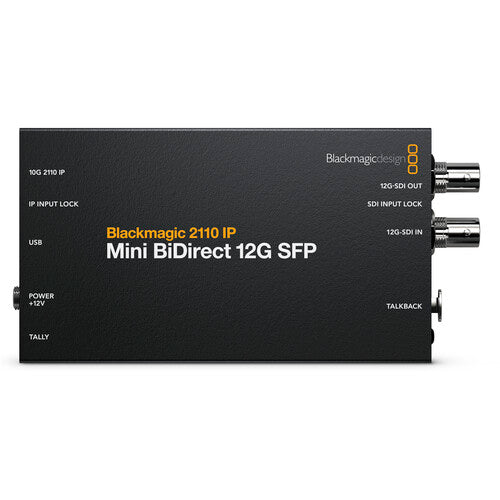

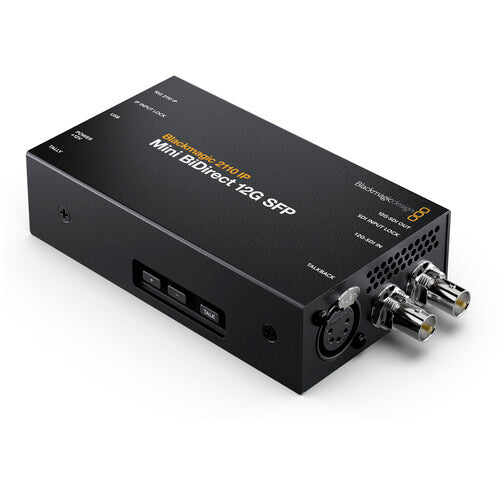

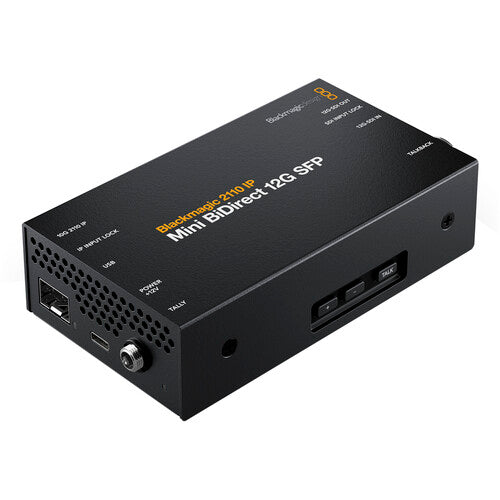

Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter
- 12G-SDI to SFP Fiber Converter
- Video Monitoring To/From Studio Camera
- Supports UHD 4K Video via SFP Fiber
- Talkback Control
- Windows/macOS Software Utility
- PoE and 10G Ethernet Power
Connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems over long distances with this 2110 IP Mini BiDirect 12G SFP Converter from Blackmagic Design. The converter allows you to send up to UHD 4K 12G-SDI camera video and program return using the same converter, and it is so compact it can easily be mounted on your camera rig. It features an SFP connection for optical fiber to connect over long distances. The converter also features a 5-pin XLR talkback headset and a press-to-talk button to keep communication between camera operators and the broadcast production booth.
- This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems over long distances using optical fiber
- Handles the SDI camera feed and SDI program return in the one converter
- 5-pin XLR talkback headset connection with volume and press to talk buttons
- Supports all SD, HD, and UHD standards up to 2160p60
- Includes a 12 VDC power supply
- The SFP slot will accept 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules
Technical Specifications:
|
Video I/O |
Input 1x BNC (12G-SDI) Female Output 1x BNC (12G-SDI) Female |
|
Audio I/O |
Input 1x XLR 5-Pin Analog Female Output 1x XLR 5-Pin Analog Female |
|
Other I/O |
Input/Output 1x RJ45 (10 GbE) Input 1x USB-C (Firmware) |
|
Expansion Slots |
1x SFP Slot (Occupied by Optical Fiber 2110 IP I/O) |
|
Video Resolution |
SDI Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
|
Embedded Audio |
LAN (RJ45)/SDI |
|
Video Standard Compliance |
SMPTE: ST-2110 |
|
HDR Compatibility |
Yes |
|
Wireless |
No |
|
OS Compatibility |
macOS 13 or Later Windows 10 to 11 |
|
Power I/O |
1x Barrel (12 to 16 VDC) Input |
|
PoE Support |
PoE++ 802.3bt |
|
Power Consumption |
Device: 12 to 16 VDC (18 W) |
|
Operating Temperature |
41 to 104°F / 5 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% |
|
Storage Humidity |
0 to 90% |
In the Box:
- Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter
- 12 VDC Power Supply
- Limited 1-Year Manufacturer Warranty
