Blackmagic Design 24TB Cloud Store Max

Name: Blackmagic Design 24TB Cloud Store Max
Brand: Blackmagic Design
SKU: BMD-DWCLDF/CLDMAX24
Price: 739624 INR
Availability: InStock

Rs. 778,564.00 Rs. 739,624.00

- +

Blackmagic Design ⁄ Blackmagic Design 24TB Cloud Store Max

Key Features:

24TB NVMe M.2 Storage
Rackmount Design with Silent Cooling
12 Internal Flash Memory Cards
10GbE and 100GbE RJ45 Network Ports
HDMI and SDI Monitoring Output
USB-C-to-Ethernet Port
Sync to Blackmagic Cloud/Dropbox/Drive

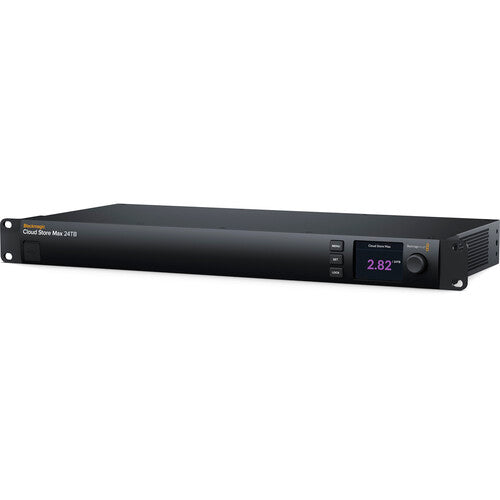

Designed for film and television productions where large media files need to be shared between multiple users, the Cloud Store Max 24TB from Blackmagic Design is well-suited for post production applications. It has a capacity of 24 TB which is made up of a NVMe M.2 SSD which is preconfigured as 12 RAID 0 flash memory cards and able to handle 12K BLackmagic RAW digital cinema files. The Cloud Store Max is equipped with a single 100GbE Ethernet port and four 10GbE Ethernet ports for network access as well as a USB-C port that features a built-in network adapter. Use the HDMI and SDI outputs to monitor the status of your Cloud Store Max in real time.

Portable and Quiet Design

A rackmount design ensures the Max unit remains portable and quiet. The Max model is a full rack width with 12 flash memory cards, and 100 and 10GbE Ethernet connections. If you need to access files quickly, use the USB-C port as an alternate network connection via your personal computer. HDMI and SDI monitoring outputs provide a live graphic view of the storage status.

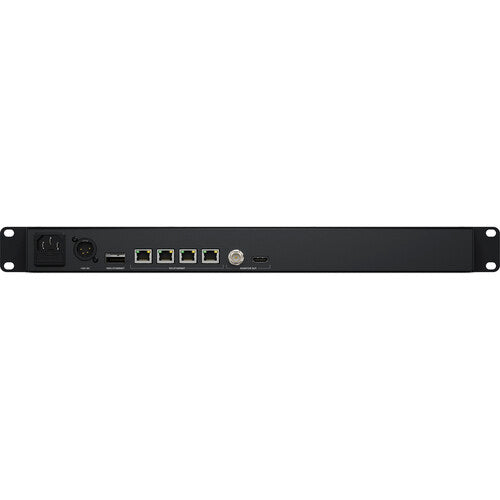

Connectivity

An IEC power socket is included for connecting AC power. An additional 4-pin XLR 12V DC power input is provided for redundancy.
The USB-C port supports Ethernet for direct connection to a computer for quick file access.
The 100GbE Ethernet port connects the unit to high-speed Ethernet switches. Its flexible QSFP socket allows you to use copper cables or longer optical fiber cables.
Four 10GbE RJ45 Ethernet ports connect high-speed computers to the Max unit. You can then create four separate edit workstations.

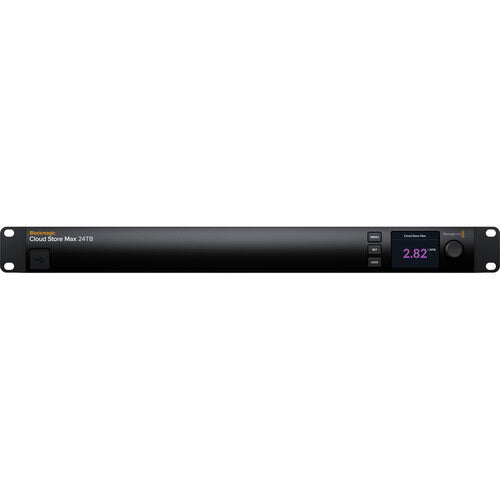

Use the SDI and HDMI output connectors to connect the Max to compatible displays and monitor the status of your Cloud Store in real time or integrate it into broadcast trucks. The HDMI port allows you to see a storage map, speed graphs, sync, active users, and power status.

Flash Memory for Multiple Users

Large parallel flash memory cores with lots of storage space allow you to have multiple users working off of your Cloud Store Max unit. The Max unit features 12 M.2 cards arranged in a RAID 0 group for high-capacity performance. This can accommodate dozens of individual users and has enough speed for HyperDeck recorders and editing workstations simultaneously.

Sync to Blackmagic Cloud

Install a local cache of media to upload to the Blackmagic Cloud, Dropbox, or Google Drive to distribute files globally. Blackmagic Cloud Store will stay in sync to save space on editing workstations and provide access within your production network.

Technical Specifications:

Included Drives	12x 2 TB M.2
Interface	NVMe
Number of Bays	4x M.2 (Length Unspecified)
Inputs/Outputs	4x RJ45 10GbE 1x QSFP 1x USB-C 3.0 / 3.1/3.2 Gen 1 1x BNC Output 1x HDMI Output
Hot-Swap Support	No
Carrier-Less Drive Bays	No
OS Compatibility	macOS 14.3 or Later Windows 10 to 11
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Source	AC Adapter
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 90%
Storage Temperature	-4 to 140°F / -20 to 60°C
