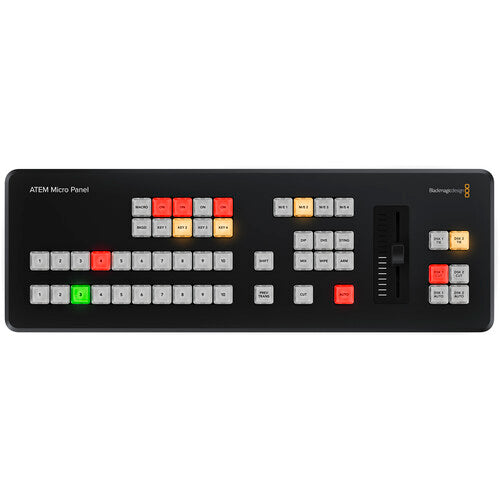

ATEM Micro Live Stream Switcher Panel. The panel is designed to emulate the exact layout of the software with two rows of ten input buttons for both preview and program, transition controls, a macro key, and an onboard fader. This allows you to facilitate both manual and automatic control over your broadcast.
High-quality backlit buttons and a low-profile manual transition fader emulate the design of the larger ATEM Advanced Panels. The Micro Panel features a USB-C port to connect to your personal computer with ATEM Software Control. You can even wirelessly connect using the internal Bluetooth 5.1 LE signal. A large internal battery keeps the panel going for long production days and can be turned on and off with an onboard switch.
Control Configuration
1 mix effect row
10 direct cross-points
20 shifted cross-points
1 preview transition
4 M/E select buttons
4 upstream key buttons
2 downstream key buttons
1 transition slider
CUT and AUTO switching-type buttons
DIP, DVE, STINGER, MIX, and WIPE transition-type buttons
Technical Specifications:
Controls
50x Pre-Labeled Key
Display
No
OS Compatibility
macOS 13.0 to 14.0
Windows 10 to 11
USB I/O
1x USB-C Female Input (System Connection)
Power Source
Battery
Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90%
In the Box:
Blackmagic Design ATEM Micro Live Stream Switcher Panel
