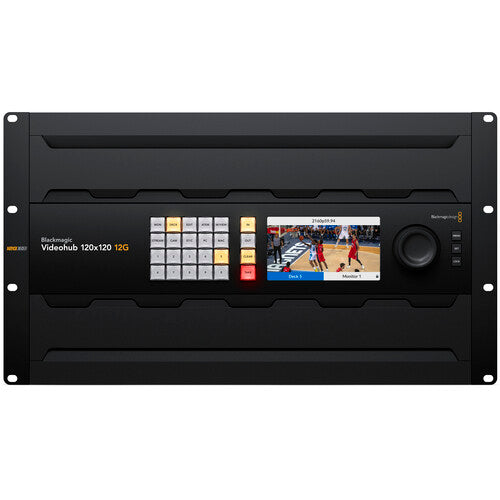

Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
- 120 x 12G-SDI Inputs & 120 x Outputs
- Zero-Latency Routing Switcher
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- 4:2:2 & 4:4:4 Video Sampling Supported
- Push-Button, Knob & Ethernet Control

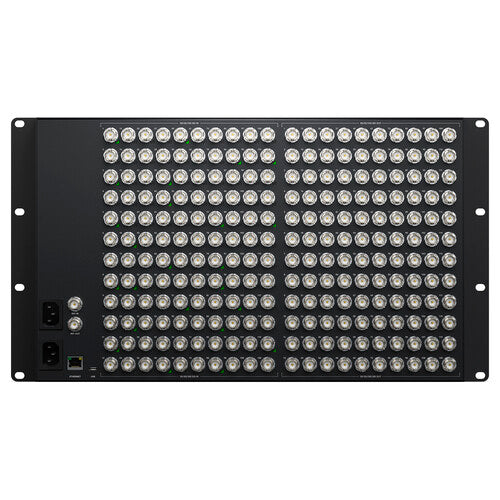

- SDI Reclocking, Standard BNC Connectors
- 32 Channels of Embedded Audio
- Mac, Windows, iPad Router Control
- Separate Connector Rows for Easy Repair
Support a mix of multiple video formats using the Videohub 120x120 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 120 x 12G-SDI inputs and 120 x 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 120x120 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or to add extra inputs to an ATEM switcher.
Technical Specifications:
|
Switching Type |
Pushbutton, Software |
|
Processing Resolution |
DCI 4K at 60 |
|
Color Processing |
10-Bit 4:2:2 YUV 12-Bit 4:4:4 RGB |
|
Audio Processing |
48 kHz / 24-Bit |
|
Video Inputs |
120x BNC (12G-SDI) |
|
Input Video Format |
SDI (10/12-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps |
|
Embedded Audio Input |
SDI |
|
Video Outputs |
80x BNC (12G-SDI) |
|
Output Video Format |
SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
|
Embedded Audio Output |
SDI |
|
Other I/O |
1x RJ45 LAN 1x USB-C 1x BNC Reference Input 1x BNC Reference Output |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10 ITU -R BT.601/BT.656 |
|
HDCP Support |
Yes |
|
HDR Compatibility |
Yes |
|
Display Size |
5" |
|
OS Compatibility |
macOS 13.0 macOS 14.0 or Later Windows 10 (64-Bit Only) Windows 11 |
|
Wi-Fi |
Yes |
|
Bluetooth |
Yes |
|
Power I/O |
2x IEC C14 (100 to 240 VAC) Input |
|
Power Consumption |
140 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
Operating Humidity |
0 to 90% |
In the Box:
- Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
- Router Control Software
- Internal Software Updater Application
- Limited 3-Year Manufacturer Warranty
- Limited 1-Year Manufacturer Warranty (Front Panel)
