Blackmagic Mini Converter Sync Generator

Rs. 19,750.00
This product is Out of stock



Key Features:

  • Mini Converter Series
  • Six Output
  • Tri-Sync or Black Burst

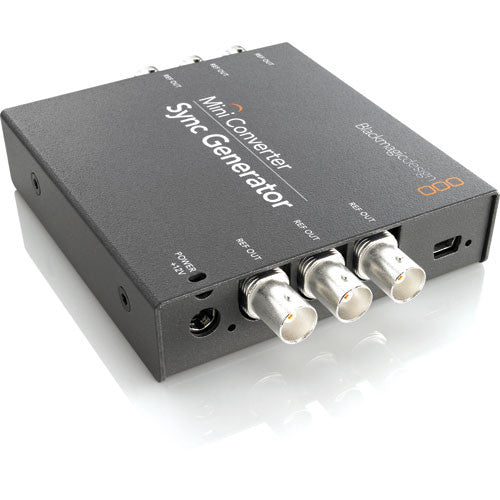

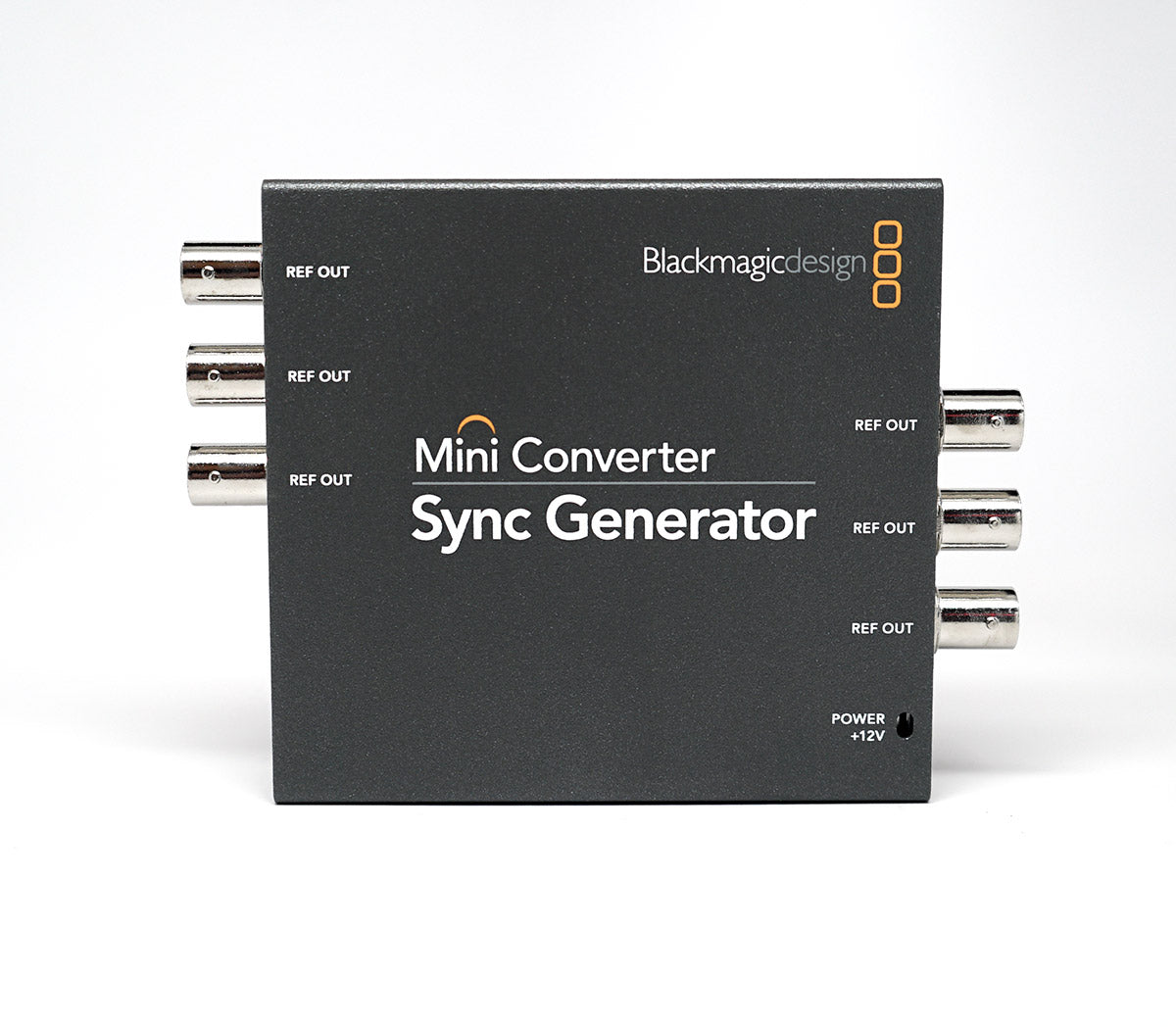

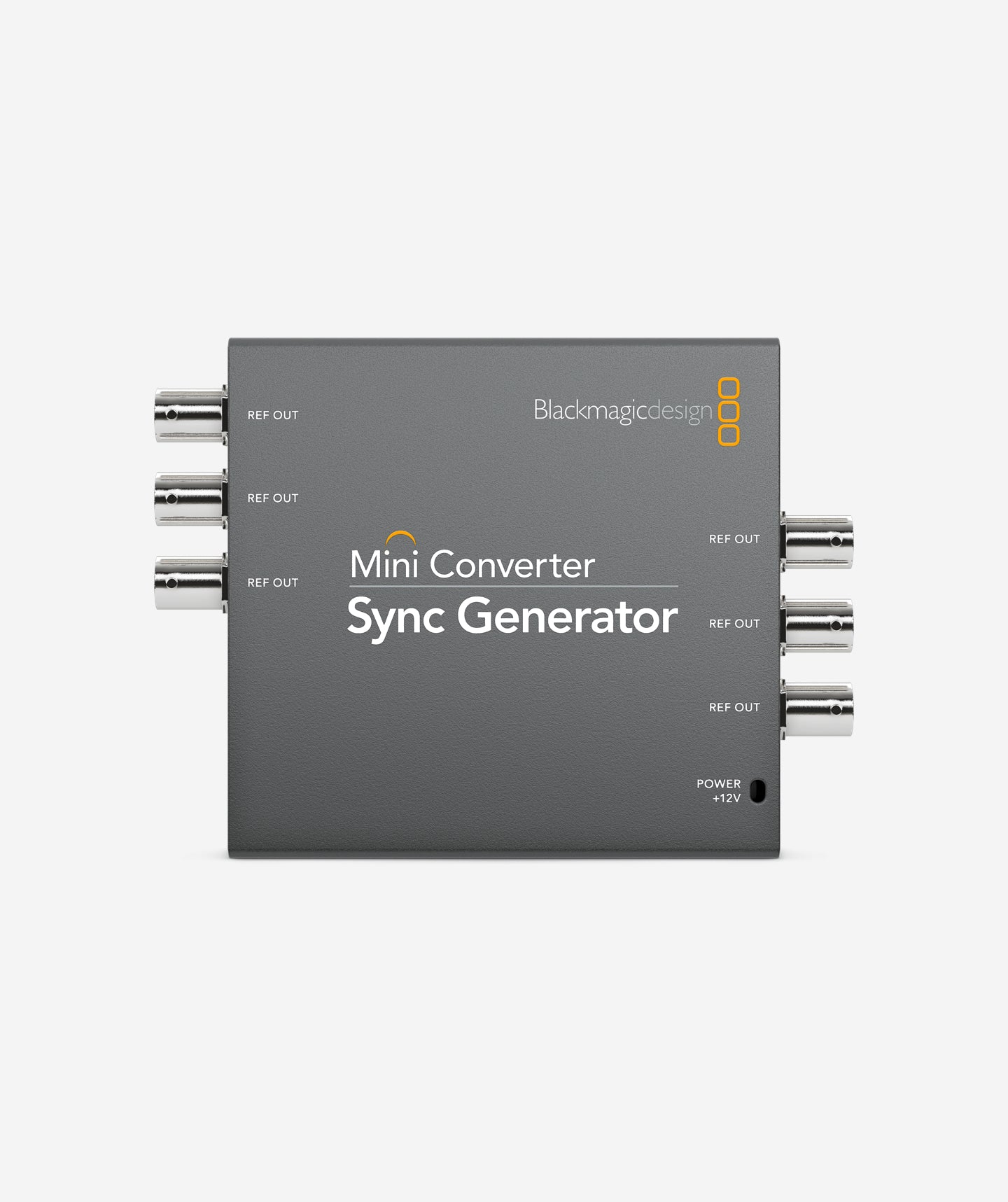

The Blackmagic Design CONVMSYNC is a sync generator. This generator will generate a reference signal in either high definition or standard definition parmeters. It is part of the Mini Converter series and offers six BNC outputs.

Space Saving

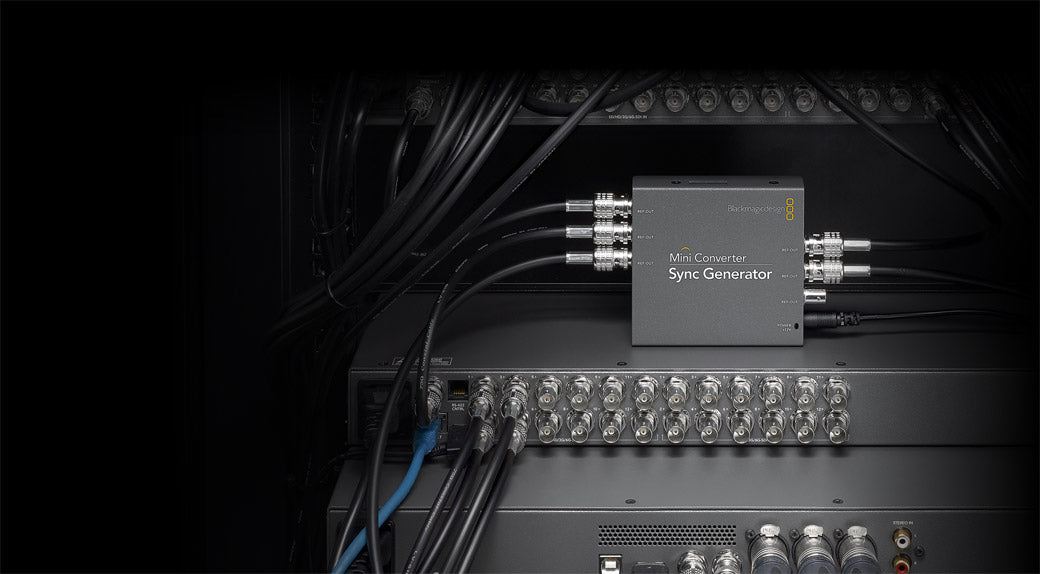

Broadcast Converter models are extremely compact, so you can install in the front or rear side of equipment racks, saving valuable equipment space.

Security

This device features a handy cable tie point to lock the power down tight and prevent your power being disconnected.

Formats

Many video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.

HD or SD

Tri-level high definition or standard definition black burst can be selected for the matching video format needed.

Technical Specifications:

Output

Reference Output x6, Analog Black Burst or Tri-Level Sync, on BNC connectors

Input

None

Television System

625/25 PAL

525/29.97 NTSC

1080PsF23.98

1080PsF24

1080i50

1080i59.94

720p50

720p59.94

Selectable

Control

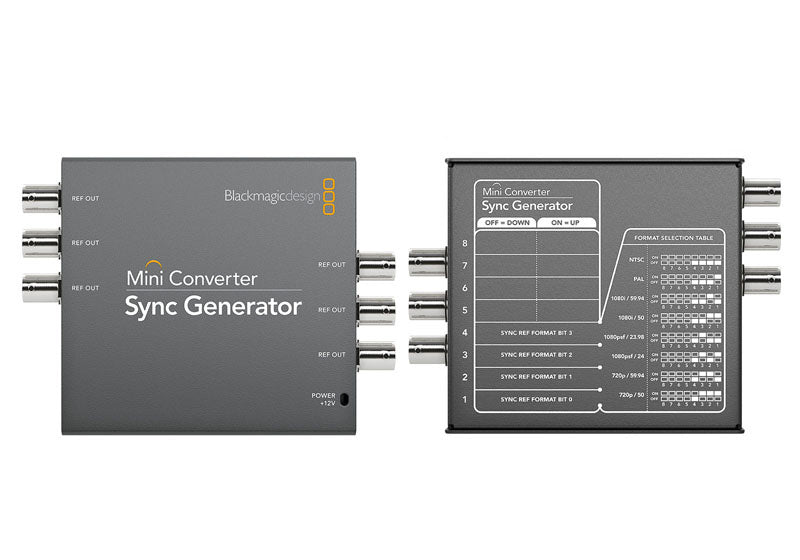

Dip Switch Format Selection

Power Source

12VDC on an AC Power Adapter

Dimensions (WxDxH)

Not Specified by Manufacturer

Weight

Not Specified by Manufacturer


In the Box:

  • Blackmagic Design Sync Generator
  • Universal Power Supply
  • 1 Year Warranty
