The Canon XA65 Professional UHD 4K Camcorder is a compact, lightweight camera that features many similarities to its XA45 predecessor, including UHD 4K capture, a 1/2.3" CMOS sensor, two XLR audio inputs, and one each mini-HDMI and BNC 3G-SDI output, making it suitable for the ENG category for documentary or journalism-style productions. This streamlined model features a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36" OLED EVF, XF-AVC and MP4 recording formats, OSD metadata recording, and fast USB-C video-only output with UVC support for live streaming to a computer.The lens optics include an integrated 20x 4K/HD optical zoom and an eight-bladed circular iris for more natural highlights. The camera's pro-style features include Hybrid, Normal, Face Only, manual focus, Instant, and Canon's Medium autofocus; fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3.5" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise.The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots, and it outputs to mini-HDMI and 3G-SDI ports. The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI and 3G-SDI outputs. On the audio side, the XA65 features up to four channels of LPCM audio in 720p mode with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input. It features a built-in stereo microphone as well as a headphone jack.
Sensor Resolution
Effective: 21 Megapixel
Image Sensor
1/2.3"-Type CMOS
Image Stabilization
Optical in Integrated Lens
Digital
Built-In ND Filter
Mechanical Filter Wheel with 1-Stop (1/2), 2-Stop (1/4), 3-Stop (1/8) ND Filters
Capture Type
Video Only
Shutter Type
Electronic Global Shutter
Shutter Speed
1/2000 to 1 Second
Gain
0 to 24 dB (Native)
Signal-to-Noise Ratio
3 dB
Minimum Illumination
5 Lux at 1/30 Shutter Speed
0.3 Lux at 1/2 Shutter Speed
White Balance
2000 to 15,000K
Focal Length
3.6 to 73.4mm (35mm Equivalent: 29.3 to 627mm)
Optical Zoom Ratio
20x
Maximum Aperture
f/1.8 to 2.8
Optical Design
12 Elements in 10 Groups
Minimum Focus Distance
Wide: 0.4" / 1.0 cm
Entire Zoom Range: 23.6" / 60.0 cm
Filter Size
58 mm
Control Rings
Focus
Zoom
Focus Control
Autofocus
Manual Focus
Internal Recording Modes
H.264/MP4/XF-AVC 4:2:2 8/10-Bit
3840 x 2160 at 23.98/24.00/29.97 fps [150 Mb/s]
1920 x 1080p at 23.98/24.00/29.97/59.94 fps [17 to 35 Mb/s]
1280 x 720 at 59.94 fps [8 Mb/s]
Fast-/Slow-Motion Support
Yes
Broadcast Output
NTSC
Built-In Microphone Type
Stereo
Audio Recording
MP4: 2-Channel 16-Bit AAC Audio
MP4: 4-Channel 16-Bit LPCM Audio
IP Streaming
No
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O
1x Mini-HDMI 2.0 Output
1x BNC (3G-SDI) Output
Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Input
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x USB-C Input
Other I/O
1x USB-C
Wireless
Mobile App Compatible
Global Positioning (GPS, GLONASS, etc.)
Display Type
Articulating Touchscreen LCD
Display Size
3.5"
Resolution
2,760,000 Dot
Type
Built-In Electronic (LCD)
Size
0.36"
1,770,000 Dot
Focus Type
Auto and Manual Focus
Focus Mode
Automatic, Manual Focus
Operating Temperature
32 to 72°F / 0 to 40°C (Recommended)
Storage Temperature
23 to 113°F / -5 to 45°C
Operating Humidity
85%
Storage Humidity
60%
Battery Type
Canon BP-8 Series
Power Consumption
≤4.8 W
Shoe Mount
1x Cold Shoe on Included Handle
Tripod Mounting Thread
1/4"-20 Female
Accessory Mounting Thread
Dimensions (W x H x D)
7.2 x 4.3 x 3.3" / 18.3 x 10.9 x 8.4 cm (Without Protrusions)
Weight
1.7 lb / 750 g (Body Only)
2.5 lb / 1140 g (With Battery, Handle, Recording Media)

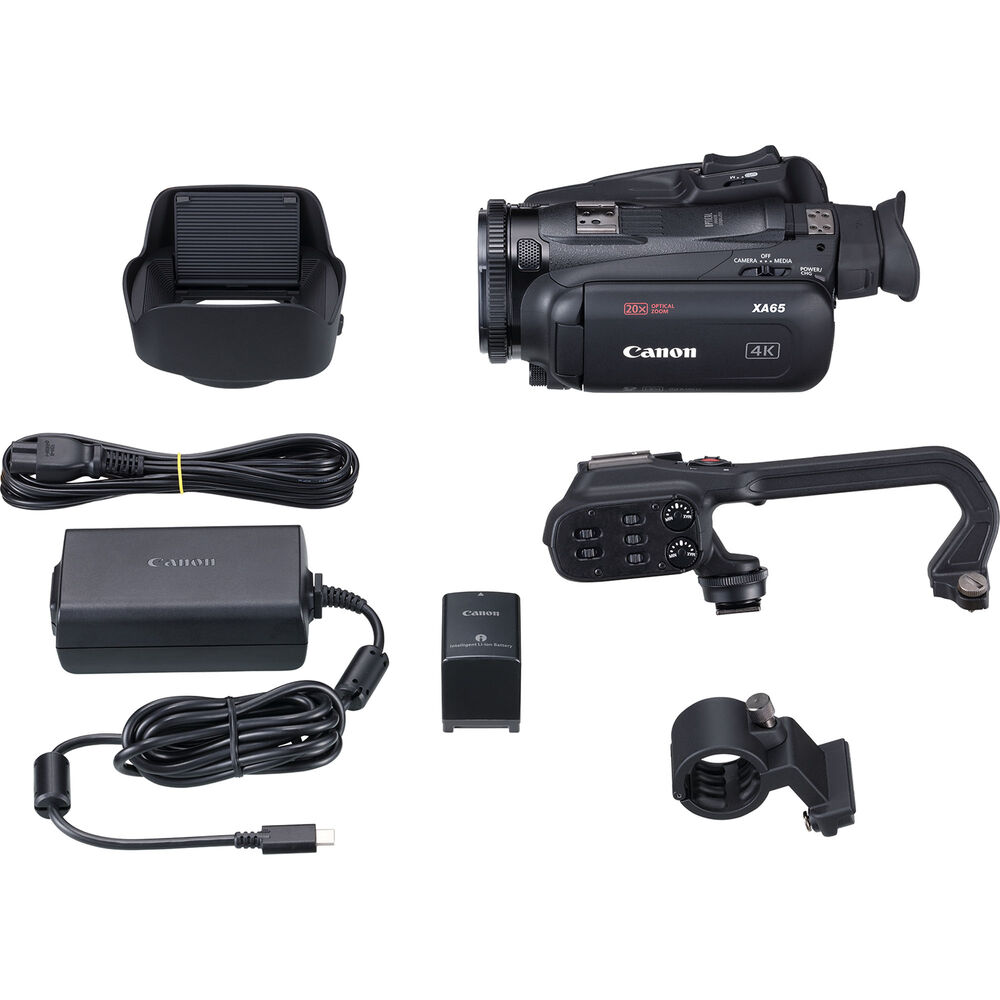

In the Box:
