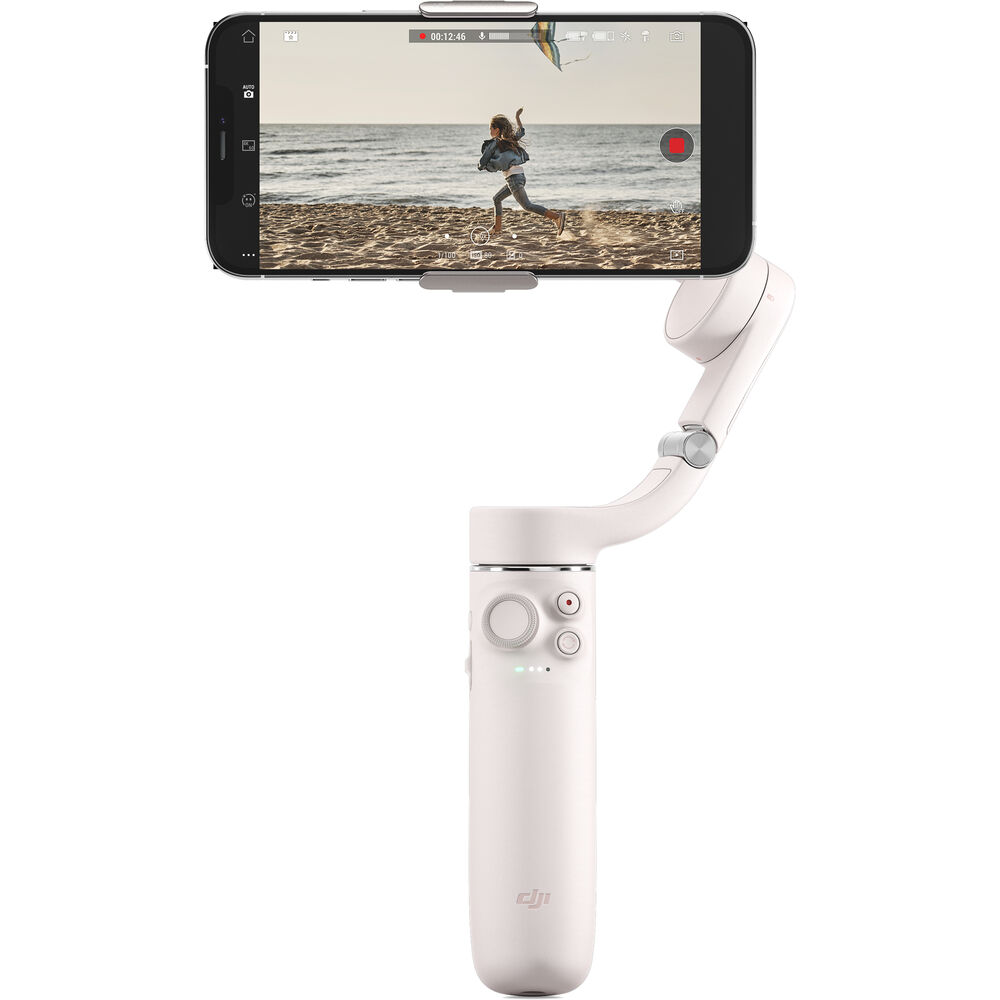

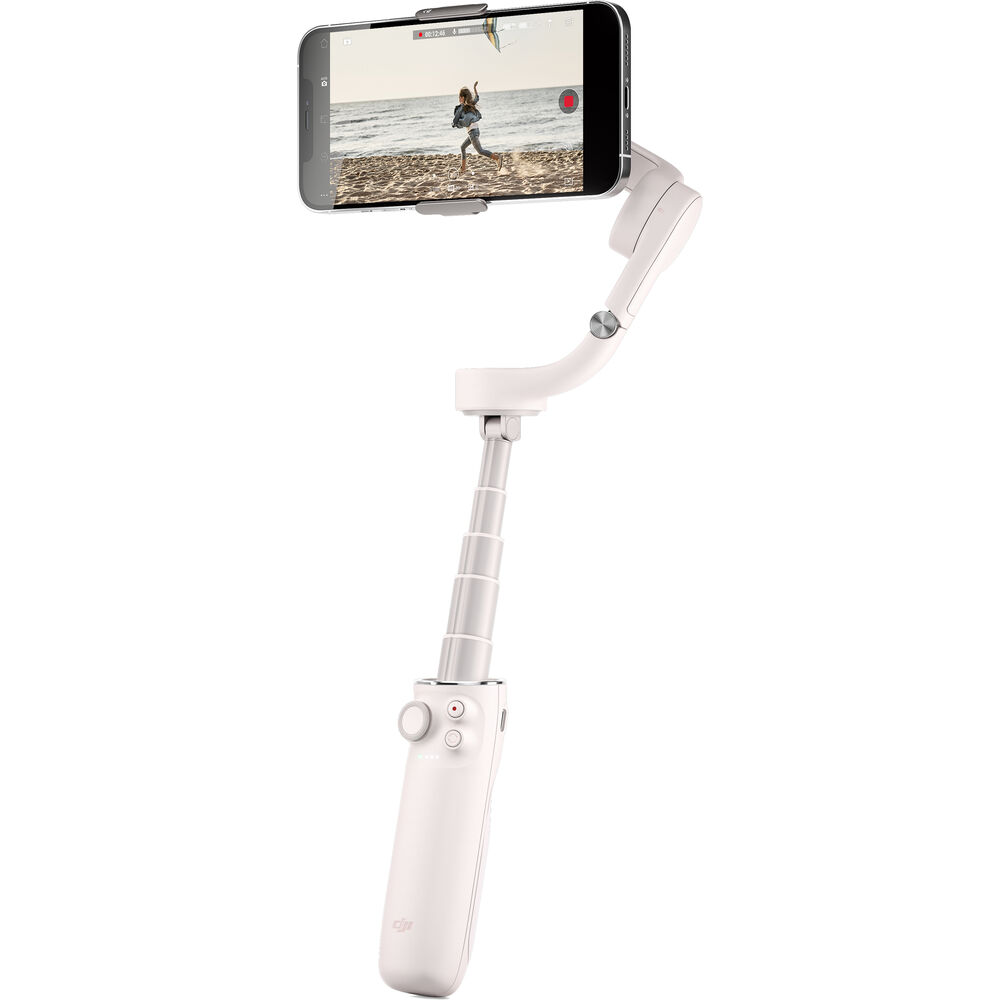

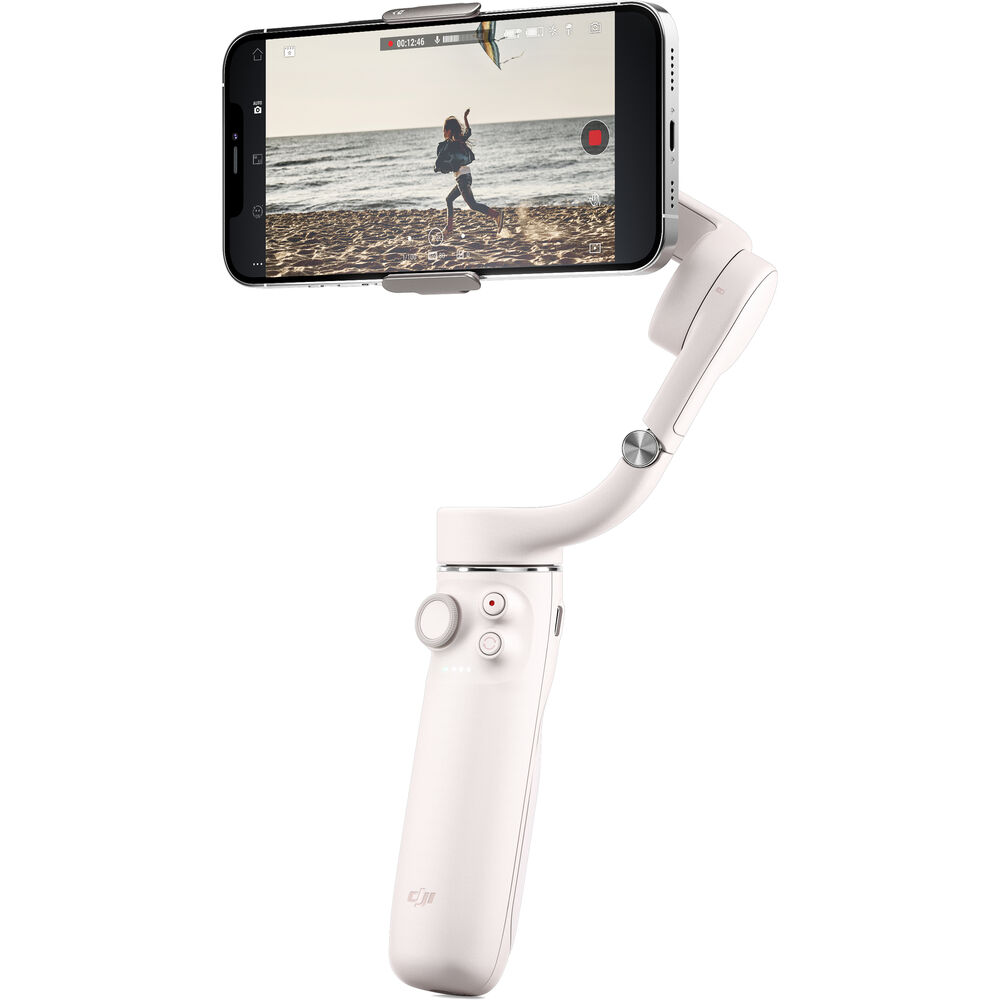

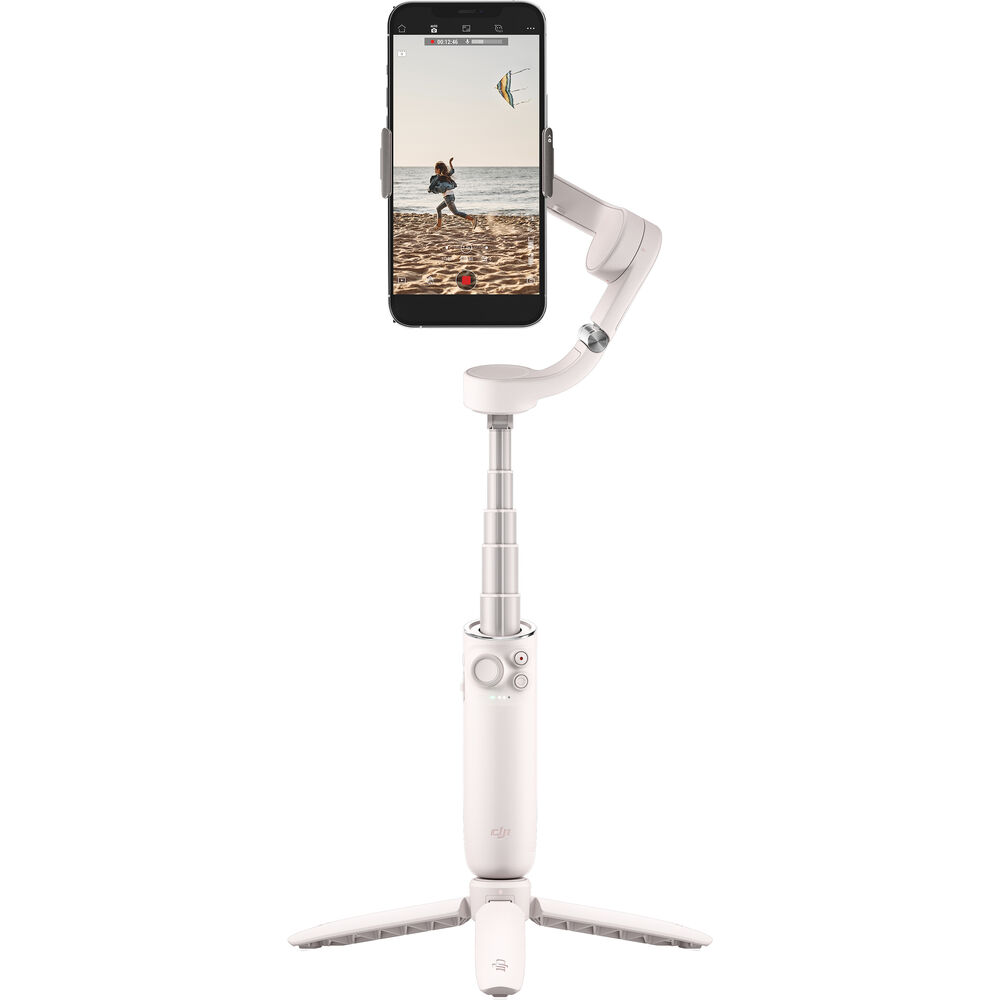

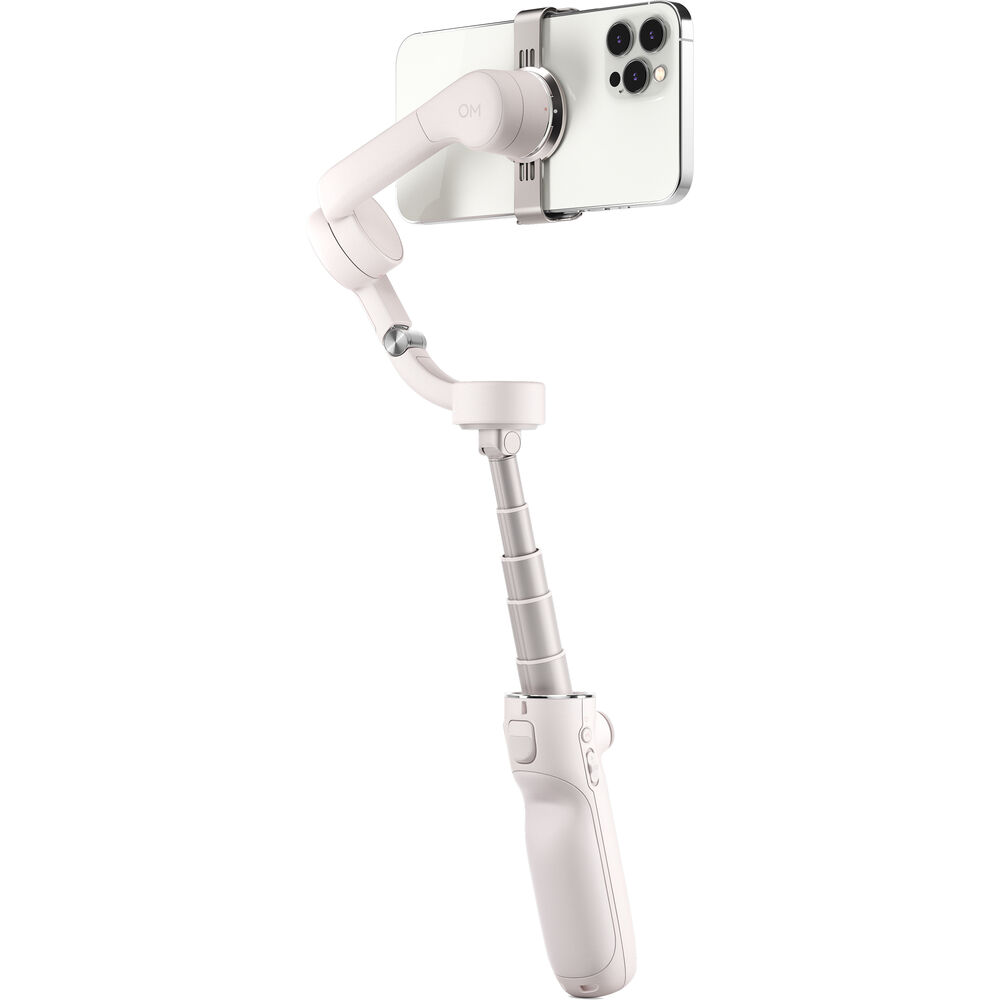

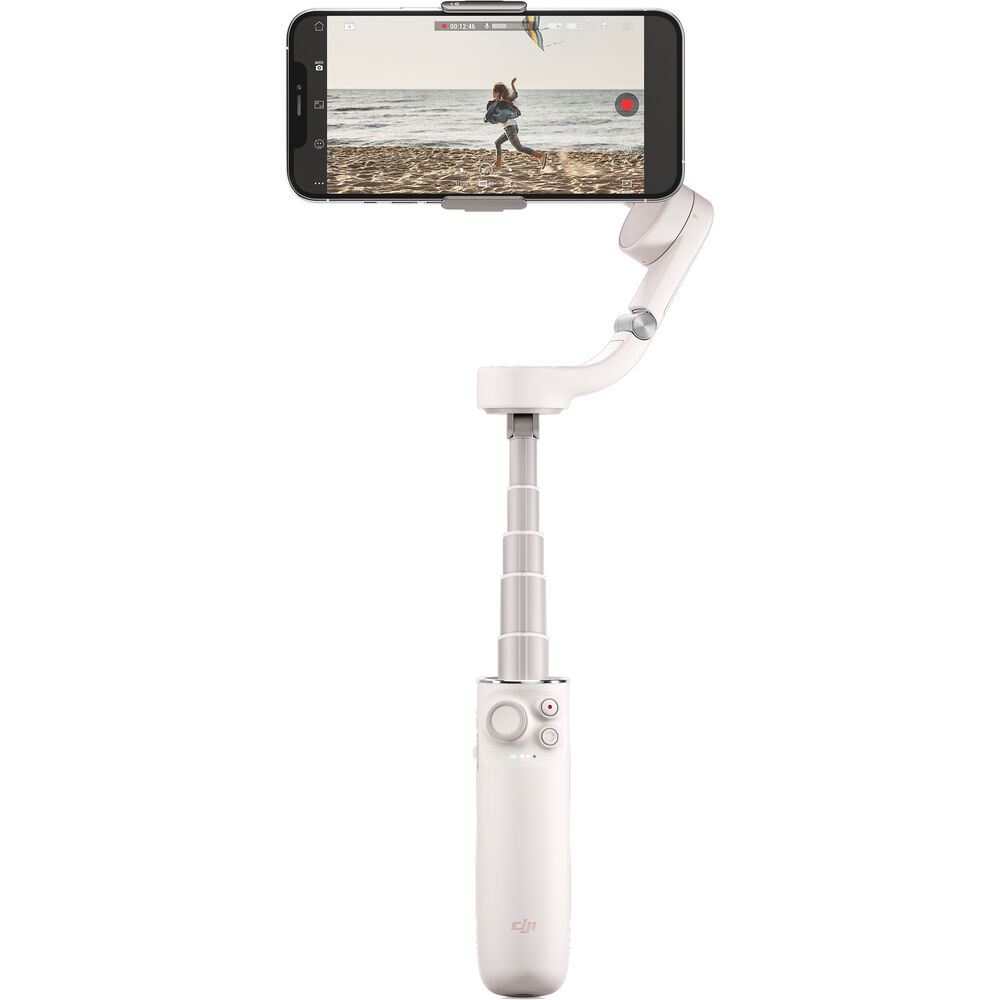

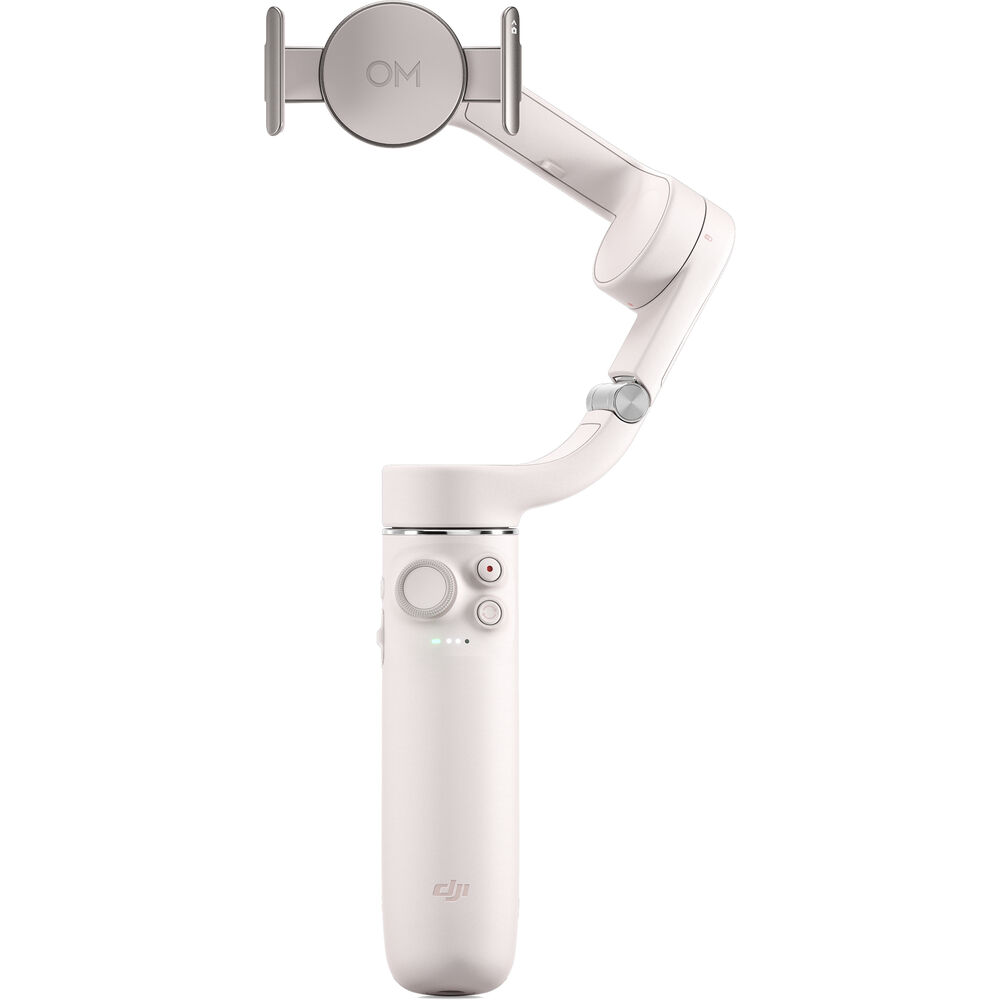

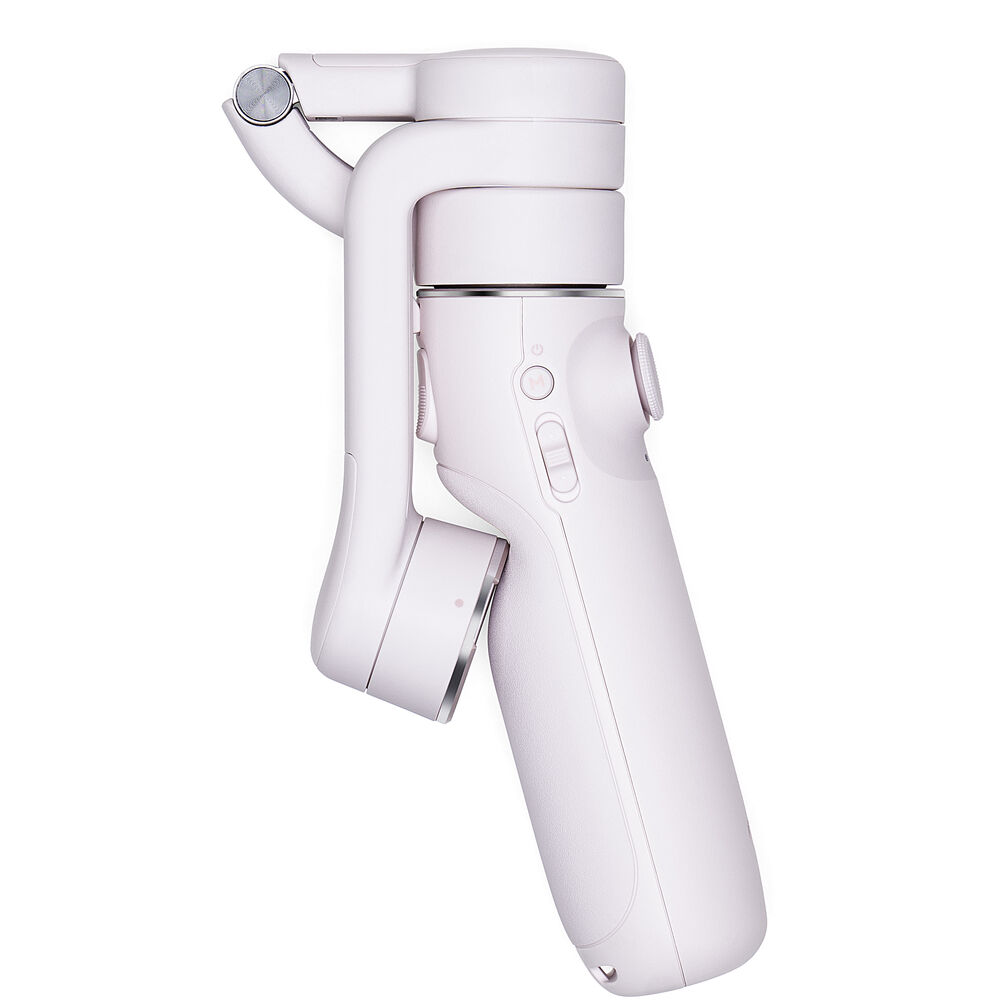

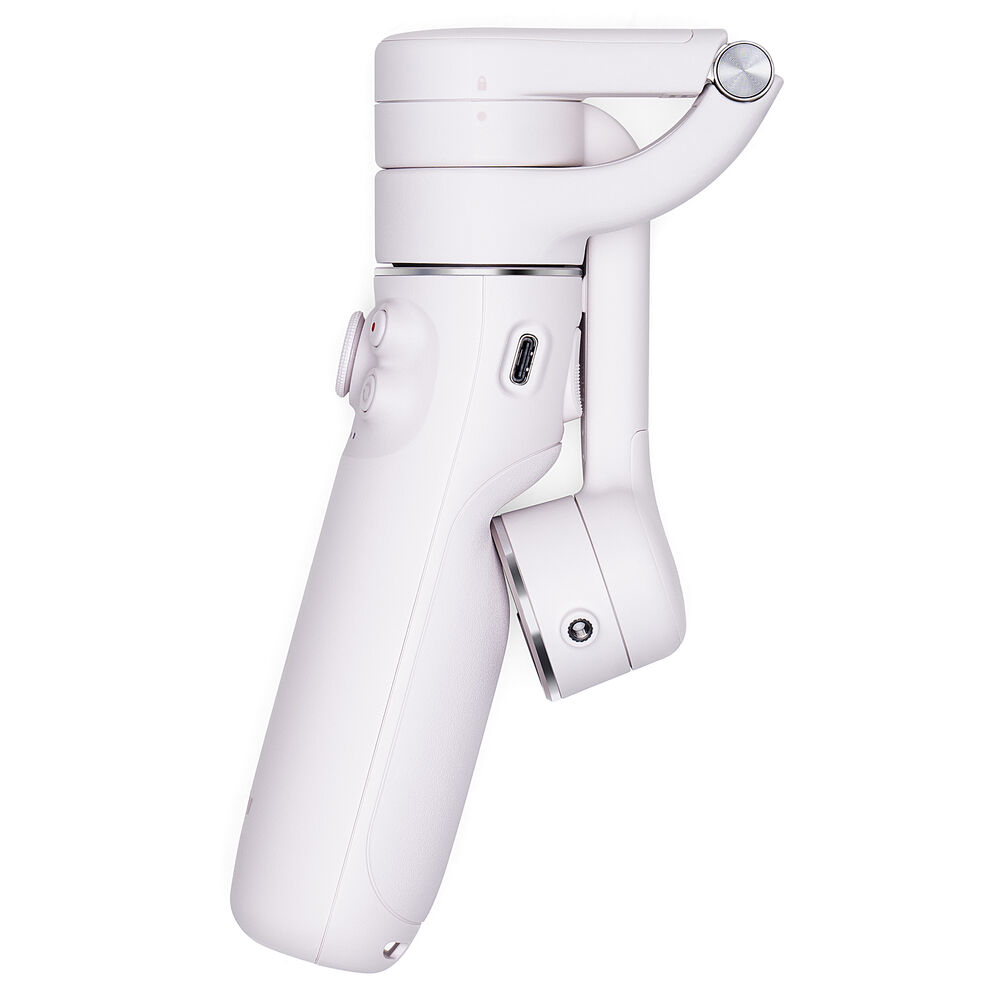

Improving on the previous OM 4 gimbal stabilizer, the DJI OM 5 smartphone gimbal stabilizer comes in an even more compact frame that's easier to balance and fold down, and it now features an extension rod that provides an additional 8.5" length to help design more creative shots. It retains the handy foldable magnetic smartphone mount, and it now comes in a metal design with metal joints for improved durability and ergonomics.

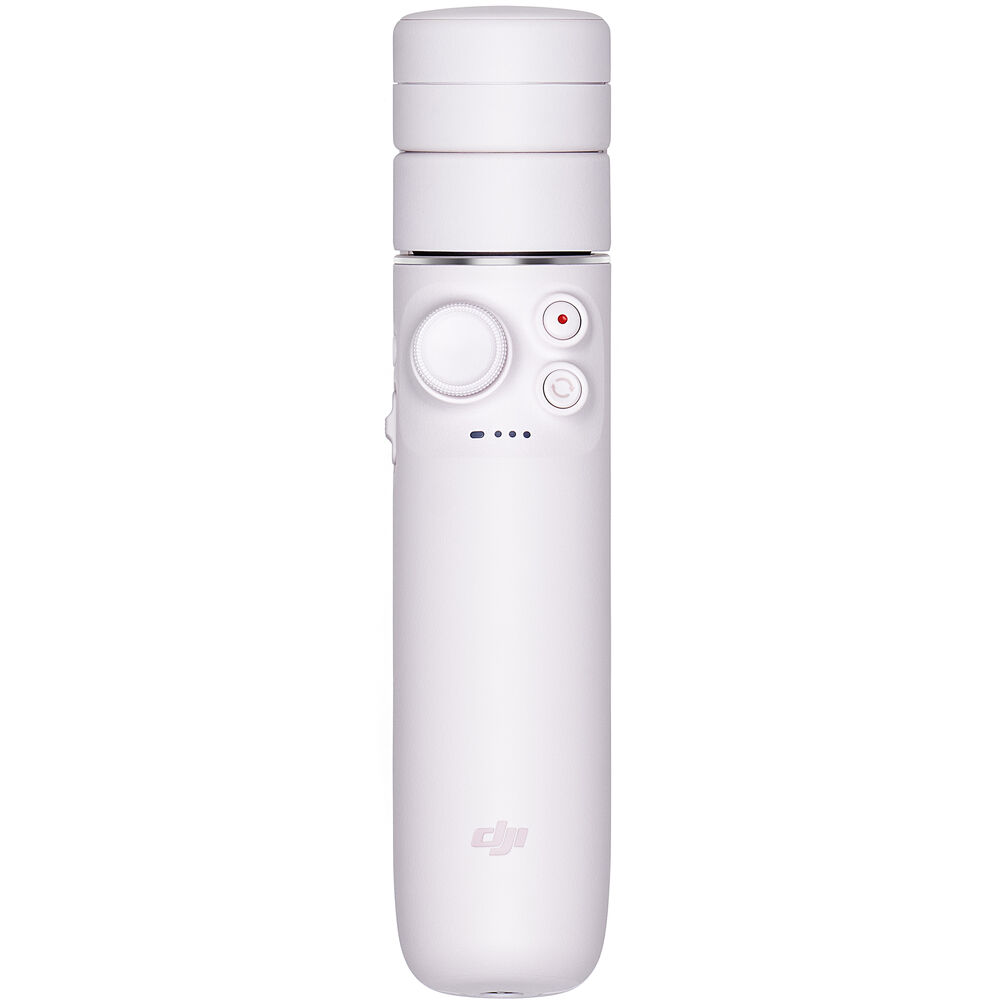

The OM 5 features Bluetooth 5 control and syncs up with the DJI Mimo app to provide multiple shooting modes and functions, including Sport, Portrait, Underslung, Landscape, Time-Lapse, DynamicZoom (Dolly Zoom), Hyperlapse, Panorama, enhanced "CloneMe" Panorama, Slow-Motion, Inception-style spin (SpinShot), and a Sport mode for fast-action shooting. In addition to using the joystick controls on the handle, you can also use hand gestures to control the gimbal to track your movement, take a selfie, or start/stop your smartphone camera, so you don't have to press the record button or touch any controls. It can also automatically track body shapes to track human subjects without the need to make a manual selection with the latest ActiveTrack 4.0.

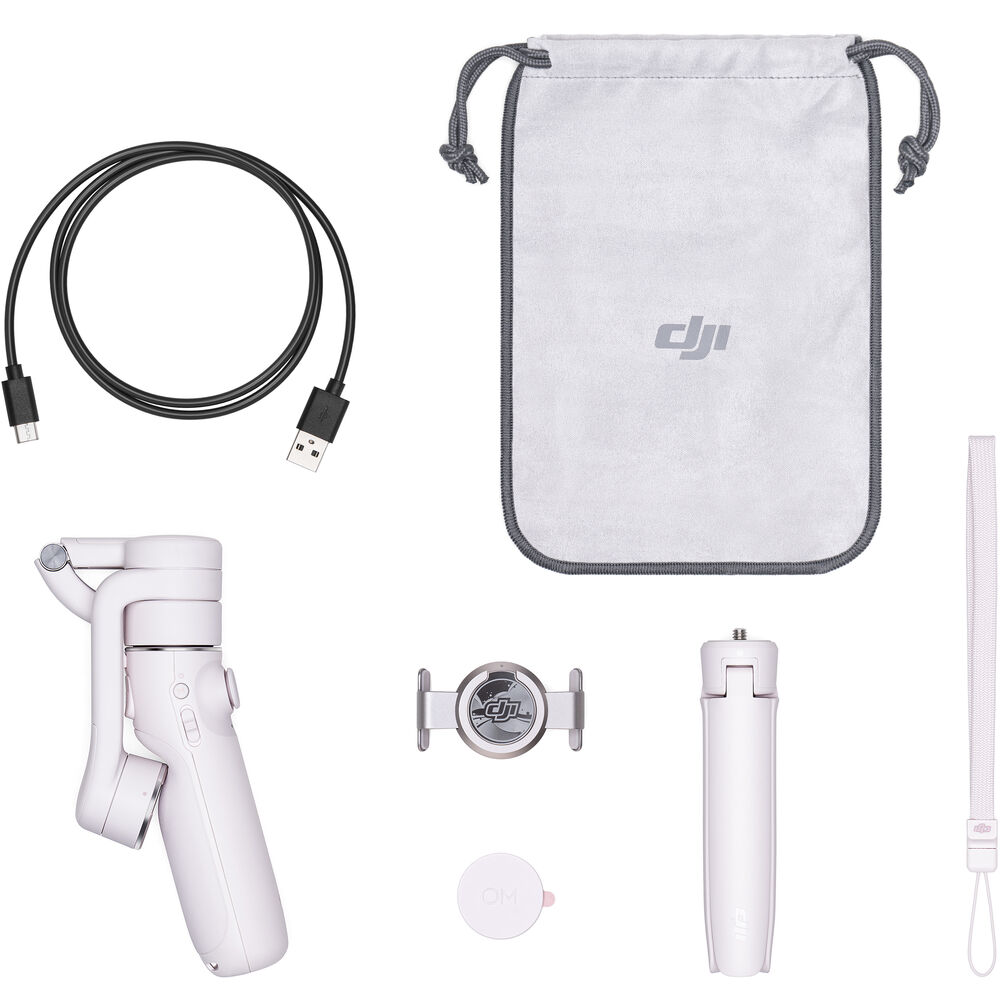

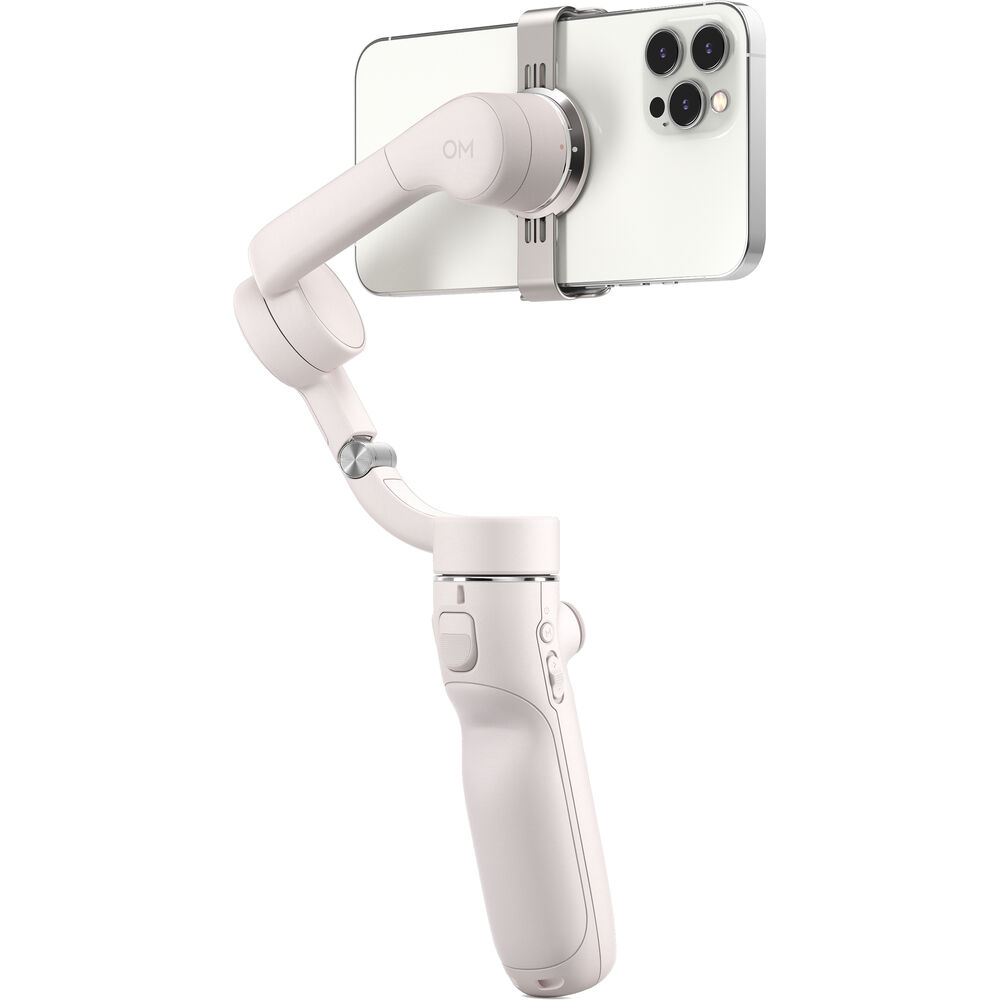

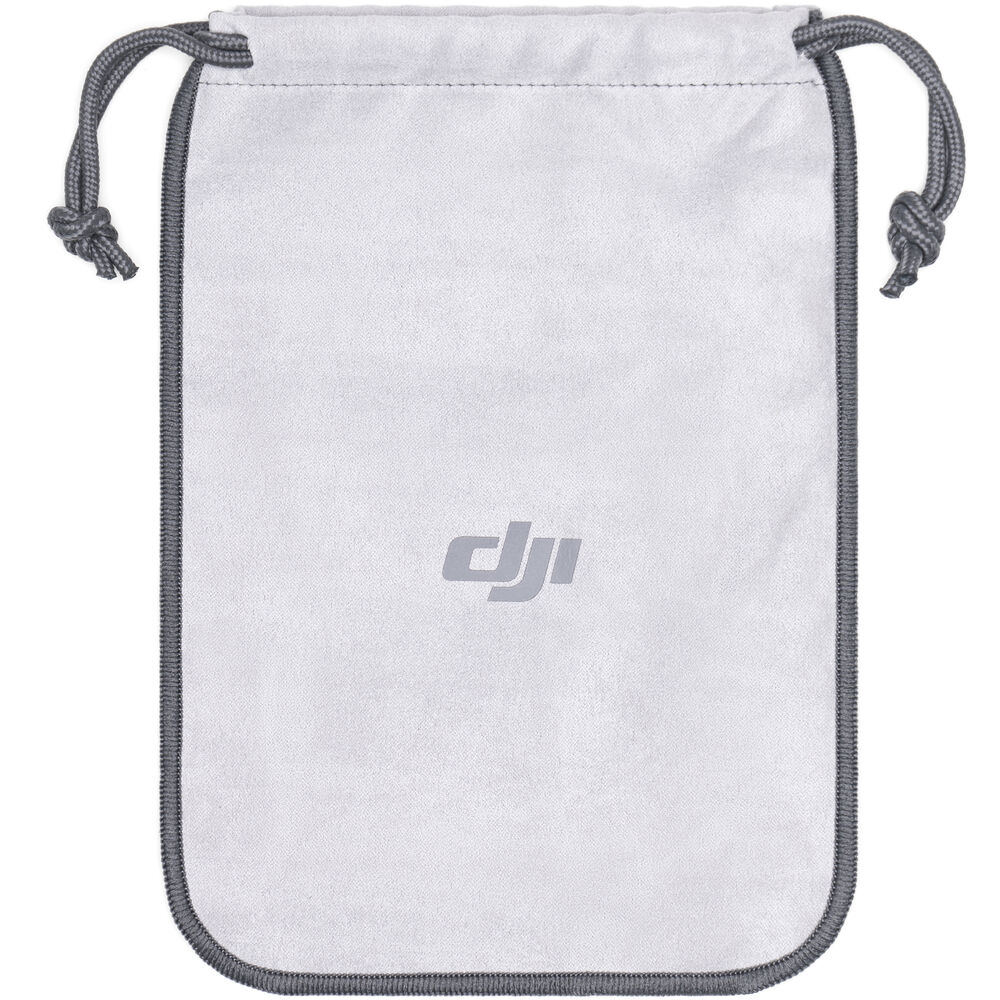

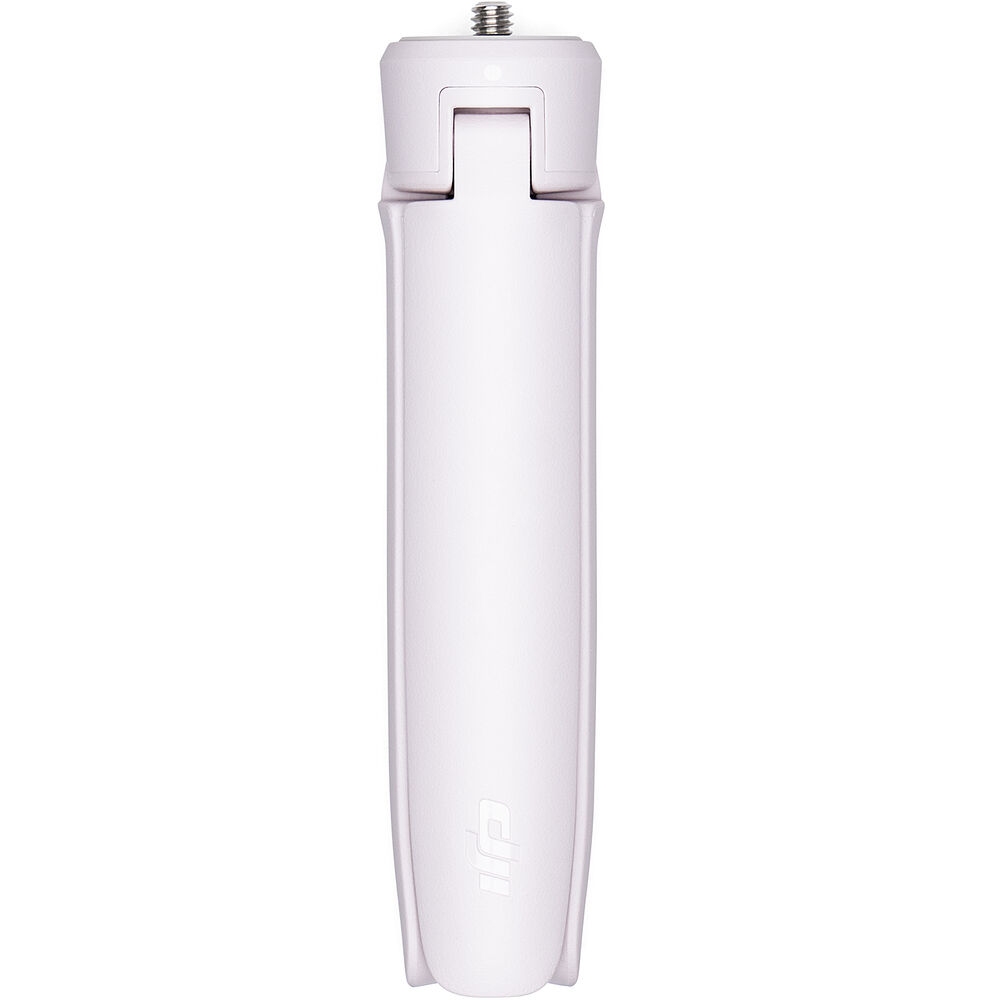

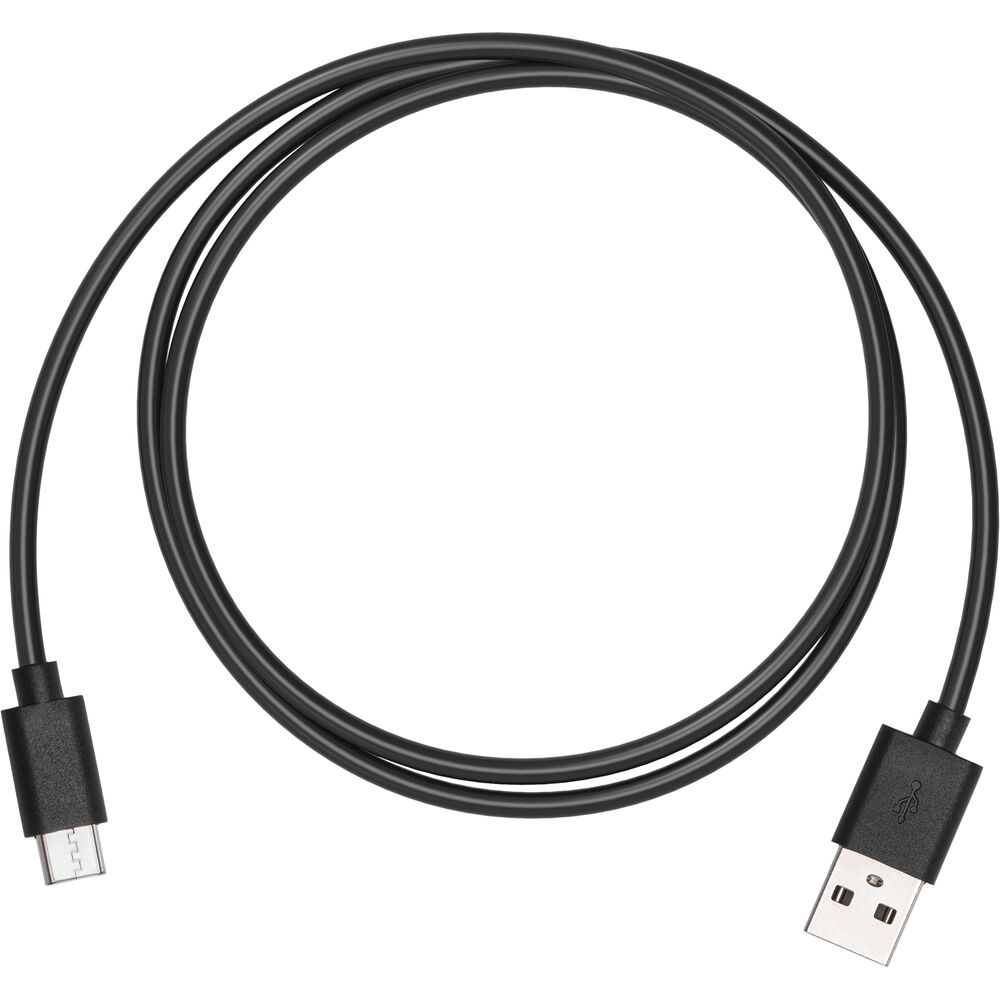

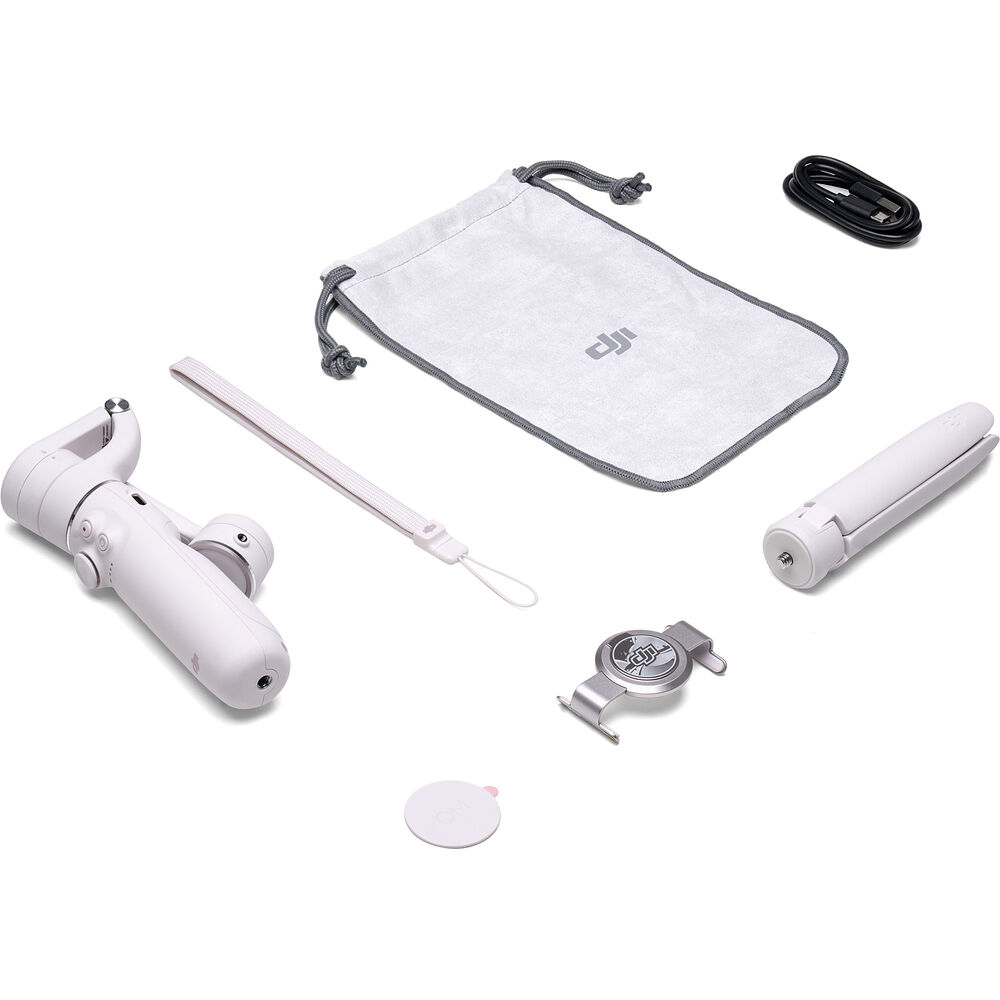

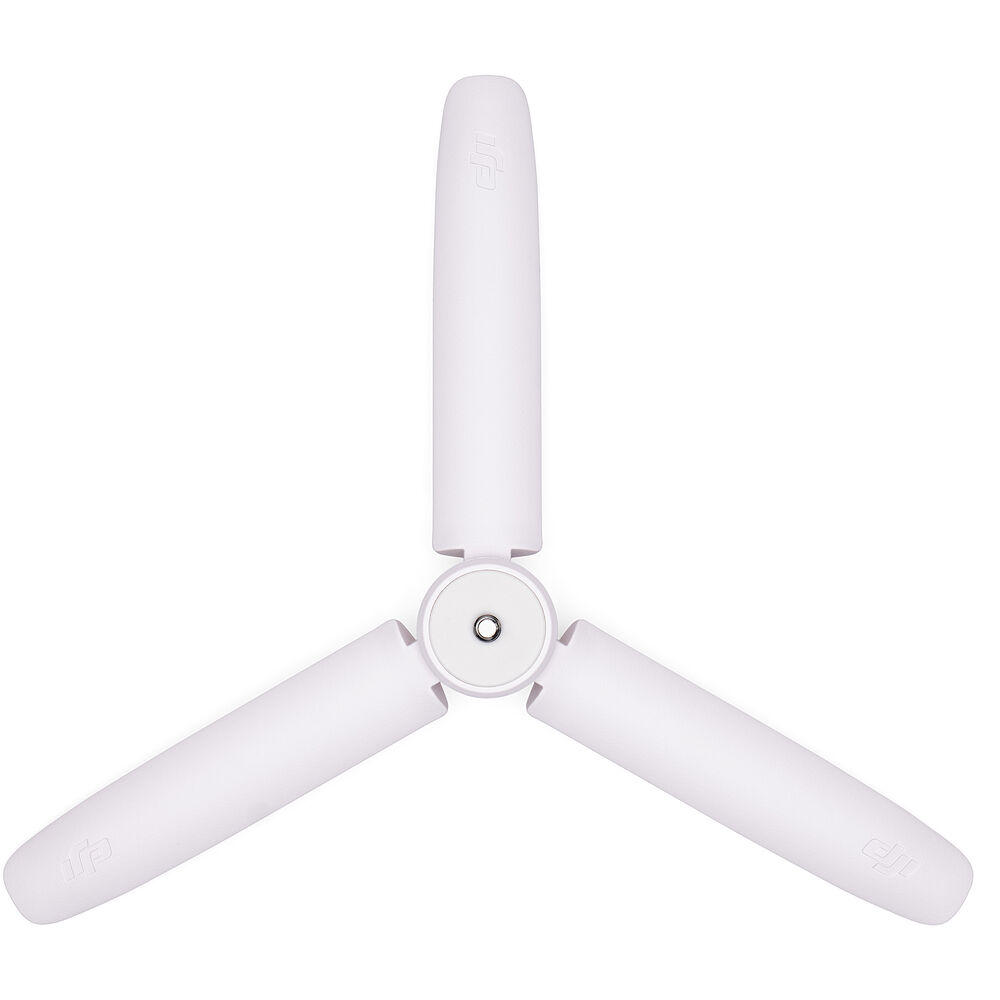

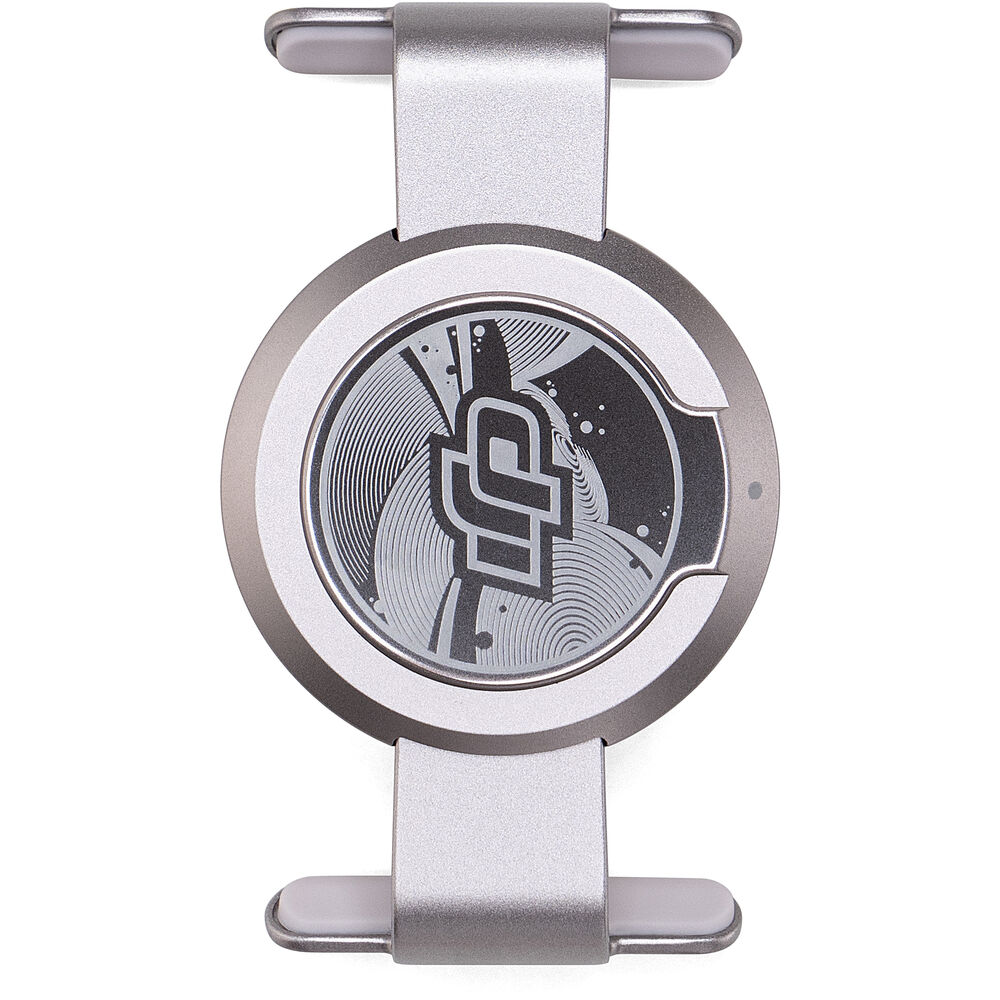

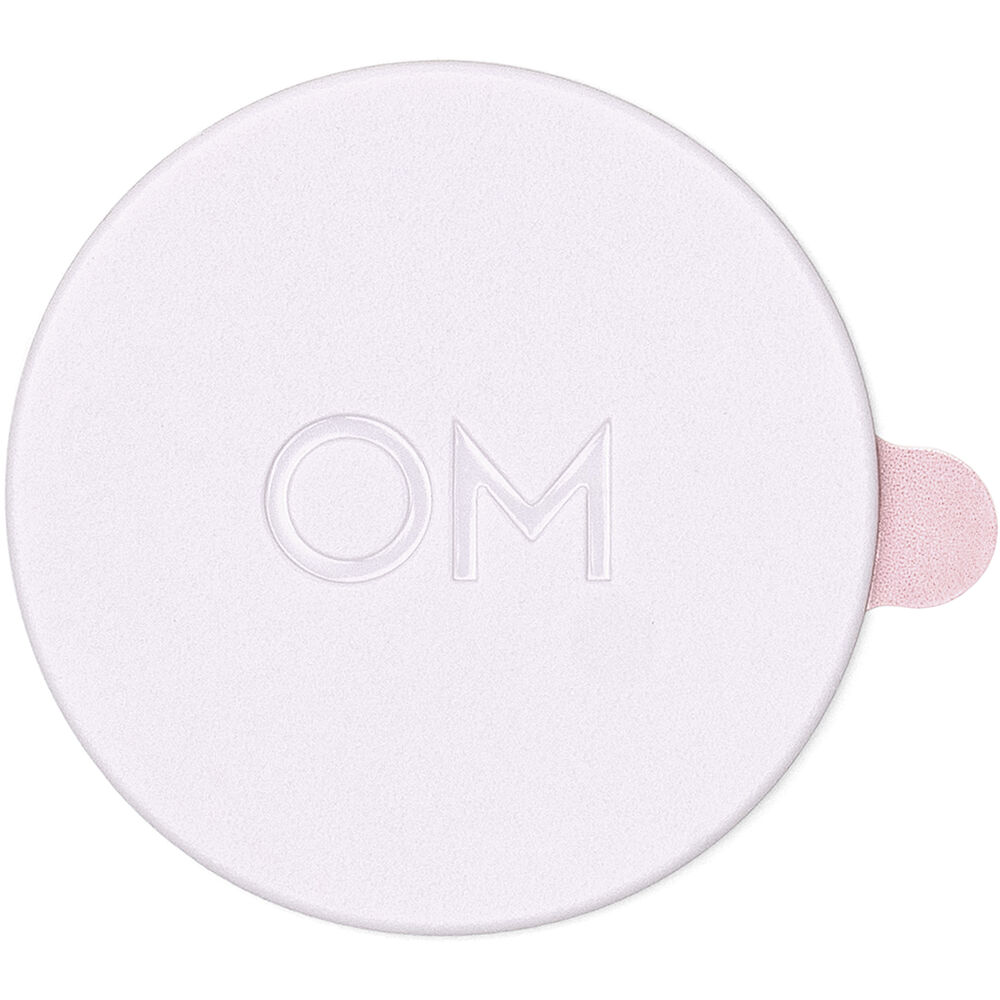

You can mount any smartphone up to 3.3" wide in its phone cradle, and its magnetic phone holder and smartphone magnetic ring allow for simple and fast mounting and unmounting. The integrated intelligent sensor even tells you when your smartphone is mounted. The built-in battery runtime is approximately 6.4 hours, and it takes approximately 1.5 hours to charge using the included USB Type-C cable. The bottom of the gimbal handle features a 1/4"-20 mounting thread to mount the gimbal on the included grip tripod or other accessory. A storage pouch and wrist strap are also included with the gimbal.
Key Features
DJI Mimo App
Technical Specifications:
Load Capacity
6 to 8.1 oz / 170 to 230 g
Number of Axes
3-Axis (Pitch, Roll, Yaw)
Rotation Range
Yaw (Pan): 334° (-161.2 to 172.8°)
Roll: 336° (-127.1 to 208.9°)
Pitch (Tilt): 331° (-101.5 to 229.5°)
Follow Speed
Pan: 120°/s
Tilt: 120°/s
Roll: 120°/s
Smartphone Dimensions
Width: 2.64 to 3.31" / 67 to 84 mm
Thickness: 0.3 to 0.4" / 6.9 to 10 mm
Inputs/Outputs
1 x USB Type-C (5 VDC Power) Input
Wireless Protocol
Bluetooth 5.0
Battery Type
1 x Built-In
Battery Capacity
1000 mAh / 7.74 Wh
Battery Runtime
6.4 Hours
Battery Chemistry
Lithium-Ion
Voltage
7.7 VDC
Operating Voltage
6.0 to 8.8 VDC
Operating Temperature
32 to 104°F / 0 to 40°C
Mounting
1 x 1/4"-20 Female
Dimensions
6.9 x 2.9 x 1.5" / 174.7 x 74.6 x 37 mm (Folded)
10.4 x 4.4 x 3.6" / 264.5 x 111.1 x 92.3 mm
Weight
10.3 oz / 292 g
In the Box:
