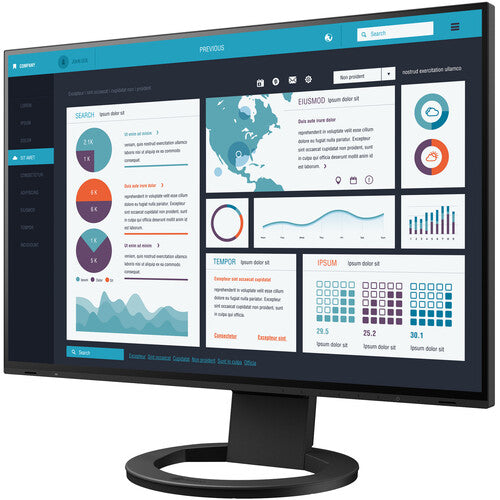

The FlexScan EV2795FX-BK 27" 16:9 Docking IPS Monitor from EIZO is built to add ports and connectivity to your host system, as well as make it easy to connect when moving a laptop between workstations or working away from the office. Using its 5 Gb/s USB 3.1 Gen 1 Type-C input, which also supports DisplayPort via DP alt mode, up to 70W of power delivery, and 2-channel linear PCM audio from 32 to 192 kHz. All this means you'll be able to display video, play back audio, transmit data, and even transit a network signal, thanks to its integrated Gigabit Ethernet port. Other ports include an HDMI and DisplayPort input, both of which support audio, a USB 3.1 Gen 1 Type-B input, a USB 3.1 Gen 1 Type-C output, which also supports up to 15W of power, three USB 3.1 Gen 1 Type-A ports with up to 0.9A of power, and a 3.5mm headphone jack. Audio may also be output using the dual 1W speakers.
The USB Type-C output on the FlexScan EV2795FX-BK also supports daisy chaining for easily connecting multiple monitors from a single video output. This lets you connect two screens and view multiple applications simultaneously for boosting efficiency. The USB Type-B and Type-C inputs support KVM functionality, allowing users to connect a single keyboard and mouse for up to two connected systems. Other notable features include Low Blue Light, Flicker-Free, and Auto Brightness Control with Auto EcoView.

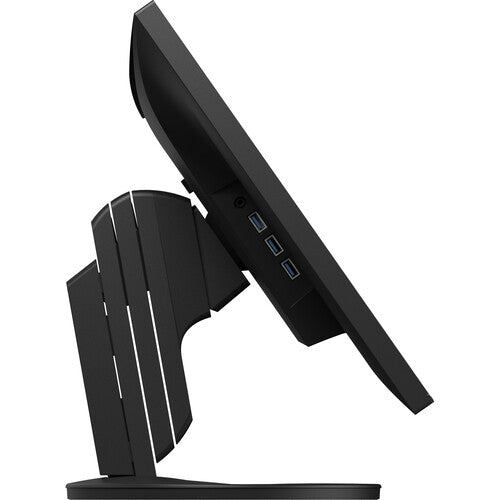

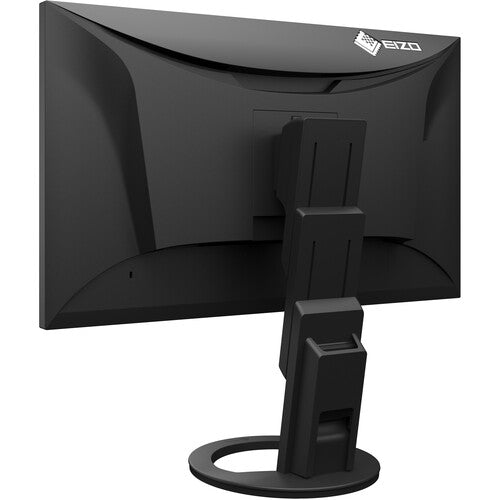

Technically, the FlexScan EV2795FX-BK has an anti-glare IPS (In-Plane Switching) panel, 8-bit support for 16.7 million colors, a widescreen 16:9 aspect ratio, a static contrast ratio of 1000:1, 350 cd/m2 brightness, 109 ppi, a 14 ms (GtG) response time, and a 5 ms (GtG) response time in overdrive. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. It has been engineered to support the sRGB color gamut and to further help improve viewing and accessibility, it features a vertical tilt of -5 to 35°, a left/right swivel of 344° (±172°), a clockwise rotation of 180° (±90°), a height adjustment of 7", and a 100 x 100mm VESA mount.
Technical Specifications:
Display Size
27"
Panel Type
IPS-Type LCD
Aspect Ratio
16:9
Resolution
2560 x 1440
Maximum Brightness
350 nits / cd/m2
HDR Compatibility
No
Contrast Ratio
1000:1
Response Time
14 ms (GtG)
5 ms (Overdrive)
Refresh Rate
60 Hz
Variable Refresh Technology
Bit Depth / Color Support
8-Bit (16.7 Million Colors)
Viewing Angle (H x V)
178 x 178°
Screen Area
23.5 x 13.2" / 596.7 x 335.7 mm
Dot Pitch
0.233 x 0.233 mm
Pixels Per Inch (ppi)
109 ppi
Pixel Clock Frequency
242 MHz
Look-Up Table
10-Bit
Finish
Anti-Glare / Matte
Touchscreen Technology
Inputs
1x DisplayPort
1x HDMI
Outputs
1x 1/8" / 3.5 mm
HDCP Support
Yes
USB I/O
1x USB-B 3.0 / 3.1/3.2 Gen 1
1x USB-C 3.0 / 3.1/3.2 Gen 1
3x USB-A 3.0 / 3.1/3.2 Gen 1
USB Power Delivery
70 W (via USB-C)
15 W (via USB-C)
Ethernet I/O
1RJ45
Multi-Input Support (PIP/PBP)
Built-In Speakers
Yes, 2x 1 W
Supported Languages
English
French
German
Italian
Japanese
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Operating Temperature
37 to 67°F / 5 to 35°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
20 to 80%
Storage Humidity
10 to 90%
Power Consumption
Standby: 0.5 W
Typical: 16.0 W
Maximum: 164.0 W
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Adapter Type
Internal
Certifications
CB, CCC, CE, EAC, ENERGY STAR, EPEAT, PSE, RCM, RoHS, TCO Certified, TUV-Ergonomics, TUV-GS, TUV-S, WEEE, cTUVus
Height Adjustment
7.0" / 176.6 mm
Rotation Adjustment
180° (-90 to 90°)
Swivel Adjustment
344° (-172 to 172°)
Tilt Adjustment
-5 to 35°
Max Arm Extension Length
7" / 176.6 mm
Mounting-Hole Pattern
100 x 100 mm
Lock Slot
Yes, Kensington
Dimensions
24.1 x 21.5 x 9.1" / 611.4 x 545.2 x 230 mm (with Stand)
24.1 x 14 x 2.2" / 611.4 x 356.6 x 56 mm (without Stand)
Weight
18.7 lb / 8.5 kg (with Stand)
12.6 lb / 5.7 kg (without Stand)
In the Box:
