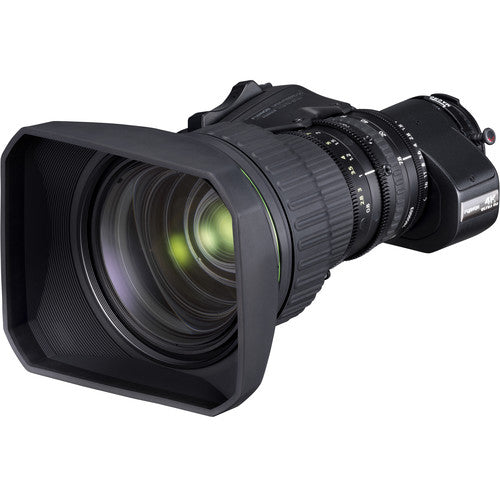

Fujinon UA24X7.8BERD UHD 4K 24x ENG Zoom

Rs. 0.00
This product is Out of stock
Key Features:
  • 7.8-187mm Lens for 2/3" Cameras
  • 4K+ Compatible Resolution
  • 24x Zoom Ratio & 2x Extender
  • Fast f/1.8 Max Aperture at 7.8-118mm
  • 9-Blade Aperture
  • 16-Bit Encoders for Virtual Systems
  • Digital Servo for Focus and Zoom
  • QuickZoom Focus Check Feature
  • Compact, Lightweight Design

The UA24X7.8BERD UHD 4K 24x ENG Zoom from Fujinon is a 7.8 to 187mm zoom lens offering 4K capture in a lightweight, compact form. This wide-to-telephoto 24x zoom doubles to 48x or 15.6 to 374mm when you engage its built-in 2x extender. The maximum aperture is a fast f/1.8 from 7.8 to 118mm and ramps to f/2.8 through 187mm. The digital-servo UA24X7.8BERD features a well-balanced design for handheld use, 16-bit encoding for virtual system use, and a nine-blade aperture for smooth, natural bokeh.

Zoom features include a zoom limit with an override switch, selectable zoom modes, a zoom speed cruise feature, and an adjustable maximum speed limit. The QuickZoom return feature improves zoom speed to 0.7 seconds end-to-end for speedy focus checks. The Quick Frame feature enables manual zooming without disengaging the lock. The 4K Premier series UA24X7.8BERD zoom also offers anti-backlash gearing for precise servo control and serial digital control of focus, iris, and zoom.

Optical
  • 7.8 to 187mm ultra-wide to telephoto lens for 2/3" cameras
  • 15.6 to 374mm range with included 2.2x extender
  • 24x zoom ratio
  • Fast f/1.8 max aperture from 7.8 to 118mm and f/2.8 at 187mm
  • 4K optical performance in a compact, lightweight design
  • Nine-blade aperture produces natural-looking bokeh
Functions
  • 16-bit encoding for virtual system use
  • QuickZoom 0.7 second return check
  • Selectable zoom modes for sports, drama, etc.
  • Zoom limit with override switch
  • Zoom speed "cruise" feature
  • Adjustable maximum zoom-speed limit
  • Anti-backlash gearing for precise servo control
  • Quick Frame enables manual zooming without the need to disengage the zoom lock
  • Serial digital remote control of focus, iris, and zoom

Technical Specifications:

Sensor Compatibility

2/3" (16:9)

Focal Length

7.8 to 187mm

With Extender: 15.6 to 374mm

Built-In Extender

2x

Zoom Ratio

24x

Angle of View

16:9

Wide: 63.2 x 38.1° (H x V)

Tele: 2.9 x 1.7° (H x V)

16:9 With 2x Extender

Wide: 34.2 x 19.6° (H x V)

Tele: 1.5 x 0.8° (H x V)

Maximum Aperture

f/1.8 to 2.8

Focus Type

Servo

Iris Type

Manual, Servo

Filter Thread

M107 x 1 mm

Minimum Object Distance

2.62' / 0.8 m

Certifications

RoHS

Dimensions

3.9 x 8.7" / 100.0 x 220.5 mm (ø x L)

Weight

4.19 lb / 1.9 kg



In the Box:

  • Fujinon UA24X7.8BERD UHD 4K 24x ENG Zoom
  • Lens Hood
  • Limited 2-Year Warranty (Parts & Labor)
