Technical Specifications:

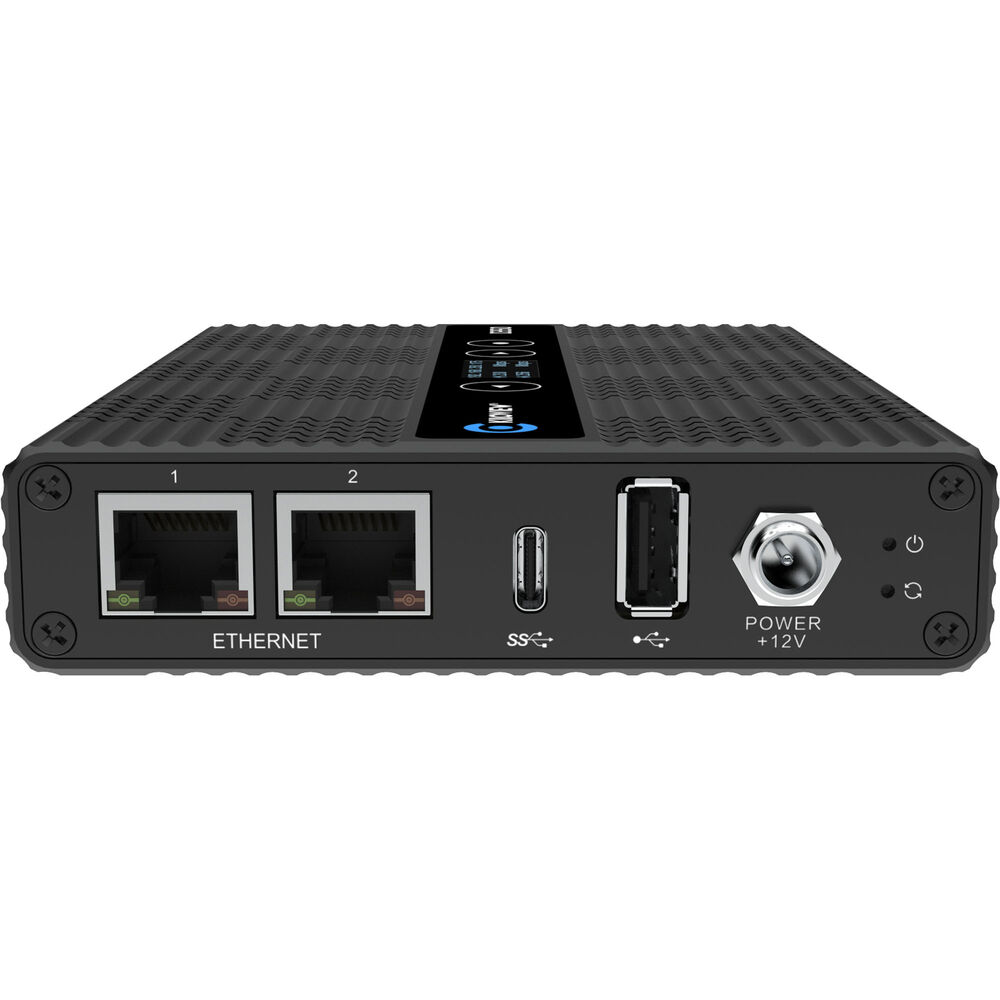

Video Inputs
2 x RJ45
Audio Inputs
None

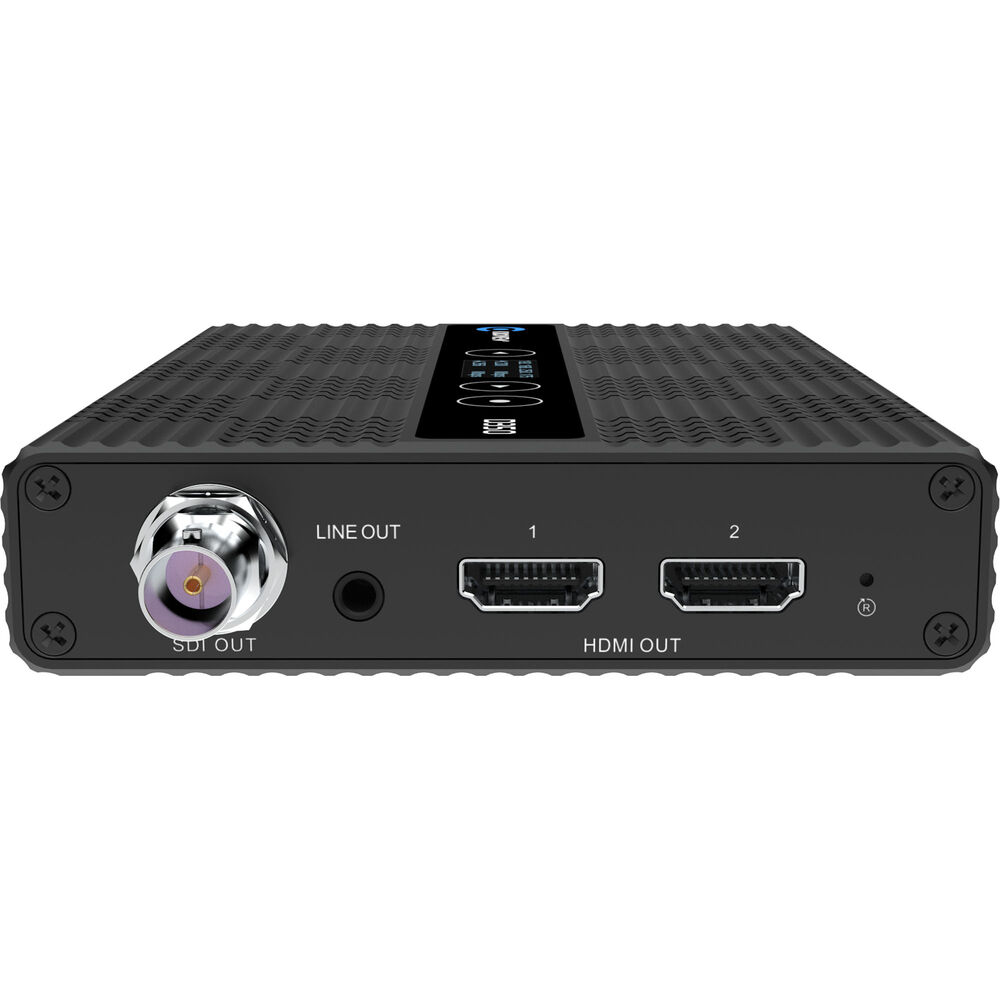

Video Outputs
1 x BNC (3G-SDI)
2 x HDMI (2.0)
Audio Outputs
1 x 1/8" / 3.5 mm TRS Stereo Analog
Other I/O
1 x USB-A
1 x USB-C
Expansion Slots
Latency
to 200 ms
Input Video Format
RJ45
UHD 4K at 30 fps
1080p at 30/50/60 fps
1080i at 50/60 fps
720p
Output Video Format
SDI
1080p at 24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 60 fps
HDMI
UHD 4K at 25/30/50/60 fps
1080p at 24/25/30/50/60 fps
720p at 50/60 fps
Output Audio Format
Analog
Embedded Audio
HDMI/SDI
HDR Compatibility
Not Specified by Manufacturer
Video IP Decoding
H.264, H.265, HLS, NDI, RTMP, RTP, RTSP, TS, UDP3840 x 2160
Audio IP Decoding
AAC

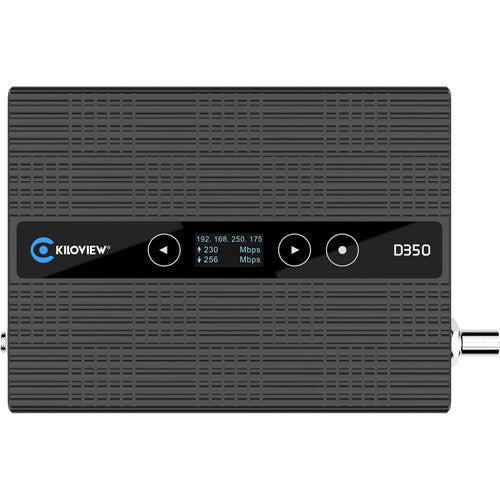

Display Size
.9"
Tally Light
Yes
Wireless
Power I/O
1 x Barrel (12 VDC) Input
Power Consumption
12 VDC at 1 A (6 W)
Operating Temperature
-4 to 140°F / -20 to 60°C
Dimensions
5.5 x 4.1 x 1.1" / 140 x 105 x 28 mm
Weight
13.4 oz / 380 g
