Kiloview E3 HDMI & SDI Dual Channel Video Encoder

Rs. 42,655.00
Key Features:
  • Up to UHD 4K30 via HDMI
  • Supports Multiple Streaming Protocols
  • H.265 and H.264 Support
  • Streams to up to 16 Platforms
  • Built-In LCD Screen
  • Low <100ms Latency
  • PoE Support

Stream your program to up to 16 platforms simultaneously with the E3 HDMI & SDI Dual Channel Video Encoder from Kiloview. The new generation encoder features an HDMI input and loop output that can handle up to UHD 4K30 and a 3G-SDI input and loop output that supports up to 1080p60. Encoding of both inputs in H.264 and/or H.265 is possible at up to 1080p60 with multiple streaming protocols including NDI|HX2, NDI|HX3, SRT, RTMP, RTSP, UDP, and HLS.

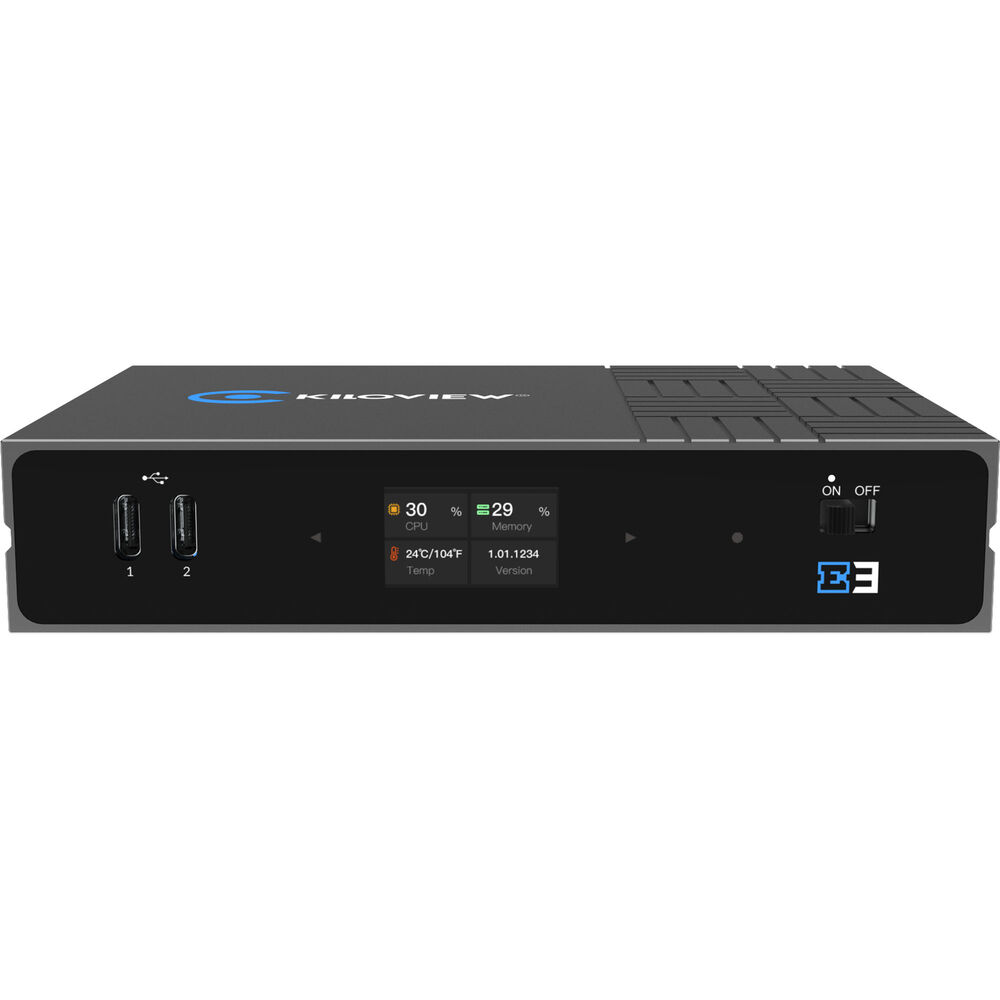

Boasting a low <100ms latency, the E3 is Ideal for a variety of live production applications including remote transmission and live streaming. It features an up-to-date chipset that provides simultaneous streaming to up to 16 different destinations with eight main stream 1080p signals and eight sub stream 720p signals. A 3.5mm line input can ingest analog audio while digital audio can be brought in embedded via HDMI and 3G-SDI and converted into multiple formats including AAC, MPEG-4, MPEG-3, MPEG-2, Opus, or G.711. A 1.14" LCD screen allows you to monitor information regarding connectivity, IP address, CPU, memory, resolution, temperature, and tally status all in real time. A single Ethernet cable can provide PoE (Power over Ethernet) and reduce cable clutter around the unit.

Encodes Both Video Inputs of HDMI and 3G-SDI
The E3 allows encoding video sources from either port of 3G-SDI or HDMI, mixing both video sources into one output in PIP or PBP mode, or even encoding video sources into up to 1080p60 from both ports of HDMI and 3G-SDI simultaneously for high-quality live streaming.

Flexible Formats Selection
For all IP-based video transmission processes, the E3 supports the high efficiency video codec HEVC as well as H.264. With support of HEVC, the E3 maintains video image quality with lower bitrates, saving more than 50% of your bandwidth.

Wide Streaming Protocol Compatibility
For broad applications, the E3 supports a complete range of streaming protocols including NDI|HX3, NDI|HX2, SRT, RTMP, RTMPS, HLS, and TS over UDP, RTP, RTSP, and ONVIF. It can be used for live production with NDI|HX, remote production with SRT, live streaming with RTMP or HLS, or any transmission with all different protocols.

Powerful Multi-Channel Audio Encoding
The E3 supports eight-channel embedded audio encoding of SDI inputs and four-channel embedded audio encoding of HDMI inputs, along with more functions including audio de-embedding, channel selection, alternate channel, and audio output mapping.

Reliable Recording and Streaming
All inputs of the E3 can be recorded in .MOV or.MP4 through the USB ports or NAS storage.

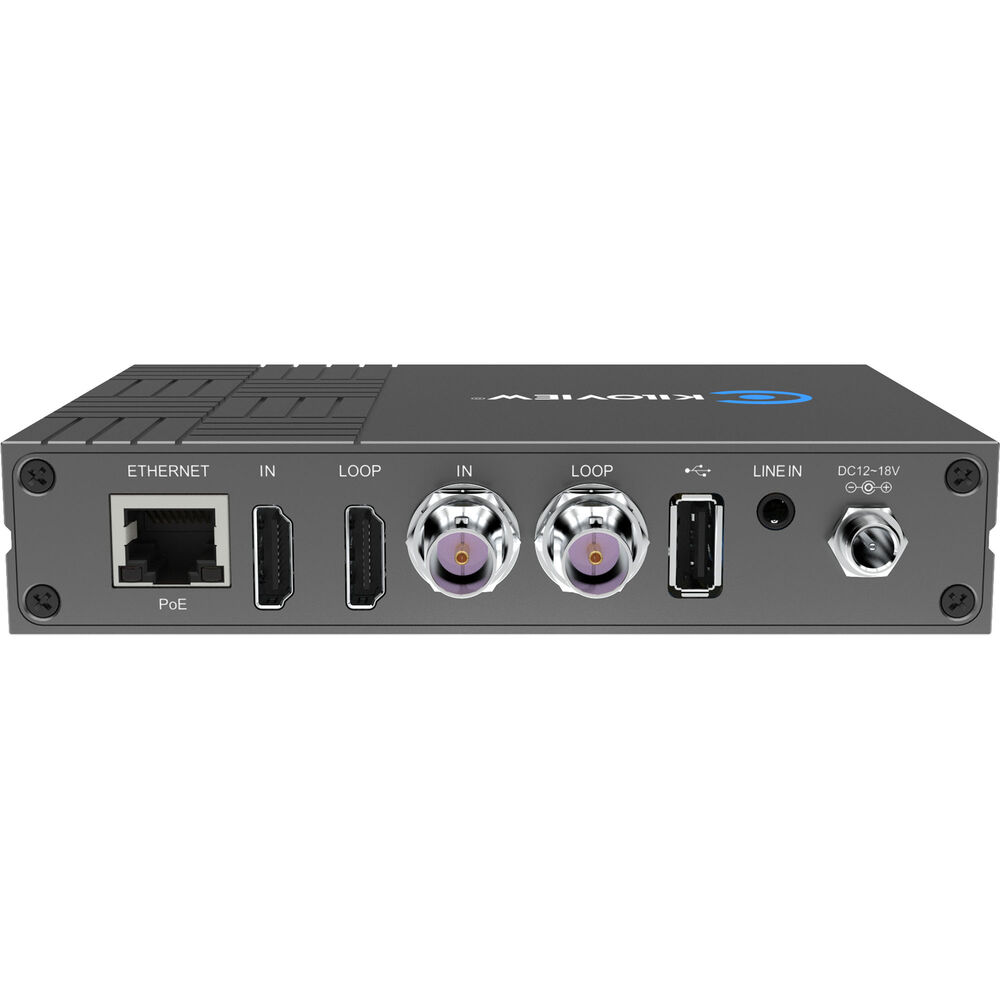

Technical Specifications:

Video Inputs

1 x BNC (3G-SDI)

1 x HDMI (1.4b) Female

Audio Inputs

1 x 1/8" / 3.5 mm TRS Female

Video Outputs

1 x BNC (3G-SDI) (Loop Output)

1 x HDMI (1.4b) Female (Loop Output)

Audio Outputs

None

Other I/O

2 x USB-C 2.0

1 x USB-A 2.0

1 x RJ45 LAN, PoE

Expansion Slots

None

Latency

< 100 ms

Input Video Format

HDMI

UHD 4K at 30 fps

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps

720p at 29.97/30/50/59.94/60 fps

576i / 625 lines at 50 fps

480i / 525 lines at 59.94 fps

SDI

1080p 23.98/24/25/29.97/30/50/59.94/60 fps

1080i 50/59.94/60 fps

720p 25/29.97/30/50/59.94/60 fps

576i / 625 lines 50 fps

480i / 525 lines 59.94 fps

Embedded Audio

SDI Input: 8-Channel

HDMI Input: 4-Channel

Video Standard Compliance

SMPTE 259M/292M/424M

HDR Compatibility

None

Video IP Encoding

H.264, H.265, HLS, NDI|HX2, NDI|HX3, RTMP, RTMPS, RTP, RTSP, SRT, TS, UDP

Audio IP Encoding

AAC, G.711, MPEG-2, MPEG-4, Opus

Display Size

1.14"

Tally Light

Yes

Power I/O

1 x Barrel Input

PoE Support

PoE 802.3af

Power Consumption

Power Supply: 12 to 18 VDC at 1 A (5 W)

Operating Temperature

12 to 77°F / -20 to 45°C

Storage Temperature

-40 to 122°F / -40 to 50°C



In the Box:

  • Kiloview E3 HDMI & SDI Dual Channel Video Encoder
  • Limited 1-Year Manufacturer Warranty
