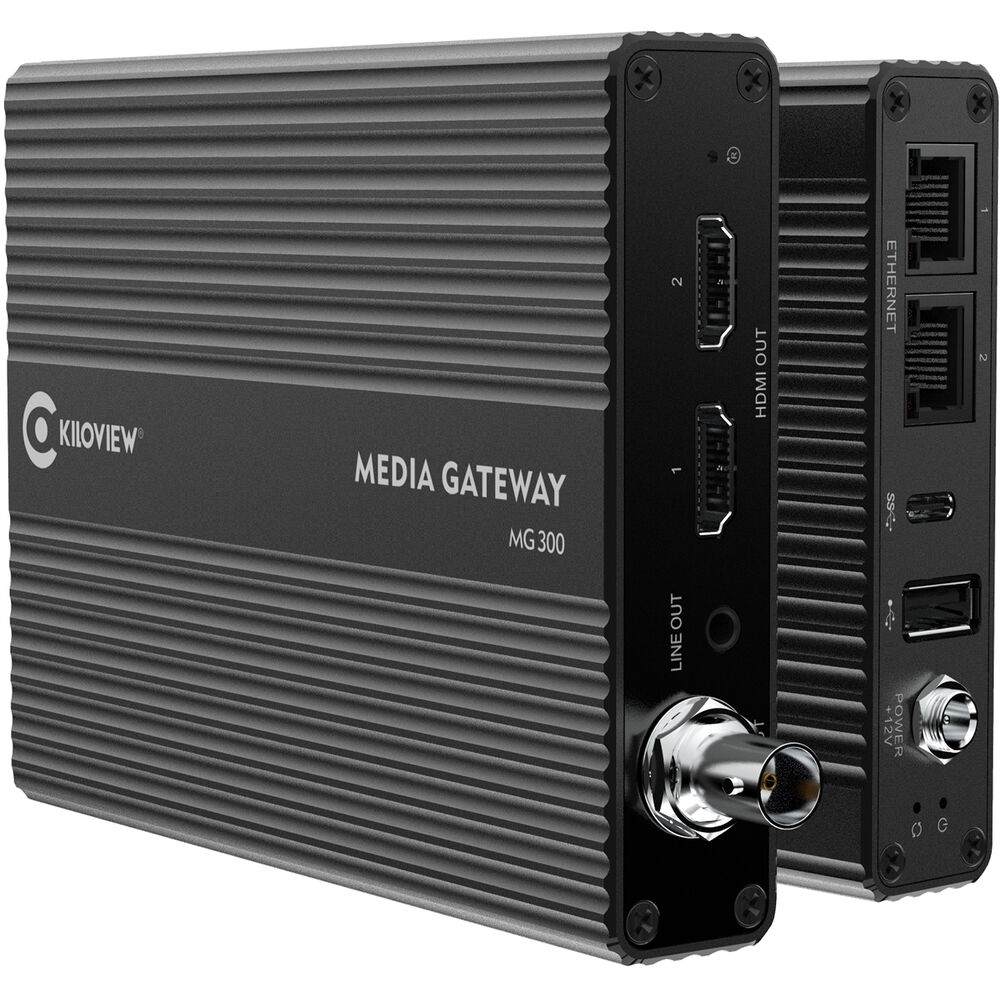

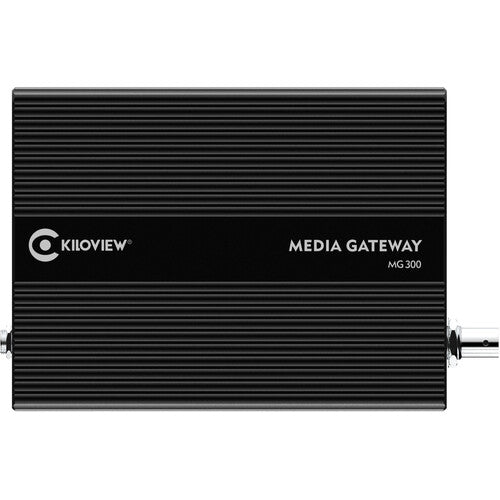

Kiloview MG300 IP Video Media Gateway

Rs. 75,905.00
Key Features:
  • Multi-Channel Video Encoding
  • Transcodes Between H.264 and H.265
  • Resolutions up to UHD 4K60 via HDMI
  • Resolutions up to 1080p60 via 3G-SDI

The MG300 IP Video Media Gateway from Kiloview is a multi-functional device that provides multi-channel video encoding and can also transcode between H.264 and H.265 signals. The unit can output up to UHD 4K60 video via its HDMI output port and up to 1080p60 via its 3G-SDI output and handles multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to 3G-SDI and HDMI.

Streaming Protocol Conversion
The MG300 is compatible with NDI|HX (2.0), SRT, RTMP, RTMPS, RTSP, TS-UDP, and HLS. It supports decoding with all those different protocols and at the same time supports cross conversion of up to nine protocols.

Powerful IP Stream Function
Multi-channel video streams can be republished as a multiview video source with free layout and up to nine channels of IP streaming distribution (including the multiview video source) and each stream can be pushed to up to four same or different targets simultaneously.

Decoding Multiple Signals
The MG300 supports decoding up to UHD 4K H.264 and H.265 IP streams and it decodes the streams to output via 3G-SDI and HDMI. It supports decoding up to nine channels of videos simultaneously.

Low Latency and High Quality
Intelligent delay control technology achieves a less than 200ms decoding delay in a network environment. Image enhancement and fault-tolerant technology provides low code-encoded video, 10% of network packet loss video, and clear, distortion-free decoding output.

Display Customization
The output display can be either in grids or a free layout with customized design, PIP, PBP, and POP. The output resolution and frame rate are adjustable.

Video Previewing Functions
You can preview up to 16 streams of real-time video or images on its web page, from which you can choose nine of the streams for output.

Embedded Digital Audio
Digital audio is embedded on HDMI and 3G-SDI outputs, while a 3.5mm port provides an analog audio output.

Technical Specifications:

Inputs/Outputs

2 x RJ45

Audio Inputs

1 x 1/8" / 3.5 mm TRS Female

Video Outputs

1 x BNC (3G-SDI) Female

1 x HDMI

Audio Outputs

1 x 1/8" / 3.5 mm TRS Female

Other I/O

1 x USB-A Control, 3.0 / 3.1/3.2 Gen 1

Expansion Slots

None

Latency

HDMI Output: ≤ 200 ms

SDI Output: ≤ 200 ms

Output Video Format

HDMI

UHD 4K at 30/60 fps

1080p at 24/25/30/50/60 fps

1080i at 50/60 fps

720p at 50/60 fps

SDI

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps

720p at 50/59.94/60 fps

576i / 625 lines at 50 fps

480i / 525 lines at 60 fps

Embedded Audio

HDMI/SDI

HDR Compatibility

Not Specified by Manufacturer

Video IP Encoding

NDI|HX2, RTMP, RTSP, SRT, TS, UDP

Video IP Decoding

H.264, H.265

Audio IP Decoding

AAC, G.711: 8.0 to 320.00 Kb/s

Power I/O

1 x Barrel (12 VDC) Input

Power Consumption

Power Supply: 12 VDC at 1 A (6 W)

Operating Temperature

7 to 92°F / -25 to 60°C



In the Box:

  • Kiloview MG300 IP Video Media Gateway
  • Limited 1-Year Manufacturer Warranty
