Name: Lilliput FS7 7" Full HD Pro SDI Monitor With 4K Support
Brand: Lilliput
SKU: FS7
Price: 23902 INR
Availability: InStock

Rs. 26,990.00 Rs. 23,902.00

- +

Lilliput ⁄ Lilliput FS7 7" Full HD Pro SDI Monitor With 4K Support

Key Features:

7" 1920 x 1200 3G-SDI and HDMI Monitor
Histogram / Aspect Markers / Peaking
500 cd/㎡ Brightness
1000:1 Contrast Ratio
Includes Battery Plate and HDMI Cable
Wide 7 to 24V Power Input
170° Viewing Angle
False Color / Level Meter / Freeze
DSLR / Exposure / Image Flip
Includes Ball Shoe Mount and Sun Hood

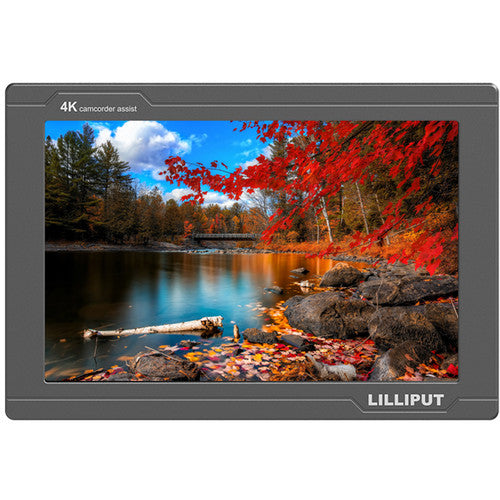

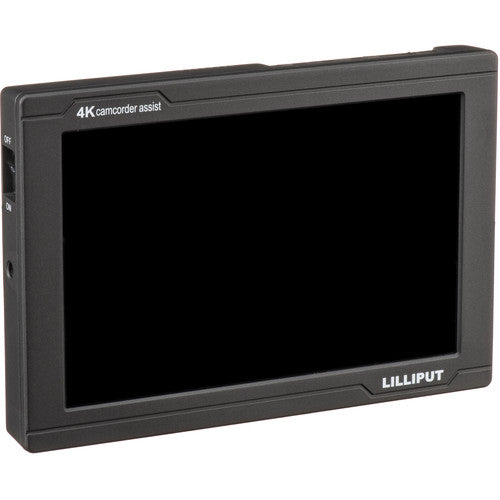

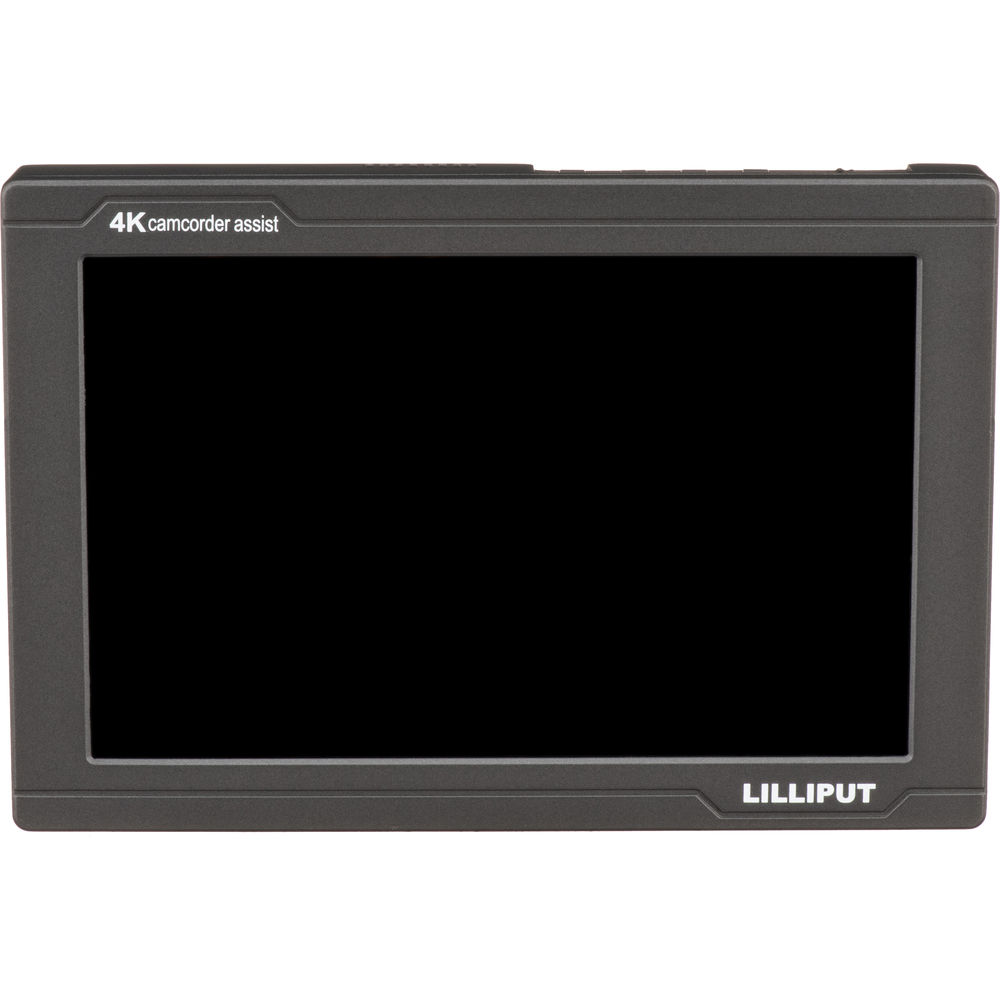

The Lilliput FS7 7" 4K HDMI/3G-SDI Monitor is a high-contrast on-camera monitor with a native 1920 x 1200, 8-bit resolution display. View clear, sharp images up to DCI 4K 4096 x 2160 via HDMI, and up to 1080p60 via the 3G-SDI input. The FS7 features a 1000:1 contrast ratio, 500 cd/m² brightness, and a wide 170° viewing angle. Both the HDMI and 3G-SDI signals can be looped out to other devices.

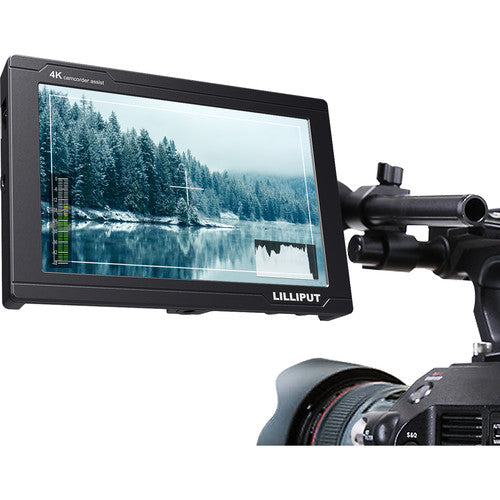

Two user-definable buttons may be used to create shortcuts to your favorite monitor functions. Display functions include false color, level meter, freeze, DSLR, exposure, and image flip modes. Mount the monitor to your camera rig using the included ball head shoe mount adapter.

The Lilliput FS7 accepts a wide range of 7 to 24 VDC power, and includes a Sony L-series type battery plate. Housed in a durable metal body, the FS7 also comes with a folding sunshade, an HDMI cable, and an AC adapter.

Features:

DCI 4K and UHD 4K-compatible via HDMI input, 1080p60 input via 3G-SDI
Native 1920 x 1200, 8-bit resolution display with a wide 170° viewing angle
1000:1 contrast ratio, 500 cd/m² brightness
Functions include aspect markers, audio level meters, peaking, false color, histogram, exposure, and image flip

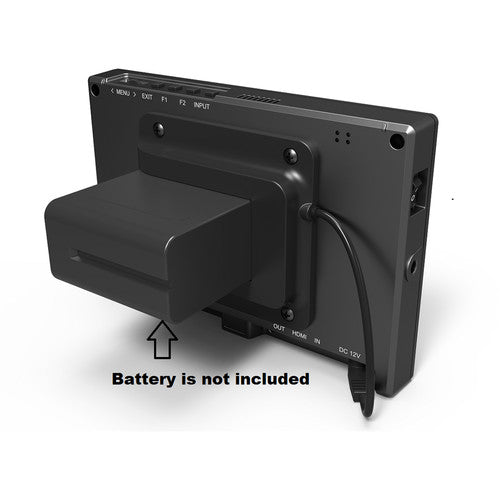

Includes L-series type battery plate, compatible with a Sony F-970 battery
Includes AC adapter, sunshade, ball head shoe mount adapter, and HDMI cable

Technical Specifications:

Screen Size (Diagonal)	7" / 17.8 cm
Native Resolution	1920 x 1200 (324 PPI)
Supported Video Resolutions	HDMI Format: 4096 x 2160: 24 3840 x 2160: 30/29/25/25/23.98 2048 x 1080: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 SDI Format: 3G-SDI Level A & B: 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HD: 1080p: 30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 SD: 525i 626i
Active Area	6 x 3.7" / 151.2 x 94.5 mm
Dot Pitch	26.25 × 78.75 μm
Aspect Ratio	Full, 16:9, 1.85:1, 2.35:1, 4:3, 3:2
Aspect Display Marker	Off, 16:9, 1.85:1, 2.35:1, 4:3, 3:2
Markers	Off, 95%, 93%, 90%, 88%, 85%, 80%
Brightness	500 cd/m2
Contrast Ratio	1000:1
Light Source	Single LED (side-light type)
Viewing Angle	170 x 170°
Color Temperature Selection Modes	6500K, 7500K, 9300K, User (RGB)
Zoom	1.5x, 2x, 3x, 4x
SDI Audio	16-channel (8 pairs)

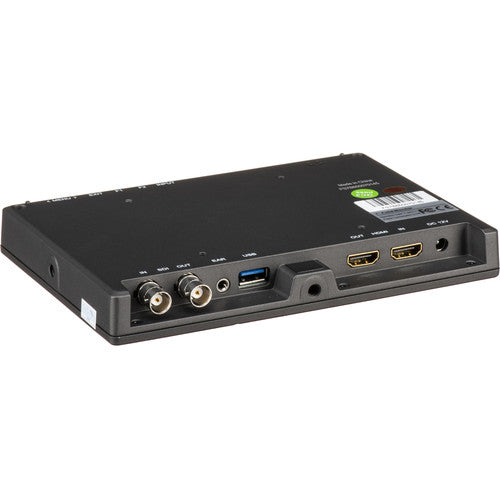

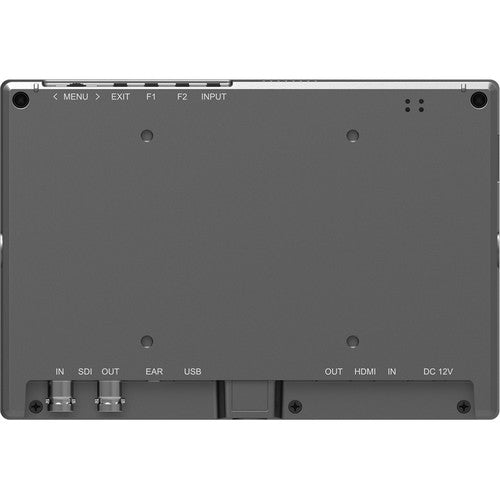

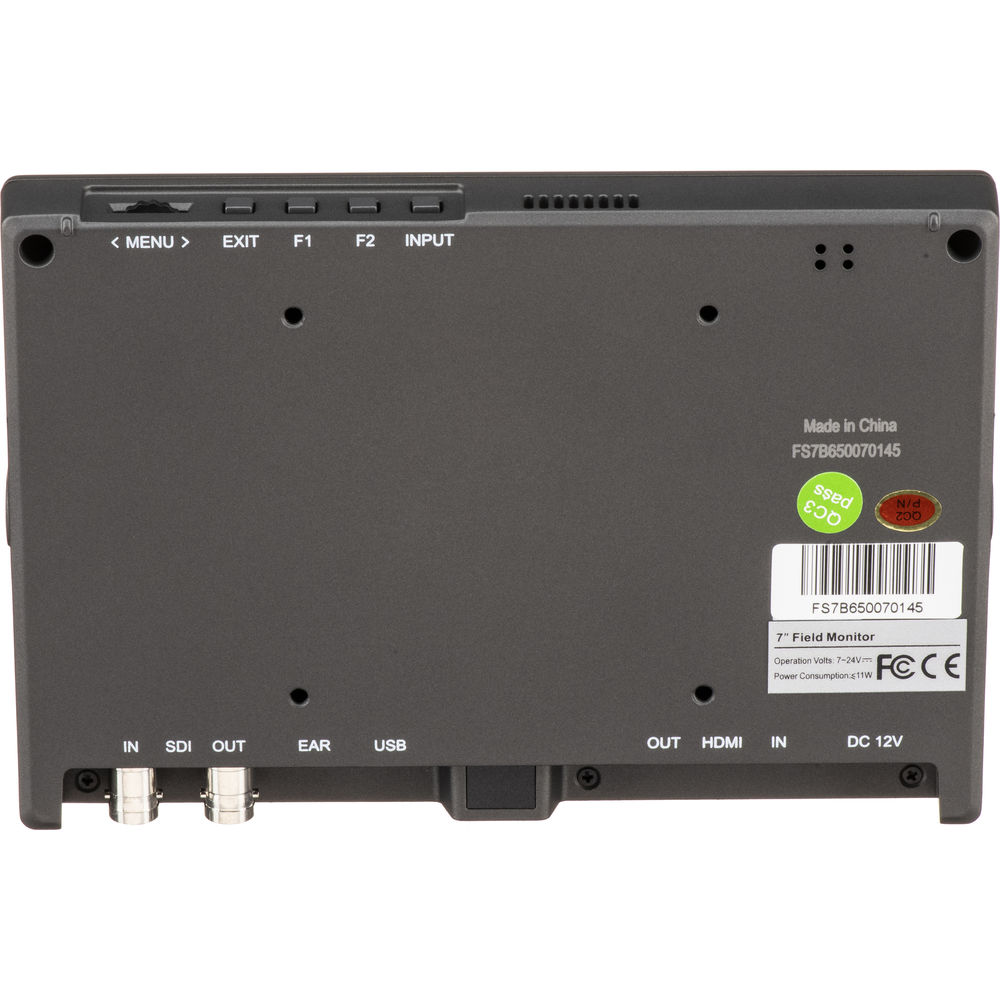

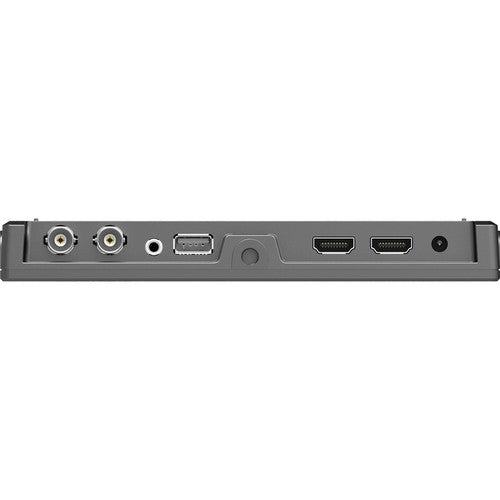

Video Inputs	HDMI: 1 x HDMI SDI: 1 x BNC
Video Output	HDMI: 1 x HDMI SDI: 1 x BNC
Audio Outputs	Built-in speaker, 1 W 3.5 mm headphone jack
Other Connectors	USB: 1 x USB (updates only)
Power Input	7 to 24 VDC
Power Consumption	≤12 W
Compatible Battery	Sony NP-F970 L-series type
Operating Temperature	-4 to 140°F / -20 to 60°C
Storage Temperature	-22 to 158°F / -30 to 70°C
Humidity	90%
Dimensions	7.2 x 4.9 x 0.9" / 18.2 x 12.4 x 2.2 cm
Weight	15.3 oz / 435 g
