Lilliput T5 5" Full HD Touchscreen Monitor with 4K Support

Lilliput T5 5" Full HD Touchscreen Monitor with 4K Support

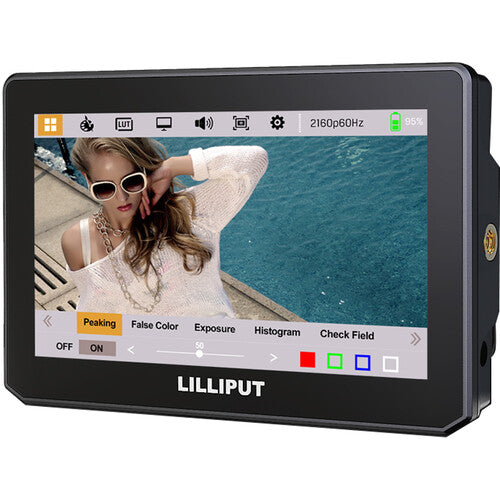

Name: Lilliput T5 5" Full HD Touchscreen Monitor with 4K Support
Brand: Lilliput
SKU: T5
Price: 17703 INR
Availability: InStock

Rs. 19,990.00 Rs. 17,703.00

- +

Lilliput ⁄ Lilliput T5 5" Full HD Touchscreen Monitor with 4K Support

Key Features:

5" 1920 x 1080 LCD Touchscreen Display
HDMI 2.0 Input Supports DCI & UHD 4K, HD
Supports HDR
400 cd/m² Brightness
1000:1 Contrast Ratio
170° Viewing Angle
Top-Mounted Control Buttons
Focus Peaking
Pixel-to-Pixel

Compact, lightweight, and well suited for on-set work, the Lilliput 5" Touch On-Camera HDMI Monitor can handle DCI and UHD 4K as well as 1080p, 1080i, and 720p signals via its HDMI input. The monitor scales input video to its 1920 x 1080 IPS screen that provides you with a 1000:1 contrast ratio, 400 cd/m² maximum brightness, and a touchscreen interface.

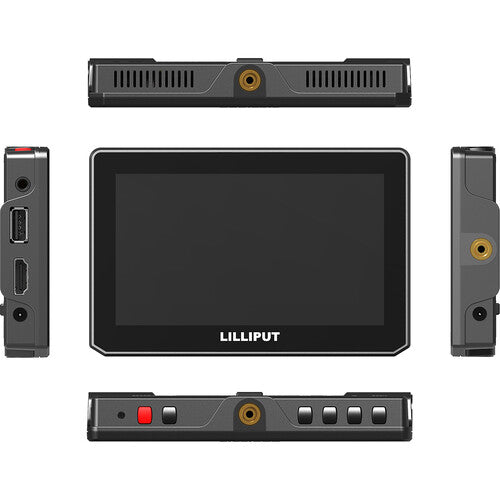

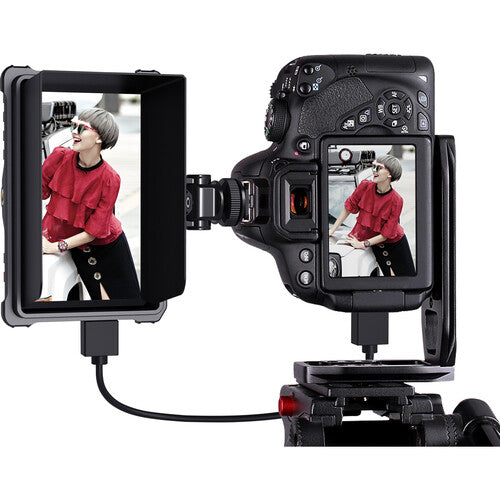

A push-button power switch and five buttons sit along the top of the monitor providing access to the on-screen menu system. The IPS LCD touchscreen has a 170° angle of view, side-to-side and top-to-bottom, and allows you to control and adjust the monitor using capacitive touch control. The monitor supports image and camera-related display tools that help ensure your images are in focus and properly exposed. Three 1/4"-20 threaded mounting holes enable mounting the monitor on your camera in a variety of positions.

Function Buttons

The five control buttons on top of the monitor allow you to navigate the on-screen menu system. A sixth button (red) powers the monitor on and off and activates the touch switch.

Touchscreen

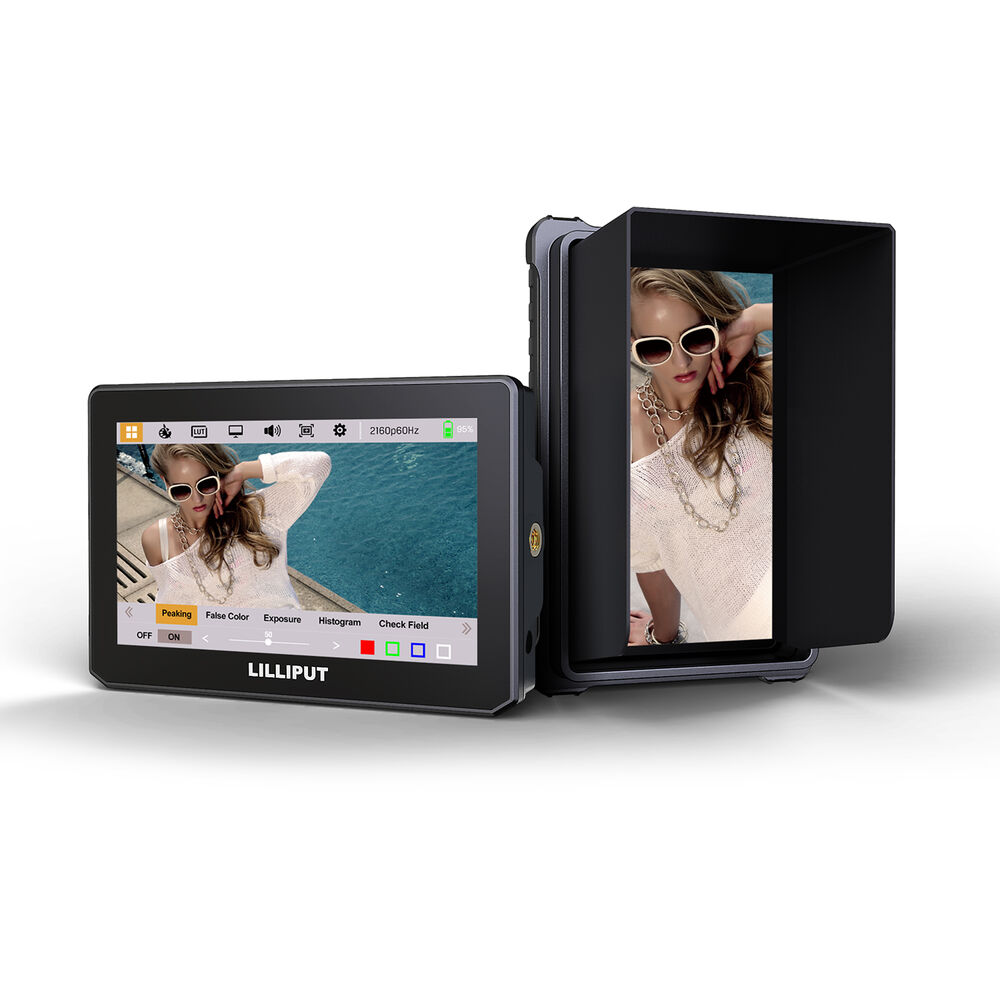

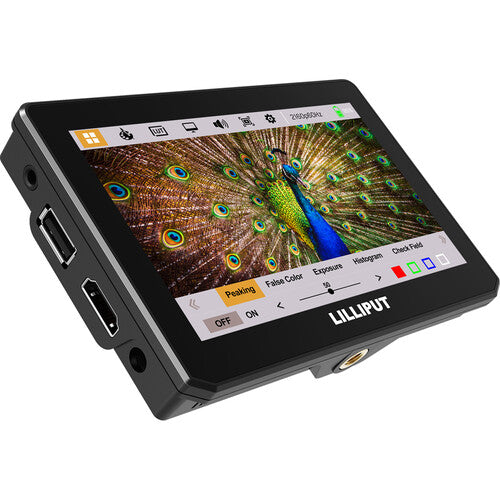

The monitor features a touchscreen that allows you to access the monitor's signal status, menu settings, and function displays.

Functions

The monitor supports the following:

Audio level display
Histogram
False color
User settable markers
Focus peaking
Zebra bars
Check field
Aspect ratio
Zoom
3D LUT import (through the USB port)
HDR
Pixel zoom
H/V delay
Image flip
One-to-one pixel
Freeze frame

LUTs

You can apply a variety of real-time 3D LUTS.

Technical Specifications:

Panel Type	IPS-Type LCD
Display Size	5.0" / 12.7 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 170° Vertical: 170°
Touchscreen	Yes
Maximum Brightness	400 nits / cd/m2
Contrast Ratio	1000:1
Pixels Per Inch (ppi)	440 ppi
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Zebra

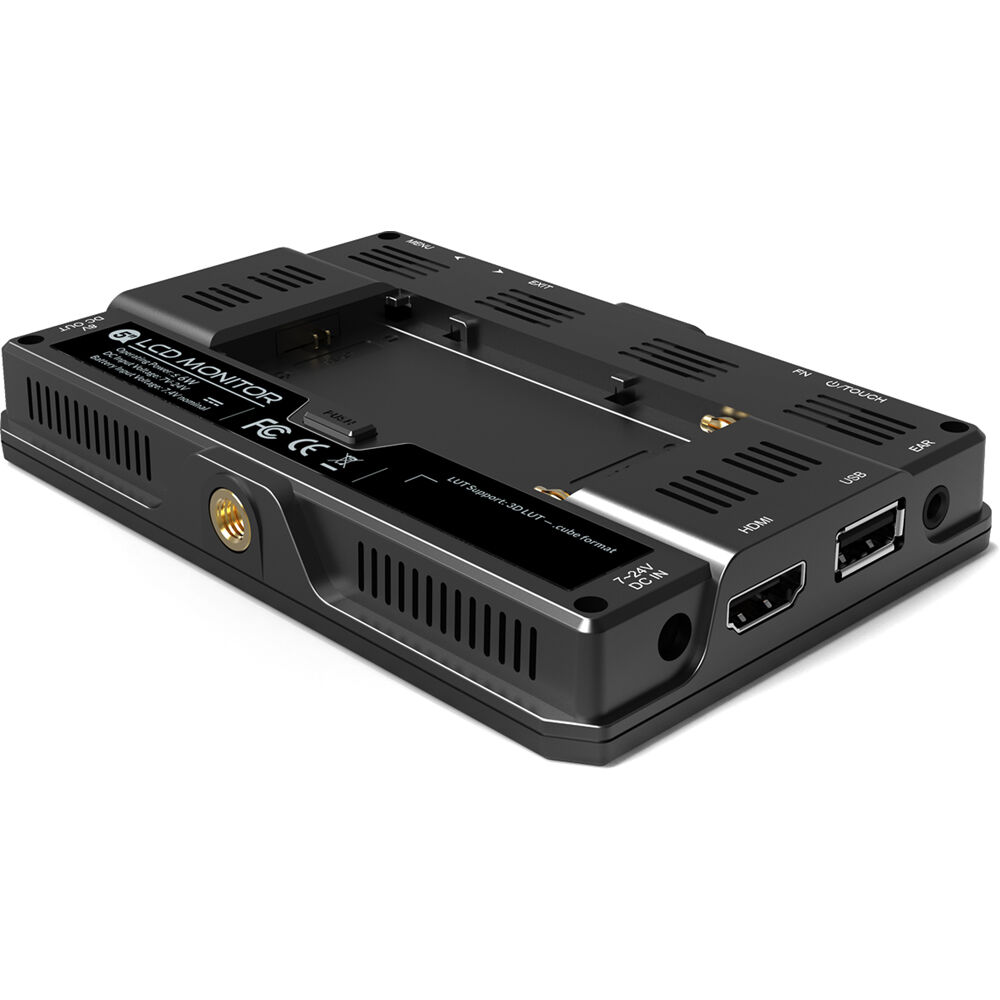

Video I/O	1 x HDMI 2.0 Input
Embedded Audio	HDMI: 8-Channel
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	None
Power I/O	1 x Barrel 5.5 mm (8 VDC) Output
Other I/O	1 x USB-A 2.0 Input
Media/Memory Card Slot	None
Wi-Fi	None
Video Format	HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50
Gamma Curve	HDR-HLG, ST2084, Sony S-Log, Sony S-Log 2, Sony S-Log 3
DC Input Power	7 to 24 VDC

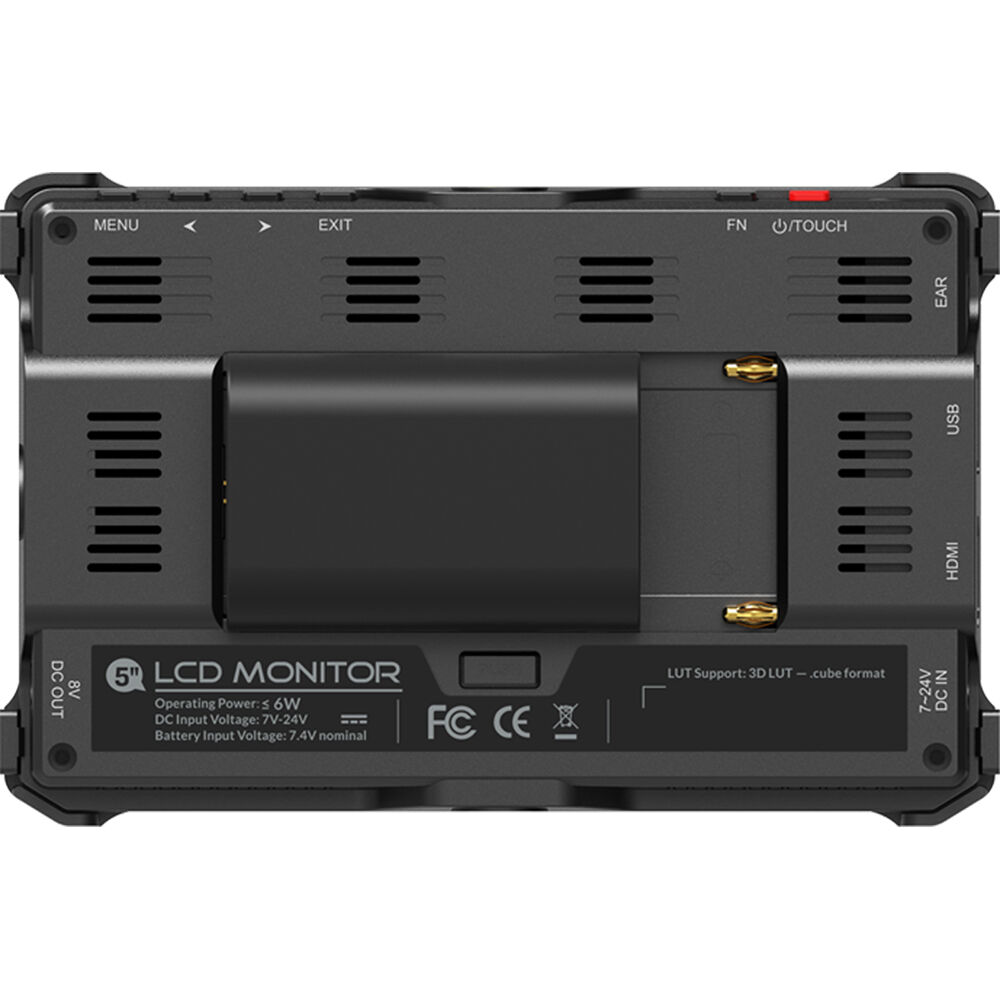

Battery Type	1 x LP-E6, L-Series
Power Consumption	12 W (Maximum)

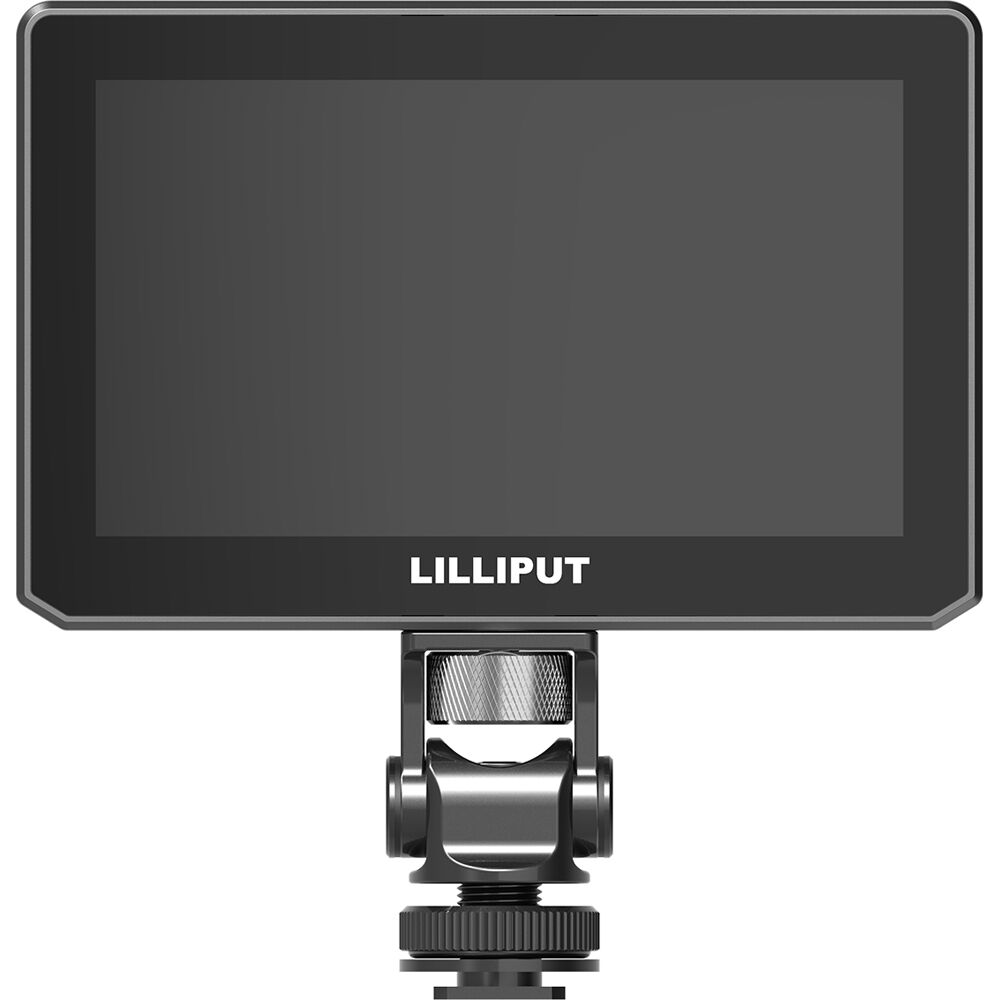

Mounting	3 x 1/4"-20 Female
Operating Temperature	32 to 82°F / 0 to 50°C
Storage Temperature	14 to 140°F / -10 to 60°C
Dimensions	5.2 x 3.4 x 0.7" / 132 x 86 x 18.5 mm
Weight	7.1 oz / 200 g
