Lilliput WS500 Wireless Video Transmission System

Lilliput WS500 Wireless Video Transmission System

Name: Lilliput WS500 Wireless Video Transmission System
Brand: Lilliput
SKU: WS500
Price: 52684 INR
Availability: InStock

Rs. 59,490.00 Rs. 52,684.00

- +

Lilliput ⁄ Lilliput WS500 Wireless Video Transmission System

Key Features:

Up to 500' Range
Compact 1080p60 Transmitter & Receiver
3G-SDI and HDMI Inputs and Outputs
Live Streaming via Mobile Device & App
13 Channels with Automatic Selection
Scan QR Code to Link to Mobile Device
L-Series Battery or USB Type-C Power
Compact LED Screen
Quiet, Fan-Less Design

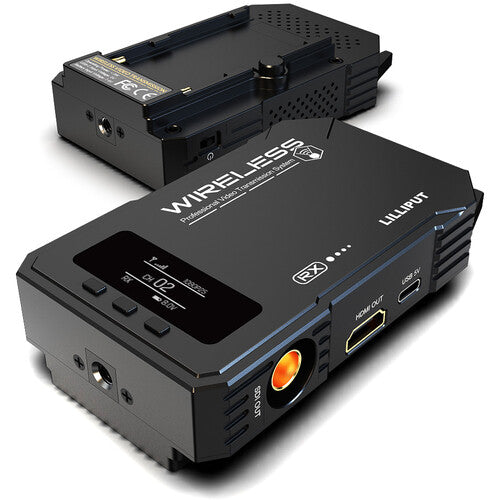

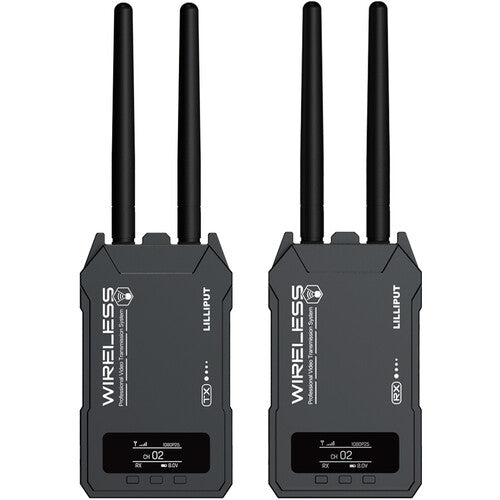

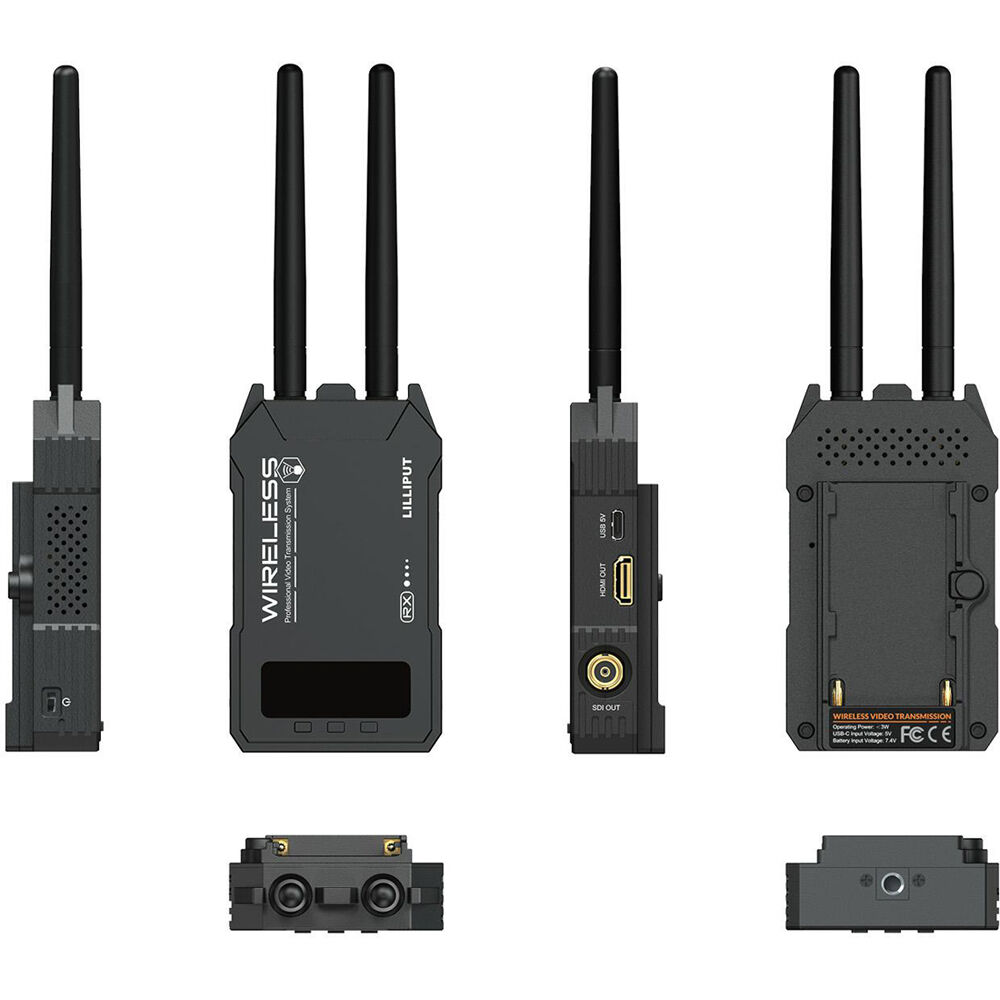

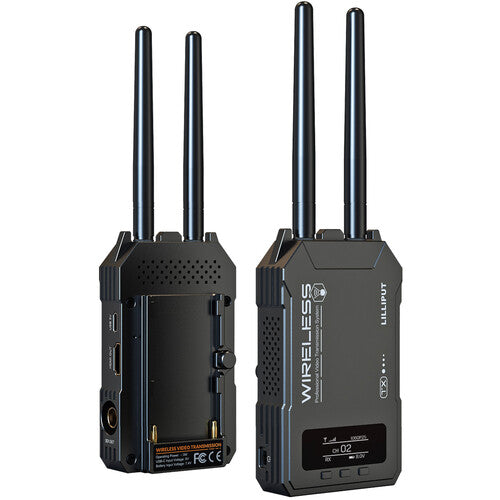

The WS500 Wireless Video Transmission System from Lilliput features a 500' line-of-sight range and both 3G-SDI (BNC) and HDMI inputs and outputs. This compact system can be linked to up to three mobile devices, enabling multiple viewers to watch your video feed simultaneously. WS500 system features include an LED status screen, Sony L-Series battery and USB Type-C power options, and 13 channels with automatic selection.

500' Transmission Range

Extend your wireless video transmission up to 500' (line of sight) with just 80ms latency

SDI and HDMI Input/Output

Switch between SDI (BNC) and HDMI inputs and outputs depending on your choice of camera and monitoring devices

Mobile Device Streaming

Use with the Lilliput app and your mobile device for uploading to a live streaming platform

Automatic Channel Selection

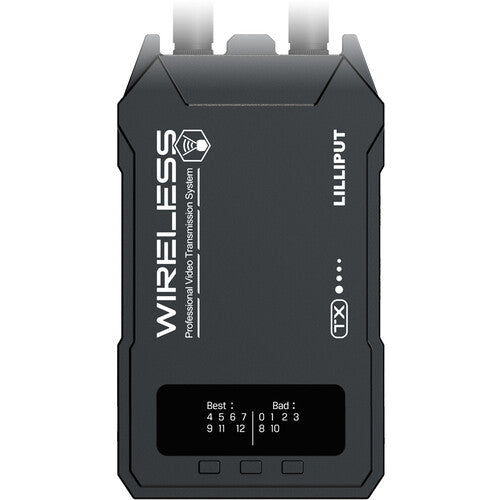

This system automatically searches for the clearest of 13 available channels

App Display Controls

Use the Lilliput app to adjust controls like focus peaking, exposure, zoom, markers, and start/stop recording

App QR Code Scanning

Use the transmitter to generate a QR code that can be scanned using your mobile device to link up to three devices simultaneously

Compact Design/Dual Power

These compact, fan-less components can be powered using their USB Type-C input or Sony L-Series batteries

Display Screen

A 1.3" LED screen displays the channel selection, signal strength, and more

Technical Specifications:

Panel Type	Transmitter: OLED Receiver: OLED
Display Size	Transmitter: 1.3" / 3.3 cm Receiver: 1.3" / 3.3 cm
Resolution	Not Specified by Manufacturer
Aspect Ratio	Not Specified by Manufacturer
Touchscreen	No
Image Controls	Focus Peaking, Pixel Zoom, Zebra
Video I/O	Transmitter: 1 x BNC Input Transmitter: 1 x HDMI Input Receiver: 1 x BNC Output Receiver: 1 x HDMI Output
HDCP Support	Not Specified by Manufacturer
Embedded Audio	SDI HDMI
Audio I/O	None
Power	Transmitter: 1 x USB-C (5 VDC) Input Receiver: 1 x USB-C (5 VDC) Input
Other I/O	None
Wireless Range	500' / 152.4 m (Line-of-Sight)
# of Channels	13
Channel Bandwidth	20 MHz
Frequency Range	5 GHz
Latency	80 ms
RF Power	17 dBm
Wi-Fi	Yes
Bluetooth	None
Video Format	HDMI/SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/50 720p: 60/50
Audio Format	24-Bit 48 kHz
Timecode Support	No
DC Input Power	5 VDC
Battery Type	Transmitter: 1 x L-Series Receiver: 1 x L-Series
Power Consumption	Transmitter: 3 W Receiver: 3 W
Mounting	1/4"-20 Female
Environmental Protection	None
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Dimensions	Transmitter: 4.4 x 2.6 x 1.1" / 113 x 65 x 29.2 mm Receiver: 4.4 x 2.6 x 1.1" / 113 x 65 x 29.2 mm
Weight	Transmitter: 7.1 oz / 200 g Receiver: 7.1 oz / 200 g
