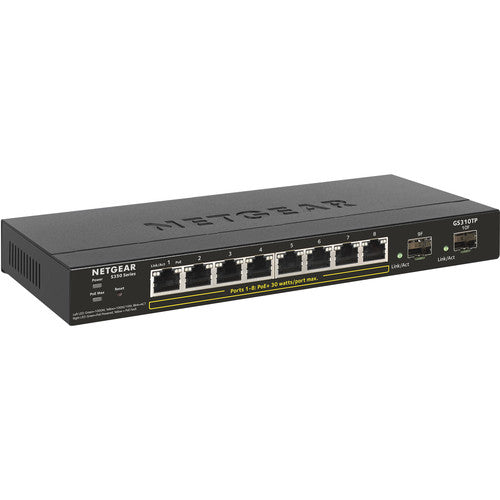

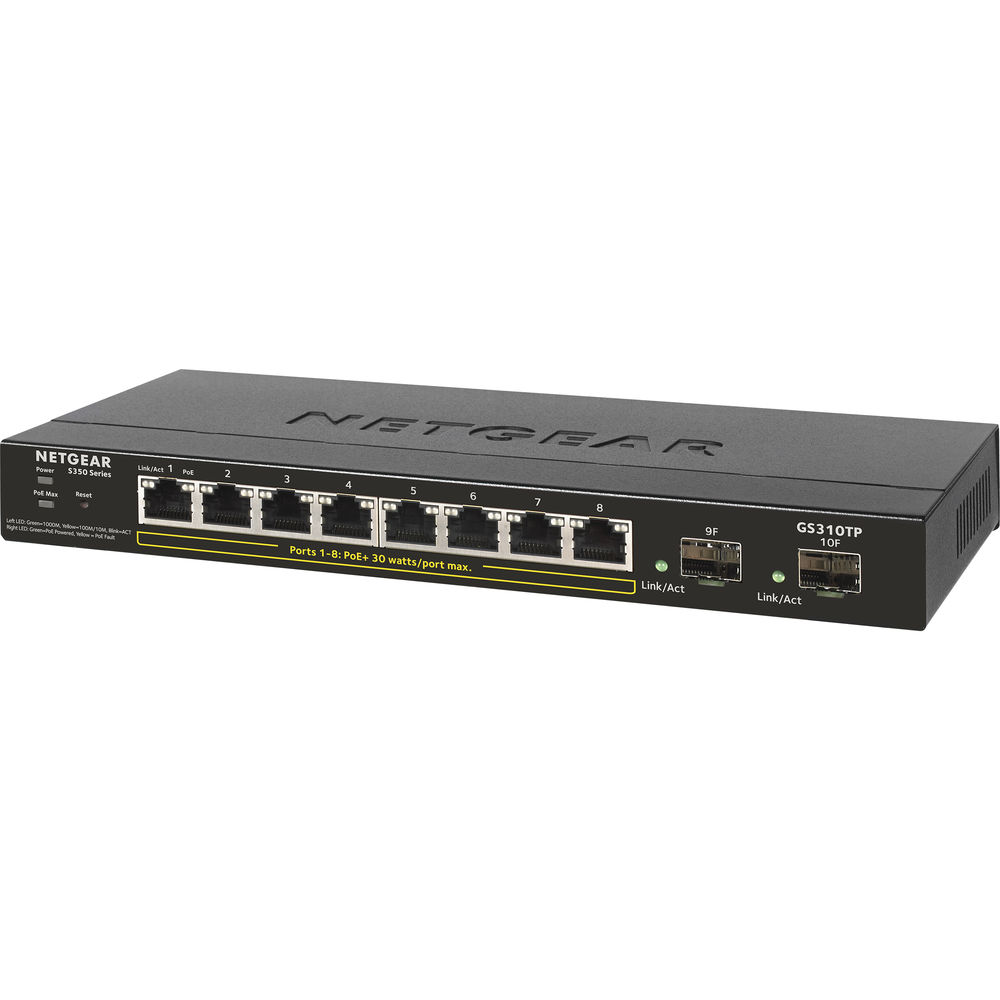

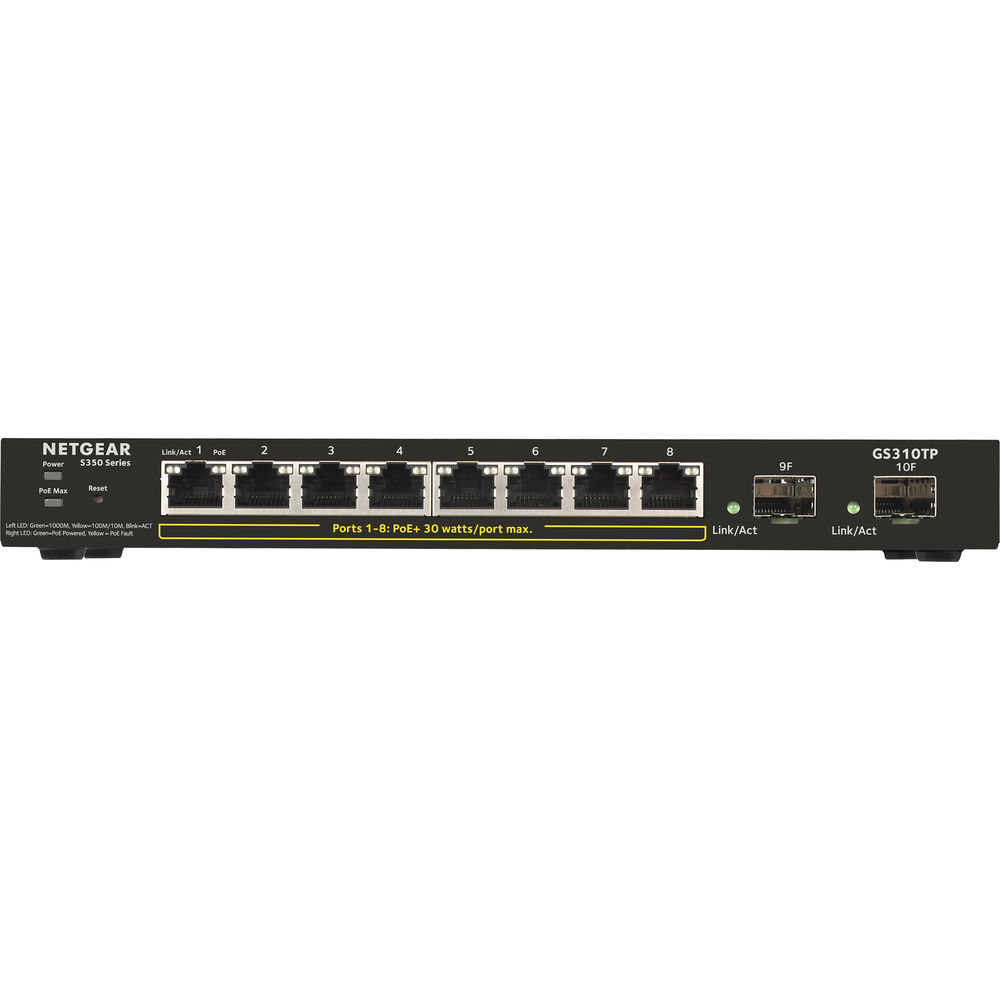

Netgear GS310TP S350 Series 8-Port Gigabit PoE Smart Managed Switch
- Up to 20 Gb/s Switching Bandwidth
- Up to 14.8 Mpps Packet Forwarding Rate
- 8 x Gigabit Ethernet PoE+ Ports
- 55W PoE Budget
- 2 x Gigabit SFP Ports
- 802.1x User Authentication
- 802.1p-Based Prioritization
- Fanless Design
- Web-Based Management
Boost your business's network switching capacity with the GS310TP S350 Series 8-Port Gigabit PoE Smart Managed Switch from Netgear. Boasting a switching bandwidth up to 20 Gb/s and a packet forwarding rate up to 14.8 Mpps, the GS310TP comes equipped with eight Gigabit Ethernet ports and two Gigabit SFP ports. The eight Gigabit Ethernet ports support PoE+ (Power over Ethernet), ideal for transmitting data and power over a single cable, with a total PoE budget of 55W. 802.1x support helps to ensure secure access for authorized users, while 802.1p-based prioritization helps to optimize network performance by prioritizing business-critical traffic. A web-based UI allows for remote management, while the switch's fanless design helps to ensure quiet operation.
Technical Specifications:
|
Inputs/Outputs |
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 2 x 10/100/1000 Mb/s Gigabit SFP |
|
Layer Services Supported |
Layer 2 Support |
|
Supported Protocols |
IGMP Snooping IPv4 IPv6 Link Aggregation Port Mirroring MAC Filtering SNMPv1 SNMPv2c SNMPv3 |
|
Queuing |
Weighted Round Robin (WRR) |
|
Transmission Method |
Store-and-Forward |
|
Jumbo Frames Support |
10,000 Bytes |
|
MAC Address Table Size |
8K |
|
Multicast Groups |
256 |
|
VLAN Groups |
64 |
|
Security Features |
DoS Attack Prevention Kensington Lock Support RADIUS Authentication |
|
Access Control List |
100 |
|
SNMP Support |
1, 2c, 3 |
|
Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z |
|
Latency |
3.4 to 4.2 µs |
|
Forwarding Rate |
14.8 Mpps |
|
Switching Bandwidth |
20 Gb/s (Non-Blocking) |
|
Priority Queues |
8 |
|
Packet Buffer |
512 kB |
|
Flash Memory |
32 MB |
|
Memory |
128 MB |
|
Power Draw |
69.3 W (Active) 3.3 W (Idle) |
|
DC Input Power |
VDC at 1.25 A |
|
PoE Power Budget |
55 W |
|
Power Supply Type |
External |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Operating Humidity |
95% |
|
Storage Temperature |
-20 to 70°F / -28 to 21°C |
|
Storage Humidity |
95% |
|
Operating Altitude |
10,000' / 3048 m |
|
Storage Altitude |
10,000' / 3048 m |
|
Certifications |
BSMI, CB, CCC, CE, EN60950-1, FCC, RCM, UL, VCCI *as per Manufacturer |
|
Cooling System |
Passive |
|
Mean Time Between Failures (MTBF) |
1,081,119 Hours |
|
Indicator Lights |
Link/Activity, PoE, Power, Speed |
|
Dimensions |
9.29 x 3.98 x 1.18" / 236 x 101 x 30 mm |
|
Weight |
1.32 lb / 0.6 kg |
In the Box
- Netgear GS310TP S350 Series 8-Port Gigabit PoE Smart Managed Switch
- Power Adapter
- Power Cord
- Rubber Footpads
- Limited 5-Year Warranty (Switch)
- Limited 2-Year Warranty (Power Adapter)
