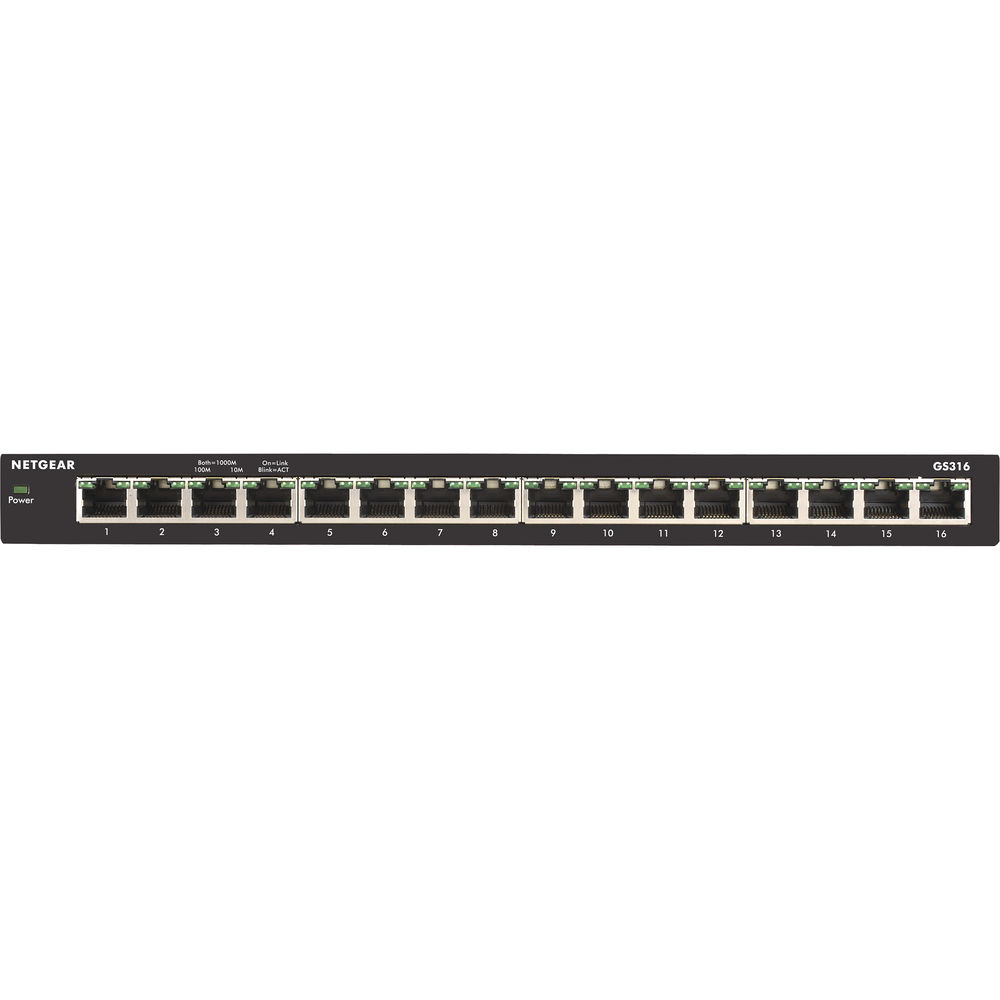

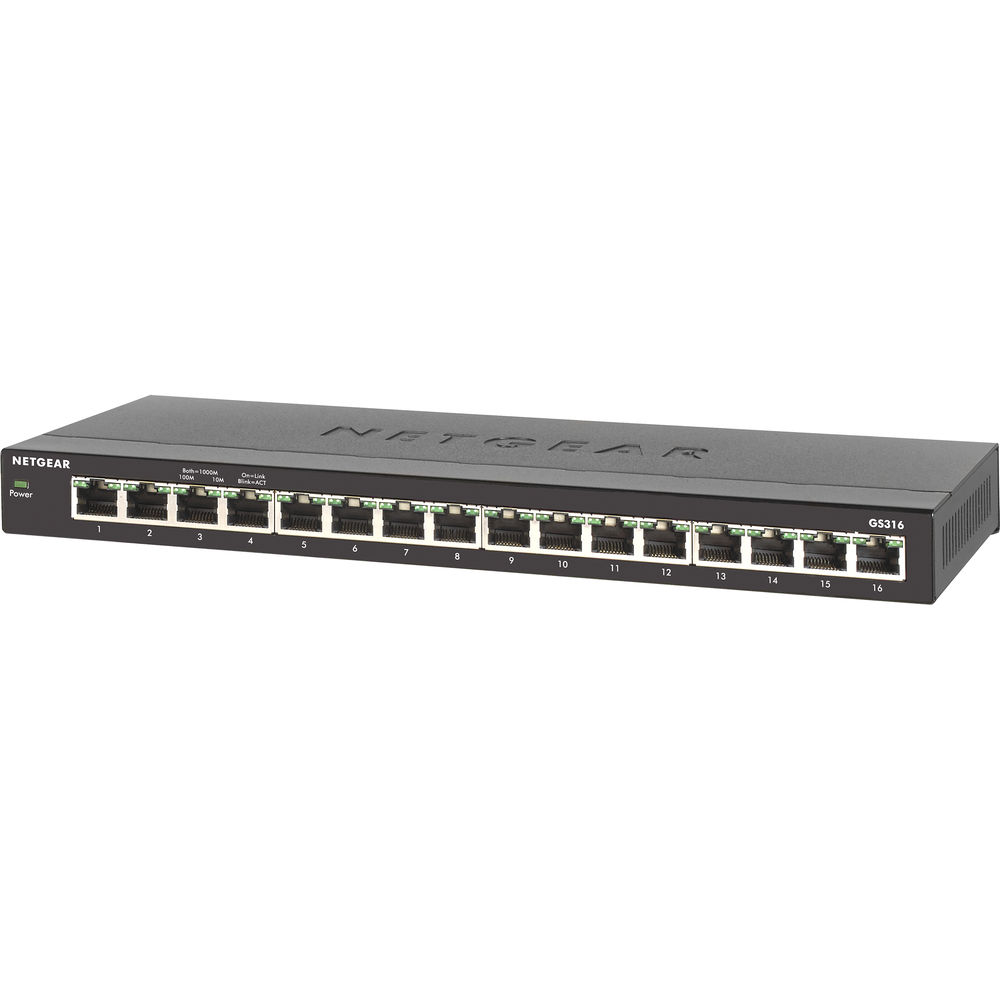

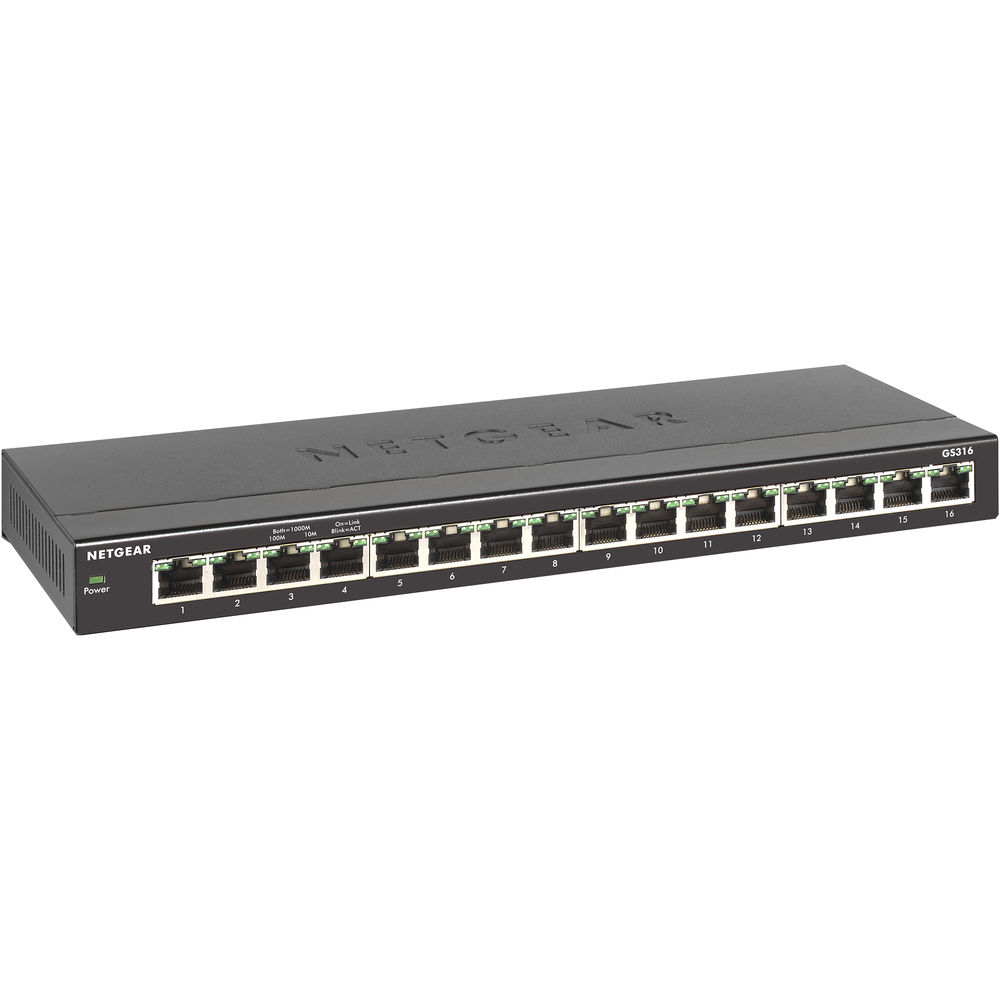

Netgear GS316 16-Port Gigabit Unmanaged Switch
- 16 x Gigabit Ethernet Ports
- 32 Gb/s Switching Capacity
- 1.44 Mpps Forwarding Rate
- Desk and Wall-Mountable Design
Use the Netgear GS316 16-Port Gigabit Unmanaged Switch to expand your network device capacity. This unmanaged switch features 16 Gigabit Ethernet ports with a 32 Gb/s switching capacity and 1.44 Mpps forwarding rate to connect network devices such as computers, network storage, and more. With its plug-and-play design, metal casing, and fanless cooling, the switch can be mounted onto a desktop or wall without any additional configuration or hardware needed and operate quietly without disturbing your home or office.
Technical Specifications:
|
Inputs/Outputs |
16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
|
Supported Protocols |
Auto-MDIX/MDI |
|
Queuing |
Weighted Round Robin (WRR) |
|
Jumbo Frames Support |
9216 Bytes |
|
MAC Address Table Size |
16K |
|
Supported IEEE Standards |
802.1p, 802.3, 802.3ab, 802.3az, 802.3i, 802.3u, 802.3x |
|
Latency |
3.9 µs |
|
Forwarding Rate |
1.44 Mpps |
|
Switching Bandwidth |
32 Gb/s (Non-Blocking) |
|
Packet Buffer |
768 kB |
|
Power Draw |
8.4 W (Max) 1.83 W (Standby) |
|
DC Input Power |
12 VDC at 1 A |
|
Power Supply Type |
External |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Operating Humidity |
90% |
|
Storage Temperature |
-4 to 158°F / -20 to 70°C |
|
Storage Humidity |
95% |
|
Operating Altitude |
10,000' / 3048 m |
|
Cooling System |
Passive |
|
Mean Time Between Failures (MTBF) |
9,041,798 Hours |
|
Material of Construction |
Metal |
|
Indicator Lights |
Link/Activity/Speed, Power |
|
Dimensions |
11.3 x 4 x 1" / 286 x 101 x 26 mm |
|
Weight |
1.86 lb / 0.84 kg |
In the Box:
- Netgear GS316 16-Port Gigabit Unmanaged Switch
- Power Adapter
- Limited 3-Year Warranty
