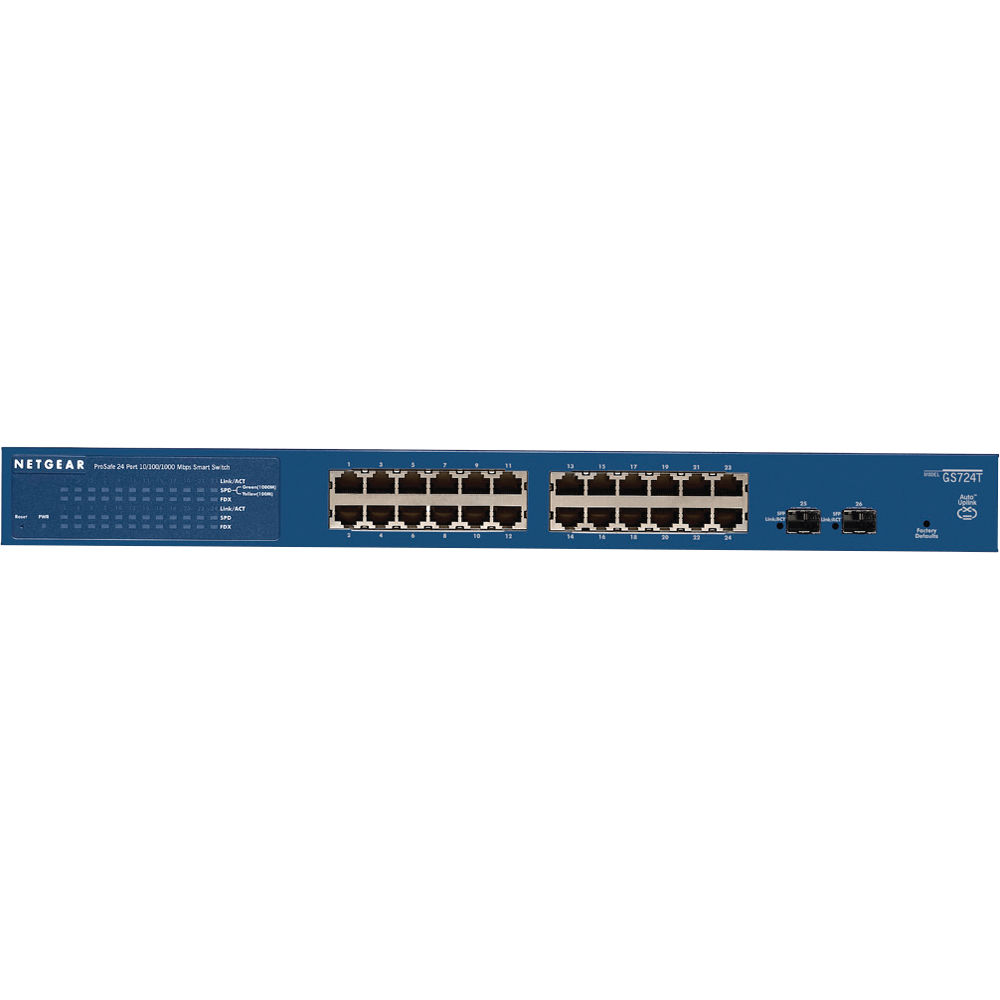

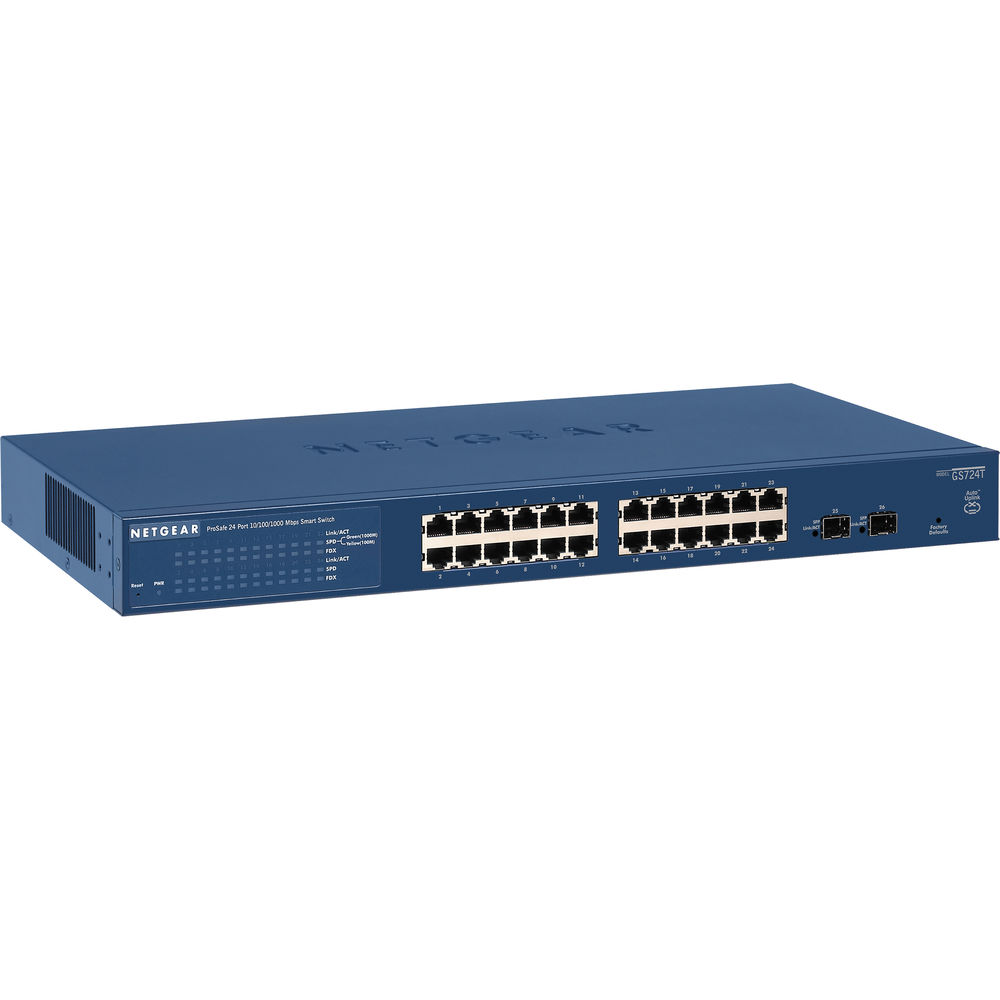

The GS724Tv4 ProSAFE Gigabit Smart Switch from Netgear offers L2 and L2+ features with enhanced performance and usability. It is designed for the future where increased traffic and application-oriented tasks demand more intelligence at the edge, higher reliability, and improved network efficiency with ease of management.
This Gigabit Smart switch comes with two dedicated Gigabit SFP ports for fiber connectivity with an increased number of simultaneously connected ports. It offers enhanced performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared ACL entries, 32 static routes, and 512 multicast groups. The Auto Voice VLAN offers reliable deployment of VoIP. In addition, the Auto Video VLAN follows the same concept of Auto Voice, which helps speed up the deployment of an IP-based surveillance system. Static routing helps to route internal traffic for more efficient use of network resources. Comprehensive IPv6 supporting management, QoS, and ACL, ensures investment protection and provides a smooth migration to IPv6-based network.
Technical Specifications:
Inputs/Outputs
24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit SFP
Layer Services Supported
Layer 2 Support, Layer 3 Support
Supported Protocols
Auto-VoIP
IGMP Snooping
IPv6
Queuing
Deficit Weighted Round Robin (DWRR), Strict Priority
Transmission Method
Store-and-Forward
Jumbo Frames Support
9,000 Bytes
MAC Address Table Size
16K
Multicast Groups
512
VLAN Groups
256
Security Features
DHCP Snooping
RADIUS Authentication
Storm Control
Access Control List
100
Static Routes
32
Supported IEEE Standards
802.1ab, 802.1p, 802.1q, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3i, 802.3u, 802.3z
Switching Bandwidth
52 Gb/s
Priority Queues
8
Packet Buffer
2 Mb
Power Draw
17.4 W (Active)
Operating Temperature
32 to 122°F / 0 to 50°C
Operating Humidity
90%
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
0 to 95%
Operating Altitude
9,842' / 3,000 m
Storage Altitude
10,000' / 3,000 m
Mean Time Between Failures (MTBF)
567,680 Hours
Indicator Lights
Activity, Link, Speed
Dimensions
17.3 x 8 x 1.7" / 44 x 20.4 x 4.4 cm
Weight
6 lb / 3 kg
