As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 27.08dB even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 33.42dB, the GS752TPv2 at 36.94dB and the GS752TPP at 39.74dB.

Traffic Management

• Auto Negotiation of speed and duplex modes
• IEEE 802.3x Flow Control
• Dynamic MAC address management
• IEEE 802.1Q-based VLAN
• Auto Voice VLAN
• Auto Video VLAN (selected models)
• VLAN routing (selected models) QoS based on WRR, strict priority, or both
• Port-based and IEEE 801.2p-based QoS
• TCP/UDP-based QoS
• DiffServ
• IPv4 and IPv6-based QoS (selected models)
• DSCP Support
• Rate Limiting (ingress, or egress)
• Link Aggregation and LACP

Product Number

GS752TPP-100EUS

Model Description

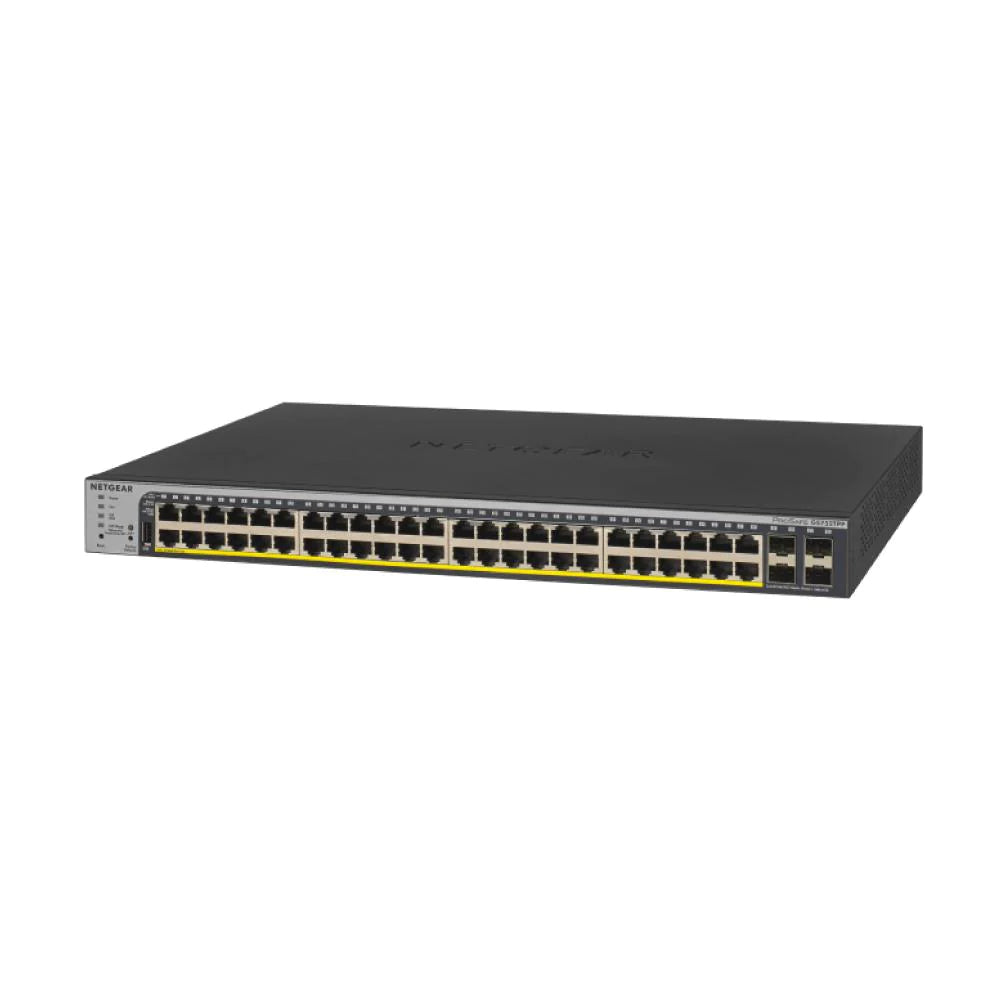

48-Port Gigabit PoE+ Smart Managed Pro Switch w/ optional Remote/Cloud Management and 4 SFP Ports (GS752TPv2)

10/100Mbps ports

N/A

Gigabit ports

48

SFP ports

4

Number of PoE ports

48

PoE+ (802.3at)

48

Total PoE Power budget (Watts)

760W

Max MAC entries

16K

Buffer size

1.5MB

VLAN (Number Supported)

256

VLAN routing

Yes

Dynamic VLAN assignment

Yes

MLD Snooping

Yes

Static route

32

Host ARP table

512

EEE

 Yes

DoS Prevention

Yes

Internal/External

Internal 100-240VAC 50-60Hz

Max consumption (Watts)

861W

FAN

3

Acoustic Noise Level @25C (dBA)

39.74

Operating Temperature

0° to 50° C

MTBF

1,107,549 hours

Management

Insight Remote/Cloud Manageable with 1-Year Insight subscription included

Physical Specifications

Weight (kg) : 5.03 kg

Dimensions (WxDxH) mm : 440 x 310 x 43.2 mm

Warranty

Limited Lifetime Warranty
