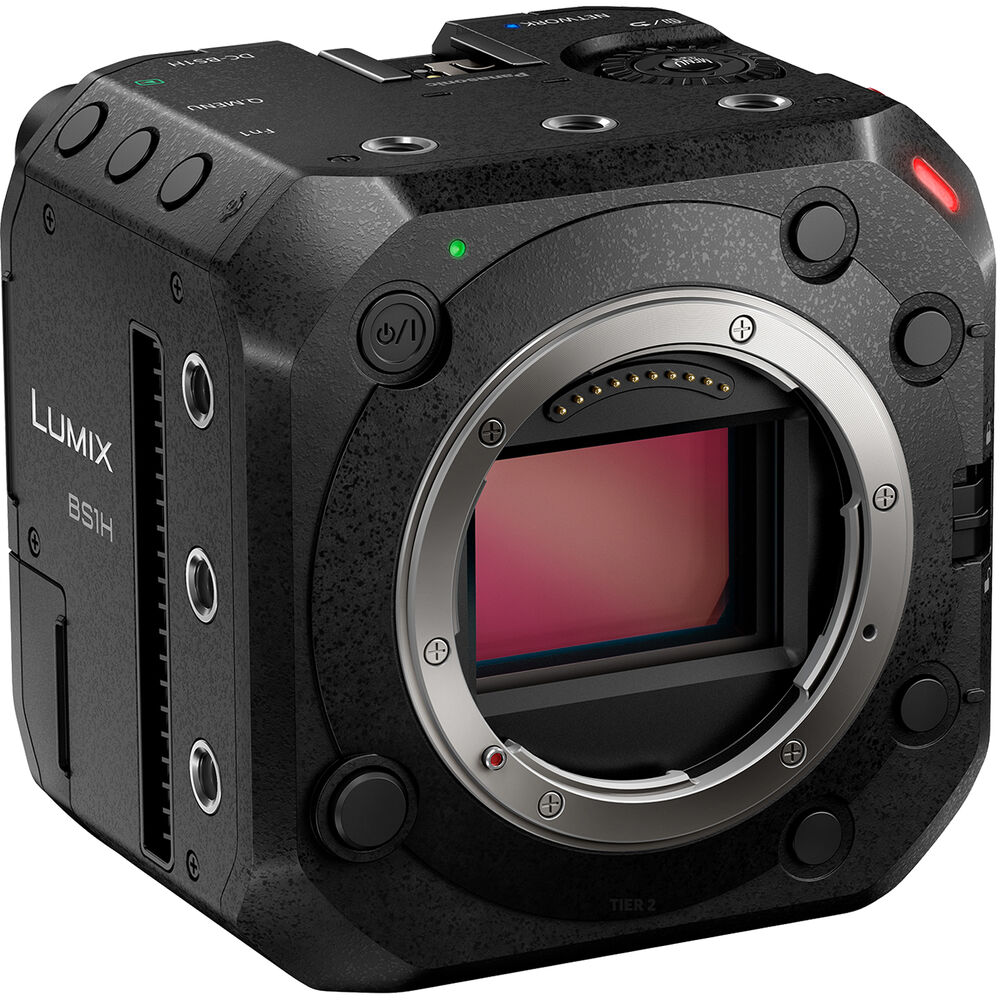

Panasonic Lumix BS1H Box Cinema Camera

Rs. 339,990.00 Rs. 268,000.00

Key Features:

  • 24.2MP Full-Frame MOS Sensor
  • Up to 5.9K H.264/H.265/HEVC Recording
  • 14+ Stops of Dynamic Range, HLG Imaging
  • Dual-Native ISO, VariCam Look & V-Log L
  • VFR up to 60 in 4K, up to 180 fps in FHD
  • Ethernet with PoE+, VBR Battery Mount
  • Anamorphic Video & 3D LUT Support
  • Durable Magnesium & Aluminum Body
  • 12 VDC Power Adapter Included

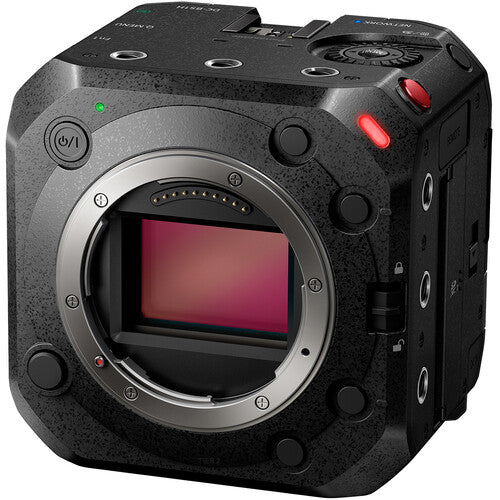

Compact and suitable for cine drones, remote setups, and expandable for cine work as well as multi-camera broadcast work, the Panasonic Lumix BS1H Box Cinema Camera is a modular digital cinema camera with a small form-factor that bellies its full-frame sensor. It features a 24.2MP sensor, a Leica L lens mount, and a wide 14+-stop dynamic range to accommodate extreme lighting changes when recording in V-Log. It records video with resolutions up to 5.9K as well as C4K (4096 x 2160) and UHD4K, and it incorporates VariCam Look workflows.

The camera features dual-native ISO using its Venus Engine, anamorphic support, advanced AF (autofocus), numerous remote and power options, and supports HLG (Hybrid Log-Gamma) color for vivid imagery to aid professional color grading. There are many features packed into this tiny camera that make it the go-to production camera in any mobile and multi-camera production environment.

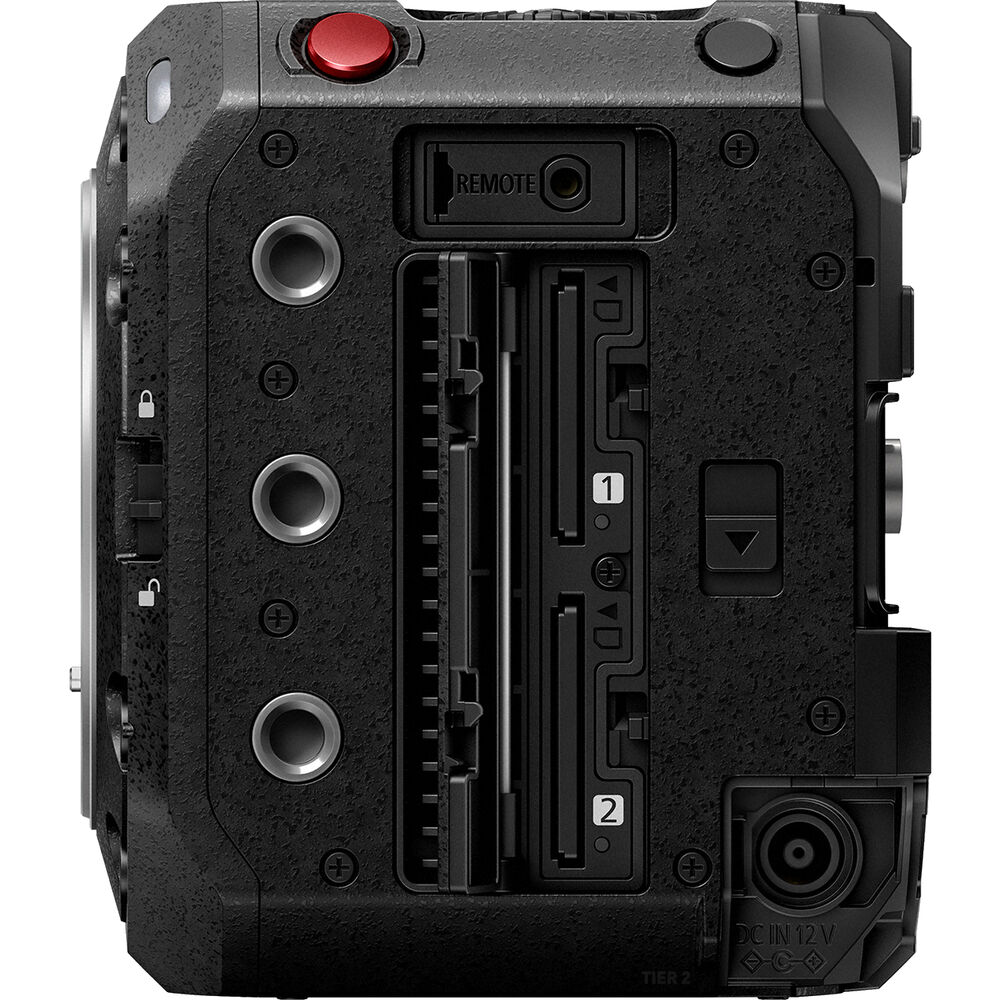

The BS1H provides multiple ways to record your footage to high data rate files in the ALL-Intra, LongGOP, MOV, and MP4 recording formats with H.264 and H.265/HEVC codecs. The camera supports unlimited recording time and allows you to record 10-bit 4:2:2 video using the camera's dual SD card slots. It can output up to 4K via the HDMI 2.0 output, or you can output up to 1080p resolution via SDI. The camera allows you to output via HDMI and SDI simultaneously, so you can use one signal for monitoring and the other for recording. It also supports recording at variable frame rates for high-quality, slow-motion video. Custom 3D LUTs can be uploaded into the camera, using the SD card slots.

The BS1H is also an ideal camera for multi-camera environments, not only because it's highly mobile, but it includes timecode and genlock BNC ports, so you can sync it with other cameras to make syncing in postproduction easy. Its RJ45 Gigabit LAN port allows you to sync with other networked BS1H cameras, manage the camera settings and functions, and even perform direct IP streaming with a future firmware update. Wi-Fi and Bluetooth functionality are also integrated for monitoring, configuration, and control via a smartphone or tablet, using the LUMIX Sync app. Another function integrated into the BS1H is a USB 3.1 Gen 1 Type-C input to control the camera with the LUMIX Tether app, which allows you to capture still images and control up to 12 BS1H cameras. Audio features include high-grade 48 kHz/24-bit LPCM format, an integrated stereo microphone, a 3.5mm mic/line-level input, and a 3.5mm headphone output. The optional DMW-XLR1 XLR adapter can be utilized, using the camera's integrated hot shoe, allowing you to record with professional microphones.

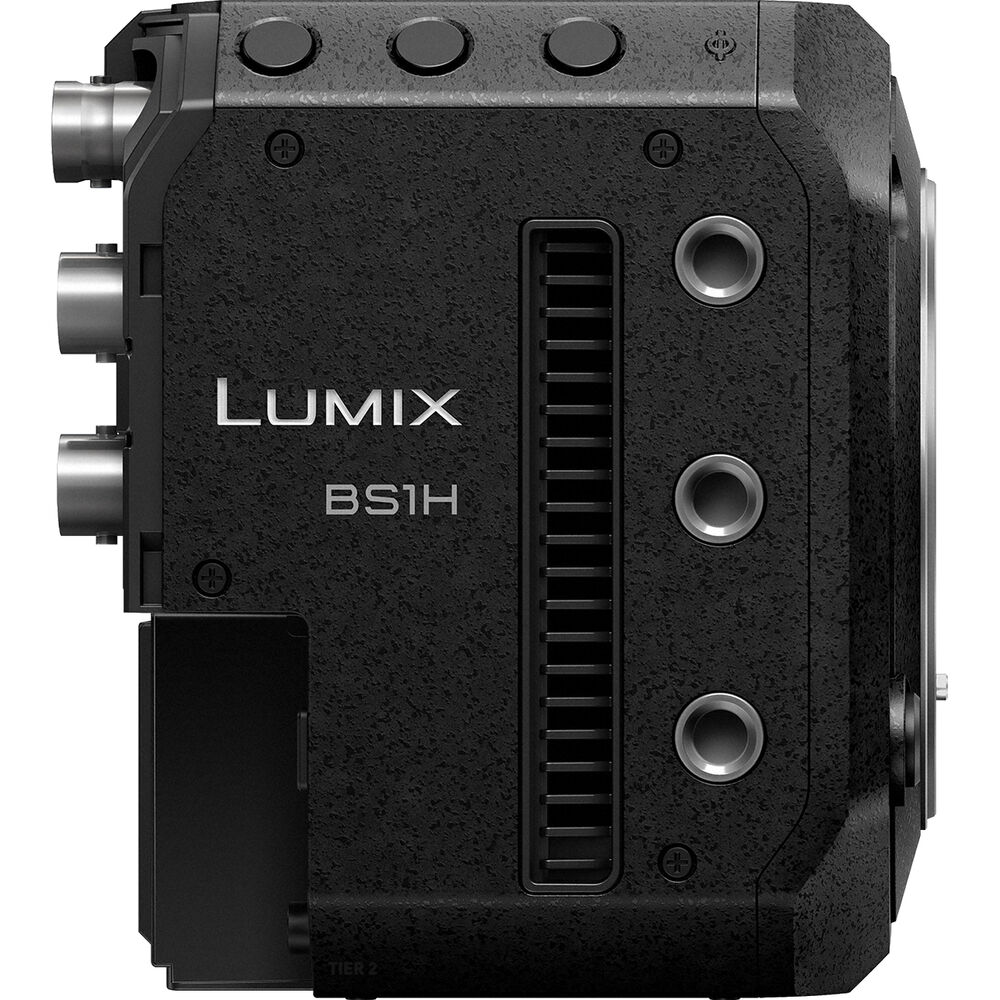

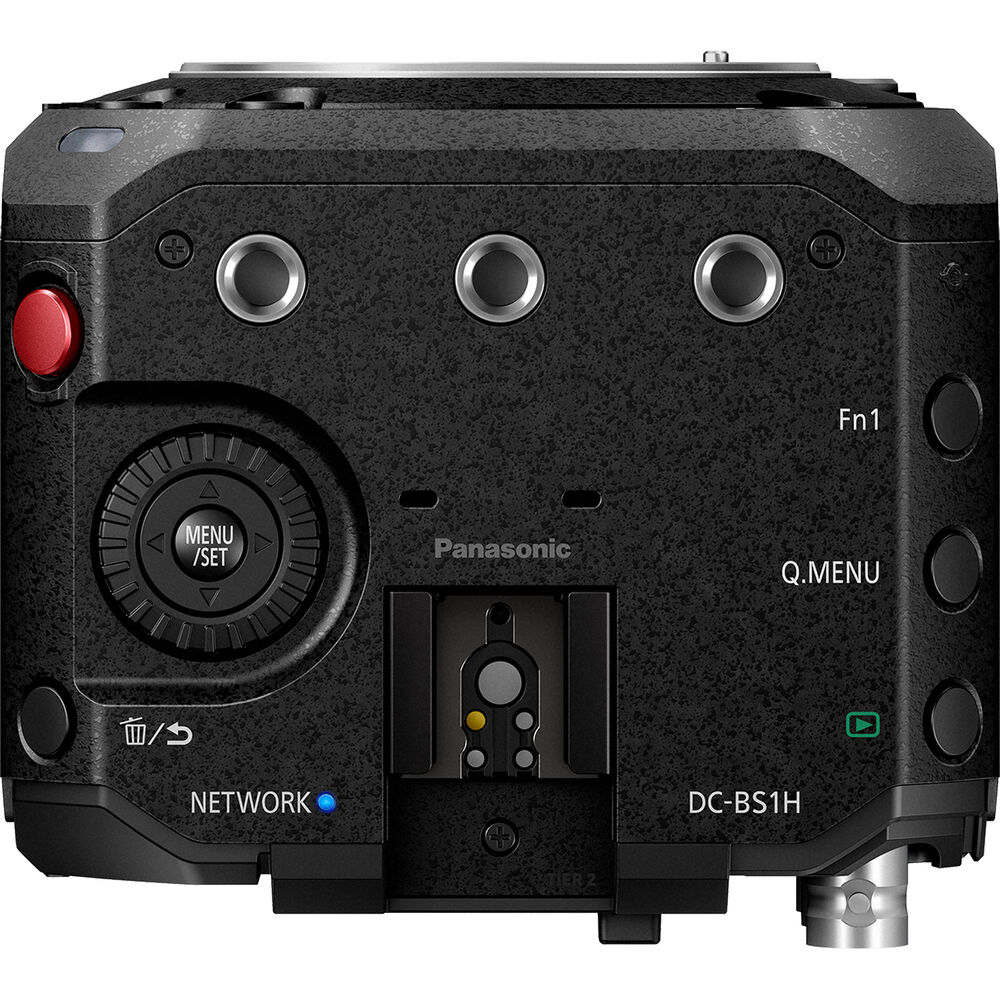

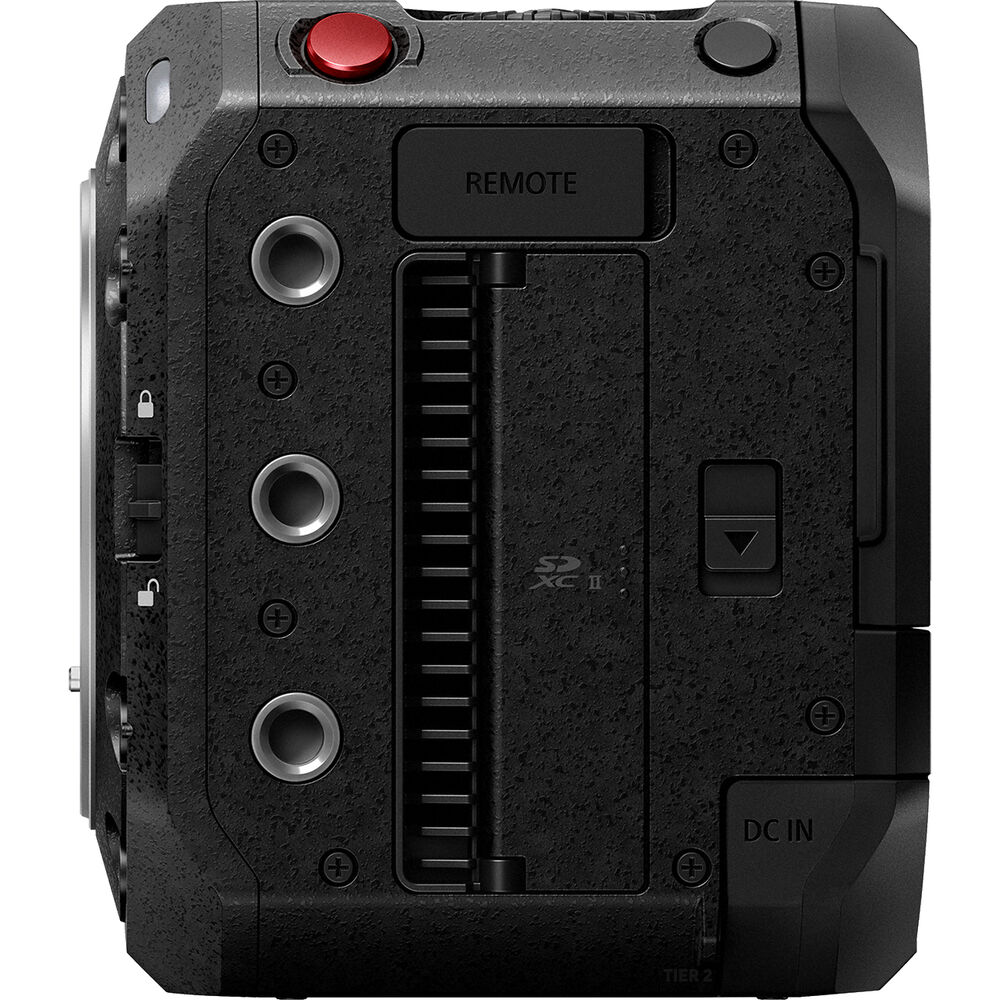

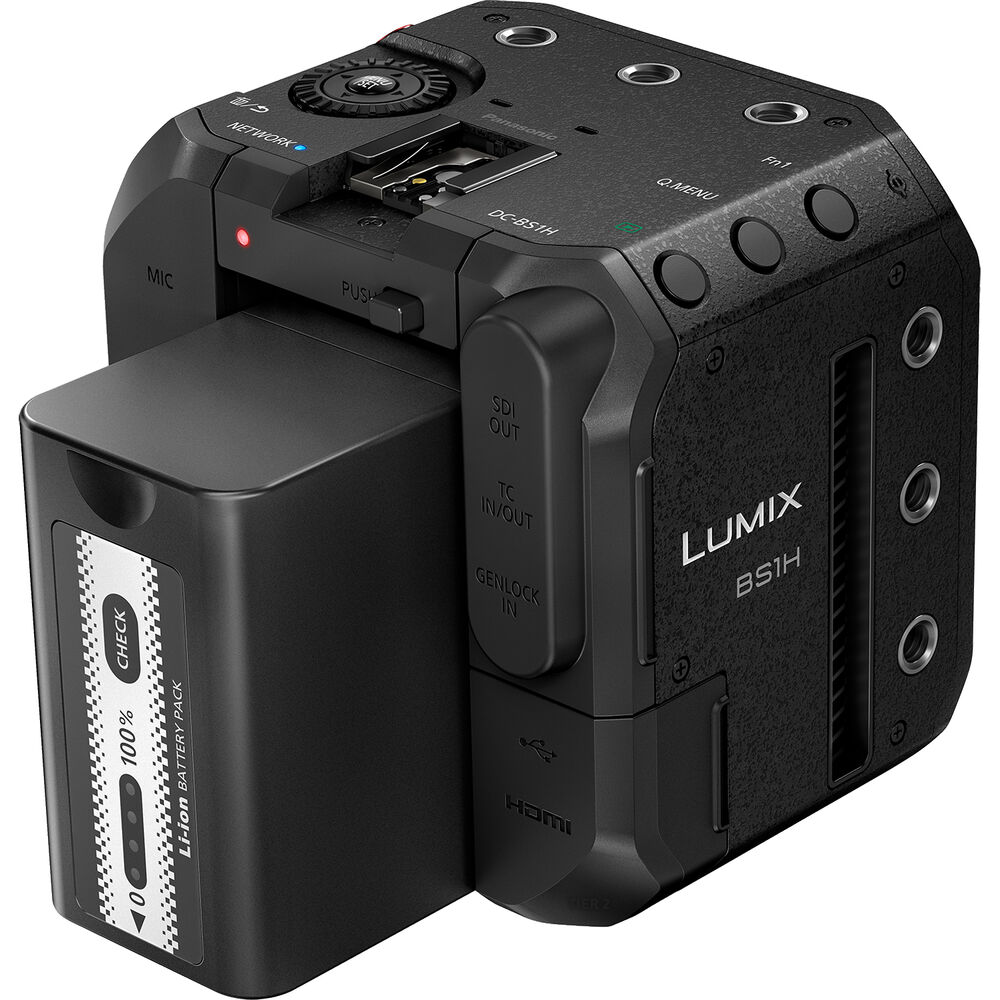

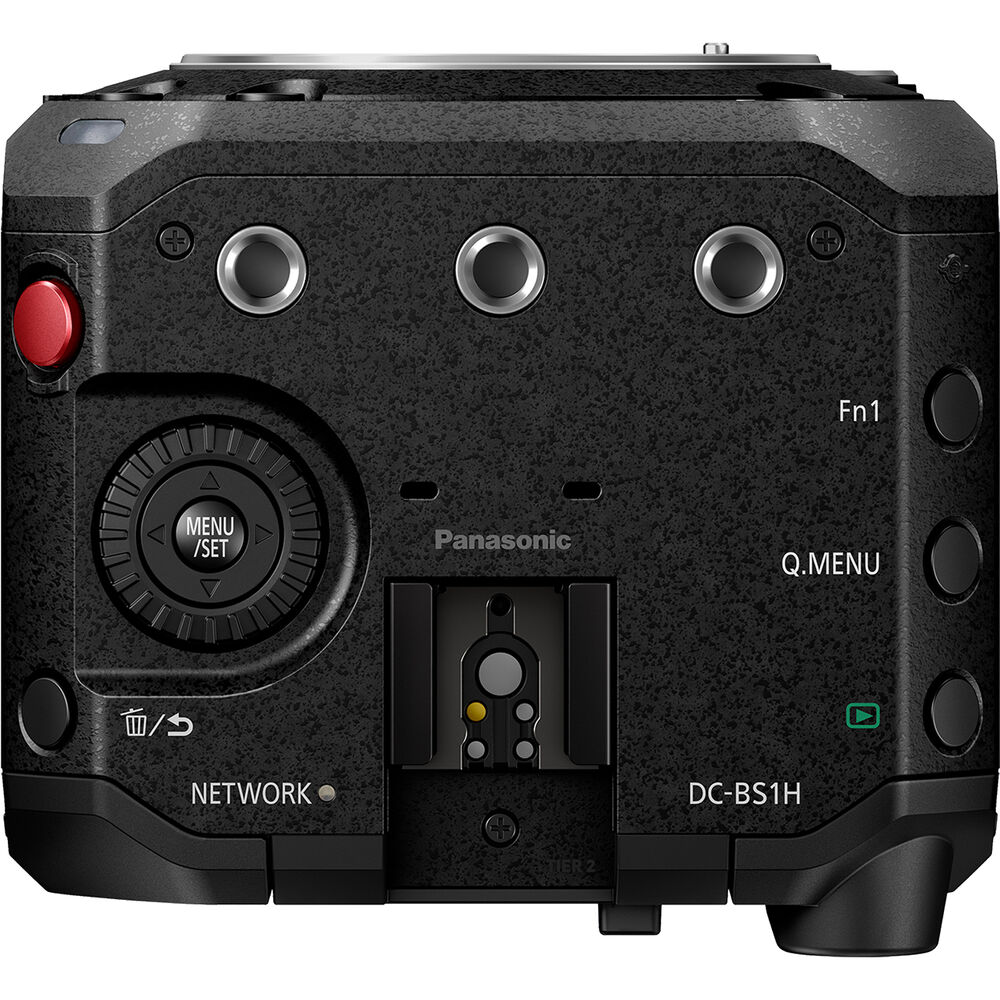

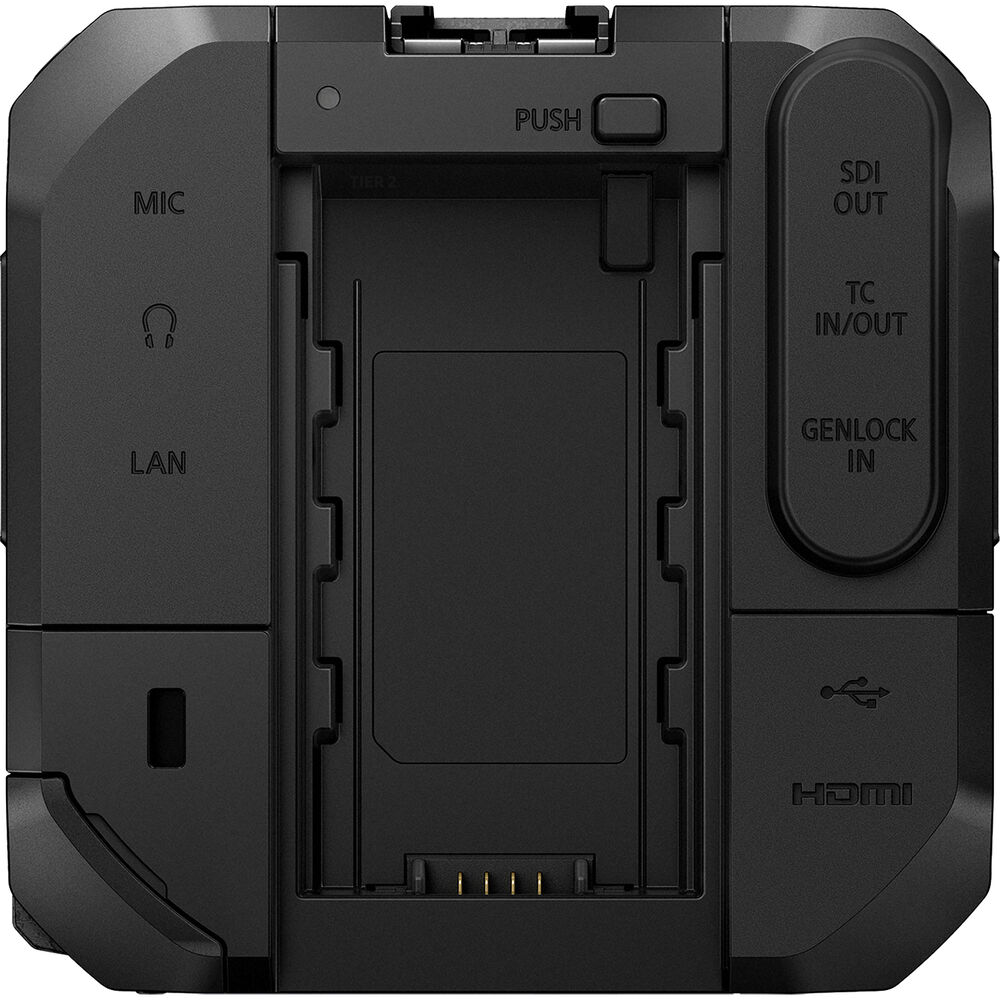

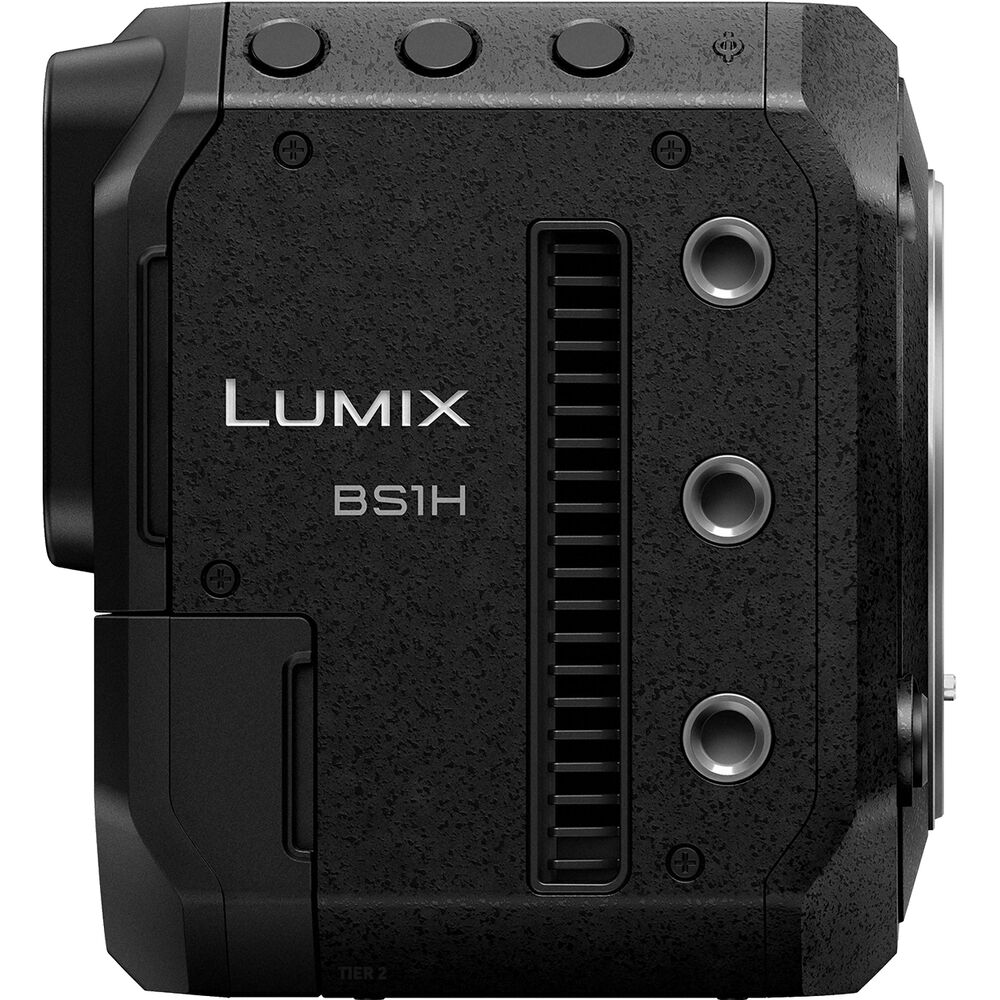

Its compact body measures less than 4" square and weighs only 1.3 lb, so it can be used on gimbals or drones for high-quality, stabilized footage. Its internal fan keeps the camera cool during long shoots, and its aluminum and magnesium housing provides protection and adds to the cooling factor. It also features 9 x accessory mounting threads for mounting onto a plate, cage, or tripod mount. There are four user-programmable function buttons around the housing as well as tally lights on the front and rear. You can power the BS1H using the included power adapter, with a separately available high-capacity VBR-type battery using its integrated mount, or by using PoE+ (Power-over-Ethernet) via the LAN port with compatible PoE equipment.

Sensor and Processing Engine

  • 24.2 MP sensor with low-pass filter
  • Dual native ISO 100-51200 and 50 to 204,800
  • 10-bit C4K/4K 59.94/50 video (35mm)
  • 4:2:2 10-bit internal recording
  • VFR C4K/4K, 2 to 60 fps, FHD 2-180 fps
  •

    V-Log

  • 14+ stops of dynamic range with V-Log and V-Gamut
  • Compatible with the "Cinema VariCam Look"
  • Supports LUT files
  • LUT-applied images viewable on SDI and HDMI outputs
  •

    Resolution

  • Supports 6K, 5.9K, 5.4K, C4K, and 4K in full-frame mode
  • Supports C4K, 4K, Anamorphic 4K (4:3 aspect ratio), and FHD in S35mm mode
  •

    Recording and Output
    • The camera records internally at 4:2:2 10-Bit/8-bit as well as 4:2:0 10-bit/8-bit to dual UHS II SD card slots that support cards with speed ratings up to V90
    • The camera outputs Blackmagic RAW or ProRes RAW via the HDMI port for external monitoring and/or recording
    • You can simultaneously output RAW over HDMI and video over SDI
    • You can record internally, while simultaneously output FHD over SDI and up to 4K over HDMI
    • Using the LUMIX Tether app version 1.1 or higher or LUMIX sync, you can record internally, output over both HDMI and SDI, and output via wired LAN or Wi-Fi
    Ethernet Compatible

    The camera features an Ethernet port that allows you to remotely control up to 12 x BS1H cameras. You can power the camera via PoE+ protocol over a network that supports PoE+, and you can also stream directly from the camera using the RTP/TRSP protocols. The camera supports streaming UHD 4K and FHD as well as 1280 x 720p.

    Supports Genlock and Timecode

    The BS1H supports Genlock as well as Timecode in/out, providing synchronization of cameras for live sports or later postproduction.

    Bluetooth and Wi-Fi

    The camera supports both Bluetooth and Wi-Fi.

    Functions

  • Frame Indicator (red outline surrounds frame indicating the camera is recording)
  • Frame Marker
  • Vertical Position Information
  • Streaming Blue Frame Indicator
  • Aspect Ratio masks
  • Face/Eye recognition for focus tracking
  • Low Light AF supports images with exposure levels down to -6EV
  •

    Technical Specifications:

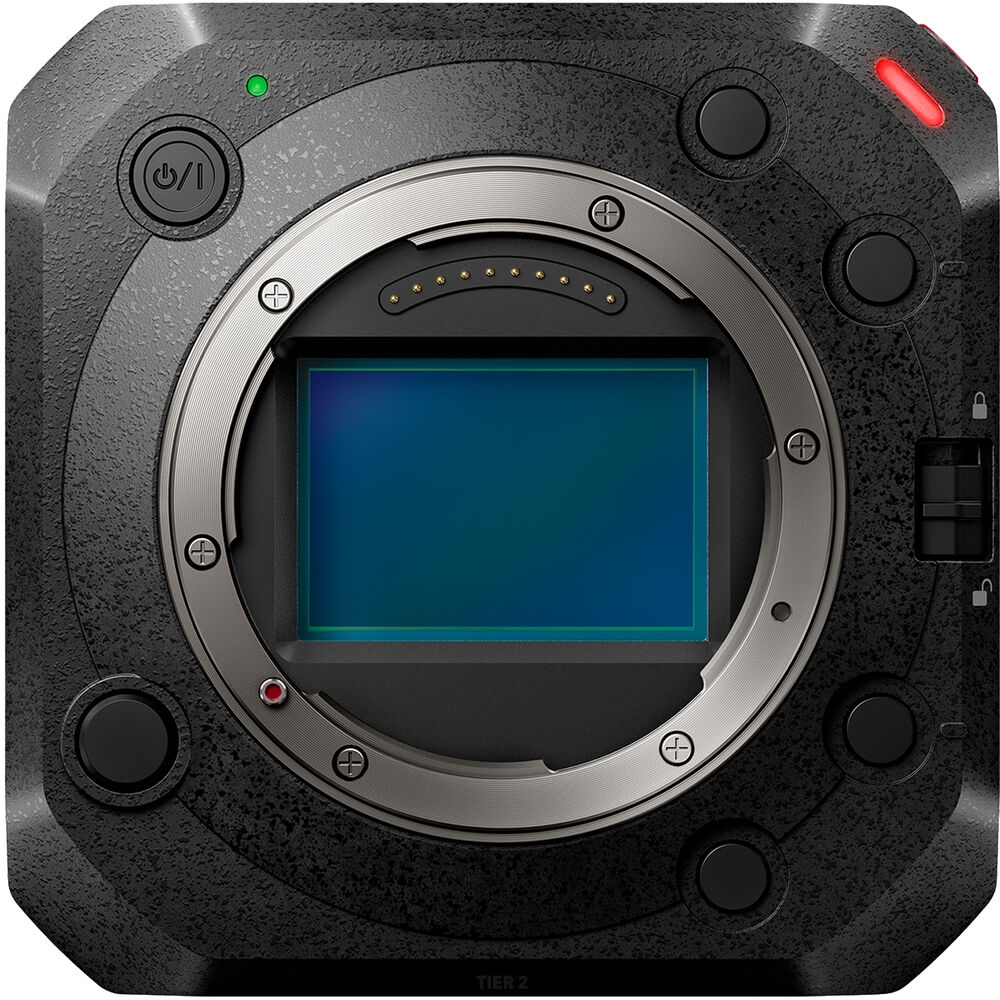

    Lens Mount

    Leica L

    Lens Communication

    Yes

    Sensor Resolution

    Effective: 24.2 Megapixel

    Sensor Type

    35.6 x 23.8 mm (Full-Frame) CMOS

    Image Stabilization

    None

    Built-In ND Filter

    None

    Capture Type

    Stills & Video

    Shutter Type

    Electronic Rolling Shutter

    Shutter Speed

    1/16000 to 1/2 Second

    ISO Sensitivity

    100 to 51,200 (Extended: 80 to 204,800)

    Advertised Dynamic Range

    14 Stops

    White Balance

    2500 to 10,000K

    Internal Recording Modes

    H.265/H.265 Long GOP/MOV 4:2:2 10-Bit

    4096 x 2160 at 23.98/25/29.97 fps [100 to 400 Mb/s]

    3840 x 2160 at 23.98/25/29.97 fps [100 to 400 Mb/s]

    3328 x 2496 at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]

    1920 x 1080p at 23.98/29.97/59.94 fps [100 to 200 Mb/s]

    1920 x 1080i at 50/59.94 fps [50 to 100 Mb/s]

    H.265/H.265 Long GOP/MOV 4:2:0 10-Bit

    5952 x 3968 at 23.98/24.00 fps [200 Mb/s]

    5376 x 3584 at 25/29.97 fps [200 Mb/s]

    5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s]

    4096 x 2160 from 2 to 59.94 fps [200 Mb/s]

    1920 x 1080p [100 to 150 Mb/s]

    External Recording Modes

    Raw 12-Bit via HDMI

    5888 x 3312 at 23.98/25/29.97 fps

    4128 x 2176 at 23.98/25/29.97/50/59.94 fps

    3536 x 2656 at 23.98/25/29.97/50 fps

    10-Bit via SDI/BNC

    1920 x 1080p at 23.98/25/29.97/50/59.94 fps

    1920 x 1080PsF at 23.98/24.00/25/29.97 fps

    1920 x 1080i at 50/59.94 fps

    1280 x 720 at 50/59.94 fps

    Sensor Crop Modes

    Super35 / APS-C

    Sensor Crop While Recording

    6K (5952 x 3968) in 3:2

    5K (5888 x 3312) in 16:9

    5K (5376 x 3584) in 3:2

    4K (4096 x 2160) in 17:9

    4K (3840 x 2160) in 16:9

    1080p (1920 x 1080) in 16:9

    Fast-/Slow-Motion Support

    Yes

    Gamma Curve

    Panasonic V-Gamut, Panasonic V-Log

    Broadcast Output

    NTSC/PAL

    Built-In Microphone Type

    Stereo

    Audio Recording

    MOV: 2/4-Channel 48 kHz LPCM Audio

    MOV: 2/4-Channel 96 kHz LPCM Audio

    MP4: 2/4-Channel 48 kHz LPCM Audio

    MP4: 2/4-Channel 96 kHz LPCM Audio

    IP Streaming

    RTP, RTSP

    1280 x 2160 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 50.00 Mb/s)

    Aspect Ratio

    3:2

    Media/Memory Card Slot

    Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]

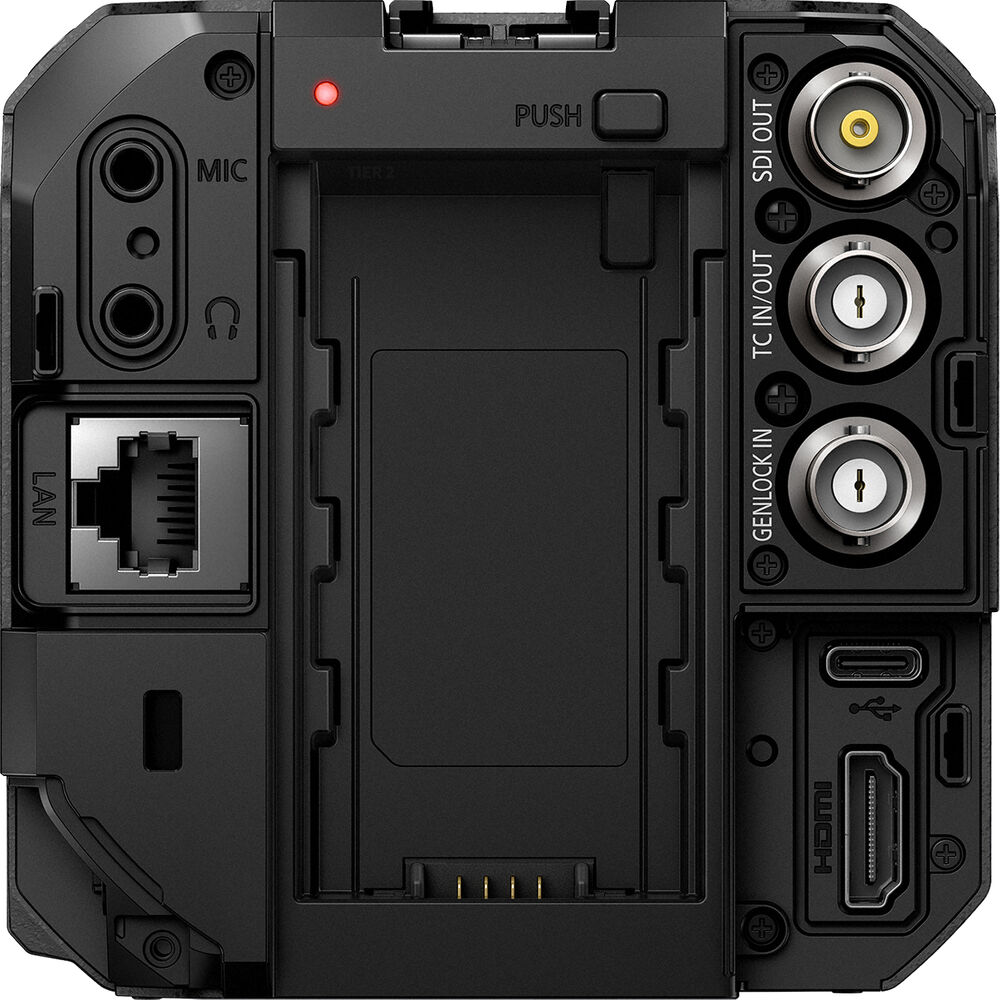

    Video I/O

    1 x BNC (3G-SDI) Output

    1 x HDMI 2.0 Output

    Audio I/O

    1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body

    1 x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body

    Power I/O

    1 x Weipu SF610/S2 (12VDC) Input

    Other I/O

    1 x USB-C (USB 3.2 / 3.1 Gen 1) Control/Data/Video Input

    1 x BNC (Timecode) Data Input/Output

    1 x BNC (Genlock) Data Input/Output

    1 x RJ45 (LAN) Control/Monitor/Video Input/Output

    1 x 2.5 mm Sub-Mini (LANC) Control Input

    Wireless

    2.4 GHz Wi-Fi (802.11b/g), Wi-Fi 4 (802.11n), Bluetooth Video Output, Control

    Type

    Optional, Not Included

    Focus Type

    Auto and Manual Focus

    Focus Mode

    Automatic, Continuous-Servo AF, Manual Focus

    Autofocus Points

    225

    Autofocus Sensitivity

    0 to +51,200 EV

    Operating Temperature

    22 to 72°F / -10 to 40°C

    Operating Humidity

    10 to 80%

    Battery Type

    Panasonic AG-VBR Series

    PoE Support

    PoE+ 802.3at

    Tripod Mounting Thread

    2 x 3/8"-16 Female (Bottom)

    Accessory Mount

    9 x 3/8"-16 Female

    1 x Hot Shoe Mount

    Netflix Approved

    Yes

    Material of Construction

    Aluminum

    Dimensions (W x H x D)

    3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions)

    Weight

    1.3 lb / 585 g



    In the Box

    • Panasonic Lumix BS1H Box Cinema Camera
    • AC Power Adapter
    • AC Cable
    • Cable Lock Band
    • Body Cap
    • Hot Shoe Cover
    • Audio Terminal Cover
    • DC In Terminal Cover
    • BNC Terminal Cover
    • HDMI Terminal Cover
    • Remote Terminal Cover

    Warranty:

    2 Years Manufacturer's Warranty.
