- Compatible with Panasonic TTL
- Guide Number: 190' at ISO 100 and 100mm
- Zoom Range: 12-100mm (7mm with Panel)
- Tilts from -7 to 90°
- Rotates Left & Right 180°
- Wireless Master/Slave TTL Functionality
- LED Light with 100 lux Output at 3.3'
- Recycle Time: 1.7-2.7 Seconds
- High-Speed Sync
- Runs on 4 AA Batteries

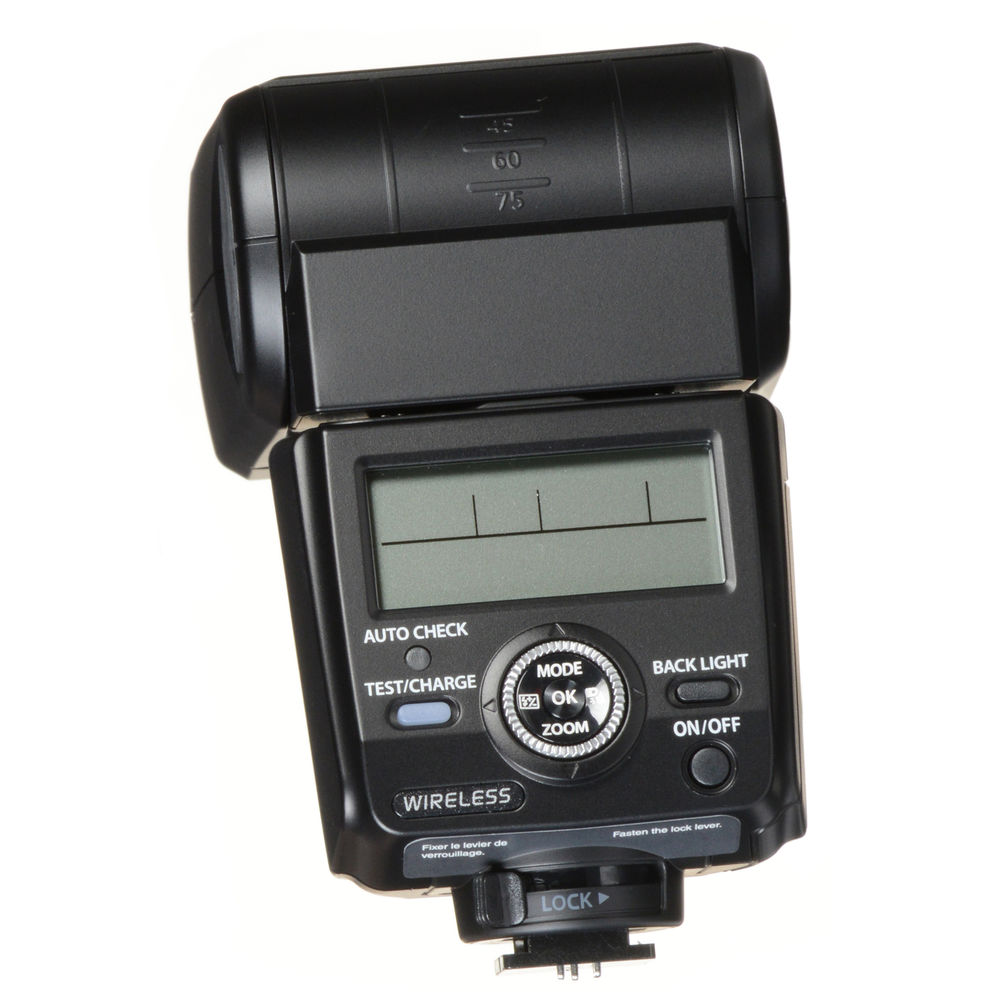

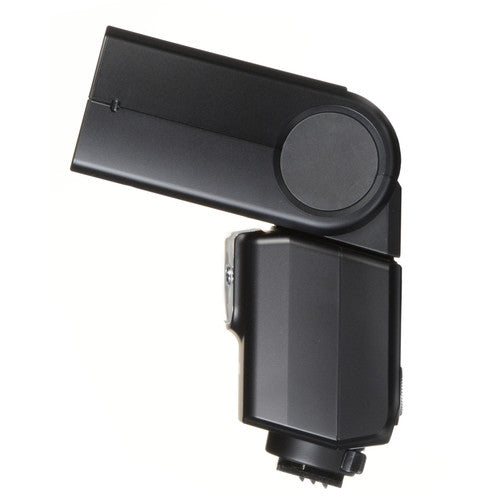

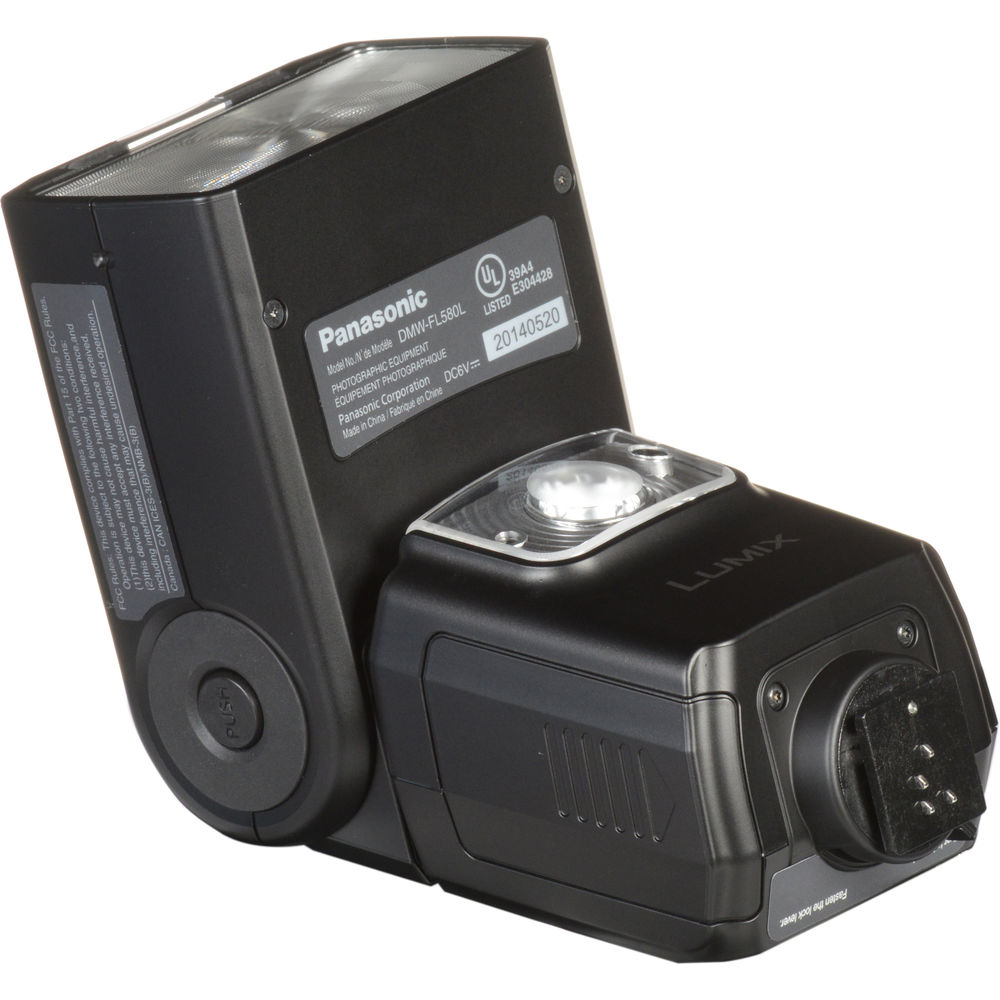

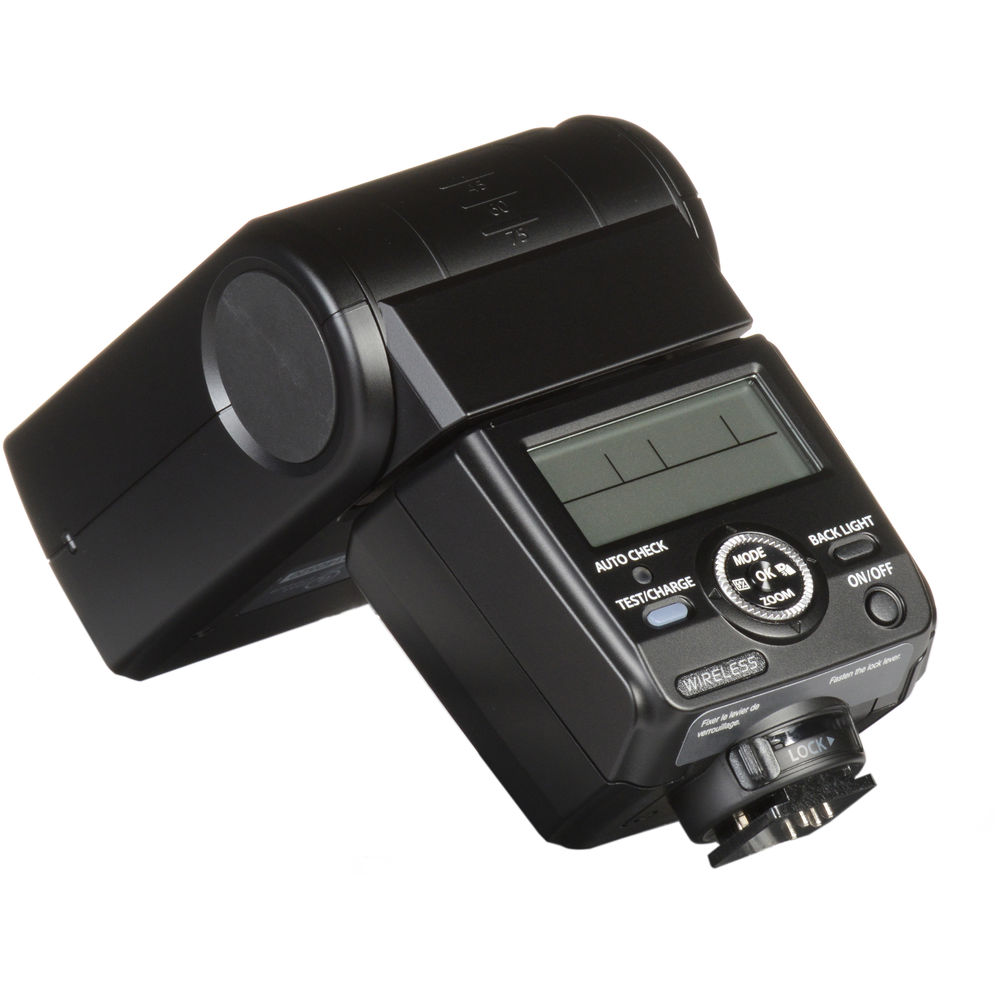

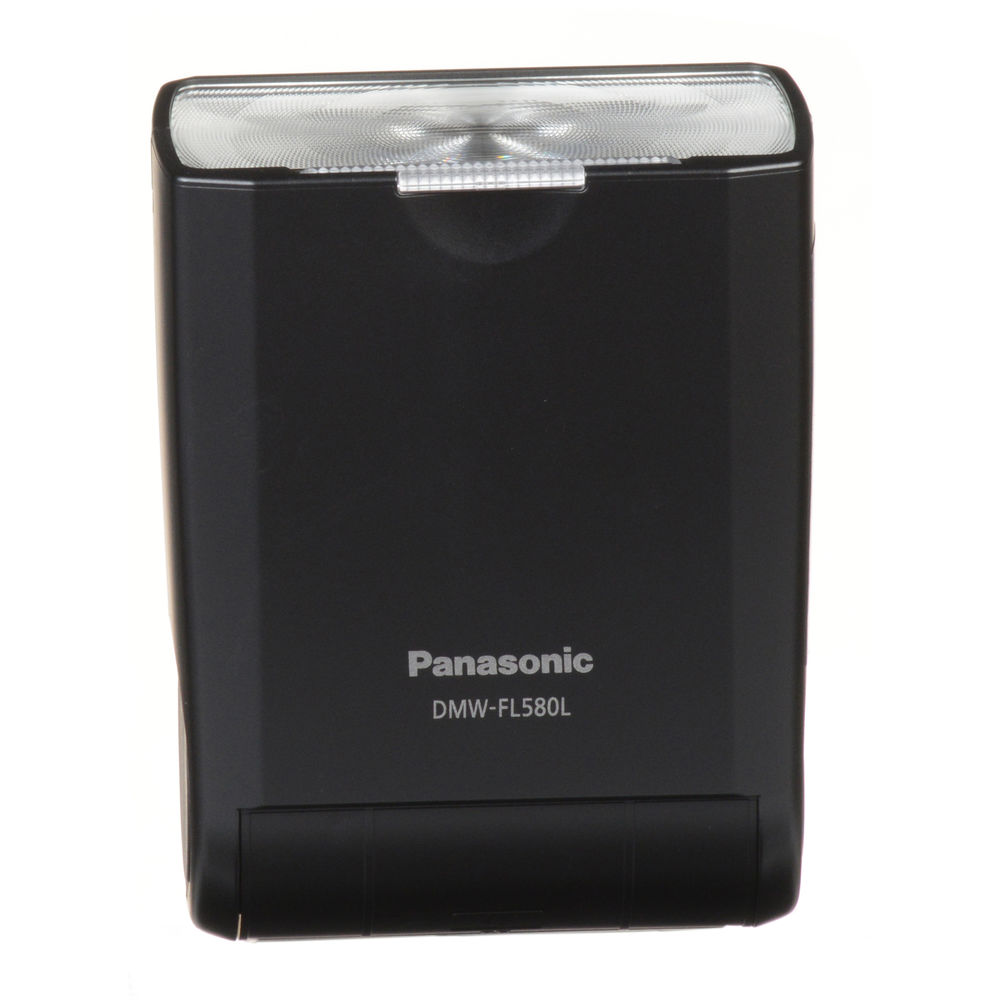

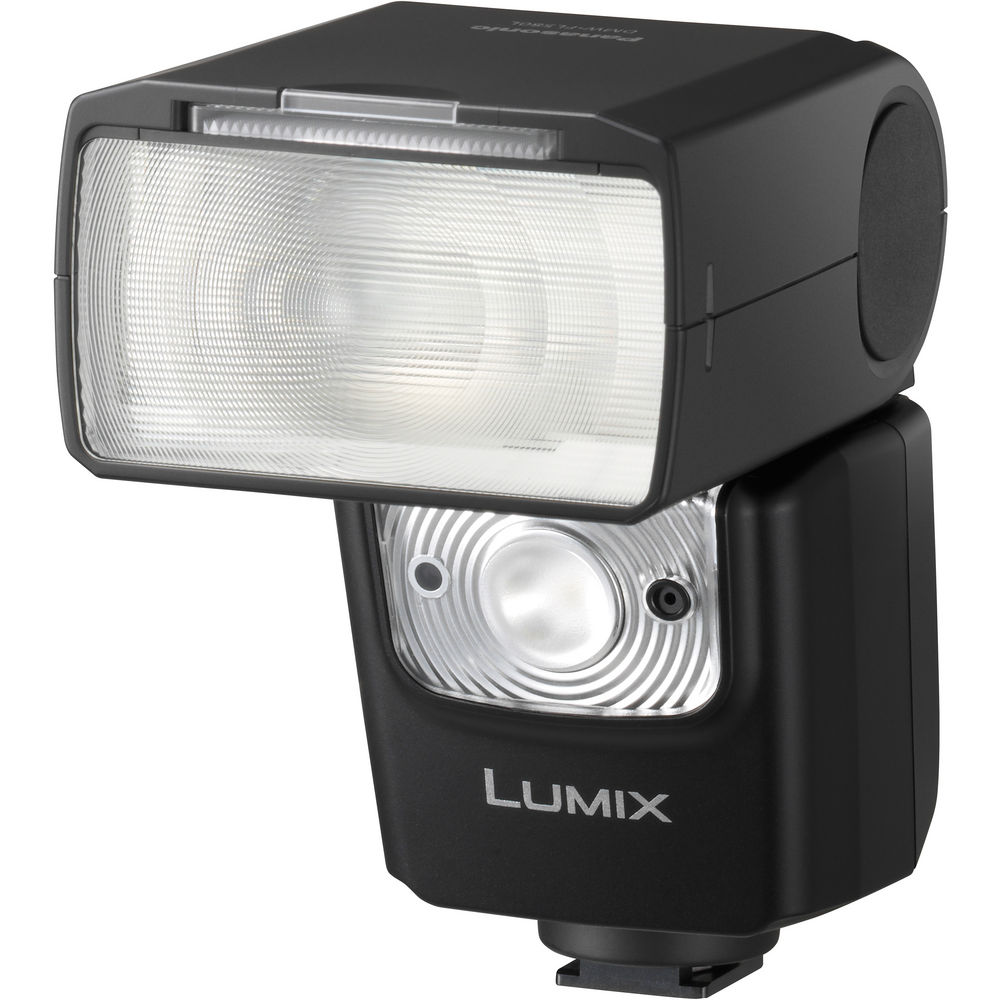

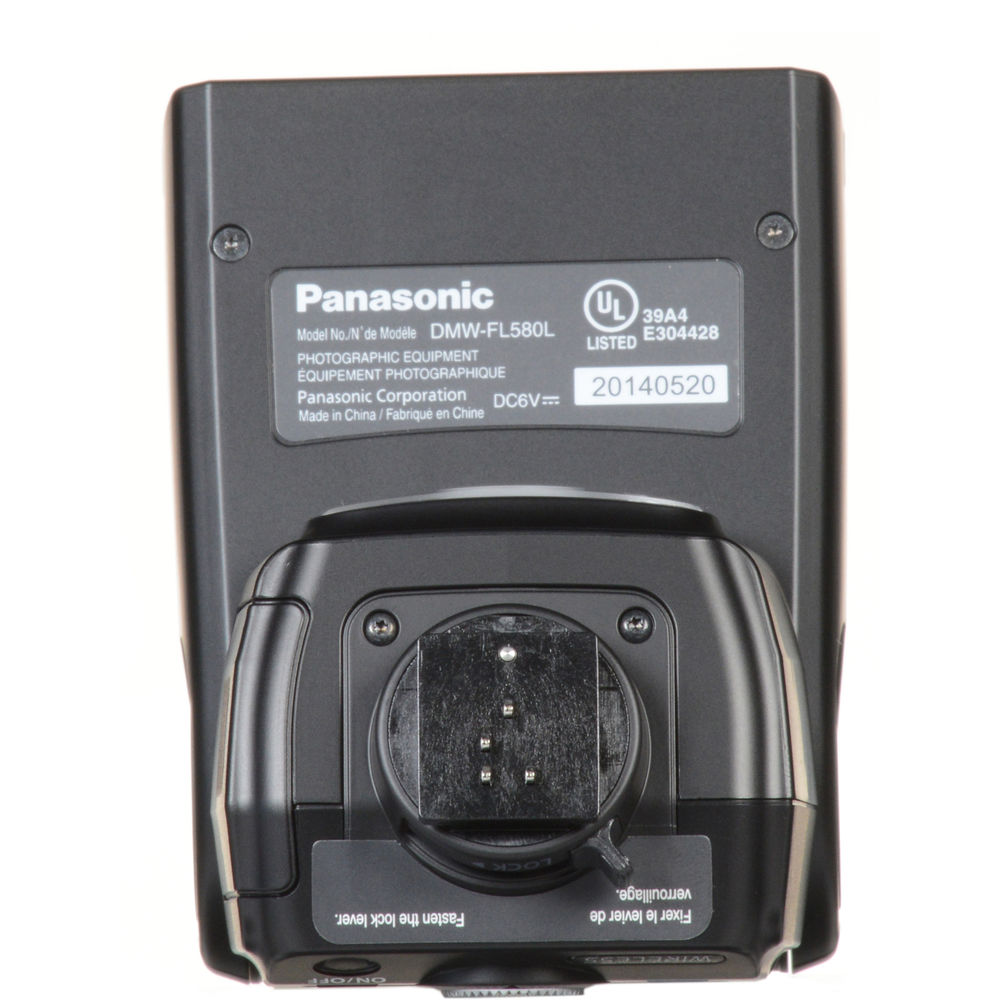

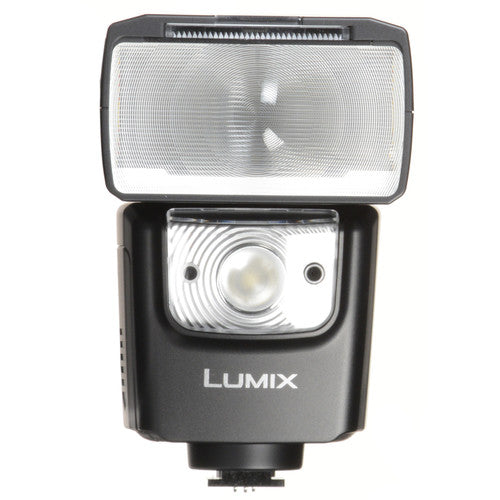

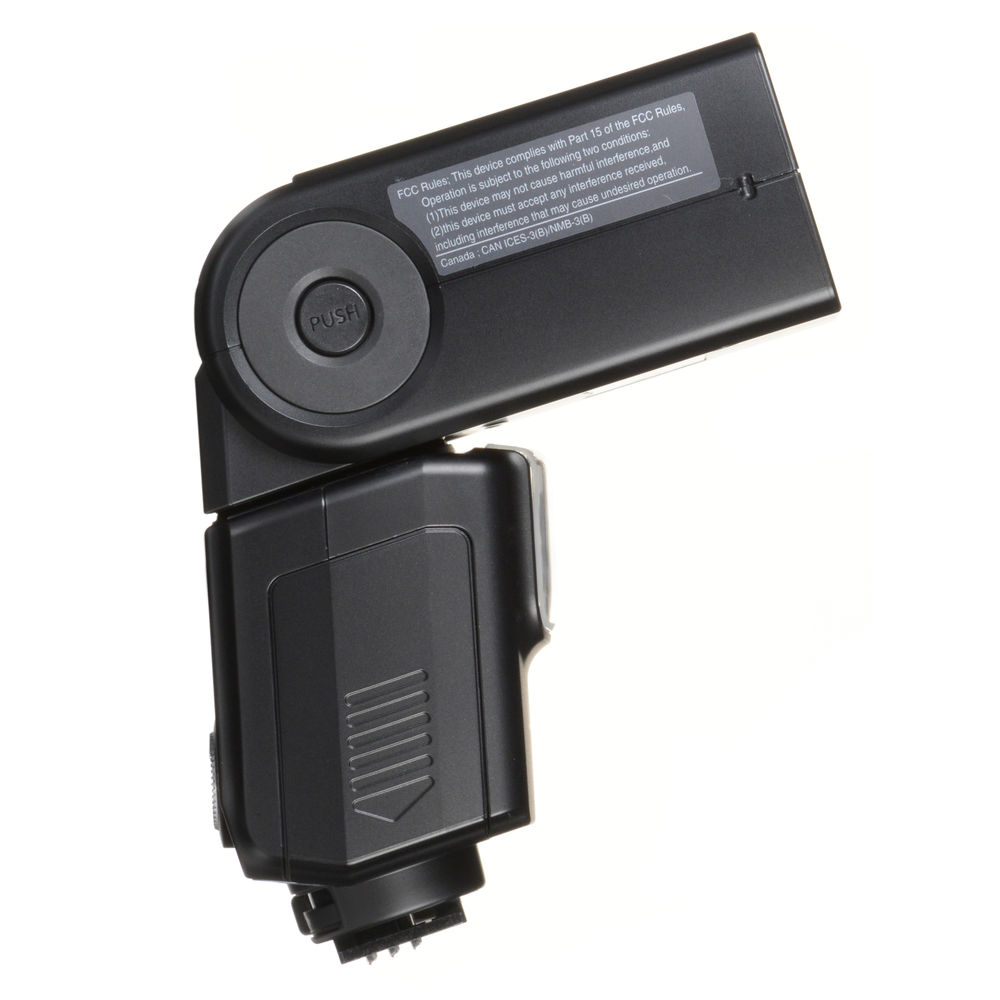

Illuminate your stills and video with the LUMIX DMW-FL580L External Flash from Panasonic which features an LED light and TTL compatibility. Capable of covering a zoom range of 12-100mm on Micro Four Thirds cameras, and down to 7mm with the built-in panel, this versatile unit is also powerful with a guide number of 190' at ISO 100 and 100mm. The flash head itself offers tilting from -7 to +90° and rotation left and right 180° for full bounce capabilities. Along with these features, the flash also has wireless master and slave TTL functionality with access to 4 channels and 3 groups.
With video now common on digital cameras, the DMW-FL580L flash includes an LED light with 100 lux output at 3.3'. This light also functions as an AF assist during stills shooting. The flash is even capable of high-speed sync and it has a recycle time of 1.7 to 2.7 seconds. Additionally, it runs on 4 AA batteries and comes with an IR filter, diffuser, orange warming filter, a stand, and a case.
- Equivalent coverage on 35mm format is 24-100mm, and 14mm with the wide-angle panel
- Approximately 125 flashes with alkaline batteries and 175 with Ni-MH batteries
- Multi flash mode for continuous flash firing
- LED light has effective range of 3.3-16.4'
- LED light will run for 170 minutes with alkaline batteries or 240 minutes with Ni-MH batteries
- Built-in bounce card for creating catchlights
Technical Specifications:
Guide Number |
190.29' / 58 m at ISO 100 (100 mm Position) |
Coverage |
Micro Four Thirds 12 to 100 mm 7 mm (with Wide-Angle Adapter) |
Auto Zoom Head |
Yes |
Bounce Head |
-7 to +90° |
Swivel Head |
180° |
Flash Duration |
1/250 to 1/20000 Second |
Recycle Time |
Approx. 1.7 to 2.7 Seconds |
Secondary Illumination |
Video Light |
Exposure Control |
Four Thirds TTL |
Flash Modes |
Hi-Speed Sync |
Power Range |
1/1 to 1/128 |
Flash Compensation |
-5 to +5 EV (1/3 EV Steps) |
Wireless Operation |
Radio (TTL/Manual) Unspecified Range |
Wireless Channels |
4 |
Wireless Groups |
3 |
Internal Power |
4 x AA (Alkaline, NiMH) |
External Power Pack Compatible |
No |
Mount |
Shoe |
Off-Camera Terminal |
None |
Dimensions (W x H x D) |
2.8 x 4.4 x 4.4" / 72 x 112.5 x 112.5 mm |
Weight |
12 oz / 340.2 g (without Batteries) |
In the Box:
- Panasonic LUMIX DMW-FL580LE External Flash
- Diffuser
- Warming Filter
- Infrared Filter
- Flash Stand
- Flash Case
- Limited 90-Day Manufacturer Warranty
