RGBlink mini-mx Streaming Video Mixer

Name: RGBlink mini-mx Streaming Video Mixer
Brand: RGBlink
SKU: mini mx
Price: 108000 INR
Availability: InStock

Rs. 108,000.00

- +

RGBlink ⁄ RGBlink mini-mx Streaming Video Mixer

Key Features:

Input up to 4 x HDMI Video Sources
Supports up to 4K60 Resolution
Store 16 Scene Presets, 15 Switch FX
Dual Mic Inputs and Outputs
Audio Mixing with HDMI & External Audio
5.5" Color Touchscreen for Controls
PTZ Joystick Control for up to 4 Cameras
Chroma Key, Overlays, Scaling, Cropping
HDMI Preview/Program Outputs
Control using Computer Software via USB

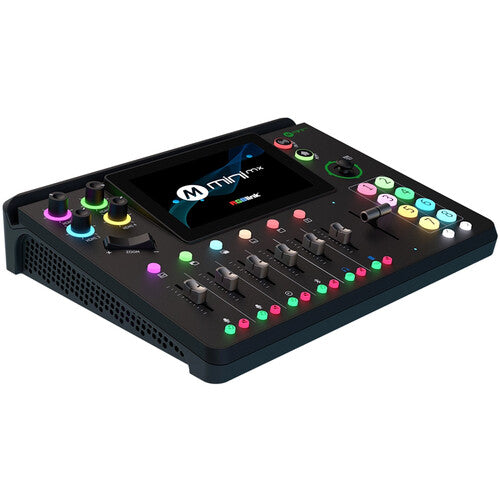

Mix and stream up to four HDMI video sources with the mini-mx Streaming Video Mixer from RGBlink. The mini-mx is a compact 4-channel streaming device that provides four HDMI 2.0 inputs that support up to 4K60 resolution video. It also features dual mic inputs, internal mixing of embedded HDMI and external audio, and audio monitoring output for professional audio options. The switcher can be controlled and configured via a computer using RGBlink software. It allows you to simultaneously stream via IP directly to up to four streaming platforms, or by using the TAO app, you can stream simultaneously to up to 32 platforms.

The switcher offers numerous video features, including one-button recording to an optional external drive up to 2TB, 15 effect modes, 16 scene presets, portrait/landscape quick switch, multi-layer overlays, scaling, cropping, and chroma key. There is a large, 5.5" color touchscreen to quickly and easily control the switcher. You can also utilize external displays using HDMI 1.3 outputs for Preview (PVW) and Program (PGM). A handy joystick is also provided to allow you to control up to four PTZ cameras via IP.

Preview on Demand

Preview and configure interactively from the touchscreen display, selecting live and insert video sources. Monitor your feed on a HDMI display with dedicated PVW/PGM multiview outputs.

Integrated PTZ Camera Control

Forget about having multiple separate control panels for video and camera control. The mini-mx brings it altogether, supporting industry-standard VISCA protocol for PTZ control directly from the mixer. Control up four separate cameras with pan, tilt, zoom, and focus.

Precise Fingertip Control

An integrated joystick provides tactile control for each PTZ camera. Used together, you can toggle, set pan, tilt, zoom, and focus from the front panel. Joystick and toggle are dynamically assigned to settings including scale, position, and crop for enhanced usability.

Leverage the Power of Presets

Save and store up to 16 presets on mini-mx, allowing one-touch recall of all scene settings including PTZ focus for smooth transitions.

Go Remote

XPOSE mini companion apps for laptop and mobile allow remote control of the mini-mx and the video connections. It provides full integration with the RGBlink TAO platform to remotely control streams with TAO Live.

Sophisticated Multi-Layer Presentation

Assemble visuals with multiple layers of video and graphics. The mini-mx offers two full video layers plus background image and two graphic overlays from the media pool as well as dynamic OSD text overlay.

Dynamically Scalable

Each of the two assignable video layers may scaled, positioned, and cropped with these placed over the background.

Fluid Interactive Operation

Select any source or preset with a touch on the screen - thumbnails and iconography that makes mini-mx a natural an intuitive way to present and stream.

Transition Like a Pro

The mini-mx includes multiple DVE transition effects from preset to program, adding sophistication and effect.

Pro Level Audio

With three separate insert audio ports, the mini-mx has external balanced mic and line-level audio covered. All three ports accept 1/4" TRS jacks, with MIC 1 & 2 supporting direct XLR connection too. Plus, there is 48V phantom power directly from the mini-mx available on MIC 1, eliminating the need for a separate DI and supporting native studio mic connection.

Follow the Action & Always Be In Sync

Set AFV for any HDMI embedded audio, so the audio switches with the video source to PVW and PGM automatically. Configure audio delay for MIC inputs or a camera input to keep audio in sync with the video.

Pro Streaming

Take advantage of advanced H.265 compression and encoding for high-performance streams. Connect mini-mx to a laptop for instant recognition as webcam to enabling capture for apps such as OBS and many more. Share your presentation in Teams, Zoom, or any collaboration platform.

Stream to up to four multiple platforms simultaneously directly over IP without a laptop. And with TAO Live integrated directly into mini-mx, cloud-stream up to 32 platforms or connections at the same time.

Recording

The USB 3.0 recording output can be directly connected to a hard drive with a maximum capacity of 2TB. It can simultaneously record while streaming, and recording 80 Mb/s high-definition video can last 100 hours. Audio and video can be imported and used with one click during video.

One-Click Chroma Key

Enable presenters to be in virtual studios and environments with chroma key. Select from standard key colors and enable chroma key directly on mini-mx without the need for an app. Refine color selection and tolerances from the touchscreen to optimize.

Multiple Layer Sophistication

As well as video dual video sources, add also media pool graphic overlays for lower-thirds and branding logos, and switch seamlessly between graphic elements.

Applications

Compact yet fully featured, the mini-mx expands the potential for video presentation, whether in person or streamed remotely, with powerful user-friendly tools that embrace modern technologies from camera and capture to broadcasting and streaming. Utilize it in clubs, concerts, houses of worship, events, conferences, trainings, celebrations, education environments, and sports.

Technical Specifications:

Switching Type	Mechanical Switch, Pushbutton, T-Bar
Latency	4 Frames
Color Processing	4:4:4YUV

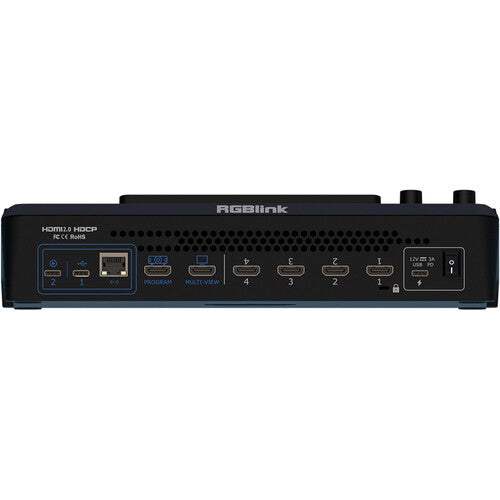

Video Inputs	4 x HDMI (2.0) Female
Input Video Format	HDMI DCI 4K at 60 fps UHD 4K at 60 fps WUXGA (1920 x 1200) at 60 fps 1080p at 23.98/25/50/59.94/60 fps 1080i at 50 fps WUXGA+ (1680 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WXGA+ (1440 x 900) at 60 fps FWXGA (1366 x 768) at 60 fps 1360 x 768 at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) 60 fps 1280 x 768 60 fps 1280 x 720 60 fps XGA (1024 x 768) 60 fps 720p at 50/60 fps
Audio Inputs	2 x Combo XLR-1/4" TRS Female 1 x 1/4" TRS Female
Embedded Audio Input	HDMI
Video Outputs	1 x USB-C (3.0) Female 1 x USB-C (3.0) Female 2 x HDMI (1.3)
Output Video Format	HDMI (4:4:4 YUV) 1080p at 23.98/25/50/59.94/60 fps 1360 x 768 at 60 fps SXGA (1280 x 1024) at 60 fps 1280 x 768 at 60 fps 720p at 50/60 fps 1280 x 720 (Non-Standard WXGA) at 60 fps XGA (1024 x 768) at 60 fps
Audio Outputs	1 x 1/8" / 3.5 mm TRS Female 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Female
Output Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Embedded Audio Output	HDMI
Multiview Output	4-Way Multiview viaHDMI
Monitor Output	2 x HDMI
Other I/O	1 x RJ45 LAN
HDCP Support	Yes, Version 2.2
Transport Protocols	RTMP
Simultaneous Streams	4 Streams
Display Size	5.5"
OS Compatibility	macOS 10.15 macOS 11 or Later Windows 10 or Later (64-Bit Only) *As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible	Yes: Android & iOS *As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Wi-Fi	No
Bluetooth	Yes
Power I/O	1 x USB-C (12 VDC at 3 A) Input
Power Consumption	36 W
Operating Temperature	32 to 113°F / 0 to 45°C
Operating Humidity	10 to 85%
