Key Features:

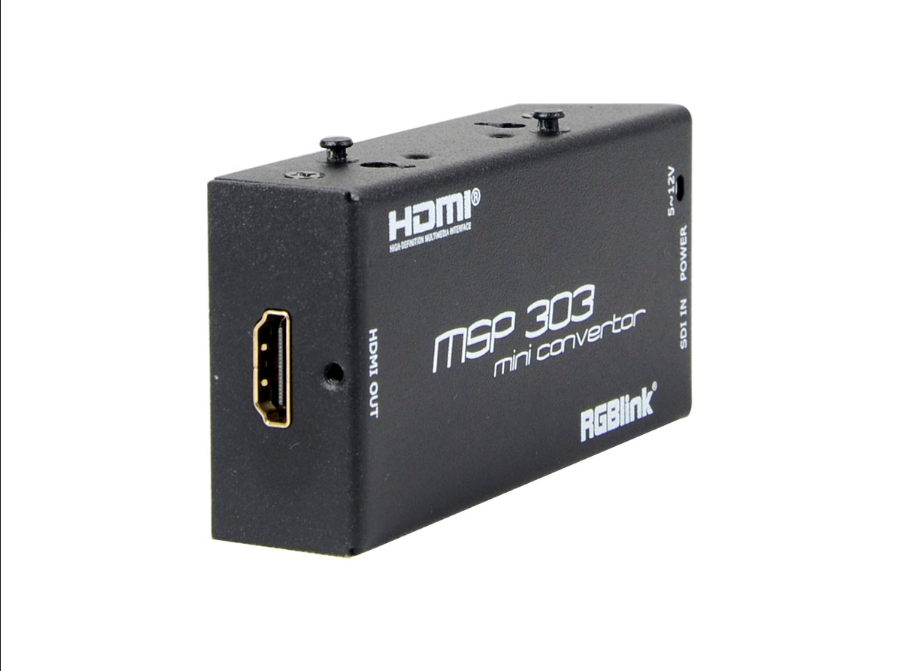

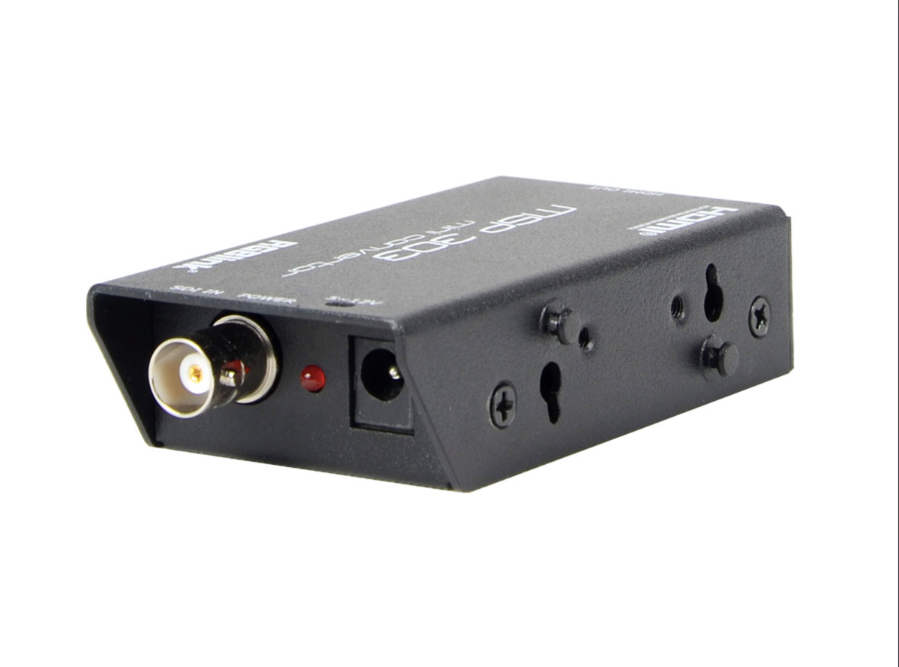

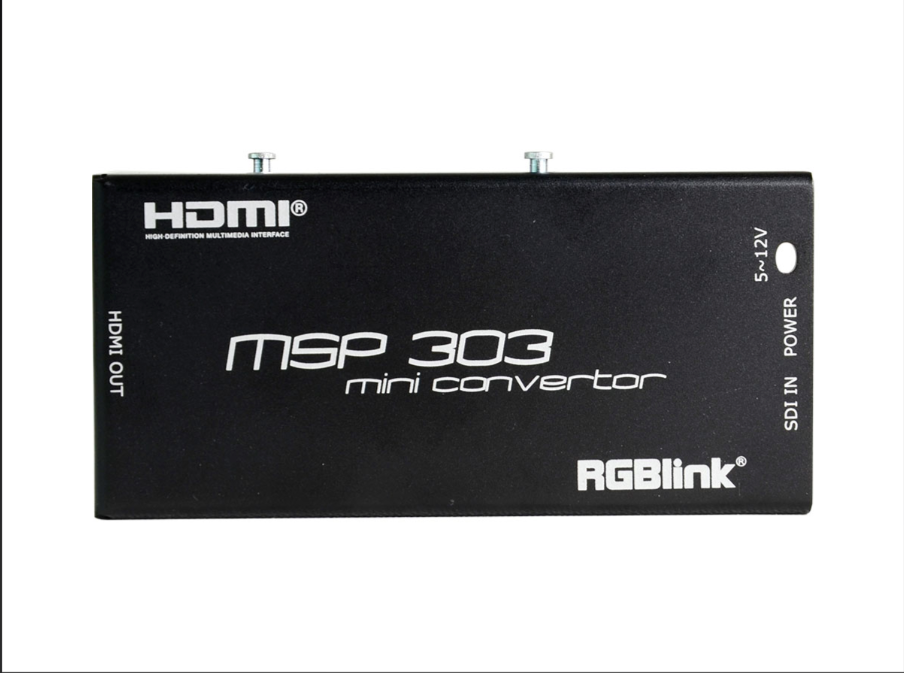

MSP 303 is a SDI to HDMI video converter, which supports 1 SDI input and 1 HDMI output. SDI input support480i@60, 576i, 720P@50/59.94/60, 1080i@50/59.94/60, 1080P@23.98/24/25/29.97/30/50/59.94/60. And HDMI output support 720× 480@60, 720×576@60, 1280×720@60, 1920×1080@23.98/24/25/29.97/30/50/59.94/60. Besides, an optional pair of mounting ears can be mounted on the MSP rack.
Technical Specifications:
Input
1×BNC
Output
1×HDMI-A
Input Resolution
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
Output Resolution
720×480@60 I 720×576@60 I 1280×720@60 I
1920×1080@23.98/24/25/29.97/30/50/59.94/60
Supported Standard
SMPTE 425M (Level A&B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
1.3
Input Voltage
5-12V DC
Weight
0.15kg
Dimension
98mm×47mm×24mm
