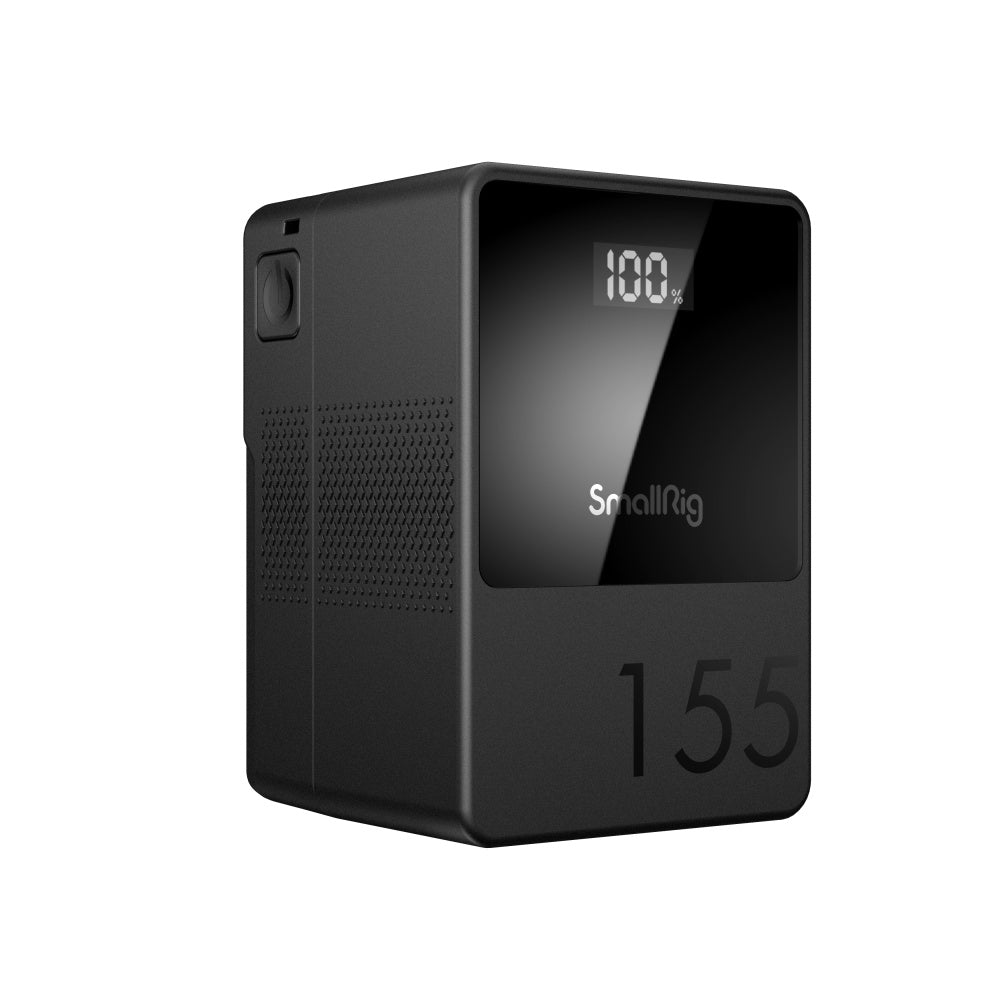

SmallRig VB155 mini V Mount Battery 3581

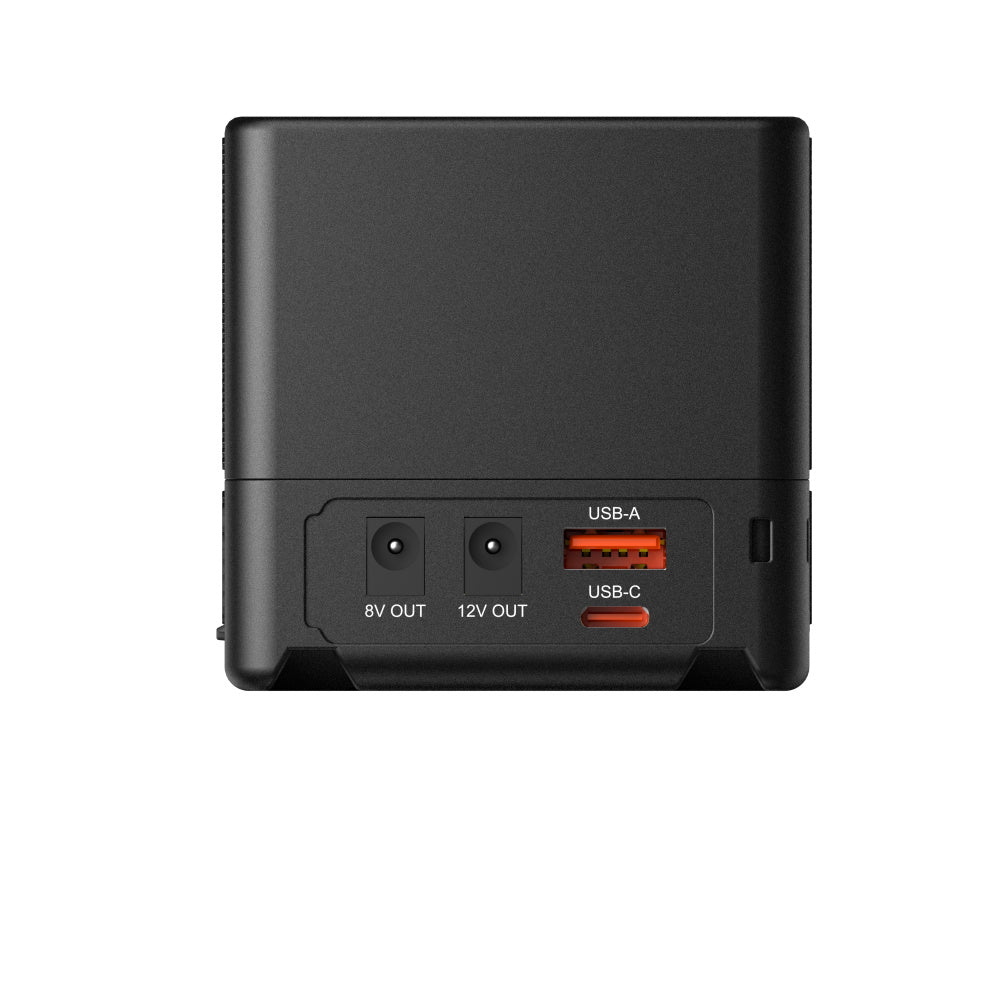

VB155 is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / SCP / PPS / APPLE-2.4A etc.), bi-directional 65W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V / V Mountare also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!
In the Box:
User Manual × 1
Parameters：
|
Items |
Parameters |
|
Material |
Fireproof PC |
|
Capacity |
14.8V 10.5Ah 155Wh |
|
Rated Power |
Discharge: 155W Charge: 65W |
|
V Mount / D-TAP Input |
16.8V / 8A |
|
V Mount / D-TAP Output |
14.8V / 14A（MAX） |
|
USB-A Output QC2.0 / QC3.0 /AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A |
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 3A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A APPLE-2.4A: 5V / 2.4A |
|
USB-C Input/Output
Input 65W (Max) Output 65W (Max) PD3.0 / QC2.0 / QC3.0 / PPS / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A |
PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 3.25A QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 2A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A PPS: 3.3-21V / 3A APPLE-2.4A: 5V / 2.4A |
|
DC1 Output |
8V / Max3A |
|
DC2 Output |
12V/Max3A |
|
Cutoff Voltage |
11V |
|
Optional Charging Method |
16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W) |
|
Product Dimensions |
107.0 × 73.0 × 71.0 mm |
|
Net Weight |
770 g ± 10 g |
|
Package Dimensions |
147.0 × 114.0 × 93.0 mm |
|
Gross Weight |
990 g ± 10 g |
Note
- Please keep it clean, dry area, and away from corrosive substances to reduce the risk of short circuits.
- Please check its battery life regularly in case you need it anytime anywhere.
- If the battery is left unused for a long time, please charge it to about 70% every three months and put it in a dry and ventilated environment for a longer lifespan.
- Working temperature: -10℃- 45℃ (14℉ - 113℉),
Storage temperature:
One month: -20℃ - 60℃ (-4℉ - 140℉)
Three months: -20℃~45℃ (-4℉ - 113℉)
One year: -20℃~20℃ (-4℉ - 68℉)
Reference storage temperature/humidity:
temperature: 20℃±5℃
humidity: 60±15%
- It is normal for the battery to heat up slightly during charging or using.

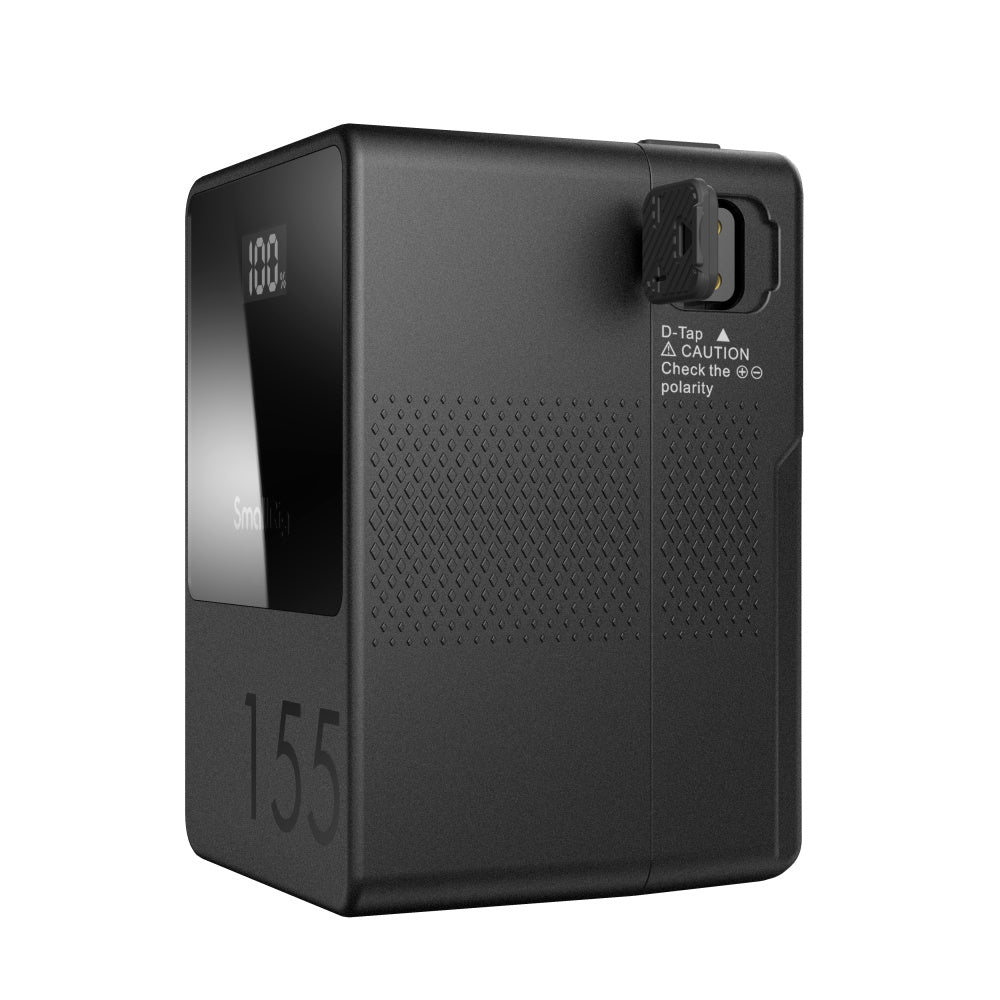

- When using the D-TAP connector, please distinguish the positive and negative terminals, and do not reverse the battery.
- It’s normal that for long time storage the battery will lose some power cause it has self-consumption.
- Do not exceed its rated output when powering up other devices.
- Keep it away from water or fire when using.
- Please avoid dropping or crushing.
- Children can only use it under adult supervision.
