Teradek Bolt 4K RX Monitor Module for Cine 7 and 702 Touch

Rs. 423,500.00
Key Features:
  • Receive HD Video from up to 750' LoS
  • Mounts onto SmallHD Cine 7/702 Touch
  • Receive up to 4K30 Video, Zero Delay
  • V-Mount Battery Plate
  • Output Video up to 4K30 via HDMI
  • Compatible with Any Bolt 4K Transmitter
  • AES-256 Encryption, 5 x Antennas
  • Bluetooth Mobile App, Spectrum Analyzer

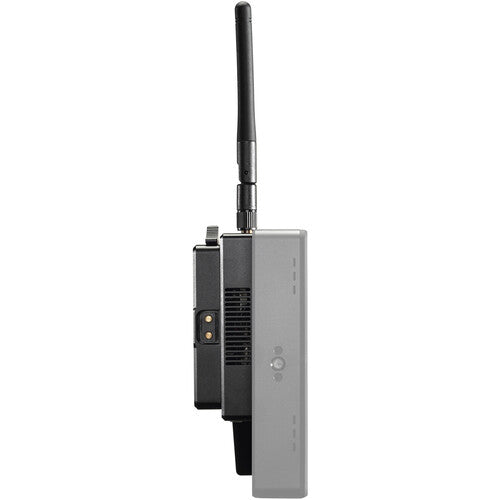

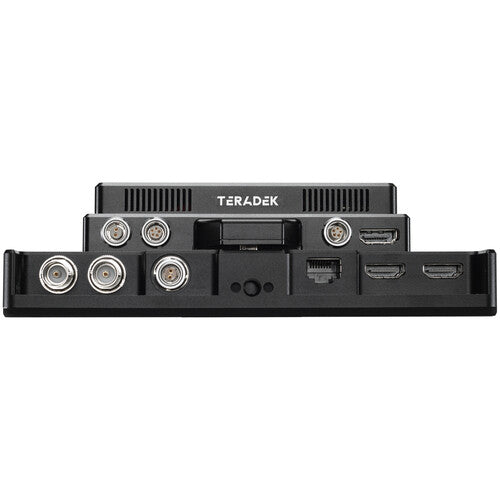

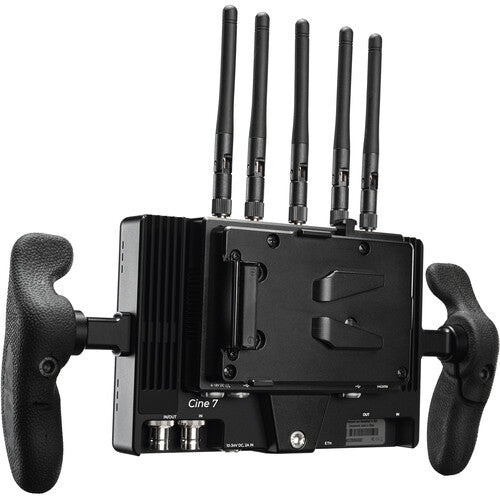

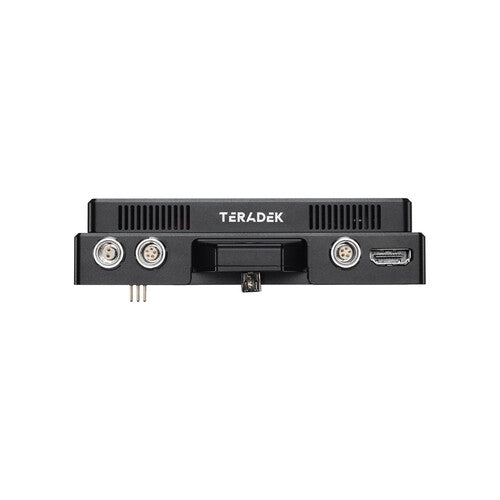

Receive lossless HD video from up to 750' line-of-sight with the Bolt 4K RX Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7 or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI 2.0 port. A V-mount battery plate is included to power the receiver using a professional V-mount battery.

The receiver module supports transmissions of up to 4K30 video from any Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 4K system also supports the transmission of timecode and start/stop triggers from the camera.

The Bolt 4K units are all cross-compatible, so you can transmit to different Bolt 4K receiver models. The system also supports an iOS app that easily connects via Bluetooth, which provides a spectrum analyzer, channel selection tools, and remote configuration.

  • Cross-compatible with all Bolt 4K and 4K LT series transmitters
  • Mounts on the back of a SmallHD Cine 7 or 702 Touch monitor
  • Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI 2.0 port

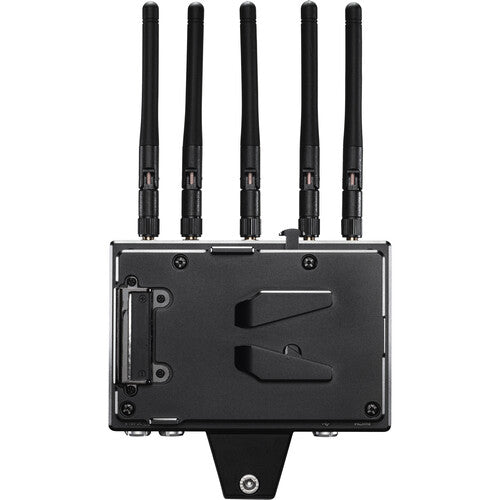

  • V-mount battery plate included
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Smaller and lighter chassis design than other Bolt receivers

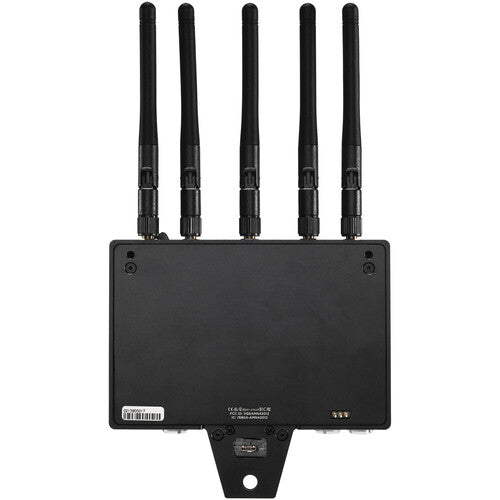

  • The receiver features five antennas
  • AES-256 encryption and RSA 1024 key pairing support
  • Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration

Technical Specifications:

Antenna I/O

5 x RP-SMA Female

Embedded Audio

SDI: 2-Channel

HDMI: 2-Channel

Encryption

256-Bit AES

Wireless Range

750' / 228.6 m (Line-of-Sight)

# of Channels

13 (40 MHz)

25 (20 MHz)

Channel Bandwidth

40 MHz, 20 MHz

Frequency Range

Non-DFS Frequencies

US: 5.19 to 5.23 GHz

US: 5.75 to 5.79 GHz

DFS Frequencies

US: 5.27 to 5.67 GHz

Latency

< 0.01 ms

RF Power

17 dBm

Audio Format

2-Channel 24-Bit 48 kHz LPCM Audio

Wireless Video Compression

Uncompressed

Timecode Support

Yes

Built-In Battery

No

Operating Temperature

32 to 104°F / 0 to 40°C



In the Box:

  • Teradek Bolt 4K RX Monitor Module for Cine 7 and 702 Touch (V-Mount)
  • V-Mount Battery Plate
  • Limited 1-Year Warranty
