Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit

Name: Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Brand: Teradek
SKU: BOLT 2260
Price: 380000 INR
Availability: InStock

Rs. 482,000.00 Rs. 380,000.00

- +

Teradek ⁄ Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit

Key Features:

3G-SDI/HDMI Transmitter & Receiver Set
Supports New 6 GHz Frequency Band
Transmits up to 750' Line of Sight
Supports up to 4K30 Resolution Input
3G-SDI/HDMI Inputs & Outputs
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series 5G TX/RX
AES-256 Encryption, 7 x Antennas
Bluetooth Mobile App, Spectrum Analyzer

Transmit and receive lossless HD video from up to 750' line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver that support the new 6 GHz wireless frequency and feature bright OLED displays and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.

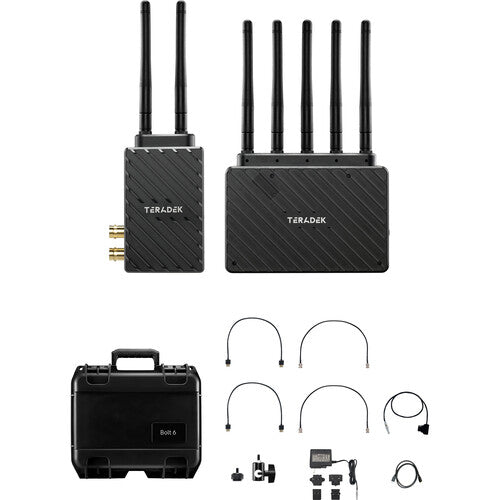

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Technical Specifications:

Antenna I/O	Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female
Video I/O	Transmitter: 1 x HDMI 1.4b Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI 1.4b Output Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio	HDMI: 2-Channel SDI: 2-Channel
Audio I/O	No
Power	Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O	Transmitter/Receiver: 1 x Micro-USB Input
Encryption	256-Bit AES
Wireless Range	750' / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	23 dBm
Wi-Fi	No
Bluetooth	Yes
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Timecode Support	Yes
DC Input Power	6 to 28 VDC
Power Consumption	Transmitter: 9 W Receiver: 11 W
Mounting	1 x 1/4"-20 Female 1 x 3/8"-16 Female
Environmental Protection	No
Operating Temperature	32 to 72°F / 0 to 40°C
Material of Construction	Aluminum, Polycarbonate
Dimensions	Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight	Transmitter: 7.3 oz / 206 g Receiver: 10.3 oz / 292 g
