Datavideo 7" 4K HDMI On-Camera LCD Monitor
- 7" 1920 x 1200 TFT LCD
- HDMI Input & Loop Output, HDCP Support
- Supports UHD & DCI 4K Resolutions
- 450 cd/m² Brightness, 170° Angle of View
- 1000:1 Contrast Ratio, L-Series Plate
- 3.5mm Headphone Jack, Speaker
- Focus Peaking, Zebra, Markers
- False Color, Histogram, Underscan
- Includes Shoe Mount and Sun Hood
Add a compact on-camera monitor to your DSLR, mirrorless, or cinema rig that has an HDMI output with this 7" 4K HDMI On-Camera LCD Monitor from Datavideo. The 7" monitor supports up to DCI 4K video input on its high-resolution 1920 x 1200 IPS LCD screen via its HDMI input, and it also features an HDMI output to send to another monitor, a video switcher, or a recorder. Its internal software tools include focus peaking, zebras, 1:1 pixel mapping, a histogram, and more to make it easy to assess your image.

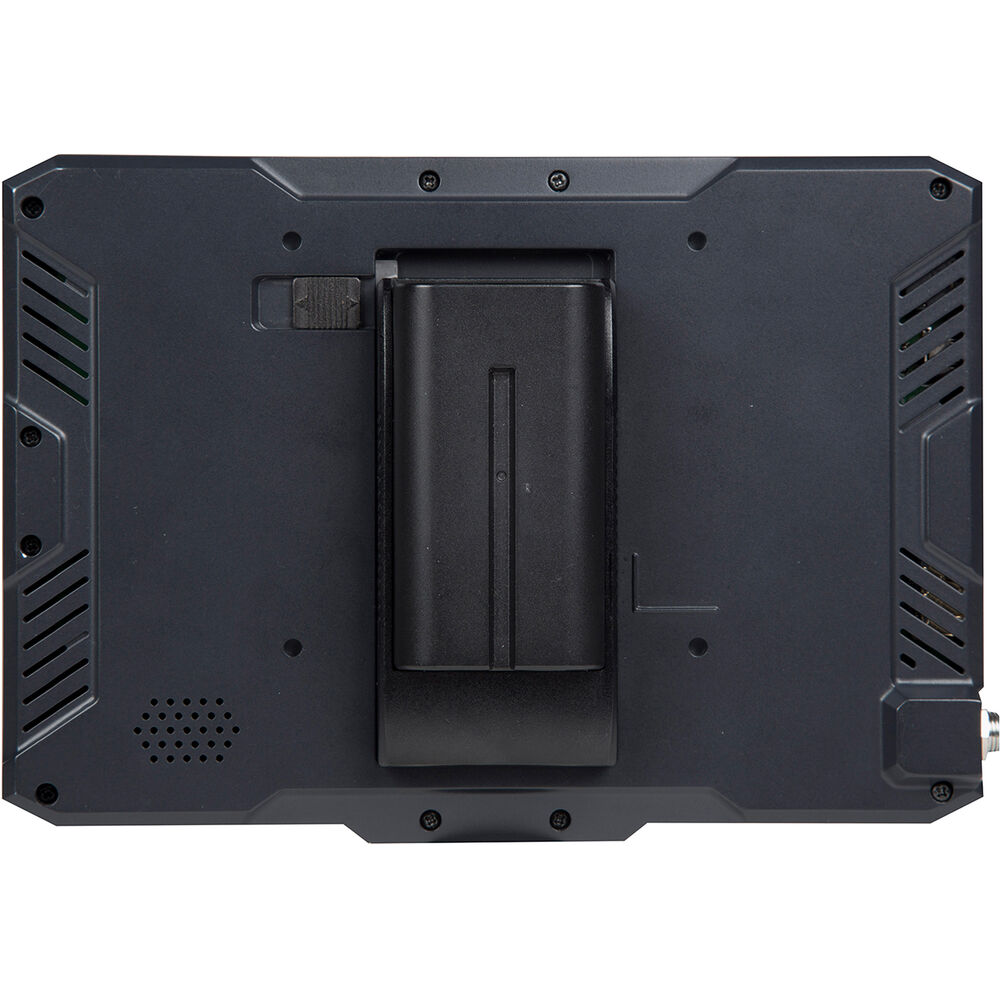

The TFT LCD panel has a contrast ratio of 1000:1 and a brightness of 450 cd/m², making it easily viewable indoors. In bright sunlit outdoor conditions or other situations with bright direct light, use the included sun hood to block any glare for a clear view of the screen. Power can be supplied to the monitor via the included L-Series battery plate or using the included 12 VDC power adapter. A shoe mount and an HDMI cable are also included.
- 4K HDMI input with loop-through HDMI output
- 7" 1920 x 1200 Full HD resolution
- User-definable buttons to custom auxiliary functions as shortcuts
- DSLR Scaling for fullscreen viewing
- 170° horizontal and vertical wide viewing angle
- Portable, slim design
- Individual adjustments of brightness, contrast, saturation, and sharpness
- Color match conversion with color temperature adjustment
- Monitoring tools such as adjustable screen markers, focus assist, focus peaking, false color, histogram, exposure, zoom, pixel-to-pixel zoom, underscan, check field, blue-only mode, monochrome mode, and more
- 75mm VESA and shoe mounts for mounting on top of the camera
Technical Specifications:
|
Panel Type |
IPS-Type LCD |
|
Display Size |
7.0" / 17.8 cm |
|
Aspect Ratio |
16:10 |
|
Viewing Angle |
Horizontal: 170° (85/85) Vertical: 170° (85/85) |
|
Touchscreen |
No |
|
Maximum Brightness |
450 nits / cd/m2 |
|
Contrast Ratio |
1000:1 |
|
HDR Compatibility |
None |
|
Pixels Per Inch (ppi) |
323 ppi |
|
Real-Time LUT Monitoring |
No |
|
Image Controls |
Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Waveform, Zebra |
|
Video I/O |
1 x HDMI 2.0 Input 1 x HDMI 2.0 Loop Output |
|
HDCP Support |
Yes, Version 2.2 |
|
Embedded Audio |
HDMI: 2-Channel |
|
Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output |
|
Built-In Speaker |
1 x 2 W |
|
Power I/O |
1 x Barrel (12 VDC) Input |
|
Other I/O |
1 x Mini-USB 2.0 Input |
|
Wi-Fi |
None |
|
Video Format |
HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
|
Battery Type |
1 x L-Series |
|
Power Consumption |
12 W (Maximum) |
|
Mounting |
1 x Cold Shoe |
|
Operating Temperature |
32 to 72°F / 0 to 40°C |
In the Box:
- Datavideo 7" 4K HDMI On-Camera LCD Monitor
- L-Series Battery Plate
- Shoe Mount
- Sun Hood
- HDMI Cable
- 12 VAC Power Adapter
- Limited 1-Year Manufacturer Warranty
