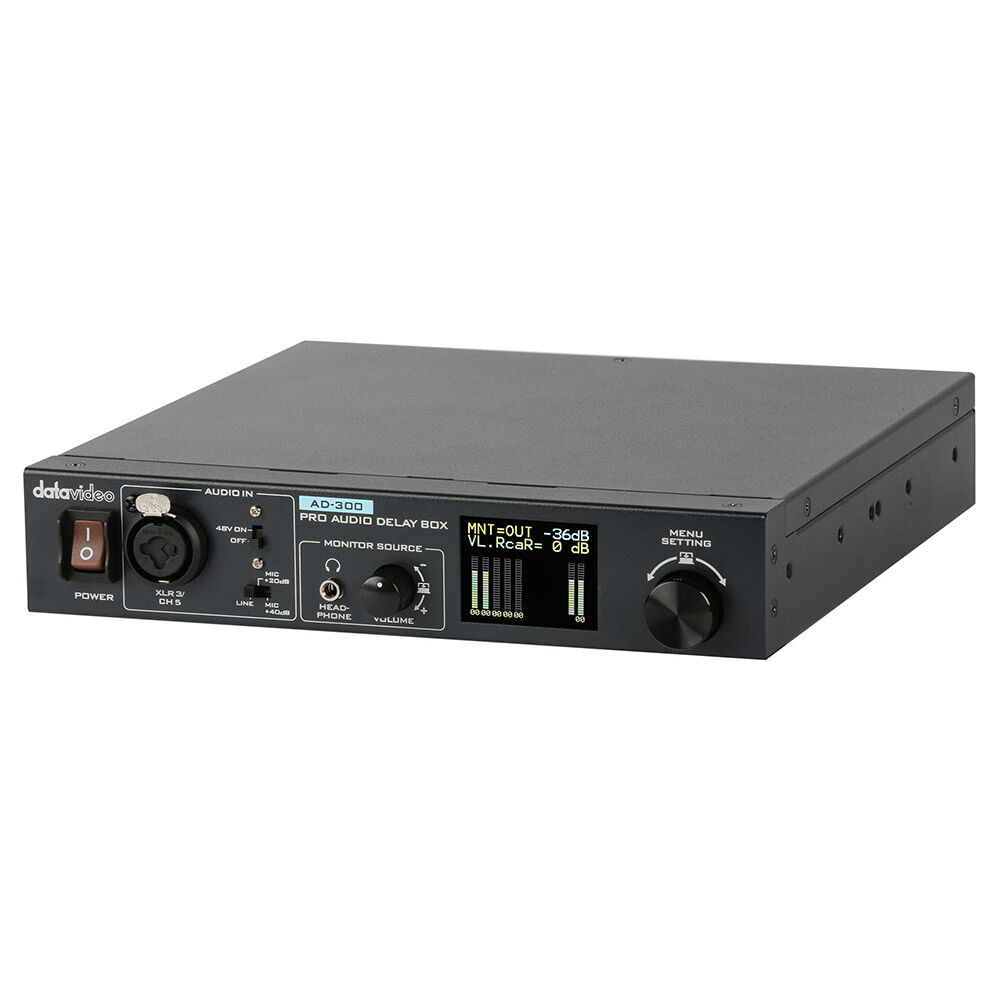

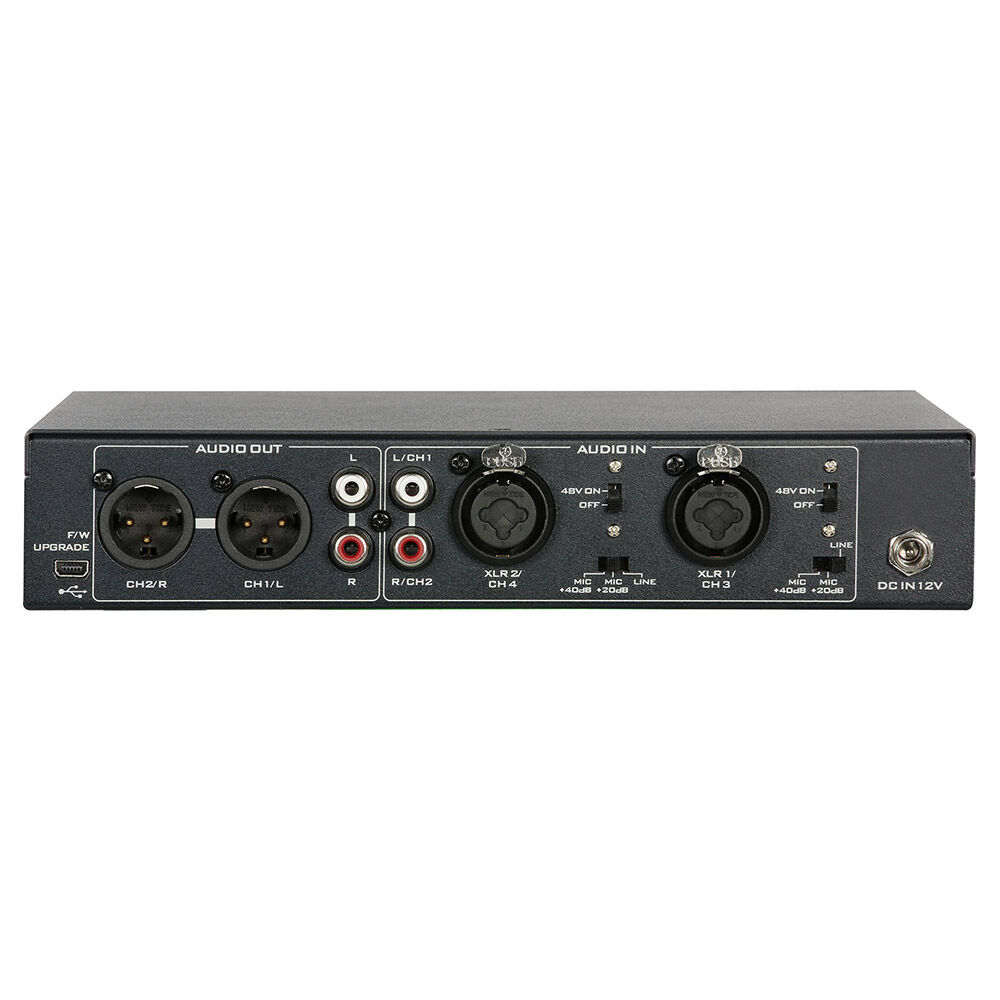

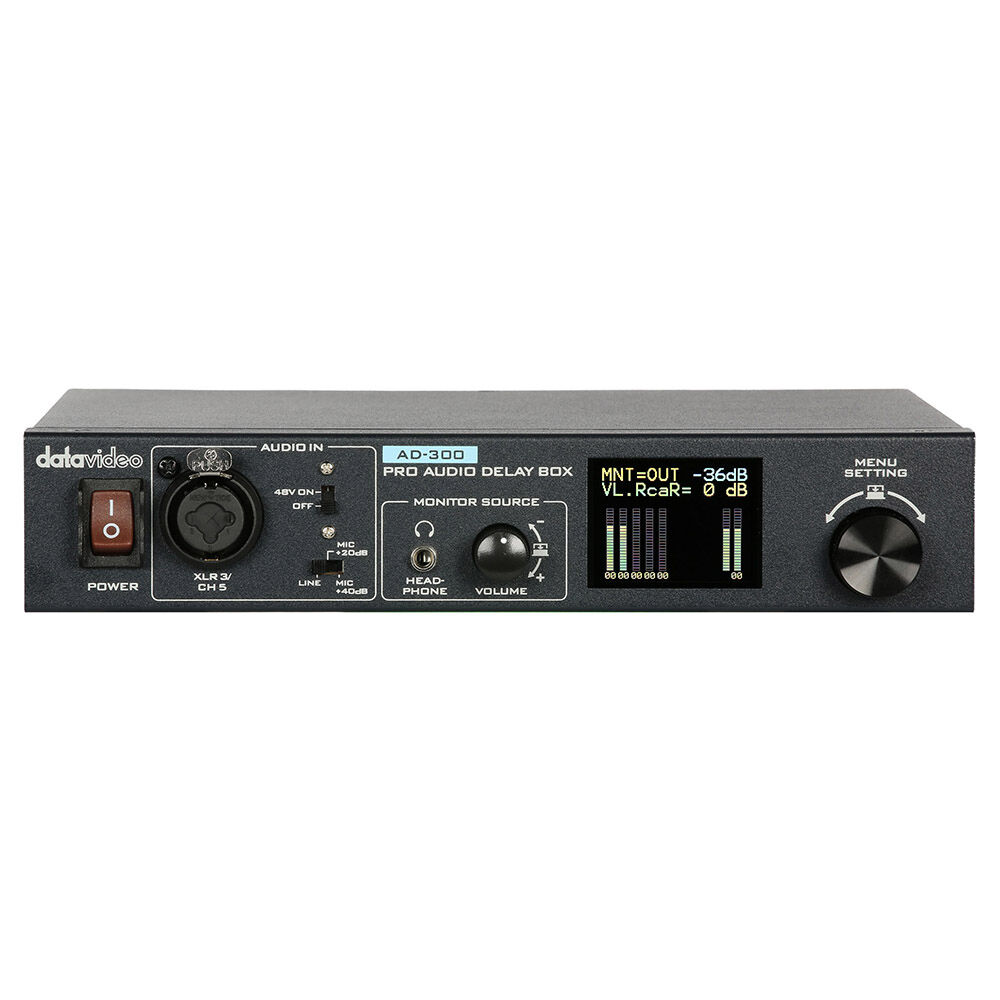

Get multiple audio sources in sync with your video, using the AD-300 Pro Audio Delay Box from Datavideo. This multifunction sound box offers 5 x input channels: a pair of RCAs, a pair of XLR-1/4" combo inputs, and an additional XLR-1/4" input on the front panel. The combo inputs feature mic- and line-level switches along with phantom power switches to provide +48V phantom power for condenser microphones. The unit offers a built-in mixer to route the incoming signals to a pair of stereo outputs with both balanced XLR and RCA connections to choose from. The 3.5mm front-panel headphone jack provides quick monitoring.
Each channel on the AD-300 offers a digital delay adjustable from 0 to 3000 ms, allowing you to get professional synchronization from multiple sources. In addition, each channel offers a compressor, limiter, expander, and gate, allowing you to tame audio levels and reduce noise for more professional-sounding results. High-pass and low-pass filters along with an 8-band EQ on every input provide precise control over frequency content, giving you additional audio-sculpting power.
Technical Specifications:
Display
2" LCD Screen
Audio Input
3 x Combo XLR-1/4" Balanced Mic/Line Inputs
2 x RCA Line Inputs
Audio Output
2 X XLR Balanced Outputs
2 x RCA Outputs
3.5 mm Stereo Headphone Output
2" / 5 cm LCD Screen
Audio Delay
0 to 3000 ms
Audio Sample Rate
48 kHz
Special Features
Compressor
Limiter
Gate
Expander
Filter
EQ
Chassis
Tabletop, Rack-Mountable with RMK-1 Rackmount Kit
Power
12 VDC, 13.8 W
Operating Temperature
32 to 104° / 0 to 40° C
Dimensions
8.1 x 9.3 x 1.8" / 205 x 235 x 45 mm
Weight
2.7 lb / 1.3 kg
