Datavideo TLM-170F 17.3" ScopeView Production Monitor (Desktop)
- 17.3" 1920 x 1080p Backlit LED Display
- Input up to DCI 4K60 Video Signals
- 1 x 12G-SDI & 2 x HDMI 2.0 Inputs
- HDMI/SDI Loop Output & Cross Conversion
- Desktop-Style Monitor, 300 cd/m²
- ±89° Viewing Angle
- Dual-Color LED Tally Light
- Pixel Zoom up to 8x

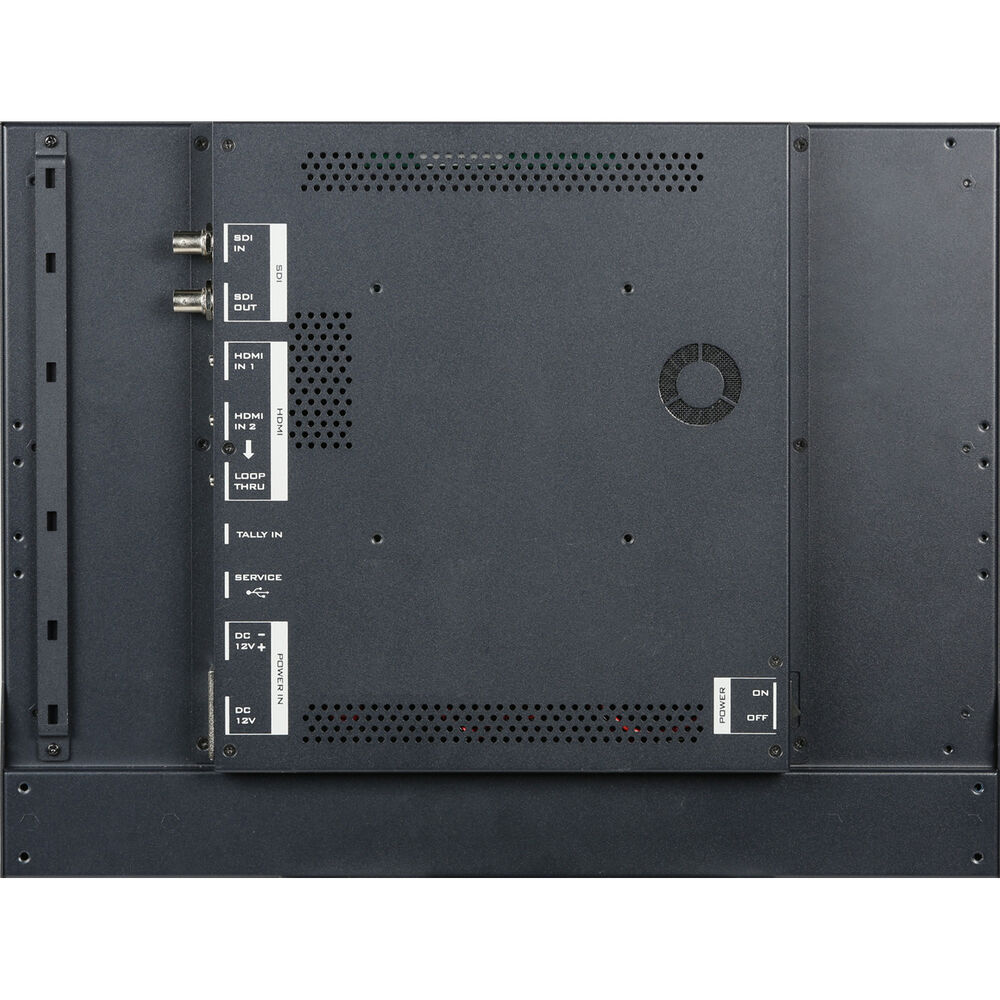

Add a high-quality 1080p display and professional features to your production with the desktop TLM-170F 17.3" ScopeView Production Monitor from Datavideo. The monitor features a 1920 x 1080 resolution display and supports up to DCI 4K60 video via a 12G-SDI input, two HDMI 2.0 inputs, an HDMI output, and an SDI loop-through output. The inputs and outputs also support cross conversion so, for example, you can input via SDI and output to HDMI.

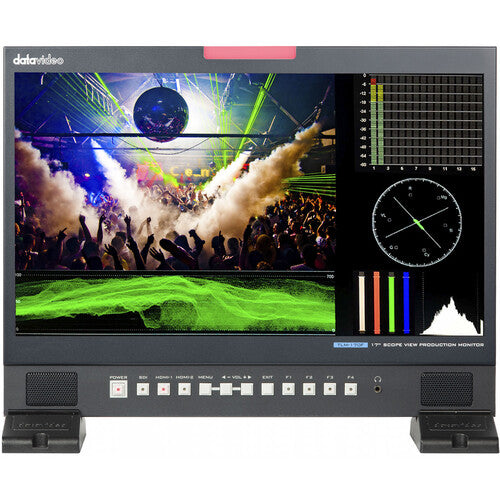

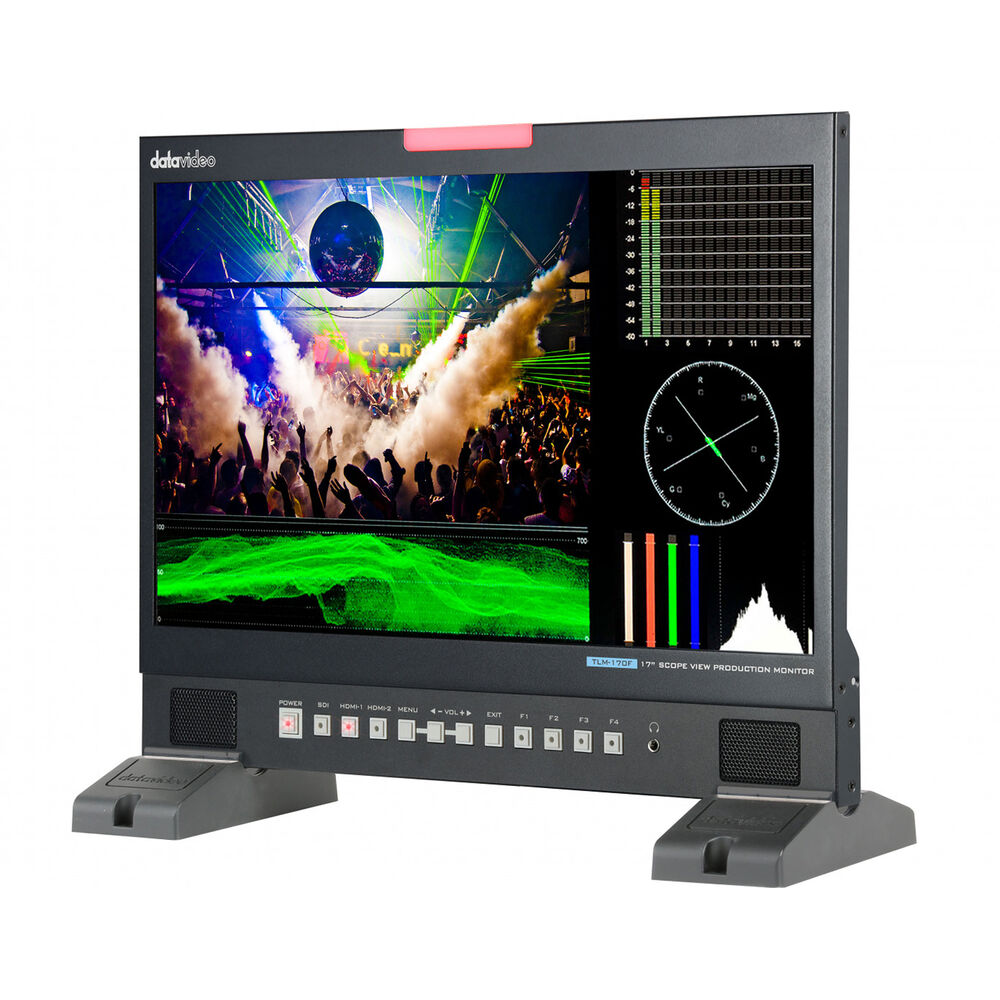

The monitor features a large, dual-color LED tally light on the front at the top, indicating live or cued status, that is controlled using the tally input on the back. The display features a ±89° angle of view, 300 cd/² brightness, a 700:1 contrast ratio, dual speakers, and a headphone jack. Image management features include pixel zoom up to 8x, blue only, markers, underscan, H/V delay, waveform, peaking, false color, image flip, safe frame, and more. The monitor comes with an adjustable, tilting desktop stand.
- 1 x 12G-SDI and 2 x HDMI 2.0 inputs
- 1 x 12G-SDI and 1 x HDMI 2.0 loop-through outputs
- Center marker
- Aspect marker
- Underscan
- Scan: Zoom, aspect, pixel-to-pixel
- Aspect ratio selection
- Freeze image
- Check field
- False color
- Exposure
- H/V delay
- Focus assist
- Histogram
- Waveform
- DSLR (5D2, 5D3)
- Peaking
- Exposure
- RGB parade
- Image flip
- Audio meters
- Color temperature selection
- Gamma correction
- Backlight adjustment
Technical Specifications:
|
Panel Type |
TFT LCD |
|
Display Size |
17.3" / 43.9 cm |
|
Resolution |
1920 x 1080 |
|
Aspect Ratio |
16:9 |
|
Viewing Angle |
Horizontal: 178° (89/89) Vertical: 178° (89/89) |
|
Touchscreen |
No |
|
Maximum Brightness |
300 nits / cd/m2 |
|
Contrast Ratio |
700:1 |
|
HDR Compatibility |
Yes |
|
Pixels Per Inch (ppi) |
129 ppi |
|
Image Controls |
Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
|
Video I/O |
1 x BNC (12G-SDI) Input 2 x HDMI 2.0 Input 1 x BNC (12G-SDI) Loop Output 1 x HDMI 2.0 Loop Output |
|
Embedded Audio |
SDI HDMI |
|
Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output |
|
Built-In Speaker |
2 x 3 W |
|
Power I/O |
1 x XLR 4-Pin (12 VDC) Input 1 x Unspecified 2-Pin (12 VDC) Input |
|
Other I/O |
1 x USB-A (Firmware) Input 1 x 1/8" / 3.5 mm (Tally) Input |
|
Media/Memory Card Slot |
None |
|
Wi-Fi |
None |
|
Bluetooth |
None |
|
App Compatible |
No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
|
Video Format |
SDI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24 1080i: 60/59.94/50 720p: 60/59.94/50 576i 480i HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24 1080i: 60/59.94/50 720p: 60/59.94/50 576i 480i |
|
DC Input Power |
12 VDC at 3 A |
|
Battery Type |
None |
|
Power Consumption |
34.6 W (Maximum) |
|
Operating Temperature |
32 to 72°F / 0 to 40°C |
|
Operating Humidity |
10 to 80% |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
In the Box:
- Datavideo TLM-170F 17.3" ScopeView Production Monitor (Desktop)
- Desktop Stand
- Power Adapter
- Limited 1-Year Manufacturer Warranty
