Datavideo TLM-170VR 17.3" ScopeView Production Monitor (Rackmount, 7 RU)

Rs. 192,340.00 Rs. 185,000.00
On Special Order (Expected shipping: 2-4 weeks)
Key Features:
  • 17.3" 1080p Resolution Display
  • Supports up to 1080p60 Video Signals
  • 1 x 3G/HD/SD-SDI & 2 x HDMI Inputs
  • HDMI/SDI Loop Output & Cross Conversion
  • Rackmount-Style Monitor, 300 cd/m²
  • ±89° Viewing Angle
  • Dual-Color LED Tally Light
  • Pixel Zoom up to 8x

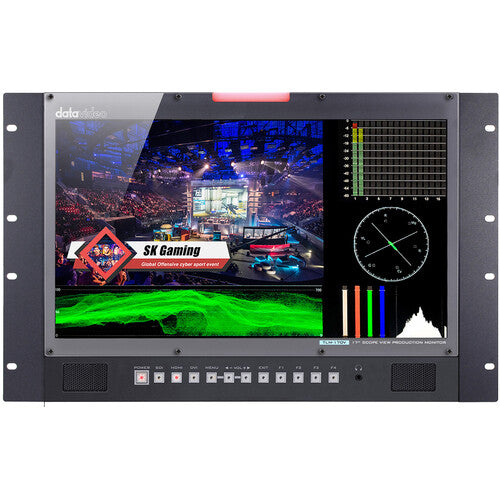

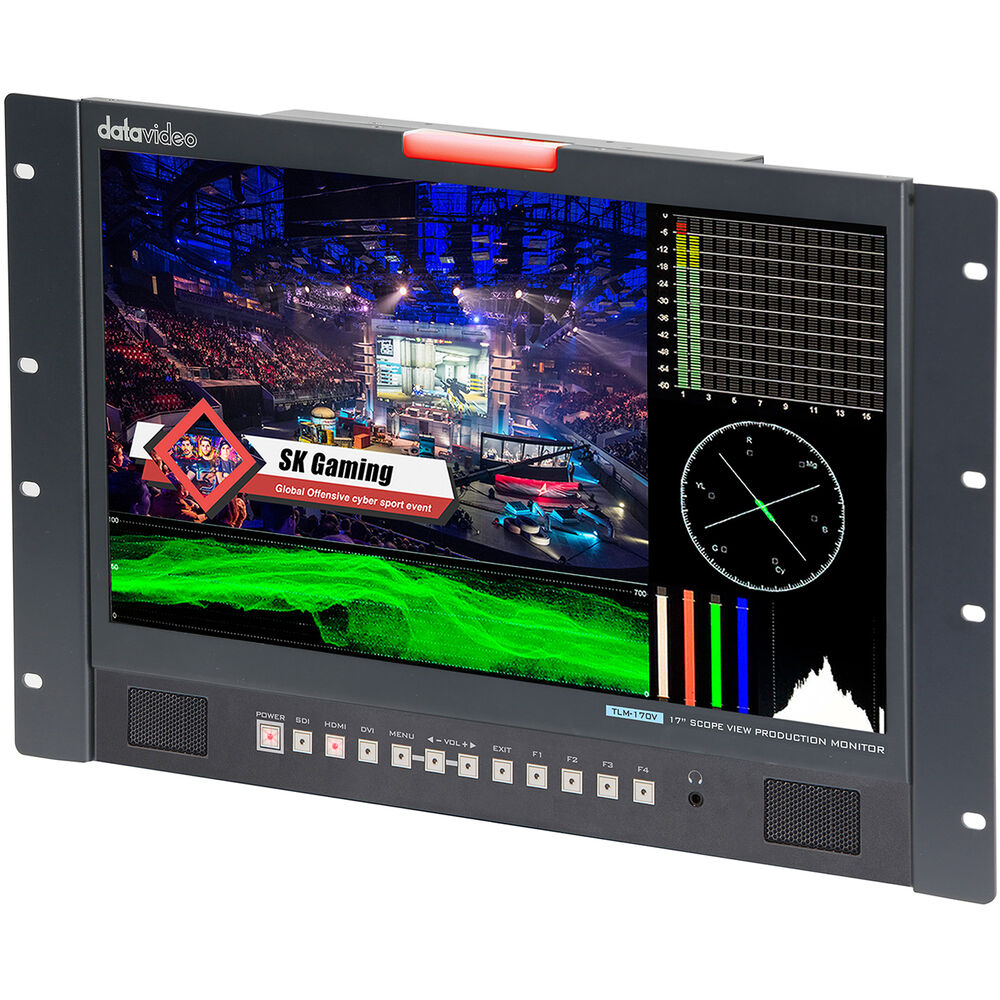

Add a high-quality 1080p display and professional features to your production with the rackmount TLM-170VR 17.3" ScopeView Production Monitor from Datavideo. The monitor features a 1920 x 1080 resolution display and supports up to 1080p60 video via a 3G/HD/SD-SDI input, two HDMI inputs, an HDMI output, and an SDI loop-through output. The inputs and outputs also support cross conversion so, for example, you can input via SDI and output to HDMI.

The monitor features a large, dual-color LED tally light on the front at the top, indicating live or cued status, that is controlled using the tally input on the back. The display features a ±89° angle of view, 300 cd/² brightness, a 700:1 contrast ratio, dual speakers, and a headphone jack. Image management features include pixel zoom up to 8x, blue only, markers, underscan, H/V delay, waveform, peaking, false color, image flip, safe frame, and more. The monitor comes with a 7 RU rack ear kit for rackmount installation.

Key Features
  • 1920 x 1080p IPS Panel Resolution
  • 3G-SDI video input with 3G-SDI loop-through output
  • HDMI video input with HDMI loop-through output
  • SDI/HDMI cross-format conversion
  • Built-in tally with 3.5mm input for live broadcast
  • Brightness, contrast, color saturation, and LED backlight
  • Front panel headphone jack
  • User-defined F1/F2/F3/F4 shortcut keys
  • USB 2.0 firmware upgrade
  • 7 RU rackmount kit included

Image Management Features
  • Center marker
  • Aspect marker
  • Marker color
  • Underscan
  • Scan: Zoom, sspect, pixel-to-pixel
  • Aspect ratio selection
  • Freeze image
  • Check field
  • Focus assist
  • False color
  • Exposure
  • Histogram
  • Waveform
  • H/V delay
  • DSLR (5D2, 5D3)
  • Peaking
  • Exposure
  • RGB parade
  • Image flip
  • Audio meters
  • Color temperature selection
  • Gamma correction
  • Backlight adjustment

Technical Specifications:

Panel Type

TFT LCD

Display Size

17.3" / 43.9 cm

Resolution

1920 x 1080

Aspect Ratio

16:9

Viewing Angle

Horizontal: 178° (89/89)

Vertical: 178° (89/89)

Touchscreen

No

Maximum Brightness

300 nits / cd/m2

Contrast Ratio

700:1

Pixels Per Inch (ppi)

129 ppi

Image Controls

Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

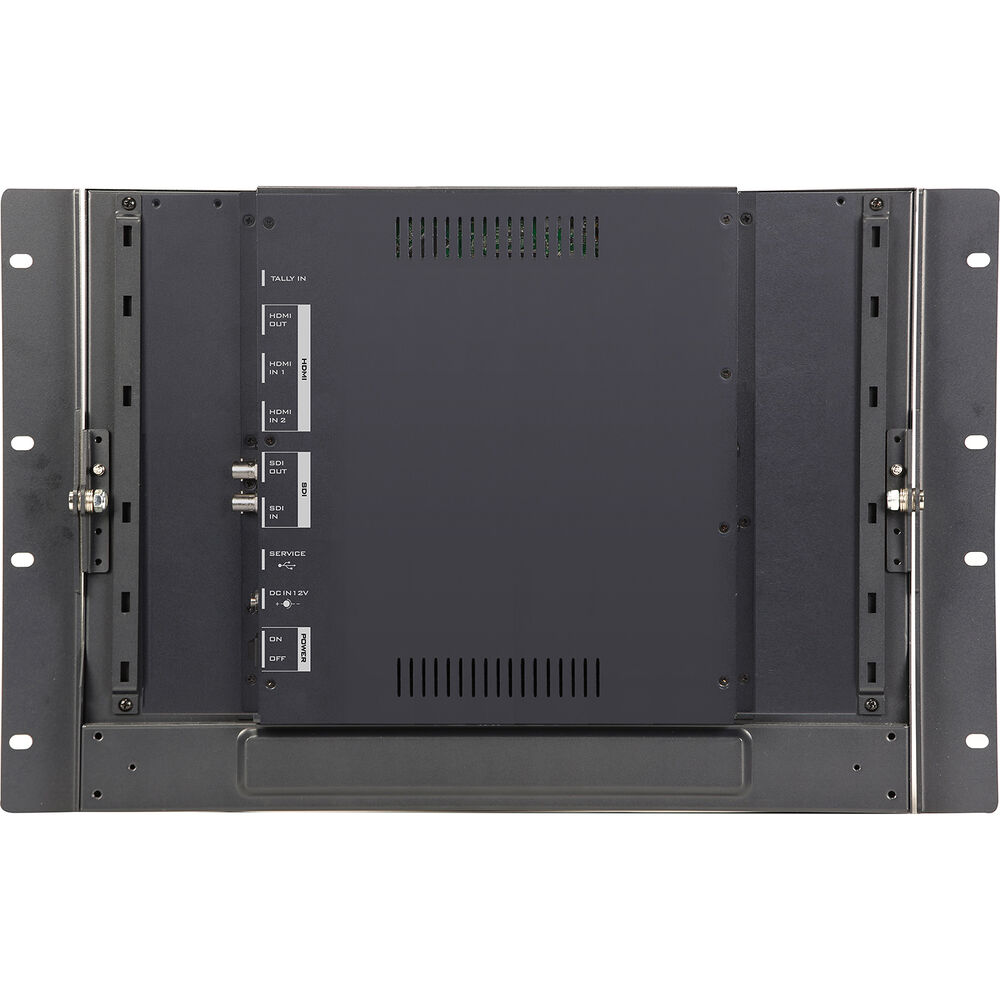

Video I/O

1 x BNC (3G-SDI) Input

2 x HDMI Input

1 x BNC (3G-SDI) Loop Output

1 x HDMI Loop Output

Embedded Audio

SDI

HDMI

Audio I/O

1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

2 x 3 W

Power I/O

1 x Barrel (12 VDC) Input

Other I/O

1 x USB-A 2.0 Input

1 x 1/8" / 3.5 mm (Tally) Input

Media/Memory Card Slot

None

Wi-Fi

None

Video Format

SDI

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 24

1080i: 60/59.94/50

720p: 60/59.94/50

576i

480i

HDMI

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 24

1080i: 60/59.94/50

720p: 60/59.94/50

576i

480i

Video Signal Conversion

HDMI to SDI

1080p: 60

SDI to HDMI

1080p: 60

DC Input Power

10 to 18 VDC

Battery Type

None

Power Consumption

32 W (Maximum)

Rack Form Factor

7 RU

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

10 to 80%



In the Box:

  • Datavideo TLM-170VR 17.3" ScopeView Production Monitor (Rackmount, 7 RU)
  • 7 RU Rackmount Kit
  • Power Adapter
  • Limited 1-Year Warranty
