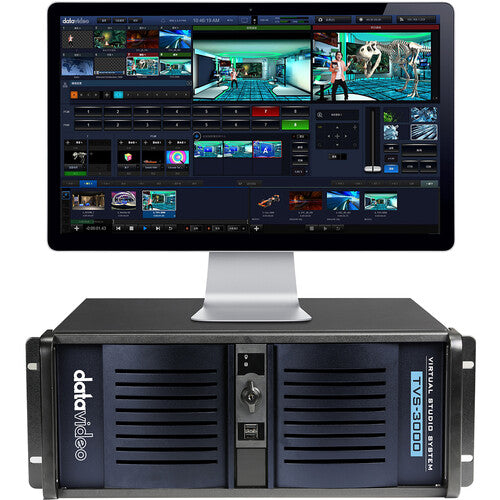

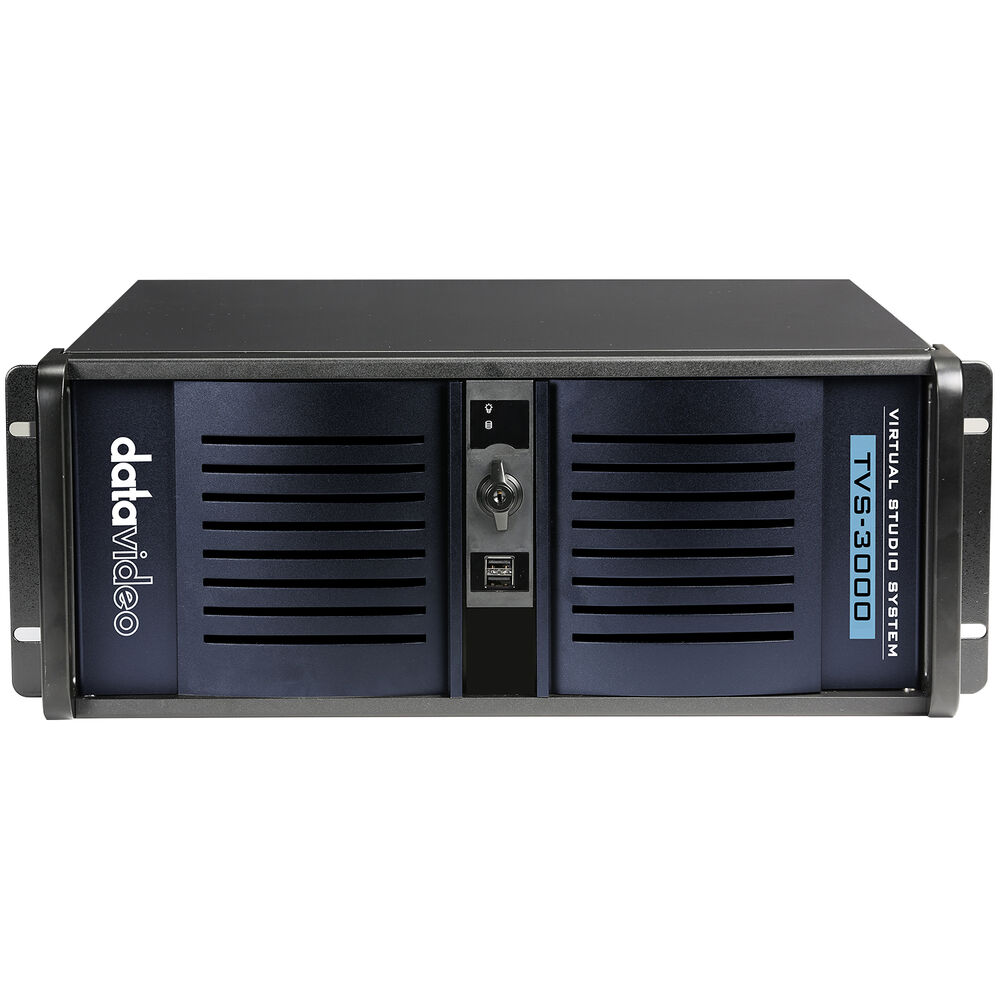

Datavideo TVS-3000 4K AR/VR 3D Tracking Virtual Studio System

Datavideo TVS-3000 4K AR/VR 3D Tracking Virtual Studio System

Name: Datavideo TVS-3000 4K AR/VR 3D Tracking Virtual Studio System
Brand: Datavideo
SKU: TVS-3000
Price: 3300000 INR
Availability: InStock

Rs. 3,410,200.00 Rs. 3,300,000.00

On Special Order (Expected shipping: 2-4 weeks)

Datavideo ⁄ Datavideo TVS-3000 4K AR/VR 3D Tracking Virtual Studio System

Key Features:

UHD 4K Streaming Virtual Studio
8-Channel HD and 2-Channel 4K Input
3 x 3G-SDI Camera Inputs, NDI Support
4 x 3G-SDI Outputs; 1 x HDMI Output
Use HTC Tracker for Inserting AR and 3D
1 x 12G-SDI or 2 x 6G-SDI in 4K Mode
2 x DisplayPort for Monitor

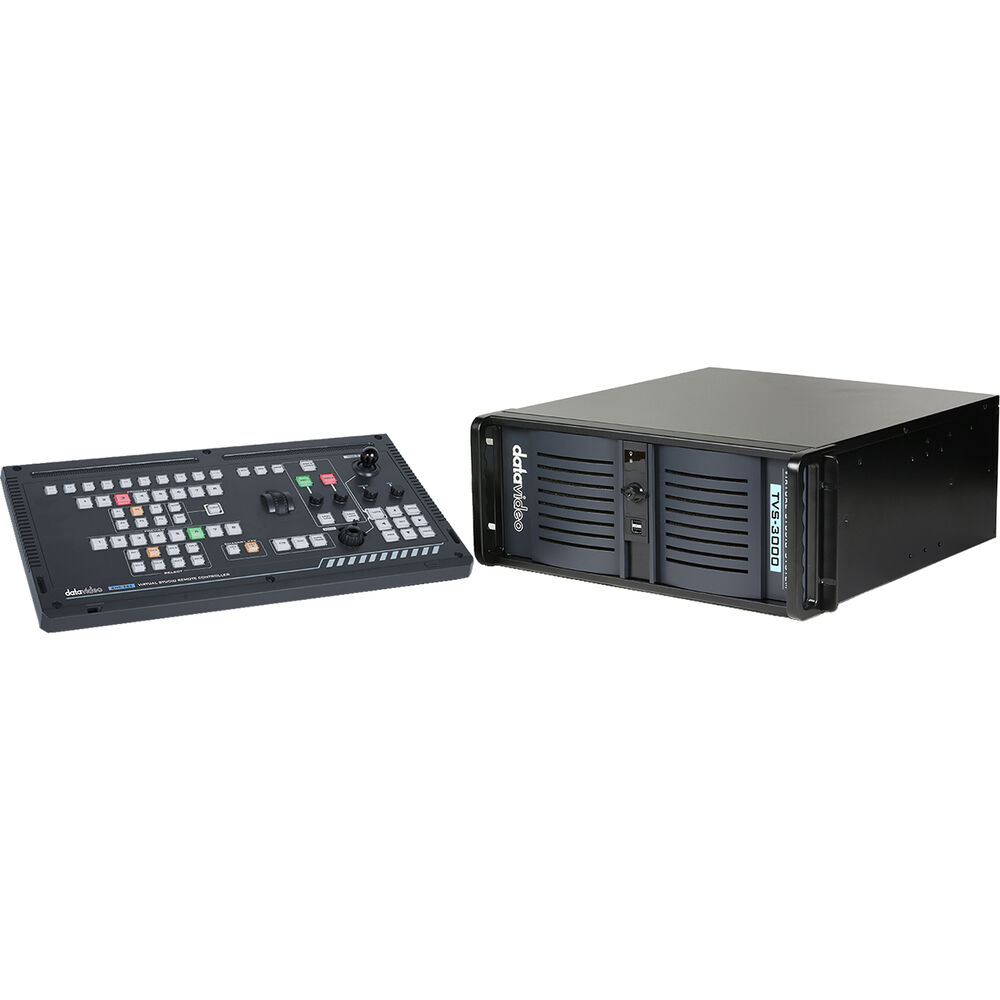

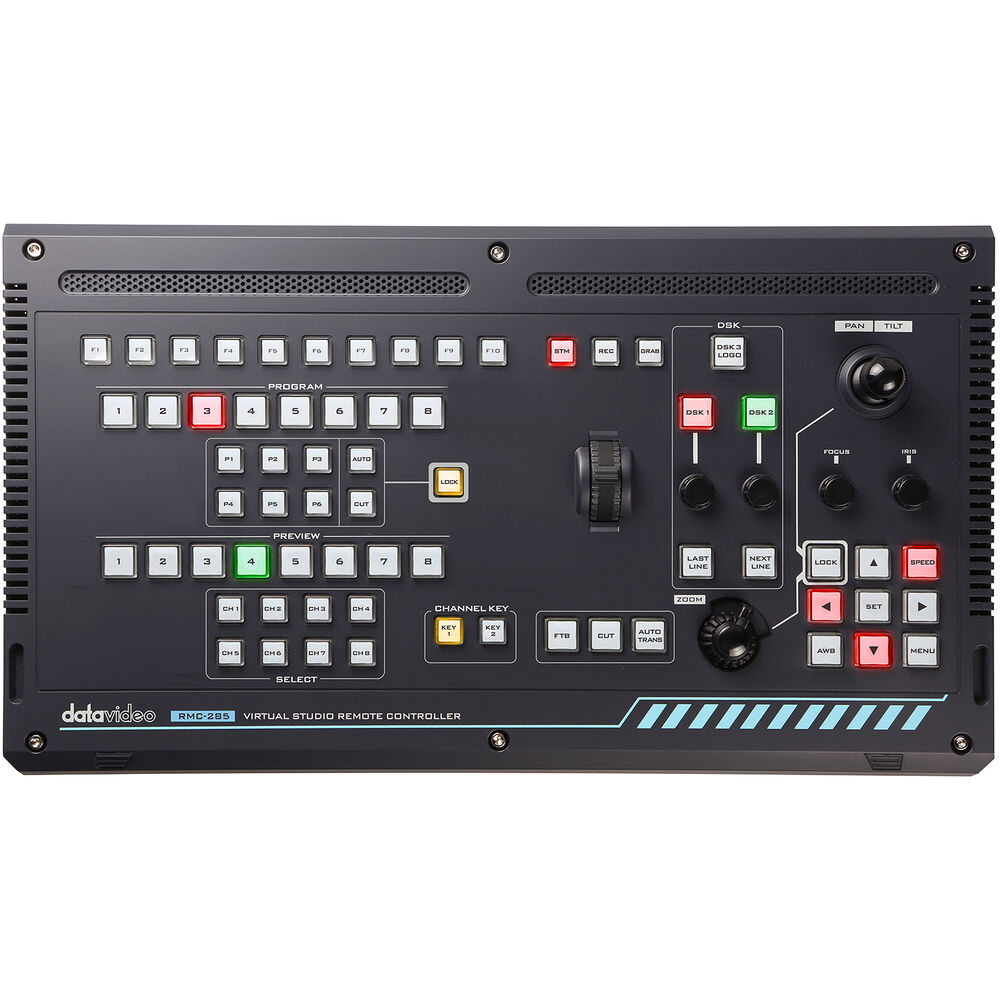

RMC-285 TVS Control Panel Included
10 Virtual Sets, 8-Channel Chroma Key
Can Record H.265/264 and MPEG-2 4:2:2

Add a virtual TV studio to your two-camera set and add graphics, text, and virtual sets to your productions with the TVS-3000 4K AR/VR 3D Tracking Virtual Studio System from Datavideo. The TVS-3000 is a virtual studio that supports up to UHD 4K input and output, 3D VR and AR production, and graphic templates, and it features three 3G-SDI camera inputs, built-in software, NDI streaming, a control panel, DisplayPort monitor output, and 10 built-in virtual sets.

The system offers three 3G-SDI inputs in HD mode and in 4K mode, you can utilize two 6G-SDI inputs or one as a single 12G-SDI input. It features one HDMI 2.0 output for 4K mode, four 3G-SDI and one HDMI output when in HD mode, plus two DisplayPort monitor outputs. You can switch and control the video sources, graphics, keyers, and camera operation using the included RMC-285 control panel.

You can upload still images and two still text overlays via USB inputs, adjust chroma key and luminance for both camera inputs, set quick animations, change content, and add preset or custom virtual sets. You can also utilize optional HTC VR systems and tracking camera cranes using the HTC Tracker software to control your cameras for virtual VR and AR productions.

Key Features:

3D/AR Virtual Tracking System

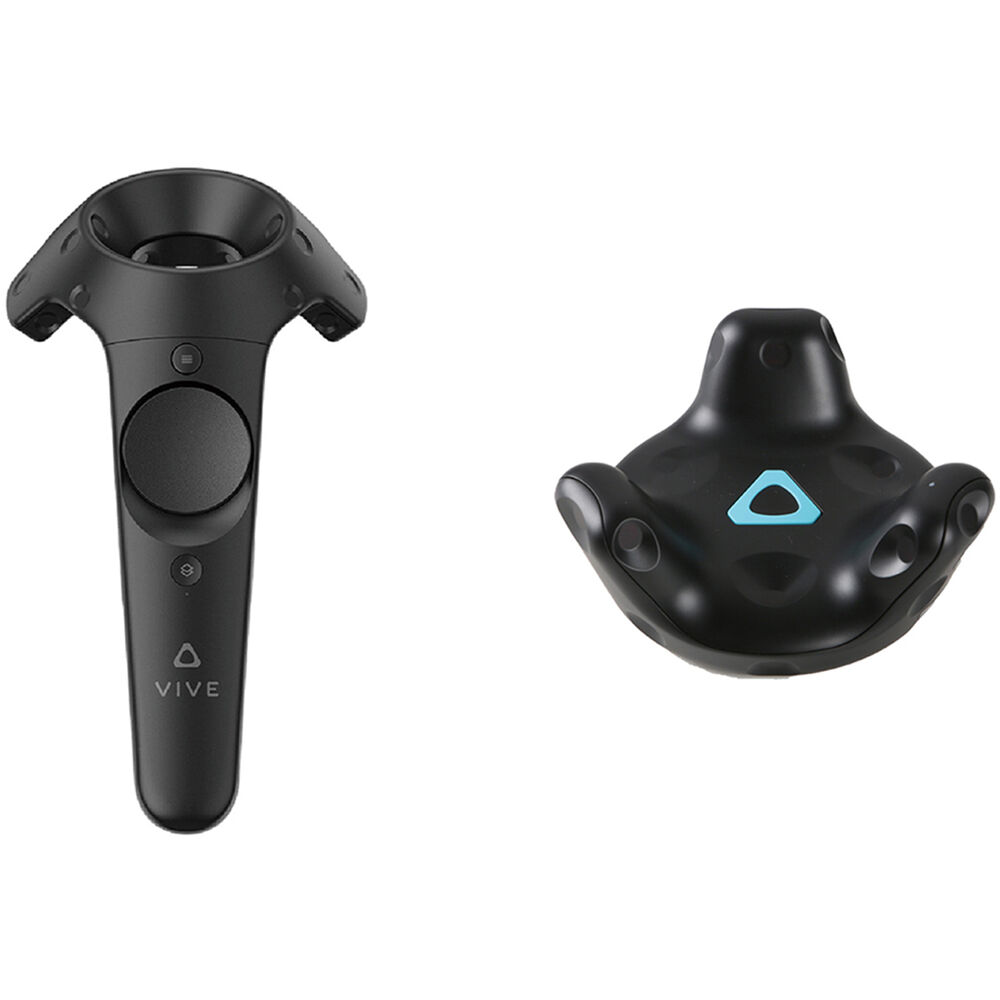

Most virtual studio solutions require expensive designated tracking devices or cranes with built-in encoders. These devices are very expensive and require trained and skilled personnel. TVS-3000 uses optional cost-effective trackers from HTC, which are also being used in VR setups. These tracking devices can be mounted on your regular crane and deliver perfect results while not breaking the bank.

Up to UHD 4K Resolution Input

Supports up to eight channels of full HD or two channels of 4K mixed resolution input signals, unlimited streaming media input signals with multiple video formats, and input signals from DirectShow protocol device to achieve multichannel video switching.

3D tracking with AR technology

The TVS-3000 incorporates the most advanced AR technology into virtual studios. With the HTC Tracker application, it can easily overlay 3D virtual objects into real-scene video, and it also provides interaction with the AR object through real-time positioning.

Optional Smart 3D Tracking Crane

Replace the traditional tracking crane with a low-cost and easy-to-operate advanced 3D tracking crane. The path, panning speed, and shooting time of the camera movement can be adjusted in real time. The user can set up to 42 virtual shots with different 3D positions and angles in the same scene.

NDI Technology

Supports NDI streaming protocol, no need to set an IP address in the intranet transmission. You can simply search for NDI signal sources on your local network and provide two-way transmission. Applied to the TVS-3000, the function can be used to transmit different contents such as the browser interface, PPT, image, and video as the input source in the virtual set or graphic layout, or it can be used to send the live broadcast signal of the program to view from the local network.

Professional Graphic Layout Function

The TVS-3000 supports a built-in graphic layout that combines input signals, video, images, text, and other contents as a complete editing file. You can choose from any image or video as a background and add multiple text content from free subtitle templates.

10 Free Virtual Sets Included

The TVS-3000 comes preinstalled with 20 virtual scenes, with an unlimited amount for download at datavideovirtualset.com. Each scene is designed with four different view angles, making the virtual studio more real and flexible.

System Requirements:

CPU

Intel Core i7 3.5 GHz

GPU

NVIDIA RTX2070 8GB

RAM

16GB DDR4 2133 MHz

Drive Space

System: 500GB SSD

Media: 3.5" HDD, 4TB, 7200 rpm

Operating System

Windows 10 64-bit

Technical Specifications:

Available M/E Layers	3 M/E
Effect Types	1 x Graphic 8 x Chroma Key
Downstream Keys	3 x Chroma
Switching Type	Software
Processing Resolution	UHD 4K at 60
Number of Video Input Sources	2
Video Input Connectors	3 x BNC (12G-SDI / 3G-SDI / 6G-SDI) Female
Input Video Format	SDI UHD 4K at 25/30/50/60 fps 1080p 25/30 fps 1080i 50/60 fps 720p 25/30/50/60 fps
Audio Input Connectors	1 x 1/8" / 3.5 mm TRS Analog Female
Input Audio Format	Analog
Embedded Audio Input	SDI: 2-Channel (per Input)
Video Output Channels	5
Video Output Connectors	4 x BNC (3G-SDI) Female 1 x HDMI (HDMI 2.0) Female (Preview)
Output Video Format	SDI UHD 4K at 25/30/50/60 fps 1080p 25/30 fps 1080i 50/60 fps 720p 25/30/50/60 fps HDMI UHD 4K at 25/30/50/60 fps 1080i 25/30/50/60 fps 720p 25/30/50/60 fps
Embedded Audio Output	SDI: 2-Channel (per Output)
Multiview Output	Yes
Monitor Output	2 x DisplayPort
Other I/O	1 x RJ45 LAN Input/Output 2 x USB Type-A Control Input (Shared USB 2.0 Keyboard/Mouse) 2 x USB Type-A Input (Shared USB 3.0 Adapter/Extensions)
HDCP Support	None
IP Video	H.264/MPEG-2: 1280 x 720 to 1920 x 1080 at 60p Encoding
Transport Protocols	RTMP, RTMPS, RTP, RTSP, UDP, HTTP
Simultaneous Streams	2 Streams
Recording Media	1 x 2.5" SSD (External Drives)
Internal Storage	4000 GB
Wi-Fi	Yes
Power Connector	1 x NEMA 5-15R Input
Power Consumption	Power Supply: 100 to 240 VAC (750 W)
Operating Temperature	32 to 104°F / 0 to 40°C
