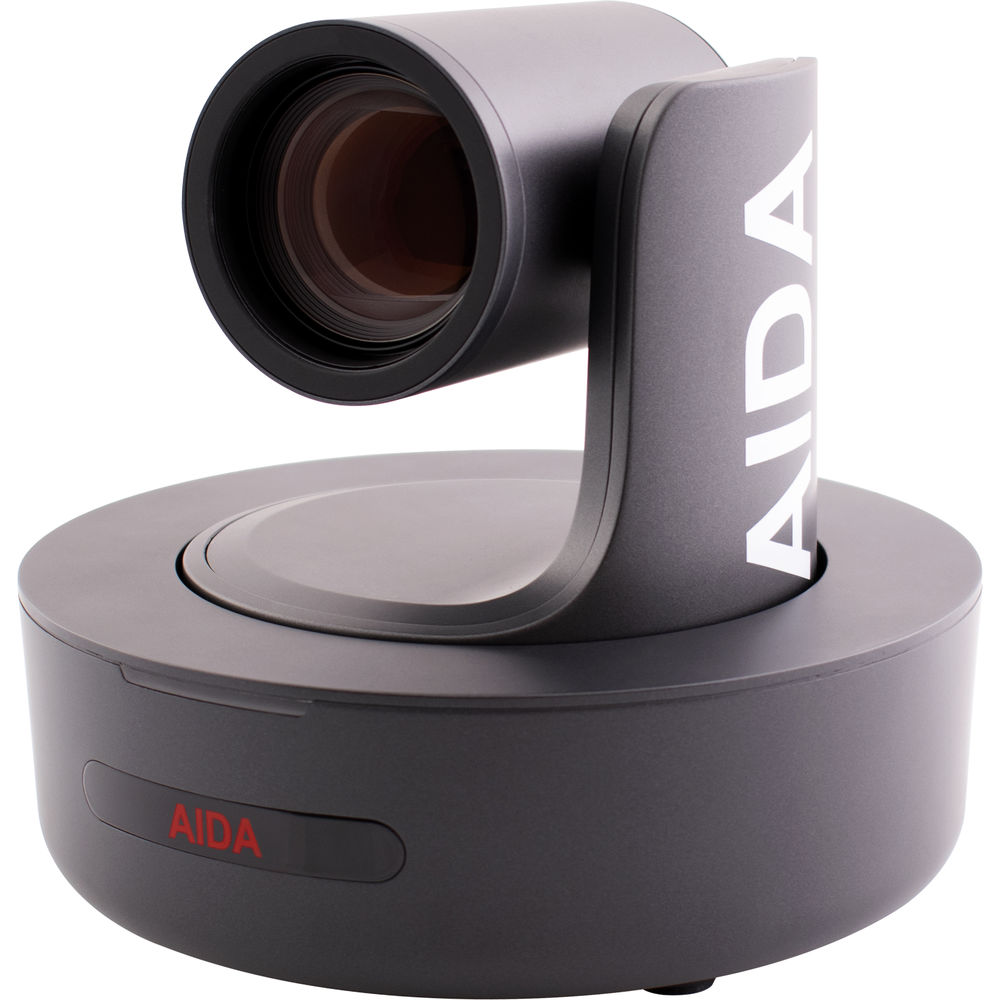

AIDA Imaging 20x Full HD IP Broadcast PTZ Camera
- Simultaneous SDI, HDMI, USB, IP Outputs
- RS-232 I/O, VISCA, TCP/IP, RTSP/RTMP
- Up to 128 Presets over Serial Control
- Motion-Compensated Noise Reduction
AIDA's 20x Full HD IP Broadcast PTZ Camera offers four simultaneous video outputs, all supporting up to 1080p60 resolution. While the SDI, HDMI, and USB outputs must be set at the same resolution, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps.
The camera features RS-232 input/output for serial control. It uses the VISCA control protocol and TCP/IP and RTSP/RTMP IP protocol. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.
- Simultaneous SDI, HDMI, USB, and IP outputs
- Up to 1080p60 resolution video output
- H.264 / H.265 streaming
- RS-232 input/output
- VISCA control protocol
- TCP/IP, RTSP/RTMP IP protocol
- 10 presets via included IR remote controller, 128 presets over serial control
- Motion-compensated temporal noise reduction filter allows for noise reduction without blur
- SMPTE 424M/292M standard
- Built-in OSD controls
- 4:2:2 (YCbCr) 10-bit color space
- White Balance: auto, manual, auto tracking, one push, indoor, outdoor
- Auto shutter speed
Technical Specifications:
|
Image Sensor |
1/2.8"-Type CMOS |
|
Built-In ND Filter |
None |
|
Focus Control |
Autofocus Manual Focus |
|
Shutter Type |
Electronic Rolling Shutter |
|
Shutter Speed |
1/10000 to 1 Second |
|
Minimum Illumination |
0.1 Lux |
|
Flip / Mirror Support |
Image Flip, Mirror (Vertical) |
|
White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors |
|
Focal Length |
5.2 to 98mm |
|
Optical Zoom Ratio |
20x |
|
Field of View |
57 to 3.3° |
|
Maximum Aperture |
f/1.5 to 3 |
|
External Recording Modes |
SDI/BNC / HDMI / USB 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps RJ45 1920 x 1080 1280 x 720 1024 x 576 620 x 360 |
|
Broadcast Output |
NTSC |
|
IP Streaming |
H.264, H.265, NDI, ONVIF, RTMP, RTSP, SRT 1920 x 1080 at 60p 1280 x 720 at 60p 1024 x 576 at 60p 620 x 360 at 60p |
|
Presets |
10 via IR 128 via RS-232, VISCA |
|
Move Speed |
Pan: 0 to 120°/sec Tilt: 0 to 80°/sec |
|
Movement Range |
Pan: 340° Tilt: 120° (-30 to 90°) |
|
Supported Control Protocols |
IR RS-232 VISCA |
|

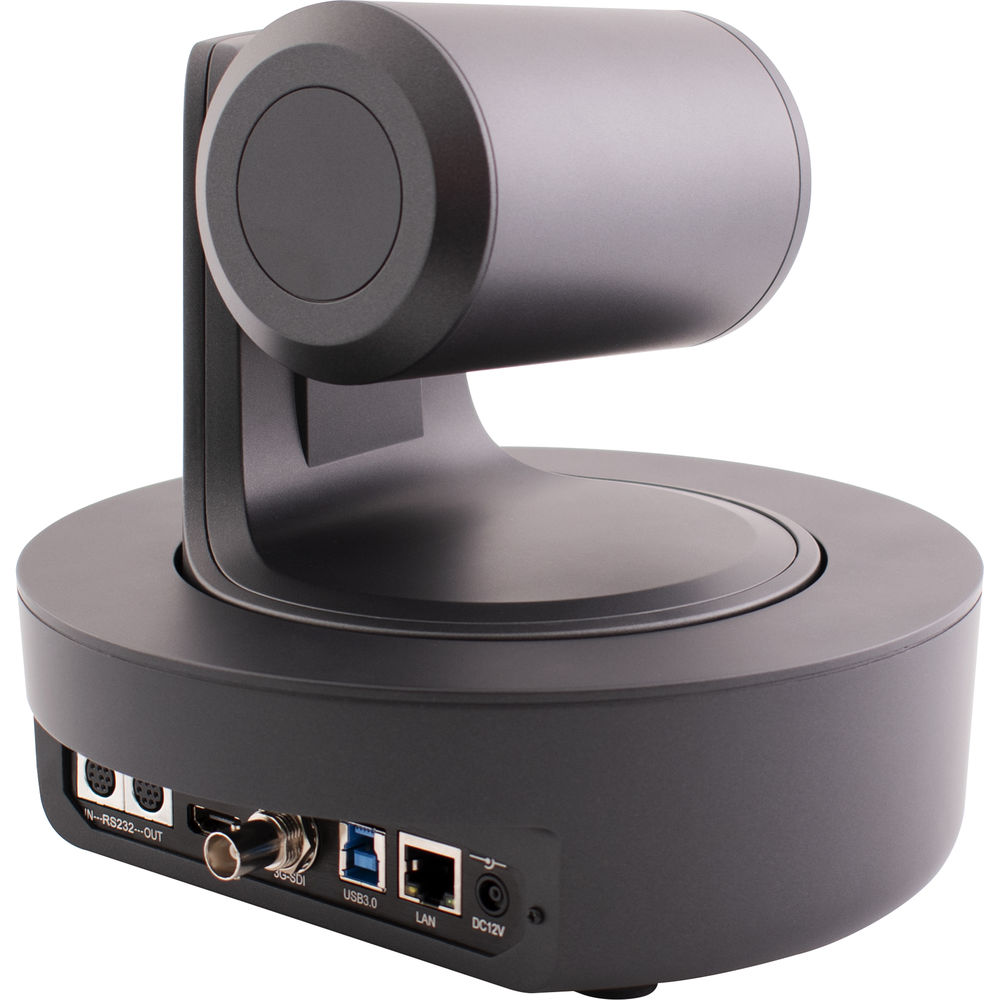

Video I/O |
1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1 x RJ45 Output |
|
Other I/O |
1 x Mini-DIN 8-Pin (RS-232, VISCA) Input 1 x Mini-DIN 8-Pin (RS-232, VISCA) Output |
|
PoE Support |
PoE+ 802.3at |
|
Power I/O |
1 x Barrel (9 to 15VDC) Input |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
In the Box:
- AIDA Imaging 20x Full HD IP Broadcast PTZ Camera
- Remote Controller
- Mounting Bracket
- USB 3.0 Cable
- Power Adapter
- Power Cord
- Limited 2-Year Manufacturer Warranty
