AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera

AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera

Name: AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera
Brand: AVMATRIX
SKU: PTZ1271-30X-POE
Price: 90299 INR
Availability: InStock

Rs. 90,299.00

- +

AVMATRIX ⁄ AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera

Key Features:

1/2.8" HD CMOS Sensor
30x Optical Zoom, 10x Digital Zoom
HDMI & 3G-SDI Video Output, PoE Power
Streaming Protocols: RTSP, RTMP, SRT
RS-232/RS-485 Serial Control
Onvif, VISCA over IP, VISCA, PELCO-D/P
Tripod & Optional Wall/Ceiling Mounting

Add a powerful PTZ camera setup with HD video capture to your production with this PTZ1271-30X-POE Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-30X-POE also supports VISCA, PELCO-D, and PELCO-P control protocols.

The integrated f/1.6 to 4.7 lens offers 30x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.

Features

HDMI, 3G-SDI, and LAN video outputs
Supports up to 1080p video via HDMI and 3G-SDI
Built-in f/1.6 to 4.7 aperture lens with 30x optical and 10x digital zoom
Select up to 255 presets; up to 10 via included remote controller
A 1/4"-20 thread on the camera bottom can be used for mounting on a tripod, and an optional wall/ceiling mounting bracket is available

Technical Specifications:

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel
Built-In ND Filter	No
Focus Control	Autofocus
Signal-to-Noise Ratio	55 dB
Flip / Mirror Support	Image Flip
White Balance	3000 to 7000K
Focal Length	4.3 to 129mm
Optical Zoom Ratio	30x
Max Digital Zoom	10x
Field of View	65.1 to 2.34°
Maximum Aperture	f/1.6 to 4.7
External Recording Modes	SDI/BNC / HDMI 1920 x 1080p
Broadcast Output	NTSC
IP Streaming	RTMP, RTSP, SRT 1920 x 1080
Presets	255
Move Speed	Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
Supported Control Protocols	Pelco-D Pelco-P VISCA

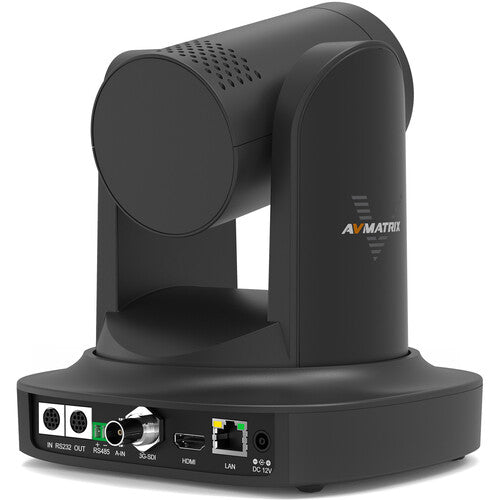

Video I/O	1x BNC (3G-SDI) Output 1x HDMI Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O	1x RJ45 (LAN) 1x Mini-DIN 8-Pin (RS-232) Input 1x Mini-DIN 8-Pin (RS-232) Output 1x Block (RS-485) Input
PoE Support	PoE 802.3af
Power I/O	1x Barrel Input
Power Consumption	Device: 12 VDC at 1 A (12 W)
Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	14 to 140°F / -10 to 60°C
Operating Humidity	20 to 80% ()
Storage Humidity	20 to 95% (Non-Condensing)
Mounting	1x 1/4"-20 Female for Tripod
Dimensions (W x H x D)	6.7 x 7.1 x 6.7" / 170 x 180.31 x 170 mm
Weight	2.76 lb / 1.25 kg
