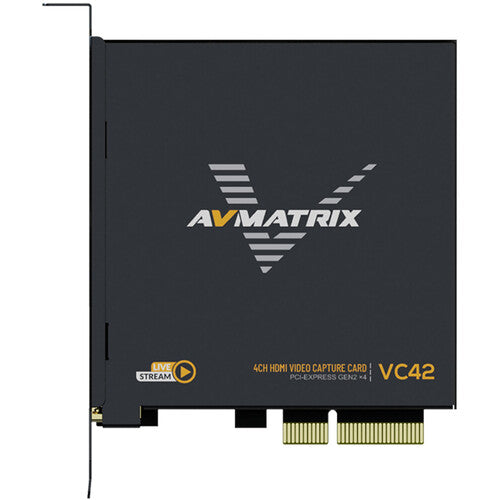

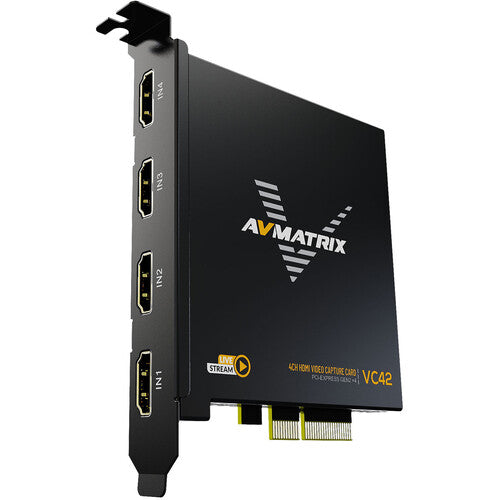

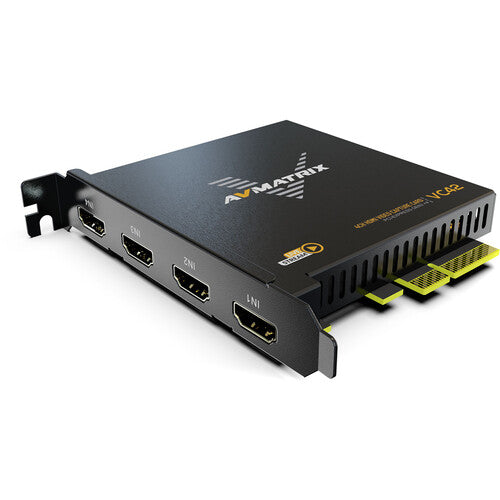

AVMATRIX VC42 1080p HDMI PCIe 4-Channel Capture Card

AVMATRIX VC42 1080p HDMI PCIe 4-Channel Capture Card

Name: AVMATRIX VC42 1080p HDMI PCIe 4-Channel Capture Card
Brand: AVMATRIX
SKU: VC42
Price: 28399 INR
Availability: InStock

Rs. 28,399.00

- +

AVMATRIX ⁄ AVMATRIX VC42 1080p HDMI PCIe 4-Channel Capture Card

Key Features:

PCIe 2.0x4 Interface
4 x HDMI Input
Supports up to 1080p60 Video
Simultaneously Stream and Capture
YUY2 Uncompressed Video
For Windows and Linux OS

Simultaneously livestream and capture your gameplay or content creation using this VC42 1080p HDMI PCIe 4-Channel Capture Card from AVMATRIX with its four HDMI inputs. The PCIe 2.0x4 interface supports up to 1080p60 YUY2 uncompressed video for a high-quality picture.

The image integrity is further preserved thanks to the 1080i hardware deinterlacing and 3D noise reduction algorithm. Compatible with Windows and Linux operating systems, the card is capable of recording to applications like OBS and Teams and livestreaming the captured video to major platforms.

High Bandwidth and Ultralow Latency

The PCIe 2.0 interface has 2.5GB/s transmission bandwidth for faster data transfer speed in gaming and livestream applications, bringing uncompressed and ultralow latency to the streaming experience.

24-Hours of Non-Stop Work

The card has a thick gold-plated interface for more stable contact and transmission to work continuously for a long period of time.

Portrait and Landscape Modes

Supports portrait and landscape modes for various social media livestream scenarios.

Compatibility

Windows 7 and Linux 18.04 operating systems and above are supported by the card. Streaming and recording via OBS, Teams, Twitch, and other platforms is also supported for broadcast to major livestreaming platforms like YouTube and Facebook via the network.

Technical Specifications:

System Connection	PCIe 2.0 x4

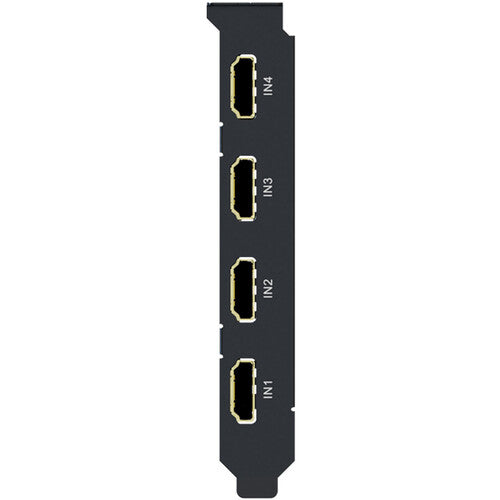

Video Inputs	4 x HDMI (HDMI 1.4) Female
Audio Inputs	No
Simultaneous Multi-Input Support	Yes: 4 Simultaneous Inputs
Input Video Format	HDMI 1080p 60 fps
Input Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Output Video Format	HDMI 1080p 25/30/50/59.94/60 fps UXGA (1600 x 1200) 60 fps HD+ (1600 x 900) 60 fps WXGA+ (1440 x 900) 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps 1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 30/60 fps 576p 30/60 fps 480p 30/60 fps
Output Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Embedded Audio	HDMI
OS Compatibility	Windows 7 or Later Linux 18.4 or Later * Check with manufacturer for the most up-to-date compatibility
Power Consumption	Device: 2 W
Operating Temperature	32 to 140°F / 0 to 60°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	5 to 90% (Non-Condensing)
