Belden 50 Ohm Wireless Transmission Coax RG-58 20 AWG Cable (8259)

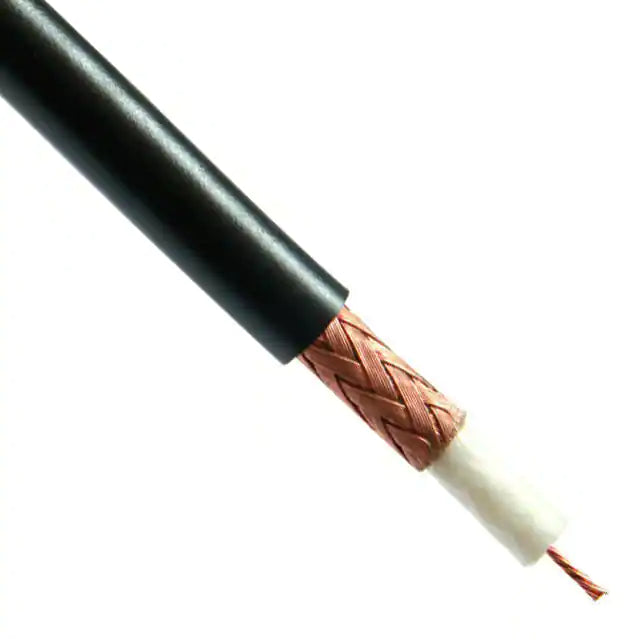

50 Ohm Wireless Transmission Coax, RG-58, 20 AWG (19x33) Tinned Copper Conductor , PE Insulation, 95% Tinned Copper Braid Shield, PVC Jacket
Technical Specifications:
|
Suitable Applications |
Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|
|
|
|
RG Type |
58 |
|
|
|
|
CONDUCTOR |
|
|
Size |
20 AWG |
|
Stranding |
19x33 |
|
Nom. Diameter |
0.035 in |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene |
|
Nom. Insulation Diameter |
0.117 in (2.97 mm) |
|
|
|
|
OUTER SHIELD |
|
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Coverage |
95% |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.193 in (4.90 mm) |
|
Overall Cable Diameter (Nominal) |
0.193 in (4.90 mm) |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation |
|
1 MHz |
0.4 dB/100ft |
|
10 MHz |
1.5 dB/100ft |
|
50 MHz |
3.7 dB/100ft |
|
100 MHz |
5.4 dB/100ft |
|
200 MHz |
8.1 dB/100ft |
|
400 MHz |
12.4 dB/100ft |
|
700 MHz |
17.7 dB/100ft |
|
900 MHz |
21.1 dB/100ft |
|
1000 MHz |
22.8 dB/100ft |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
9.7 Ohm/1000ft (32 Ohm/km) |
|
Nom. Outer Shield DCR |
3.8 Ohm/1000ft (12 Ohm/km) |
|
Nom. Capacitance Cond-to-Shield |
30.8 pF/ft (101 pF/m) |
|
Nom. Characteristic Impedance |
50 Ohm |
|
Nom. Velocity of Prop. |
66% |
|
|
|
|
VOLTAGE |
|
|
Voltage Rating |
1900 V |
|
|
|
|
TEMPERATURE |
|
|
Operating |
-30°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
1.9 in |
|
Max. Pull Tension |
39 lbs (18 kg) |
|
Bulk Cable Weight |
25 lbs/1000ft |
