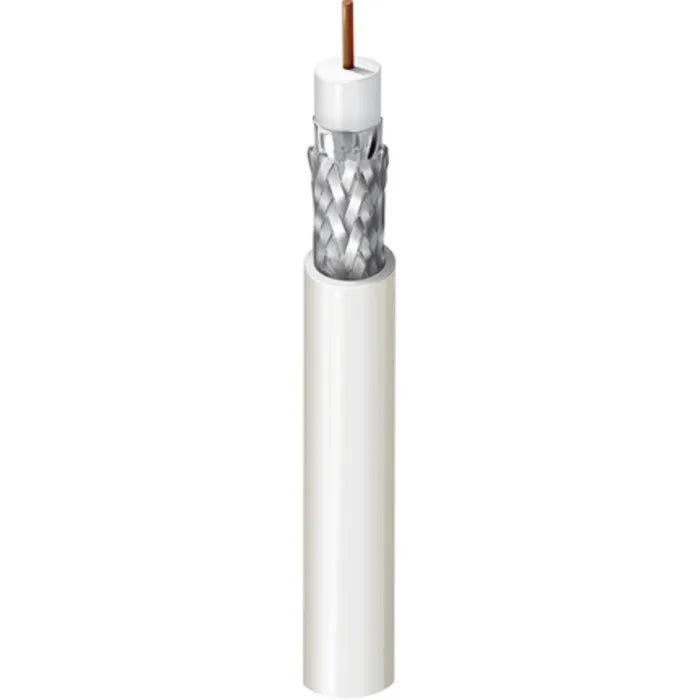

Belden 75 Ohm SDI Coax Mini RG-59 22 AWG (1855ENH, Violet)

Rs. 12,000.00



75 Ohm SDI Coax, Mini RG-59, 22 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 90% Tinned Copper Braid Shield, LSZH Jacket, Dca. IEC 60332-1-2.

Technical Specifications:

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p; Cable is UV-resistant and suitable for indoor and outdoor use

RG Type

Mini 59



CONDUCTOR


Number of Element

1

Size

22 AWG

Stranding

Solid

Nom. Diameter

0.65 mm

Material

BC - Bare Copper



INSULATION


Element

Insulated Conductor

Material

PE - Polyethylene (Foam)

Nom. Insulation Diameter

2.9 mm (0.11 in)



OUTER SHIELD


Layer

1

Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Coverage

100%



Layer

2

Outer Shield Type

Braid

Material

Tinned Copper (TC)

Coverage

90%



OUTER JACKET


Material

LSZH - Low Smoke Zero Halogen (Flame Retardant)

Nom. Diameter

4.45 mm

Table Notes

According to EN 50290-2-20



ATTENUATION


Frequency

Nom. Attenuation

1 MHz

1.7 dB/100m

3.6 MHz

2.5 dB/100m

5 MHz

2.8 dB/100m

6 MHz

3 dB/100m

7 MHz

3.2 dB/100m

10 MHz

3.7 dB/100m

12 MHz

4 dB/100m

25 MHz

5.4 dB/100m

67.5 MHz

8.3 dB/100m

71.5 MHz

8.6 dB/100m

88.5 MHz

9.5 dB/100m

100 MHz

10 dB/100m

135 MHz

11.5 dB/100m

143 MHz

11.9 dB/100m

180 MHz

13.2 dB/100m

270 MHz

16.1 dB/100m

360 MHz

18.6 dB/100m

540 MHz

22.8 dB/100m

720 MHz

26.4 dB/100m

750 MHz

26.9 dB/100m

1000 MHz

31.3 dB/100m

1500 MHz

38.7 dB/100m

2000 MHz

45 dB/100m

2250 MHz

48 dB/100m

2500 MHz

50.8 dB/100m

3000 MHz

56.1 dB/100m

4000 MHz

65.7 dB/100m

4500 MHz

70.2 dB/100m



ELECTRICALS


Max. Conductor DCR

55 Ohm/km (17 Ohm/1000ft)

Nom. Capacitance Cond-to-Shield

53 pF/m (16 pF/ft)

Nom. Characteristic Impedance

75 Ohm

Nom. Velocity of Prop.

84%



TRANSFER IMPEDANCE


Frequency

5-30 MHz

Max. Transfer Impedance

Max. 15 mOhm/m



SCREENING


Frequency

Min. Screening Attenuation

30 - 1000 MHz

85 dB

1000 - 2000 MHz

-

2000 - 3000 MHz

-

3000 - 4500 MHz

-

Screening Class

B



Voltage Rating

75 V DC



TEMPERATURE


Operating

-30°C To +70°C

Installation

-5°C To +50°C

Storage

-30°C To +70°C



BEND RADIUS


Stationary Min.

45 mm (1.8 in)

Max. Pull Tension

160 N (36 lbf)
