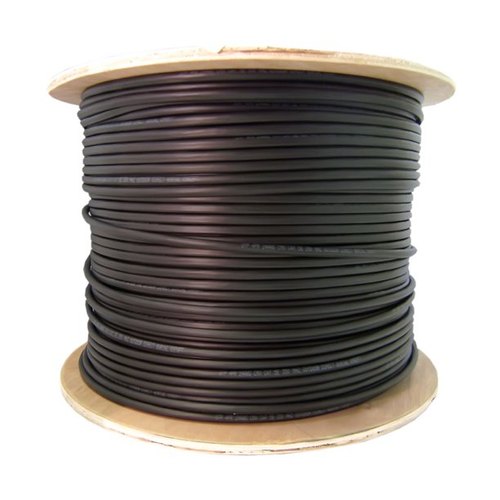

Belden 75 Ohm SDI Coax RG-11 14 AWG Cable (7731A)

Rs. 35,000.00

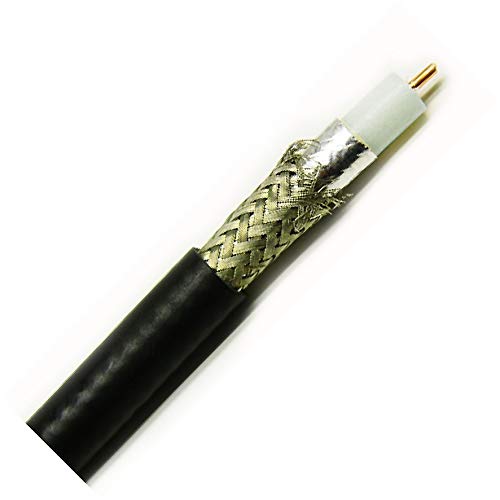

75 Ohm SDI Coax, RG-11, 14 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR

Technical Specifications:

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p



RG Type

11



CONDUCTOR


Size

14 AWG

Stranding

Solid

Nom. Diameter

0.064 in

Material

BC - Bare Copper



INSULATION


Material

PE - Polyethylene (Foam)

Nom. Insulation Diameter

0.280 in (7.11 mm)



OUTER SHIELD


Layer

1

Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duofoil

Coverage

100%



Layer

2

Outer Shield Type

Braid

Material

Tinned Copper (TC)

Material Trade Name

-

Coverage

95%



OUTER JACKET


Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.400 in (10.2 mm)

Overall Cable Diameter (Nominal)

0.400 in (10.2 mm)



RETURN LOSS


Frequency

Min. Return Loss

5 - 1600 MHz

23 dB

1600 - 4500 MHz

21 dB

4500 - 6000 MHz

15 dB



ATTENUATION


Frequency

Nom. Attenuation

1 MHz

0.16 dB/100ft

3.58 MHz

0.29 dB/100ft

5 MHz

0.34 dB/100ft

7 MHz

0.39 dB/100ft

10 MHz

0.46 dB/100ft

67.5 MHz

1.05 dB/100ft

71.5 MHz

1.09 dB/100ft

88.5 MHz

1.21 dB/100ft

100 MHz

1.28 dB/100ft

135 MHz

1.47 dB/100ft

143 MHz

1.51 dB/100ft

180 MHz

1.69 dB/100ft

270 MHz

1.97 dB/100ft

360 MHz

2.31 dB/100ft

540 MHz

2.87 dB/100ft

720 MHz

3.40 dB/100ft

750 MHz

3.45 dB/100ft

1000 MHz

3.60 dB/100ft

1000 MHz

4.12 dB/100ft

1500 MHz

5.10 dB/100ft

2000 MHz

6.04 dB/100ft

2250 MHz

6.43 dB/100ft

3000 MHz

7.63 dB/100ft

4500 MHz

9.56 dB/100ft

6000 MHz

11.53 dB/100ft



ELECTRICALS


Nom. Conductor DCR

2.5 Ohm/1000ft (8.2 Ohm/km)

Nom. Outer Shield DCR

1.5 Ohm/1000ft (4.9 Ohm/km)

Nom. Capacitance Cond-to-Shield

16.1 pF/ft (52.8 pF/m)

Nom. Characteristic Impedance

75 Ohm

Nom. Velocity of Prop.

84%



UL Voltage Rating

300 V (CMR, CMG)



TEMPERATURE


UL Temperature

60°C

Operating

-20°C to +75°C



BEND RADIUS


Installation Min.

4 in

Max. Pull Tension

145 lbs (65.8 kg)

Bulk Cable Weight

87 lbs/1000ft
